• Description

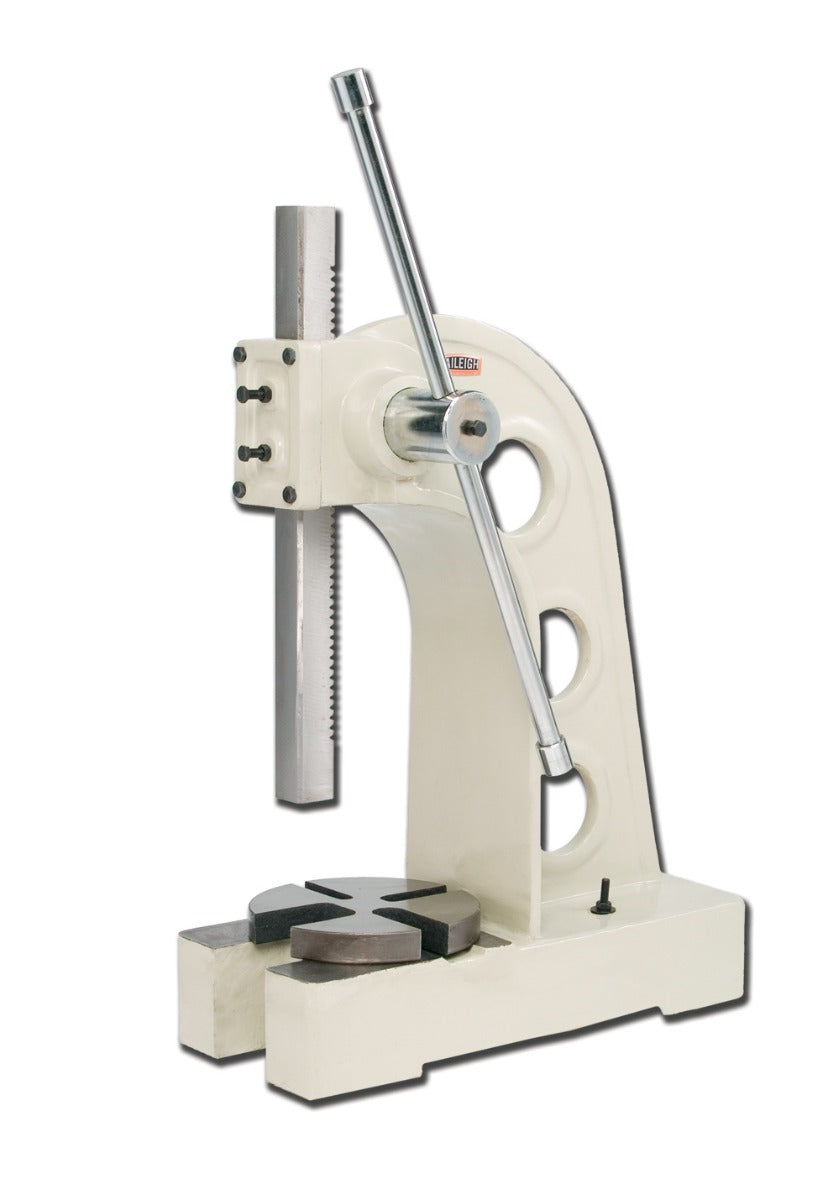

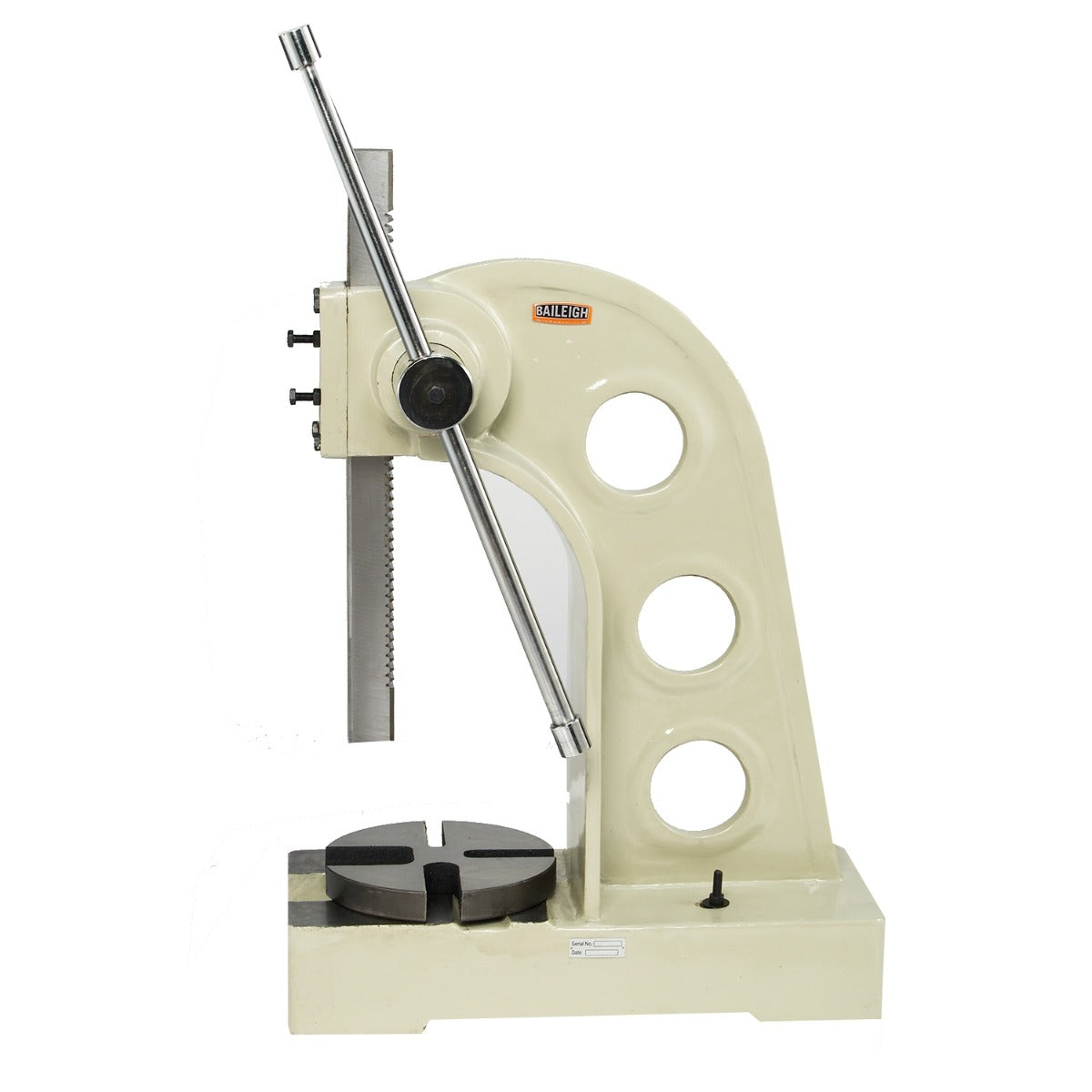

1000264, Baileigh AP-3R-5 Ton Ratcheting Arbor Press

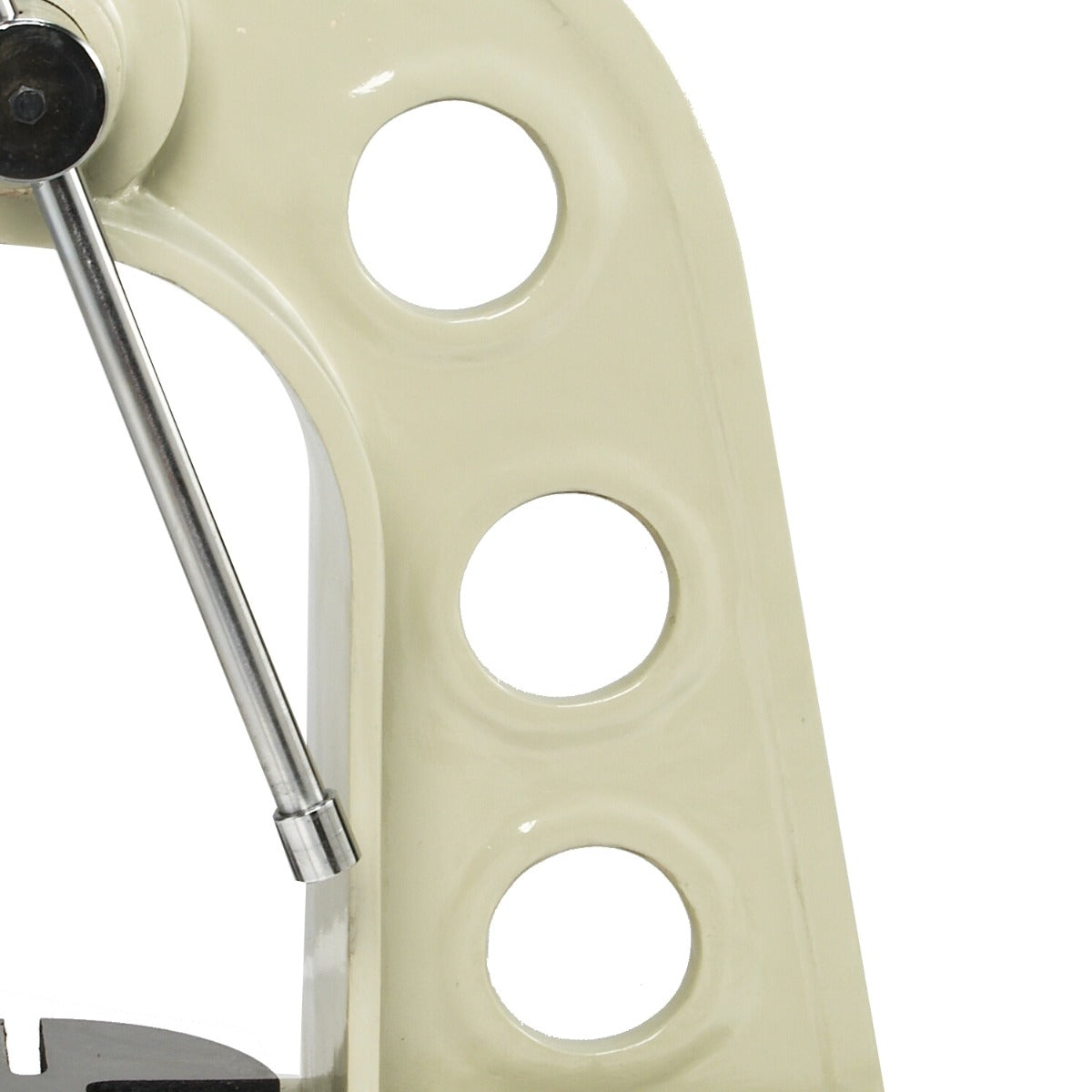

We engineered the AP-5 manual arbor press to produce up to 5.6 tons of force and last for decades. A machined cast iron housing framework gives this manual sheet metal-forming press its “muscle” and increases its durability.

Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.



Features:

  • Has a throat depth of 8.89” and accepts material up to 17.5” high.
  • Thick 2” x 2” case-hardened ram transfers pressure without flex for maximum accuracy.

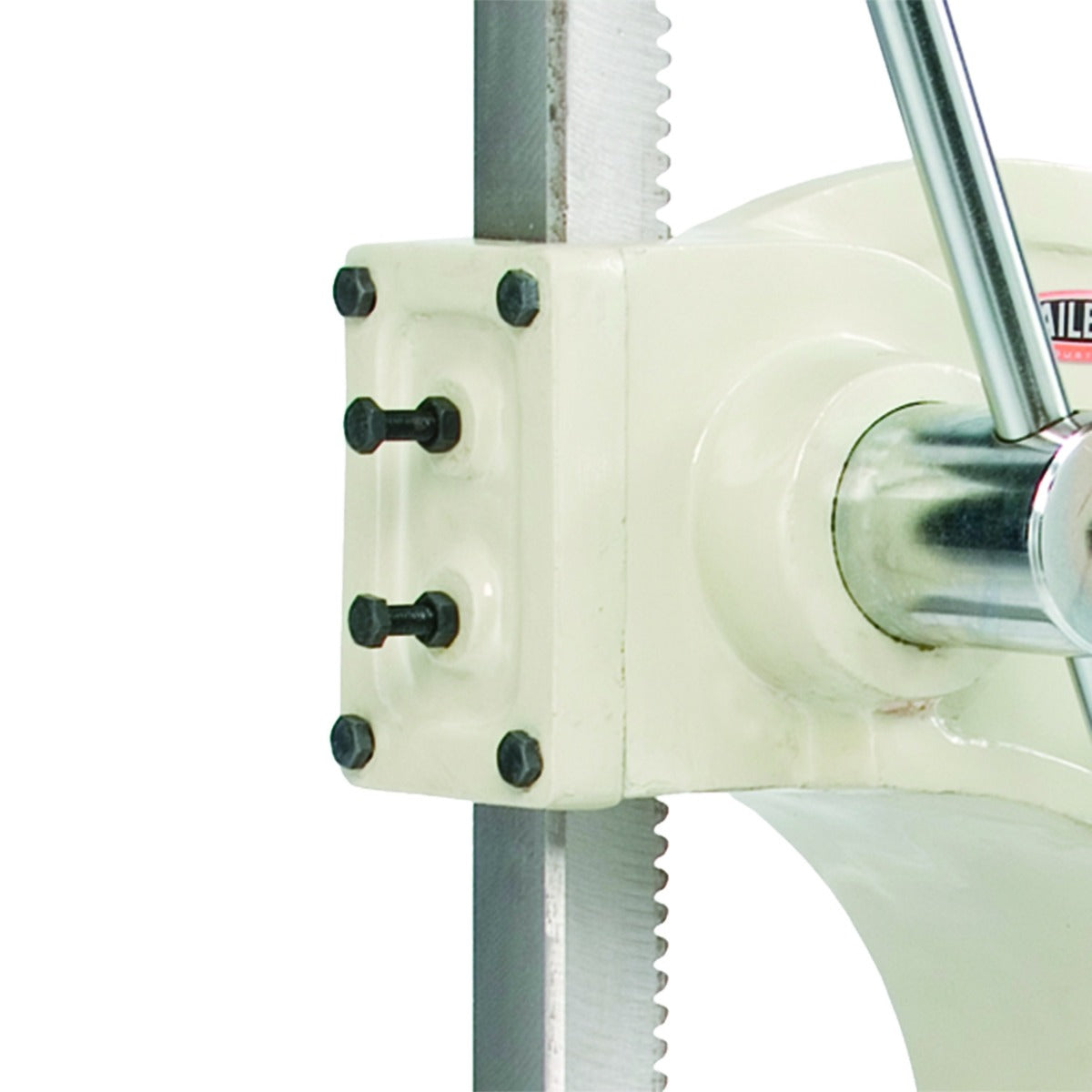

  • Adjustable ram cap allows for gap adjustment of ram.
  • 31” adjustable, single-leverage handle multiplies your force to produce strain-free pressure.
  • Sturdy 2.375" pivot shaft supports smooth, powerful ram movement.

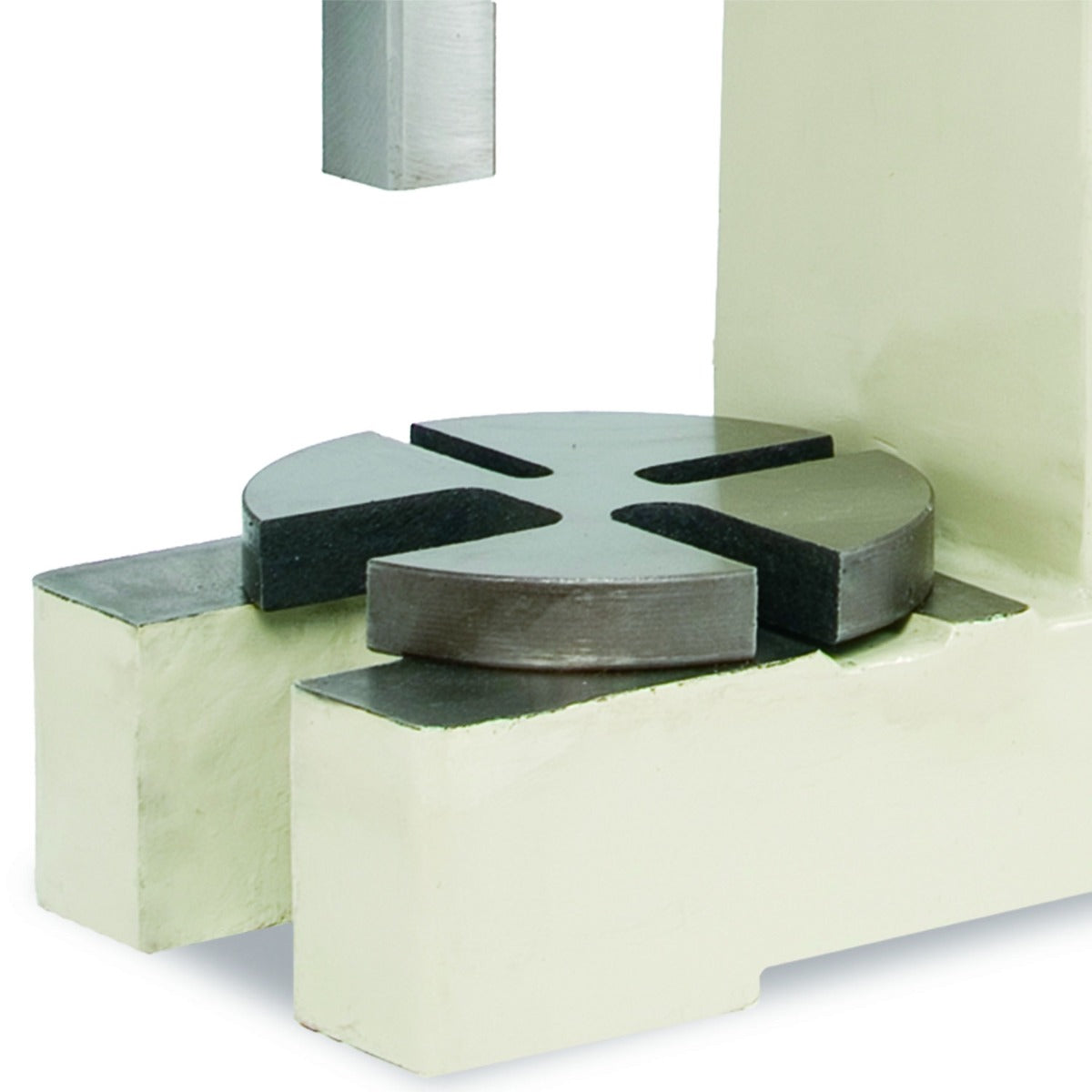

  • Includes a durable 4-position bottom die plate to secure various broach sizes.
  • You can remove the bottom plate to press items directly on the AP-5’s framework.
  • Can be pedestal- or bench-mounted.
  • Typically kept in stock for immediate shipment.
  • The AP-5 Baileigh arbor press is covered by a 1-year warranty and lifetime technical support.



Specifications:

  • Item Number: AP-5
  • Ram Size: 2" x 2"
  • Throat Depth: 8.89"
  • Maximum Material Height: 15.75"
  • Capacity: 5.6 tons
  • Maximum Arbor Height: 2.75"
  • Power: Manual
  • Shipping Weight: 400lbs
  • Ram Travel Per Revolution: 8.5"
  • Shipping Dimensions (Inches): 48x45x43
