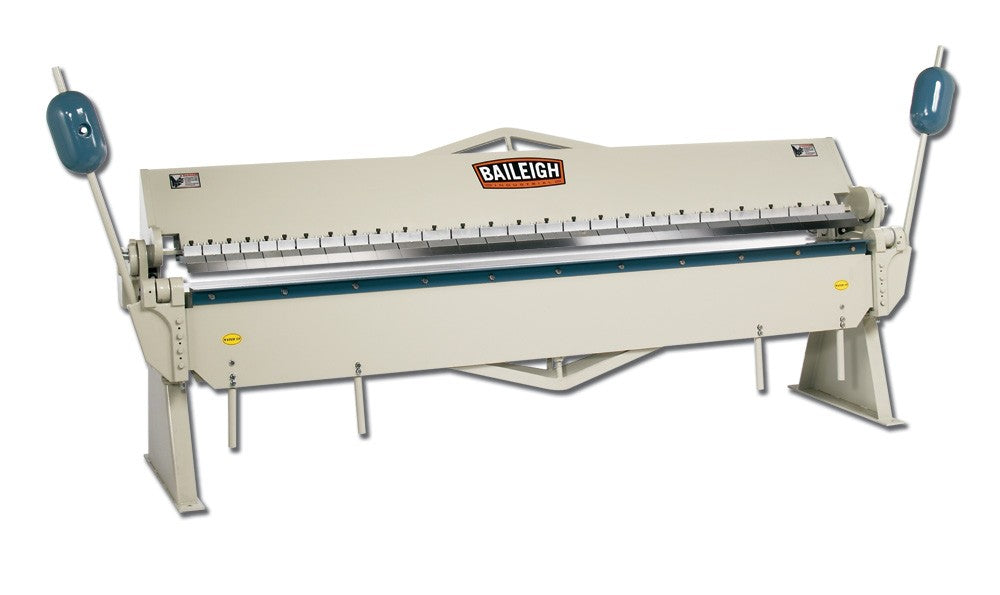

Baileigh Heavy Duty Manually Operated Box and Pan Brake, 10' Length, 14 Gauge Mild Steel Capacity 1000361

Supported by a welded steel frame, this box brake can bend metal along its 10-foot width without twisting. You can bend 4 x 8 sheets at 45°, perfect for adding a stiffening rib to support long duct pieces.

Features:

• Maximum capacity of 14 gauge mild steel and 18 gauge stainless steel.
• 10-foot (120”) length enables your shop to take on a wide range of projects.
• Bends up to 135°.
• 26 fingers of varying sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6") allow you to bend boxes and pans up to 6” deep.
• You can set up the individual hardened fingers for straight bending or box and pan configurations.
• Apron shafts ride in precise oilable bearings, maintaining tight bend tolerances and minimizing operator fatigue.
• 2 massive counterweights make it easy to bend at maximum capacity and reduce physical strain.
• Heavy-duty truss rods support the apron to reduce flex on maximum capacity bends.
• Electro-welded all-steel framework keeps this metal brake accurate over decades of daily use at full capacity.
• Massively-built sheet metal finger brake weighs in at almost 3500 lbs.
• Baileigh backs this metal brake with a 1-year parts warranty.

Specifications:

• Item Number: BB-12014
• Min Reverse Bend: .625"
• Thickness (SS): 14 ga. (18 ga.)
• Box Depth: 6"
• Beam Adjustment: 1"
• Bend Angle: 0 – 135°
• Finger Sizes: 3" – 4" – 5" – 6"
• Power: Manual
• Shipping Weight: 3950lbs
• Length: 120”
• Shipping Dimensions (Inches): 145 x 33 x 45
