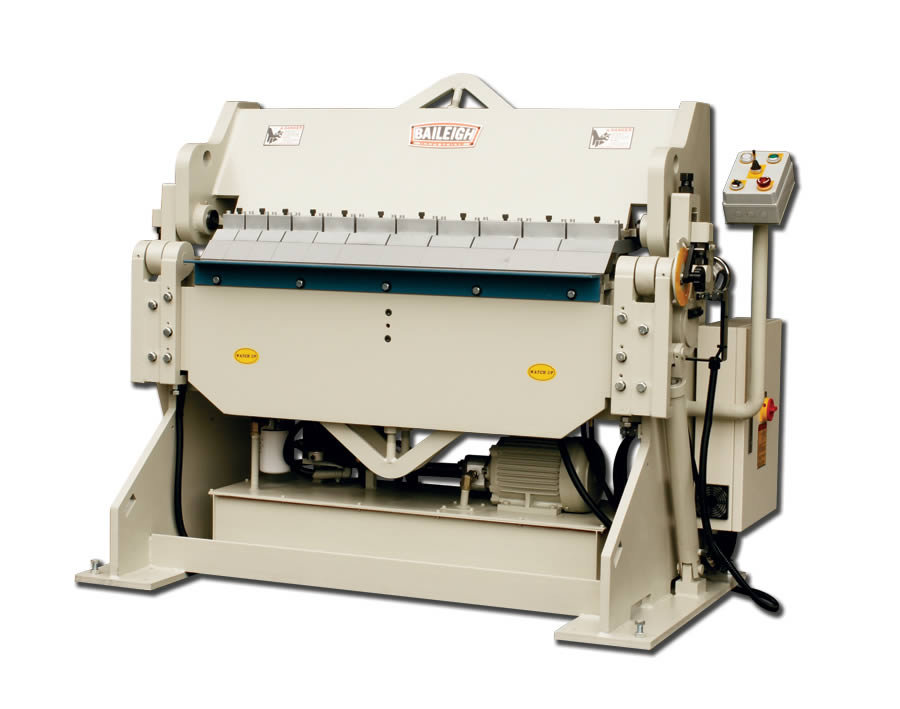

Baileigh BB-4810H; 220 Volt 3 Phase Heavy Duty Hydraulic Box and Pan Brake, 4' Length, 10 Gauge Mild Steel Capacity 1000403

Working with thicker materials? This finger brake can bend 10 gauge mild steel across its 48” (4-foot) length. A welded steel frame prevents misalignment and ensures accuracy.

Features:

• Runs on 220-volt 3-phase power.
• Powerful 3 hp motor controls all the hydraulic functions.
• 1” beam adjustment.
• Maximum bend angle of 135°.
• Includes 11 fingers (3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”), allowing you to adjust for different size boxes and pans you want to make.
• Industrial-grade hydraulics lift the leaf for clean, precise motion.
• You can operate this hydraulic brake in manual or semi-automatic mode.
• Hydraulic motor turns a cam to lift and clamp the beam when bending 10 gauge mild steel.
• Adjustable bend auto-stop makes it easy to produce repeatable bends.
• Removable bending support lets you get closer between bends.
• Fully-welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity.
• Baileigh backs this hydraulic box and pans brake with a 1-year parts warranty.

Specifications:

• Item Number: BB-4810H
• Motor: 3 hp
• Min Reverse Bend: .984"
• Thickness (SS): 10 ga. (12 ga.)
• Box Depth: 6"
• Beam Adjustment: 1"
• Bend Angle: 0 – 135°
• Finger Sizes: 3" – 4" – 5" – 6"
• Power: 220V / 3-phase
• Shipping Weight: 3850lbs
• Length: 48”
• Shipping Dimensions (Inches): 86x50x69
