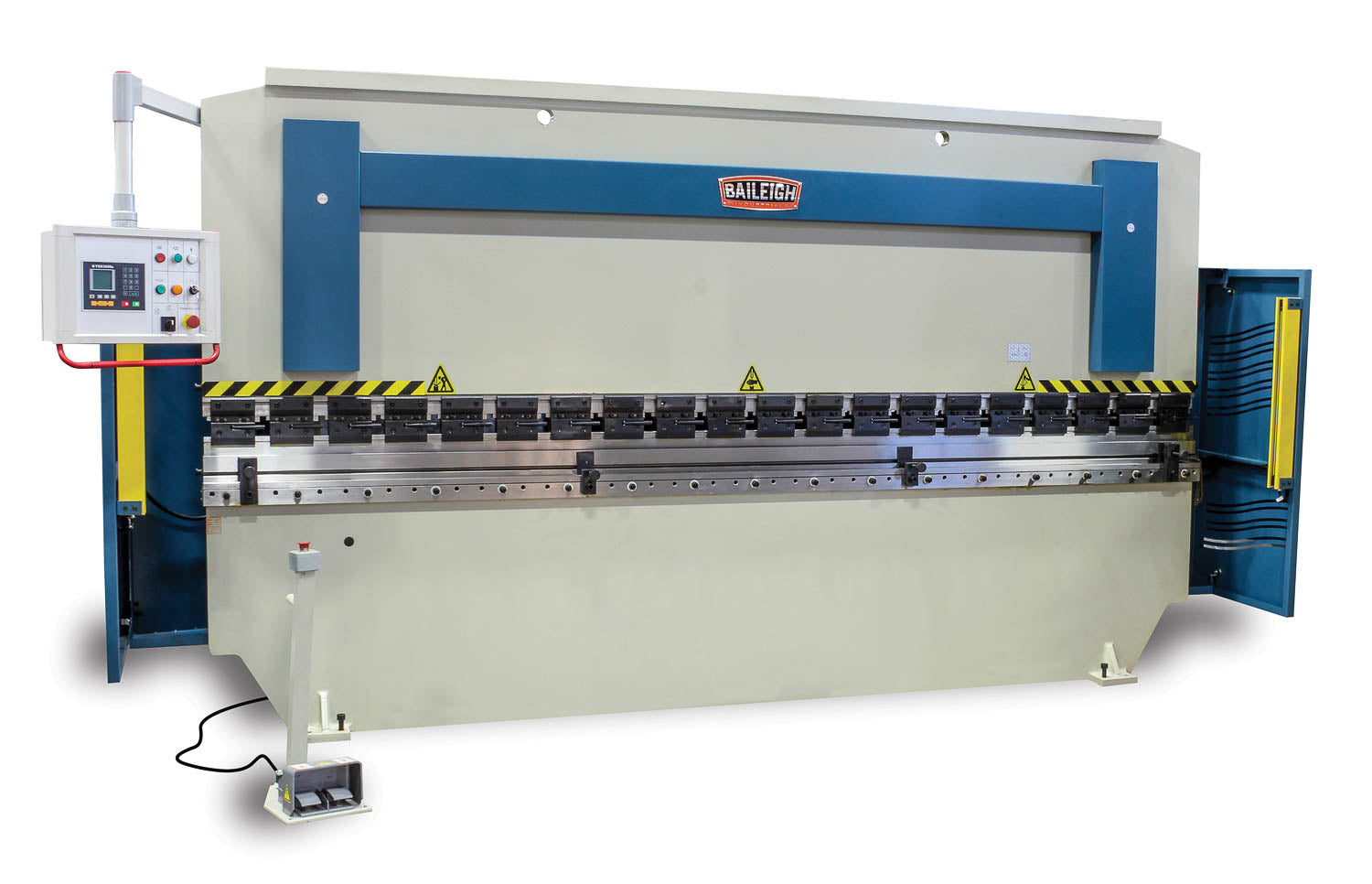

Baileigh BP-14013CNC; 220V 3Phase 140Ton, 157" 2Axis Programmable Hydraulic Press Brake Distance Between Housings is 124" 1000787

This industrial press brake is built to last with thick steel plate construction. Easy to learn, the Estun® E200 controller lets you program the bend depth and the back gauge.

Features:

• Delivers 140 tons of pressure across its 13-foot length. Also.

• This press brake is also available in a 10-foot version.

• Runs on 220-volt 3-phase power.

• Industrial-grade Rexroth® hydraulic system will last for many years at peak capacity.

• NOK® hydraulic seals from Japan are some of the best in the industry. They’ll keep the hydraulics running smoothly.

• Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.

• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.

• Hydraulic cylinders are near the back of the machine for convenient fluid changes.



ACCURATE, USER-FRIENDLY CONTROL SYSTEM

• Runs in single-bend mode or programmable mode.

• Comes standard with 2 axes of control: stroke and back gauge distance.

• Estun® E200 controller is so simple that you could train someone to use it in 5 minutes.

• Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.

• Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

• Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.

• Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.

• You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.

• Choose between 2 speeds: a rapid approach and retract and a slow bending speed.

• Speed option lets you reduce cycle time and make your shop more efficient.

• Chain drive-back gauge system uses tried-and-true technology that you can maintain easily.

• The 23.62" back gauge can advance or retract according to programmed instructions.



STEEL PLATE CONSTRUCTION AND INCLUDED TOOLING

• Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.

• Weighs a robust 19,000 lbs. for massive structural strength that ensures accurate results.

• Includes support arms around 2 feet in length.

• Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).

• Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!

• Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.

• Fiessler® safety light curtains prevent the machine from bending when someone is too close.

• Light curtains will swing open and get out of the way when you’re doing a tool change.

Specifications:

• Item Number: BP-14013CNC
• Back Gauge Length: 17144
• Return Speed: 2.36" / sec.
• Throat Depth: 12.5"
• Stroke Distance: 4.7"
• Approach Speed: 2" / sec
• Back Gauge Motor: 1/2 hp
• Bending Speed: .6" / sec.
• Main Motor: 10 hp
• Distance Between Housings: 124"
• Distance From Table To Ram: 15.3"
• Power: 220V / 3-phase
• Shipping Dimensions (13 Ft): 4200 x 1320 x 2450 mm
• Shipping Weight: 19000lbs
• Length: 157"
• Shipping Dimensions (Inches): 185x73x97
