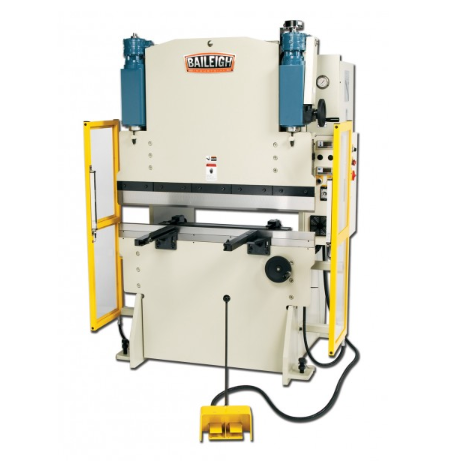

1000801, Baileigh BP-3350NC 33-Ton Hydraulic Press Brake

Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production.

Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.



Features:

  • Produces up to 33 tons of pressure.

  • Bends sheet metal up to 50” wide.

  • Maximum capacity of .098” thick sheet metal across the machine’s full width.

  • Requires 220-volt 3-phase power.



POWERFUL, EASY-TO-LEARN HYDRAULIC SYSTEM

  • Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.

  • 2 encoder-controlled hydraulic cylinders move the top beam.

  • Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.

  • It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).

  • You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.

  • 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.

  • Foot pedal brings the stroke up and down, leaving your hands free to position the material.

  • Motorized back gauge rides on a solid ball screw trolley mechanism.

  • Back gauge encoder shows its position on its own DRO.

  • Parallel mechanism on the beam synchronizes the top and bottom die to deliver better-quality bends across the entire width of the machine.

  • You can train your staff to use this press brake in 5 minutes.



RIGID STRUCTURE AND LOW MAINTENANCE

  • Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.

  • Robust 2,640-pound construction supports the hydraulic pressure, so the machine won’t buckle at full capacity.

  • Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.

  • Includes a set of hardened single-Vee American tooling.

  • Accepts standard press brake tooling, giving you a wide variety of options.

  • Comes with front material rests (or support arms), which some competing machines do not include.

  • 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.

  • 4 grease zerks let you add oil every few months.

  • Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.



Specifications:

  • Item Number: BP-3350NC
  • Oil Capacity: 20 gal
  • Bending Capacity Max Length Max Thickness: 50" / .098"
  • Power: 220V / 3-phase
  • Shipping Weight: 2640lbs
  • Shipping Dimensions (Inches): 75x59x94
