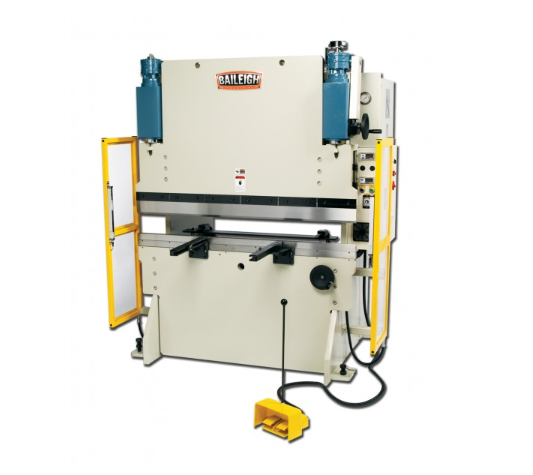

1000824, Baileigh BP-5060NC Hydraulic Sheet Metal Press Brake

With its 6,000-pound steel frame, this hydraulic press brake makes crisp bends across its full 61” width. The stroke and back gauge are tied to encoders with DROs for precision.



Features:

  • Delivers up to 50 tons of pressure.

  • Maximum capacity of .118” thick sheet metal across the machine’s full width.

  • 5 hp main motor requires 220-volt 3-phase power.



POWERFUL, EASY-TO-USE HYDRAULIC SYSTEM

  • Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.

  • 2 encoder-controlled hydraulic cylinders move the top beam.

  • Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.

  • It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).

  • You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.

  • 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.

  • Foot pedal brings the stroke up and down, leaving your hands free to position the material.

  • Motorized back gauge rides on a solid ball screw trolley mechanism.

  • Back gauge encoder shows its position on its own DRO.

  • Parallel mechanism on the beam synchronizes the top and bottom die to deliver better-quality bends across the entire width of the machine.



RIGID STRUCTURE AND LOW MAINTENANCE

  • Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.

  • Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.

  • Includes a set of hardened single-Vee American tooling.

  • Accepts standard press brake tooling, giving you a wide variety of options.

  • Comes with front material rests (or support arms), which some competing machines do not include.

  • 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.

  • 4 grease zerks let you add oil every few months.

  • Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.



Specifications:

  • Item Number: BP-5060NC
  • Gauge Length: 17201
  • Return Speed: 2.36" / sec.
  • Maximum Pressure: 50 tons
  • Oil Capacity: 28 gal
  • Throat Depth: 7.87"
  • Bending Capacity Max Length Max Thickness: 61" / .118"
  • Stroke Distance: 5.9"
  • Approach Speed: 3.14" / sec.
  • Back Gauge Motor: 1/2 hp
  • Bending Speed: .275" / sec.
  • Main Motor: 5 hp
  • Distance Between Housings: 49.21"
  • Distance From Table To Ram: 11.81"
  • Power: 220V / 3-phase
  • Shipping Weight: 6160lbs
  • Shipping Dimensions (Inches): 90x63x96
