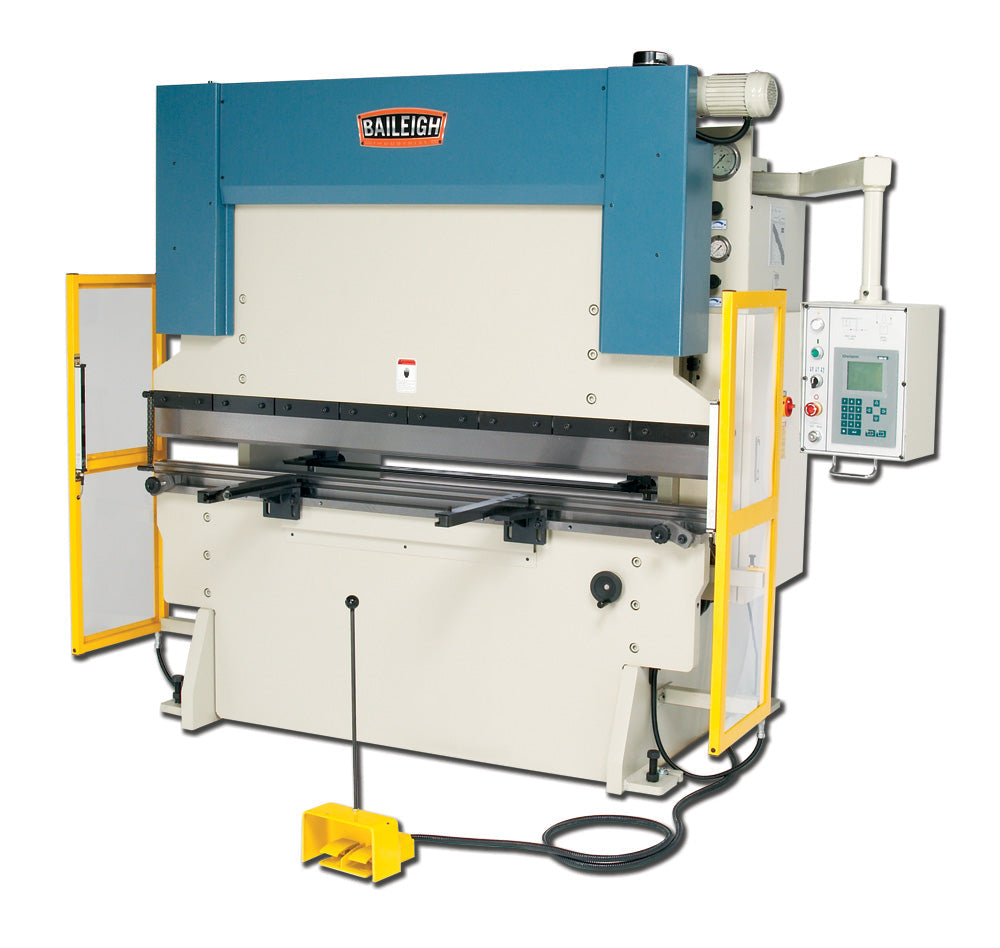

Baileigh BP-9078CNC; 220V 3Phase 90 Ton Hydraulic Press Brake With Delem CNC Control. Gap Between Housings is 61" 1000837

With hydraulic auto-crowning and a rigid steel frame, this hydraulic press brake makes crisp bends. A Delem touchscreen controller lets you program the stroke and back gauge.

Features:

• Produces up to 90 tons of hydraulic pressure.

• Bends sheet metal across its full 78” width.

• You can measure and adjust the pressure for your application.

• 2 industrial-grade hydraulic cylinders raise and lower the top beam through a servo motor.

• Mechanical stops inside hydraulic cylinders ensure an accurate bend angle.

• Digital encoders control the beam depth and back gauge positions.

• Separate digital readouts (DROs) show the stroke and back gauge positions, so you can make precise repeat bends.

• Parallel hydraulic mechanism synchronizes both sides, so that the machine stays true and the motions are balanced through each stroke.

• Top beam travels up and down using several 3-axis bearings coupled to a hardened rail system.

• Touchscreen Delem controller holds 100 programs with up to 25 bends per program.

• Programmable system is easy to learn. You could teach someone how to use this machine in around 15 minutes.

• Pendant control box conveniently swings away from the machine.

• You can program the back gauge, moved by a servo motor with an encoder, through the Delem console.

• Finite manual adjustments also allow you to raise or lower the back gauge.

• Hydraulic auto-crowning creates consistent bends across the maximum width of the machine and prevents underbending in the middle.



HEAVY CONSTRUCTION FOR ACCURACY AND SAFETY

• Thick electro-welded plate steel framework gives this machine the structural strength to deliver accurate results, day in, and day out, for years.

• Weighs 8,800 lbs., so this press brake won’t buckle under pressure even at maximum capacity.

• Includes front material rests.

• 6-sensor light curtain keeps you safe by preventing the press brake from running if anyone is standing too close.

• Inside lighting helps you see what you’re bending.



CONVENIENT SHIPPING AND LIFETIME SUPPORT

• This industrial press brake ships fully assembled and loaded with a set of multi-Vee tooling.

• We minimize handling during transportation to prevent damage. The truck that leaves our factory is the same one that arrives at your shop.
  Replacement parts are in stock so that we can get them to you quickly.

• Covered by a 1-year parts warranty.

• You can count on lifetime technical support by phone from our customer service engineers, all with hands-on machine experience.

Specifications:

• Item Number: BP-9078CNC
• Back Gauge Length: 17144
• Return Speed: 2.36" / sec.
• Nc Control Type: Delem
• Oil Capacity: 45 gal
• Throat Depth: 7.87"
• Bending Capacity Max Length Max Thickness: 78.75" / .196"
• Stroke Distance: 5.9"
• Table Width: 6.29"
• Approach Speed: 3.14" / sec.
• Bed Length: 17145
• Bending Speed: .236" / sec
• Maximum Capacity: 90 tons
• Distance Between Housings: 61"
• Distance From Table To Ram: 11.81"
• Power: 220V / 3-phase
• Shipping Weight: 9000lbs
• Shipping Dimensions (Inches): 103x76x99
