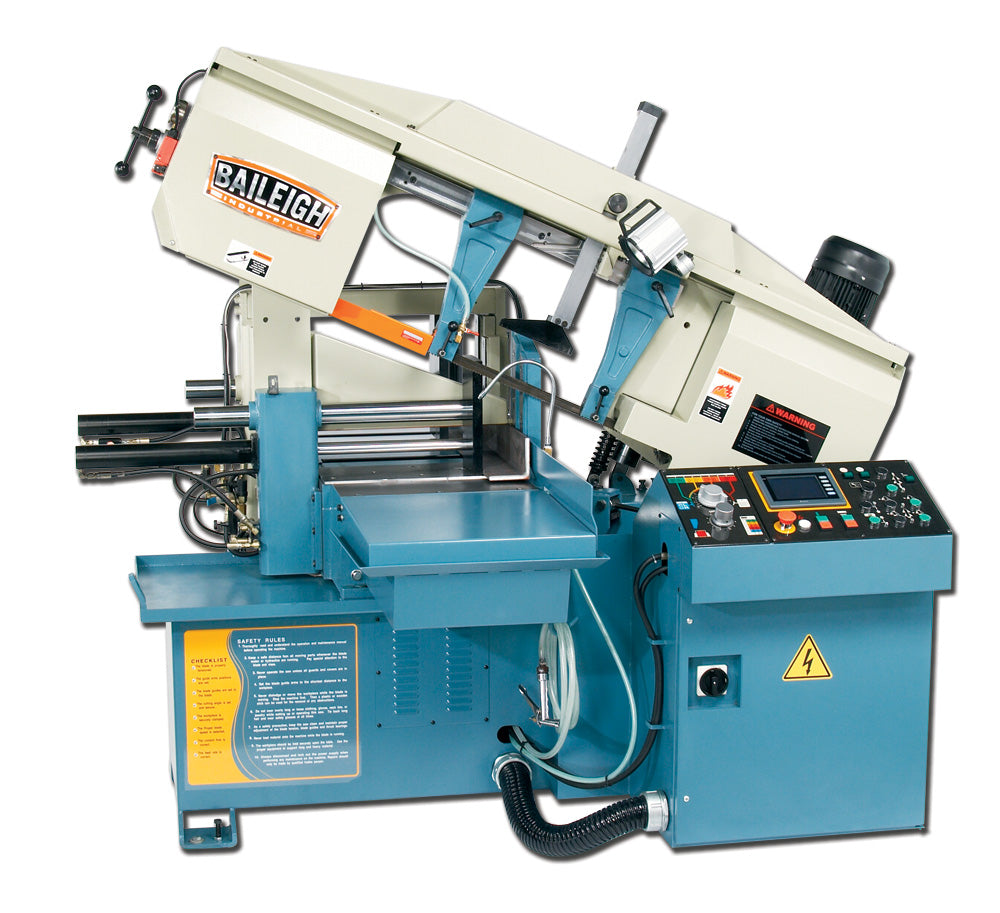

Baileigh BS-20A; 13" Automatic Variable Speed Band Saw with Heavy Duty Bundling System and 5HP, 220V, 3 Phase 1001260

Need to increase production rates on large jobs? The BS-20A automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3-phase bandsaw maintains accuracy.

Features:

• Cuts up to 13” round and 13” x 18” rectangle at 90°.
• 89 to 256 fpm variable speed, so you can fine-tune your material.
• Accepts a standard 1” blade (included) for speed and precision.
• Available in 220-volt or 440-volt 3-phase models (440-volt is a special order).
• Miters up to 45° with a degree indicator to show your angle.
• Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system.
• Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
• Digital encoders feed the material between cuts for repeatability.
• Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
• 2-speed blade descent allows for faster cycle times.
• Delta® touchscreen programmer is easy to use, so you can get to work right away.
• Programmer can run in manual or automatic mode.
• Infeed and outfeed table can handle 5,000 lbs. of material.
• Patented blade tension device makes it simple to set the correct tension. You can just line up the arrow within the green gauge.
• Electro-welded steel framework reduces vibrations and gives this automatic horizontal band saw the structural strength to tackle large capacities accurately.
• In case of a blade breaking, automatic blade shut-off protects your safety.
• Variable-speed metal chip auger and coolant system keep the saw clean and make blades last longer.
• Bright halogen work light lets you clearly see what the machine’s doing.
• Most parts are in stock, so you don’t have to wait long to get replacements.
• Covered by a 1-year parts warranty.
• You can count on lifetime technical support by phone from a team of reps with hands-on machine experience.

Specifications:

• Item Number: BS-20A
• Return: Hydraulic
• Miter Adjustment: Swivel Head
• Miter Angle: 0 – 45°
• Capacity Rectangular 90 x 45 x 45L: 13" x 18" x 13" x 11"
• Capacity Round 90° x 45°: 13" x 11"
• Chip Removal: Hydraulic Auger
• Capacity Square 90° x 45°: 13" x 11"
• Table Height: 32.3"
• Blade Guide: Carbide x Roller
• Blade Motor: 5 hp
• Blade Size: 1" x .035" x 162.59"
• Blade Speed (fpm): 89 – 256 (Variable Speed)
• Material Clamping Bundling: Hydraulic
• Material Feed: Hydraulic
• Descent Control: Pressure Assist Hydraulic
• Power: 220V / 3-phase
• Shipping Weight: 3500lbs
• Shipping Dimensions (Inches): 91x87x73
