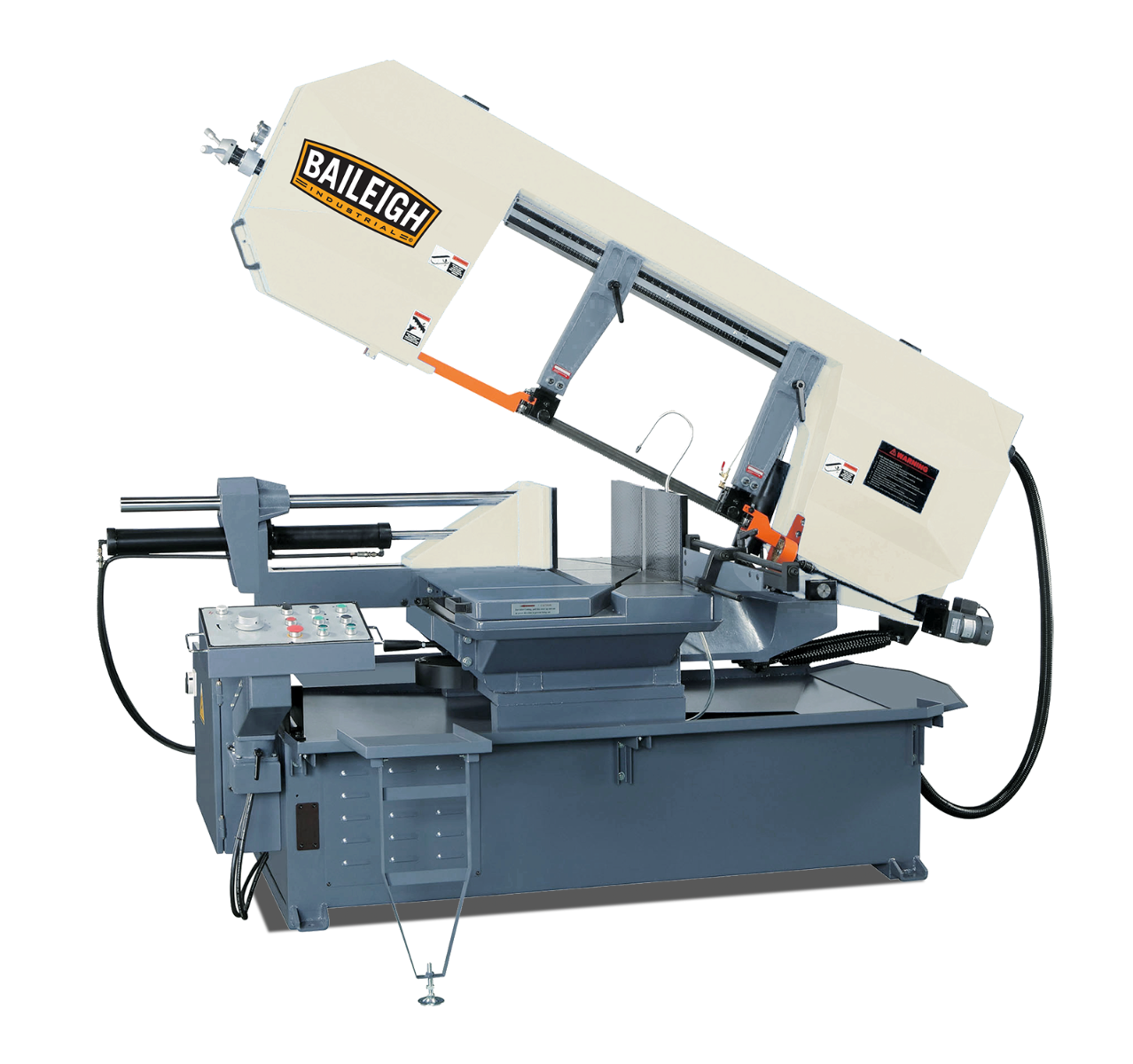

Baileigh BS-24SA-DM; 18" Variable Speed Semi-Auto Dual Mitering Bandsaw  5HP, 220V 3Phase 1001389

This dual-mitering band saw doesn’t sacrifice capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production.



Features:

  • Cuts 18” round or 15” x 24” rectangle at 90°.
  • Swivel head miters 60° left and right.
  • Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
  • 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
  • Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
  • Runs on 220-volt 3-phase power for reliability.
  • Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.
  • Semi-automatic system with a hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
  • Industrial-grade hydraulics open and close the quick-lock vise.
  • Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
  • You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.

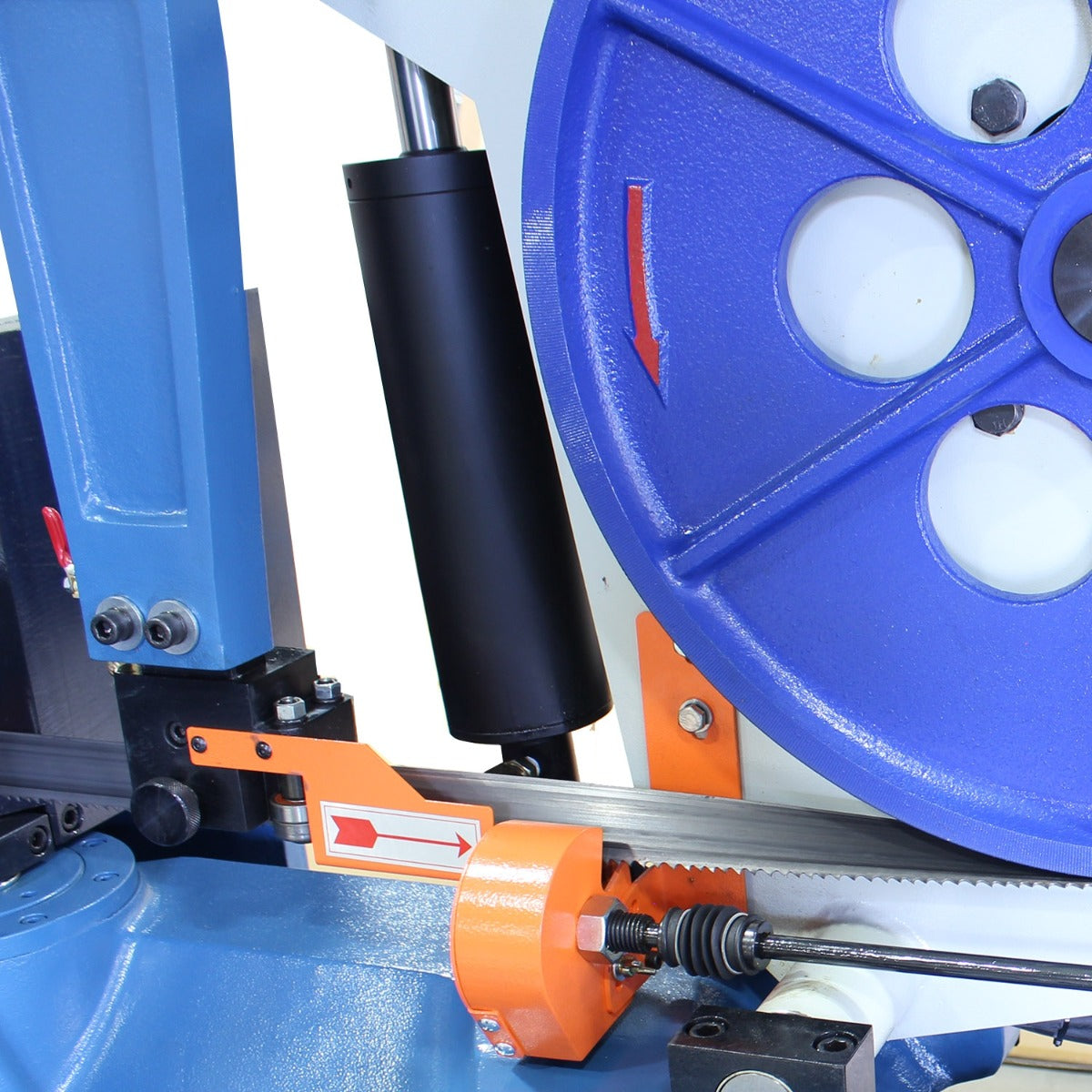

  • Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
  • Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.

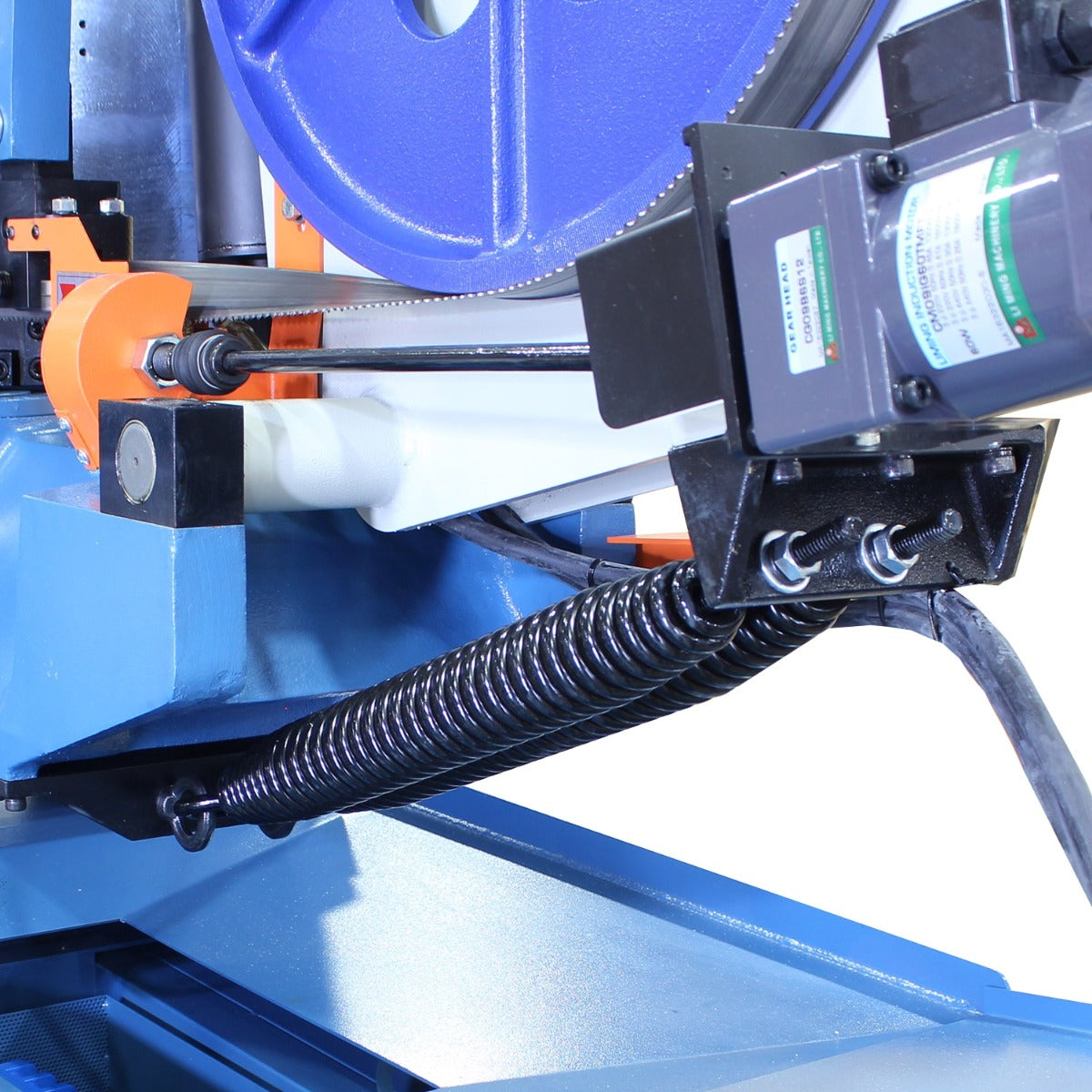

  • Flood coolant system washes away metal chips and helps prolong blade life.
  • We typically keep all replacement parts in stock for fast deliveries.
  • Covered by a 1-year parts warranty.
  • With lifetime technical support by phone, you can call up our team of experienced reps any time you have a problem or need project advice.



Specifications:

  • Item Number: BS-24SA-DM
  • Return: Hydraulic
  • Miter Adjustment: Dual Miter Swivel Head
  • Miter Angle: 0 - 60° Left and Right
  • Motor: 5 hp
  • Capacity Round 90°: 18.1"
  • Capacity Square 90°: 18.1"
  • Capacity Rectangle 90°: 17" x 24"
  • Capacity Round 45°: 17.5"
  • Capacity Round 90°/ 45° / 60°: 18" x 17.5" x 11"
  • Table Height: 31.5"
  • Blade Guide: Carbide x Roller
  • Blade Size: 1.5" x .051" x 209.84"
  • Blade Speed (fpm): 106 - 317
  • Descent Control: Pressure Assist Hydraulic
  • Drive: Belt x Pulley
  • Power: 220 Volt Three Phase
  • Shipping Weight: 3550lbs
  • Shipping Dimensions (Inches): 111x45x74
