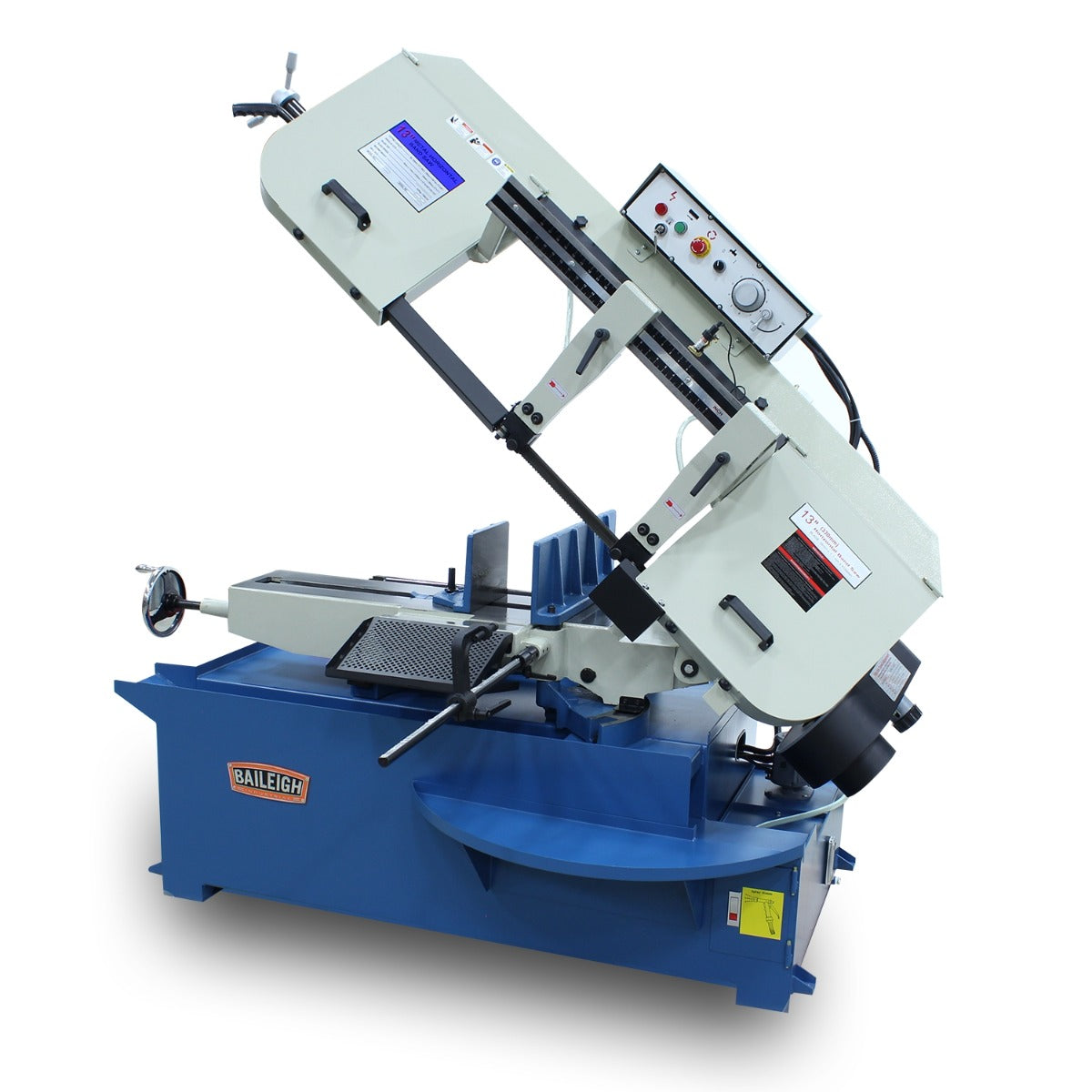

Baileigh BS-330M 13" Variable Speed Bandsaw 3HP, 220v, 3 Phase 1001517

In 2005, Baileigh introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years.

Features:

• Maximum capacity of 13” OD round at 90°.
• Accepts a large 1.25” blade.

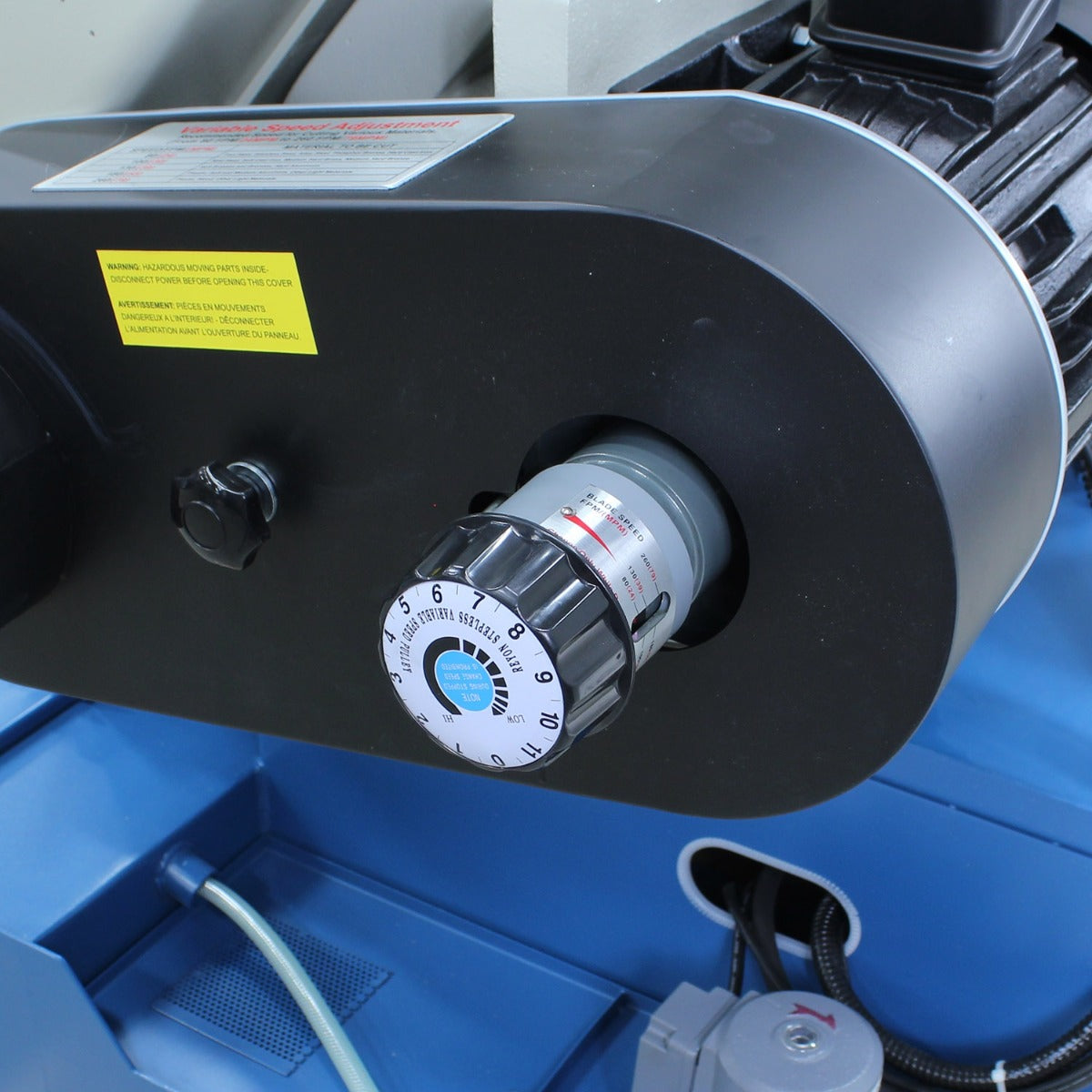

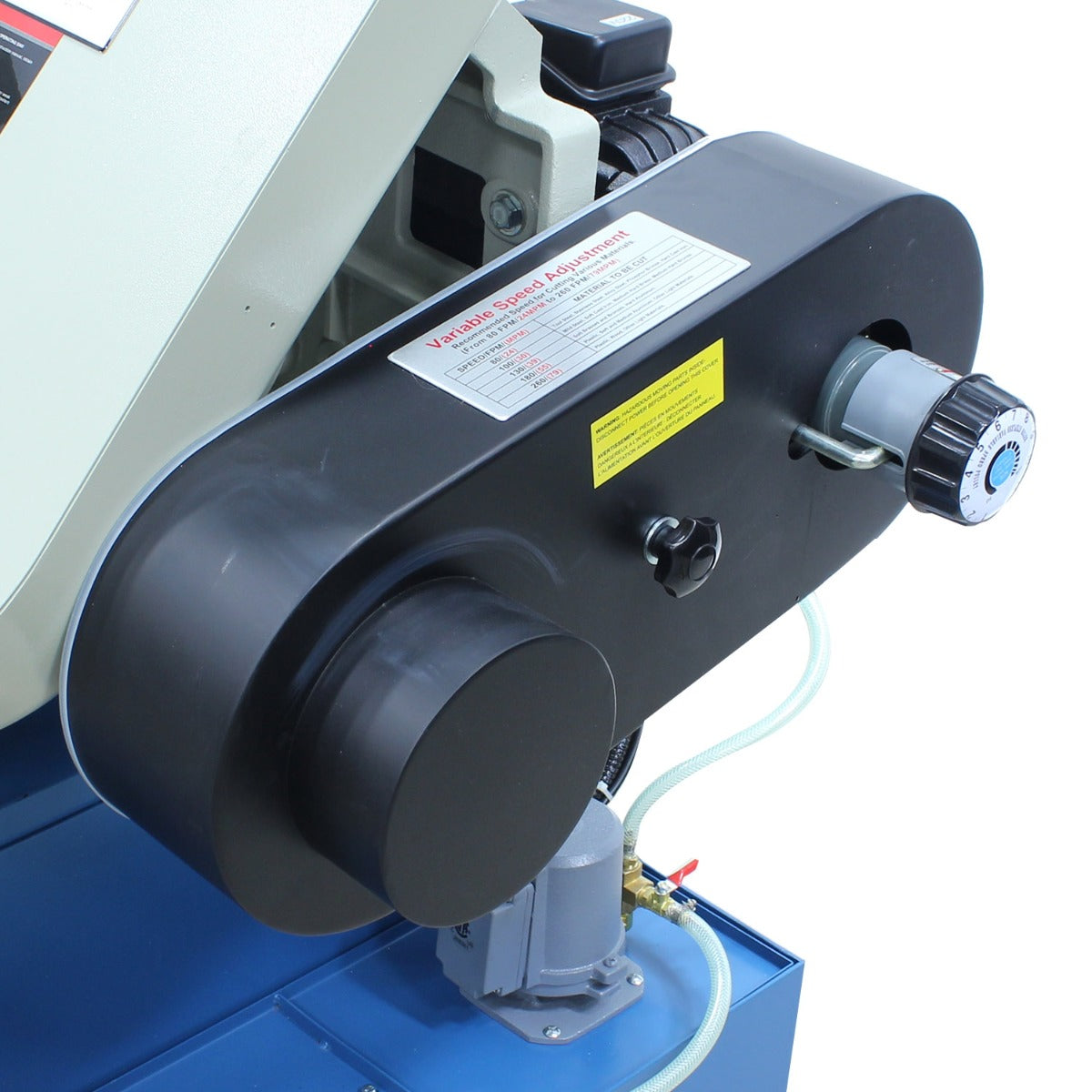

• Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
• 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.

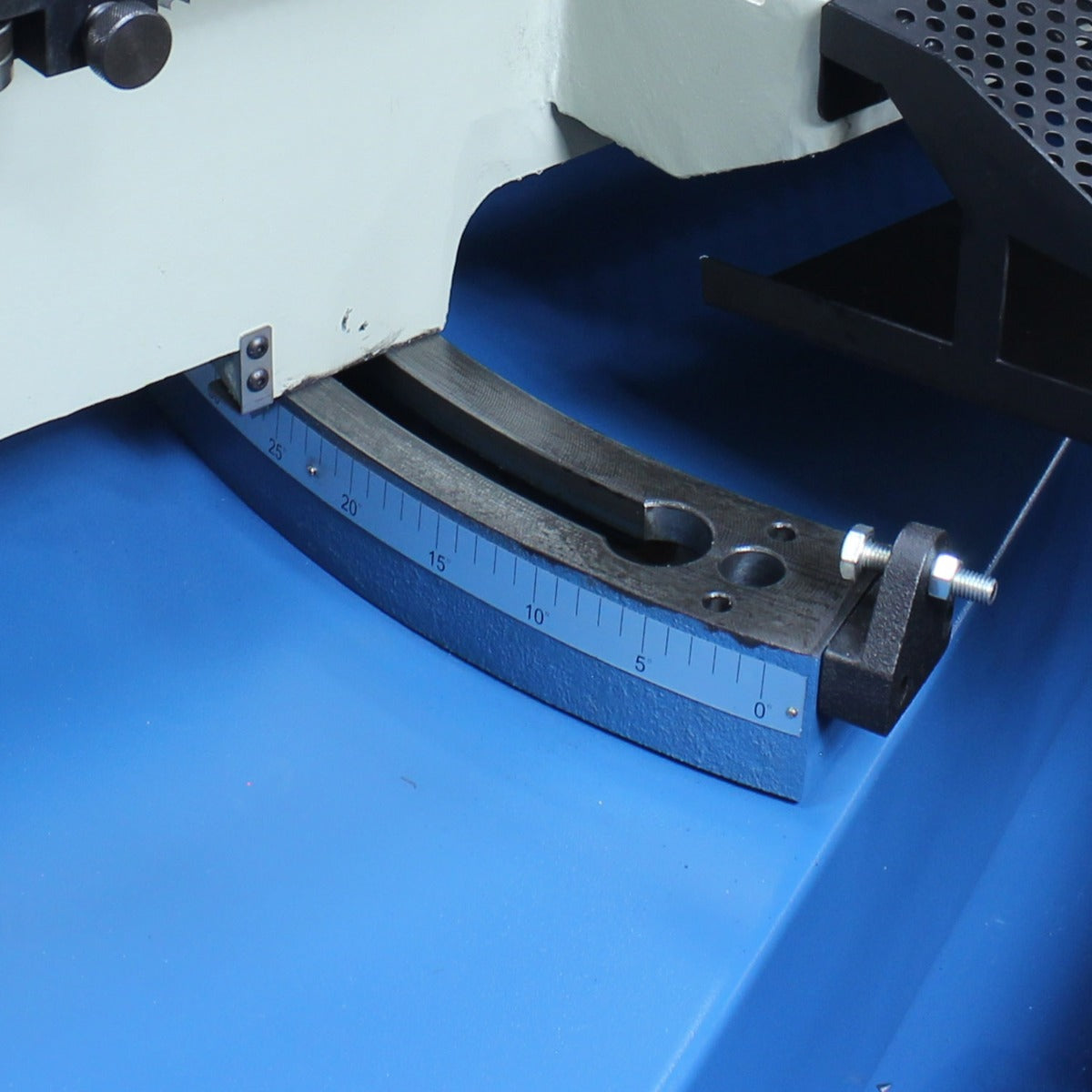

• Saw head miters up to 45°.
• Heavy cast iron head and bow reduce vibrations while cutting.

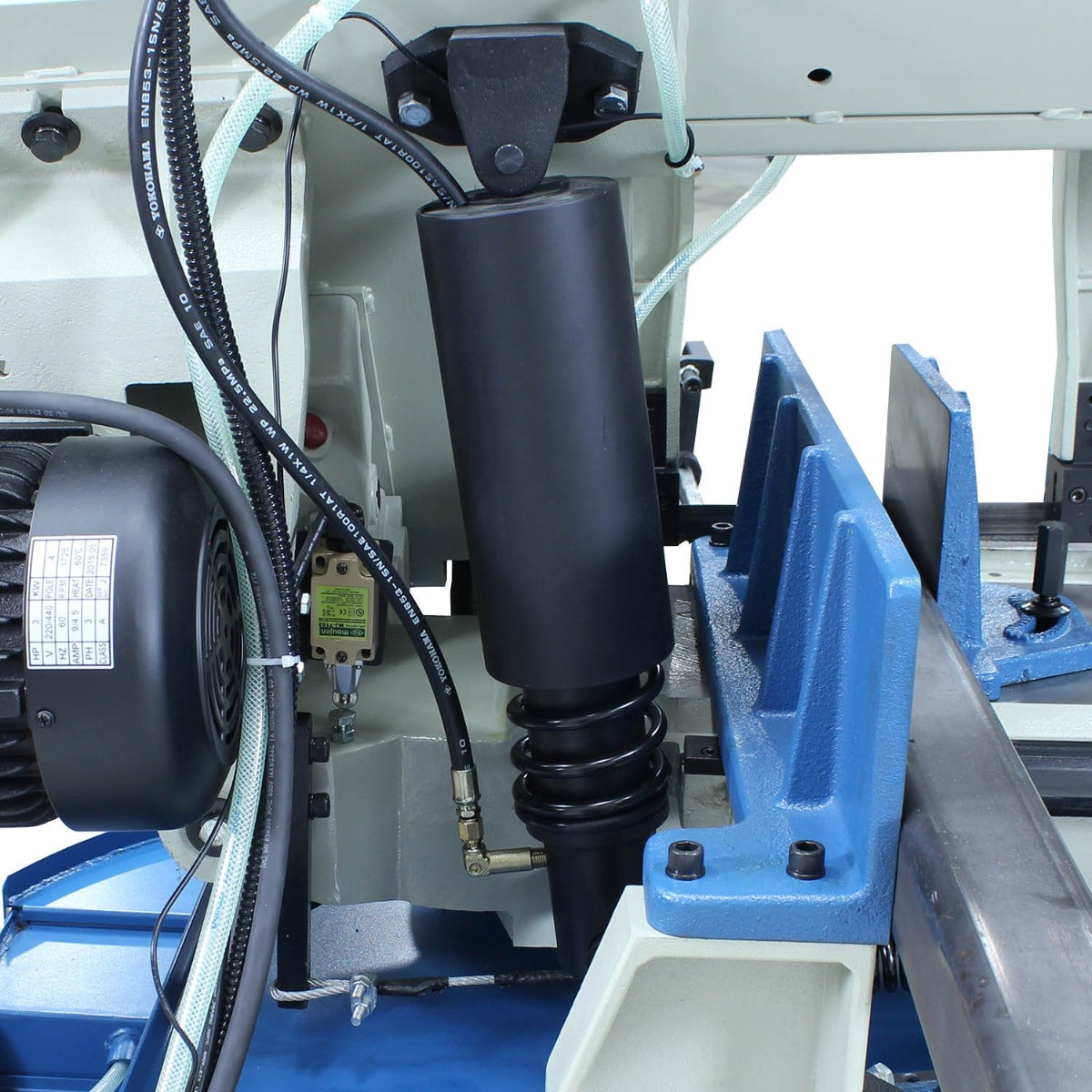

• Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.

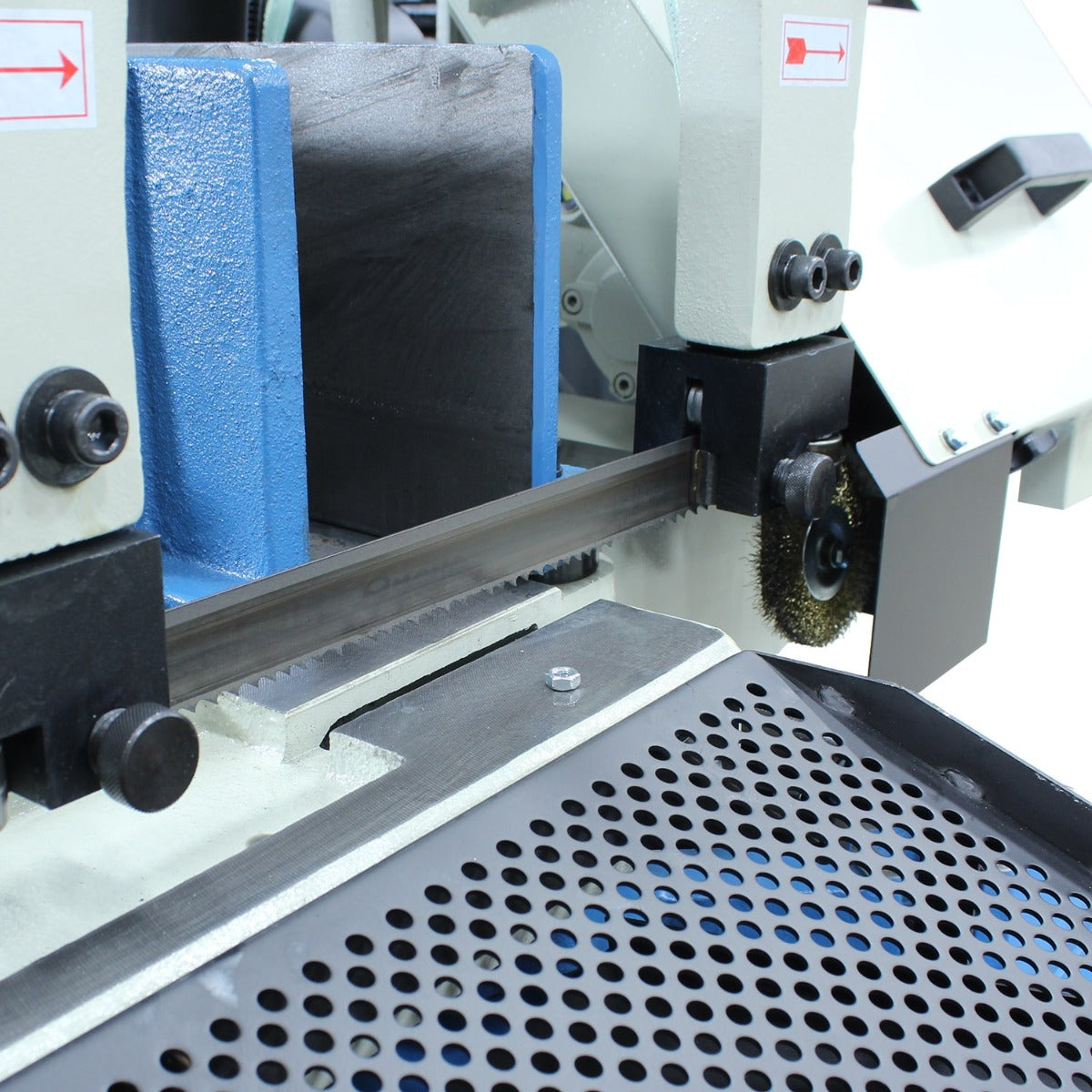

• Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
• Laser guide helps you see where your cut will be and line it up.
• Durable steel flywheels drive the blade.

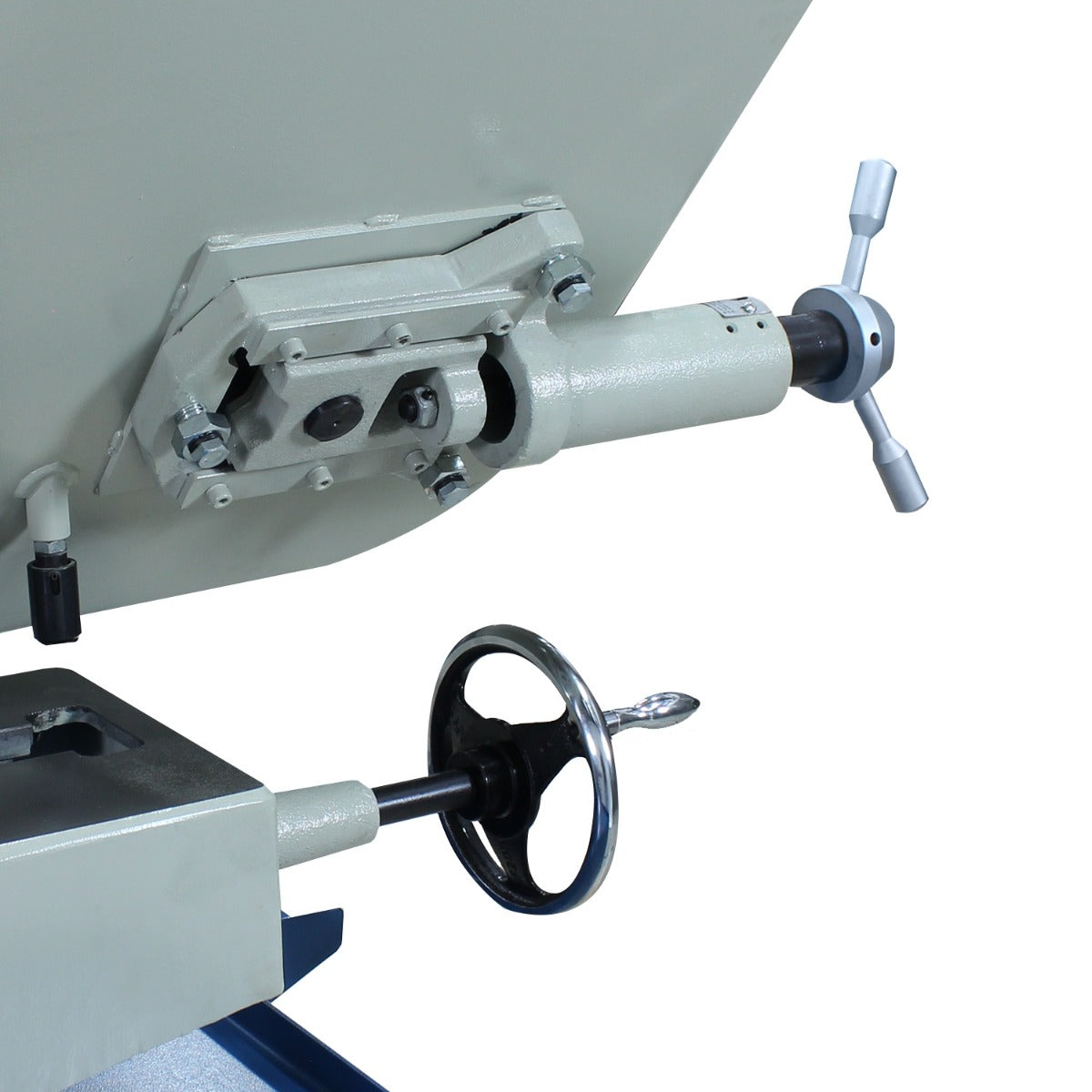

• Adjustable vise can move back and forth. A quick cam lock system holds it in place.

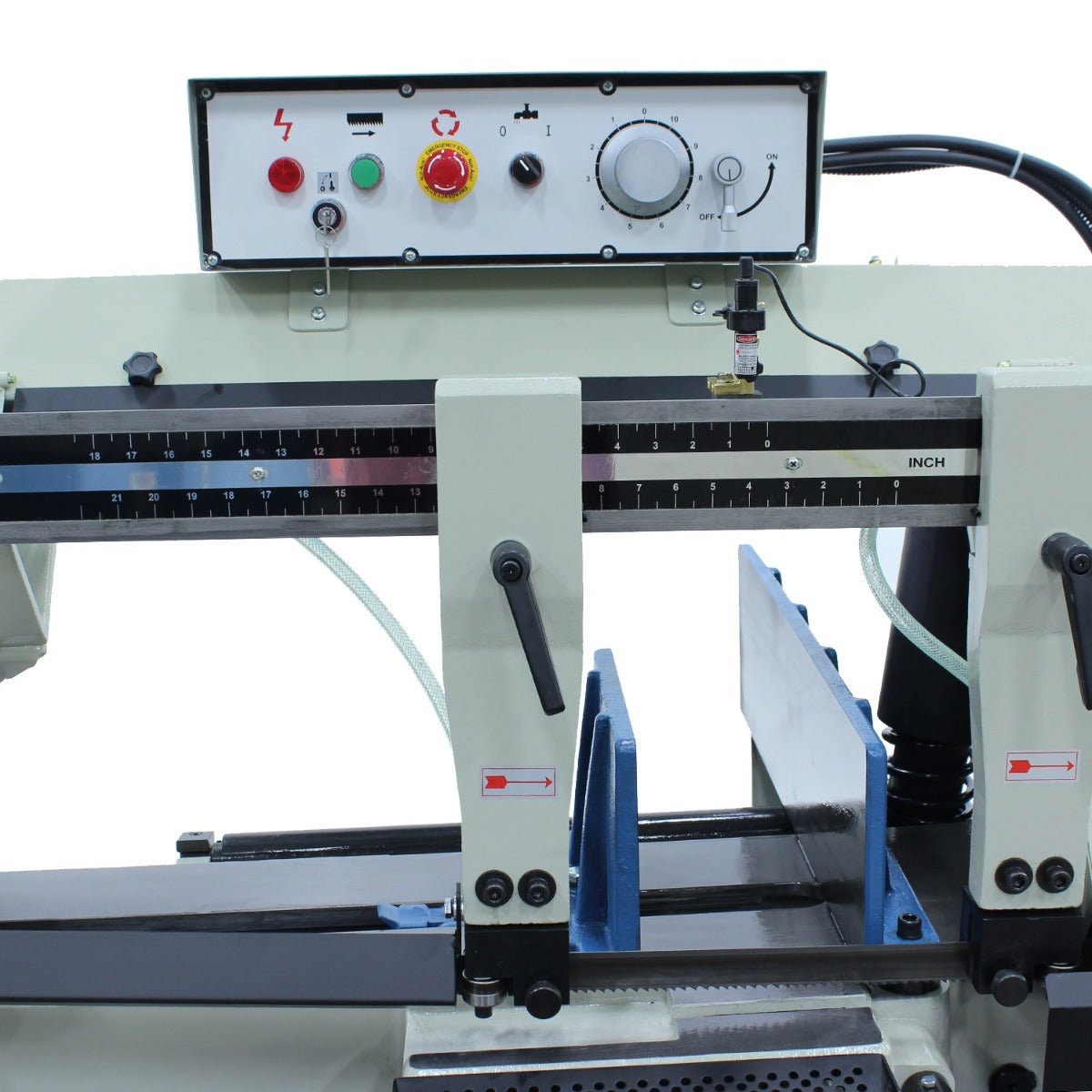

• Control panel has large start and emergency stop buttons and a dial for adjusting the speed.

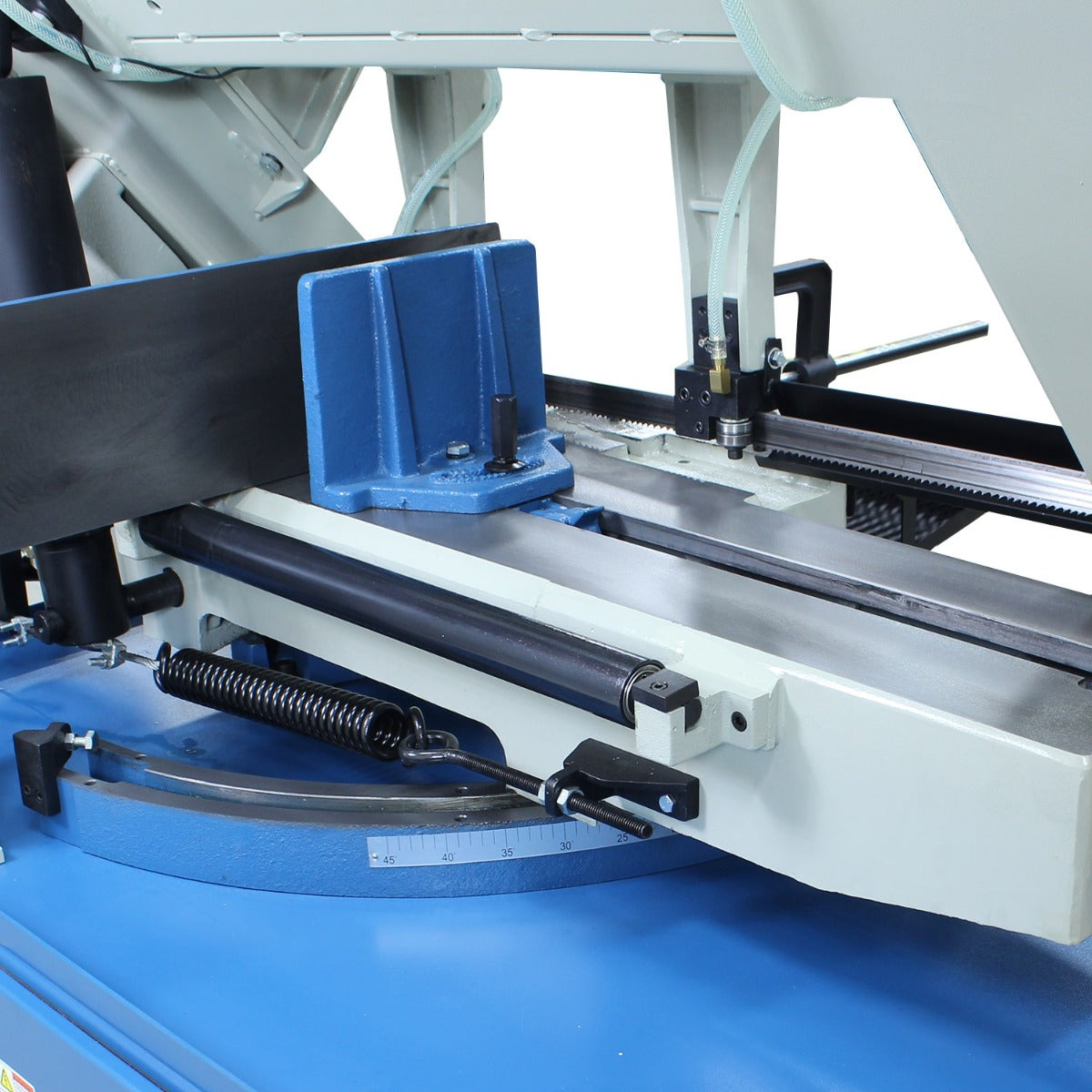

• Swing-away material stop enables you to easily make repeatable cuts.
• Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.

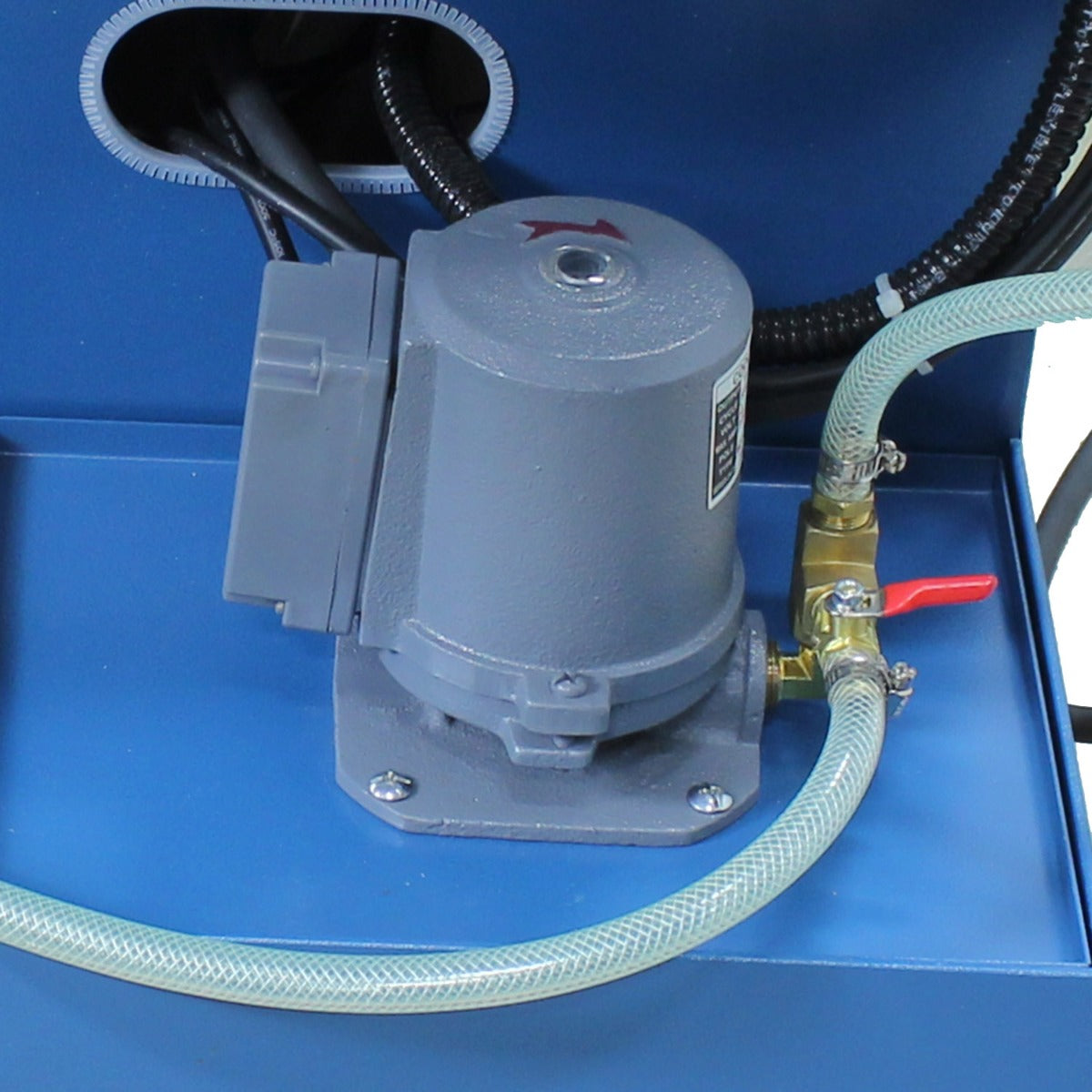

• Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
• Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
• Weighs over 1,800 lbs.
• Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
• This metal band saw and its replacement parts are almost always in stock for quick deliveries.
• Covered by a 1-year parts warranty.
• You can count on lifetime technical support by phone from our team of reps, all with hands-on machine experience.

Specifications:

• Item Number: BS-330M
• Return: Manual
• Miter Adjustment: Swivel Head and Vise
• Miter Angle: 0 – 45°
• Motor: 3 hp
• Capacity Rectangular 90° x 45°: 13" x 18.9" / 11" x 10.04"
• Capacity Round 90° x 45°: 13" x 8.86"
• Capacity Square 90° x 45°: 13" x 8.86"
• Table Height: 30.5"
• Blade Guide: Carbide x Roller
• Blade Size: 1.3" x .043" x 161.4"
• Blade Speed (fpm): 82–270
• Descent Control: Hydraulic
• Drive: Belt x Pulley
• Power: 220V / 3-phase
• Shipping Weight: 1830lbs
• Shipping Dimensions (Inches): 90x37x63
