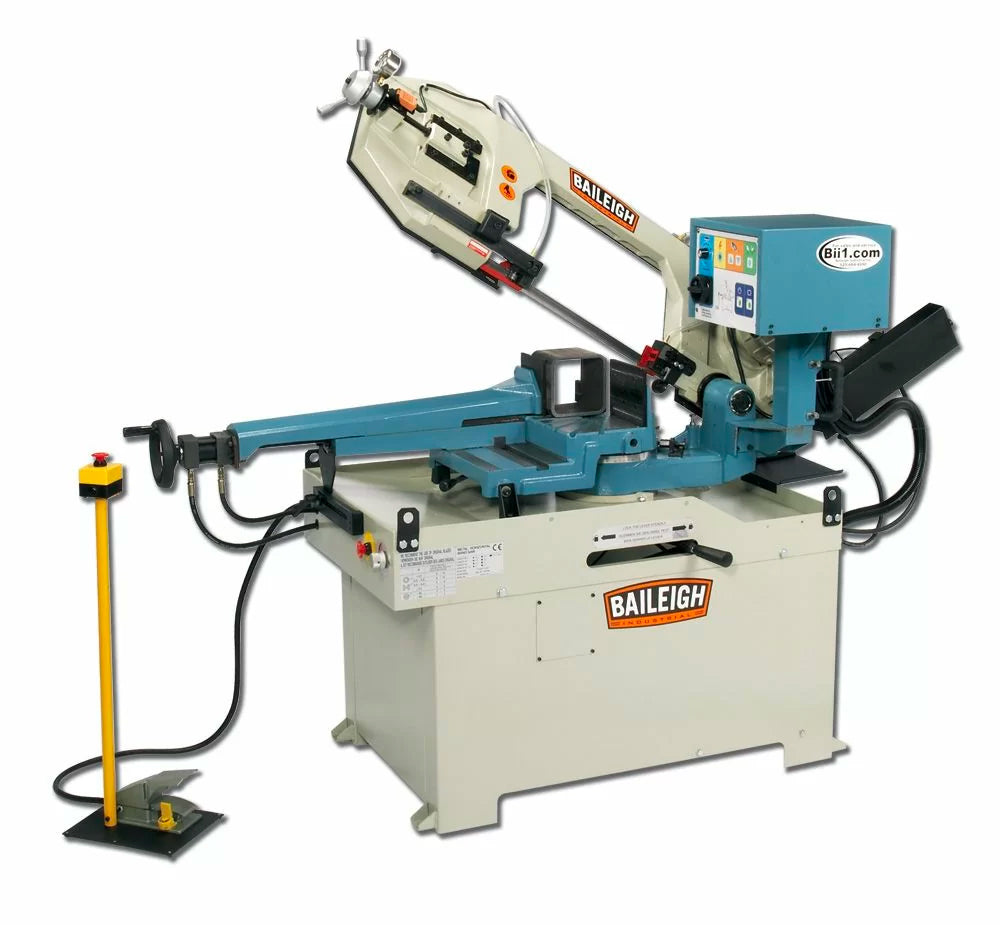

Baileigh BS-350SA 10.63" Semi-Auto Variable Speed Dual Mitering Bandsaw 2HP, 220V 1 Phase 1001570

Baileigh BS-350SA; 10.63" Semi-Auto Variable Speed  Dual Mitering Bandsaw 2HP, 220V 1 Phase 1001570

The Baileigh BS-350SA is a professional-grade, semi-automatic horizontal bandsaw designed for metal fabrication shops and light production environments that demand precision, efficiency, and durability. Built with a powerful 2HP motor and a gear-driven system, this machine delivers consistent cutting performance while minimizing maintenance.

Key Features

Semi-Automatic Hydraulic Operation
Equipped with an industrial hydraulic system, the BS-350SA automates key functions such as vise clamping, head feed, and return. This improves workflow efficiency and reduces operator fatigue, making it ideal for repetitive cutting tasks.

Dual Mitering Capability
The dual-swivel head allows for angled cuts up to 60° to the right and 45° to the left without repositioning the material. This significantly speeds up setup time and enhances productivity.

Variable Speed Control
With a blade speed range of 66–280 FPM, operators can adjust cutting speed based on material type, improving cut quality and extending blade life.

Heavy-Duty Construction
A full cast-iron head and bow provide rigidity and vibration reduction, ensuring accurate and repeatable cuts even during extended use.

Gear-Driven System
Unlike belt-driven saws, the gear-driven direct drive delivers smoother torque and requires less maintenance, making it more reliable for continuous operation.

Integrated Coolant System
A built-in flood coolant system helps keep the blade cool and clears chips during cutting, improving performance and prolonging blade lifespan.

Features

• 10.5” OD round capacity at 90°.
• Accepts a standard 1” blade (included).
• motor runs on 220-volt single-phase power.
• Adjust the variable speed control from 66 to 280 fpm to deliver the best possible cut for a given material and make blades last longer.
• Driven by an AC inverter to maintain a high standard of reliability.
• Head miters 60° right and 45° left.
• Cast iron head and bow, machined to exacting tolerances, keep vibrations to a minimum and produce accurate cuts.
• Industrial grade hydraulic system raises and lowers the head. It also clamps and releases the vise.
• Patented blade tension device lets you easily check the blade tension by looking at the liquid-filled gauge.
• Precision ball bearing guides move the blade as close to the material as possible to make clean, accurate cuts.
• Direct-drive gearbox saves you the trouble of adjusting pulleys and replacing broken belts.
• Start and stop the machine with the convenient foot pedal and change settings on the control panel.
• Electro-welded steel plate framework maintains accuracy and prevents the machine from wobbling.
• Comes standard with a large-capacity flood coolant system that washes away metal shavings and prolongs blade life.
• Covered by a 1-year parts warranty.

What's in The Box

• BS-350SA - Gear Driven Dual Miter Band Saw
• Owner's Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications
