• Description

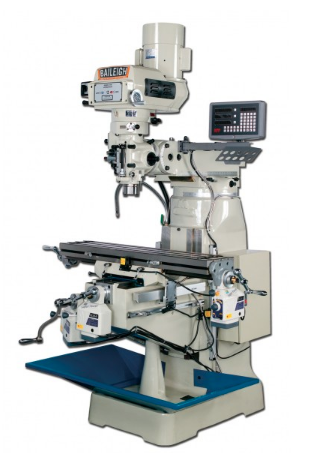

1008192, Baileigh VM-942-1, 220V 1Ph, VS VERTICAL MILLING MACHINE

Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power.  The VM-942 vertical milling machine fits into the price category, but that does not mean that it doesn’t have features to back it up and make it a great value.

The VM-942 is a fully variable speed milling machine that allows infinite adjustment to the speed from 80 to 2700 rpm.  Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money.  Speaking of the quill or spindle Baileigh Industrial has specified a NST-40 spindle taper for the VM-942.  The larger taper helps eliminate chatter and run out during the cutting process and make better cuts.

The VM-942 has a powerful 3 hp motor that runs on 220 volt single phase power and features a three axis digital read out.  All three axis of the VM-942 are powered making this an operators dream.  Other standard features of the Baileigh Industrial vertical mill include a coolant system with catch tray, square slide ways, way covers, and halogen wok light.





Specifications:

  • Item Number VM-942-1
  • Spindle Speed Range 80 to 2700 RPM
  • Table Size 42" x 9"
  • Spindle Center To Column Min Max 0 – 12"
  • Spindle Diameter 3.37"
  • Spindle Feed Per Rev .0015"/.003"/.006"
  • Spindle Head Swivel 45° (F&R) 90° (R&L)
  • Motor Spindle 3 hp
  • Travel Auto X Axis 28.5"
  • Travel Auto Y Axis 12"
  • Travel Auto Z Axis 16"
  • Travel Manual X Axis 30"
  • Travel Manual Y Axis 12"
  • Travel Manual Z Axis 16"
  • Spindle Nose To Table Min Max 0 – 16"
  • Spindle Taper NST 40
  • Table Load Capacity 770 lbs.
  • T Slots .625"
  • Motor Coolant 1/8 hp
  • Cross Travel Of Ram 12"
  • Power 220V / 1-phase
  • Shipping Weight 2200lbs
  • Spindle Travel 5"
  • Shipping Dimensions (Inches) 72x72x80
    * specifications subject to change without notice.
