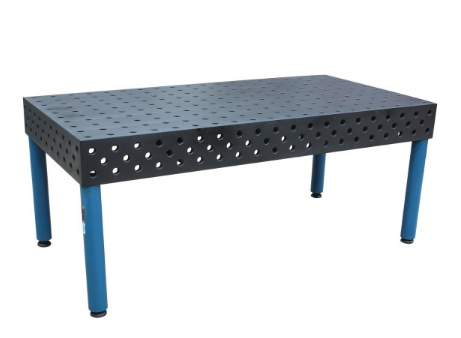

Baileigh WJT-7839-HD; 78" x 39" Heavy Duty 3D Steel Welding Table with 5 Fixturing Surfaces 1010426

Baileigh WJT-7839-HD; 78" x 39" Heavy Duty 3D Steel Welding Table with 5 Fixturing Surfaces 1010426

Made from 250 Cast iron the WJT-7839-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial's welding tables are made to exact tolerances and maintain flatness of +/- .0025" and have a hardness rating of 140 to 160 Brinell.

The WJT-7839-HD Welding Jig Table has a table size of 78" x 39" and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power.

Features:

• 78” x 39” table
• Made from 250 Cast Iron with nitride coating
• Brinell Hardness 140~160
• 5 Mounting Surfaces
• Expandable
• 2 ton weight capacity
• Industry Standard 28mm Mounting holes
• 100mm hole spacing

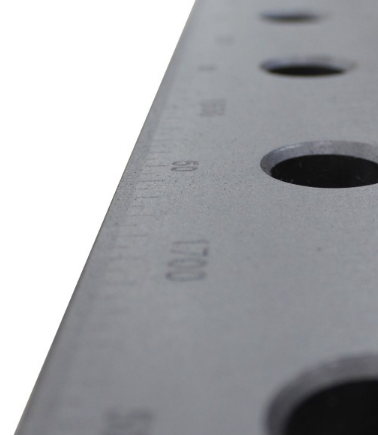

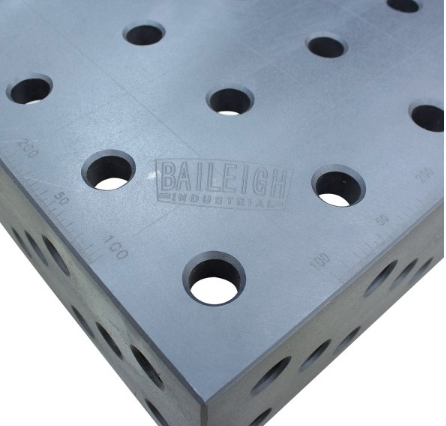

• Etched Position Marks
• Includes table Oiler, Brush and cleaning stone

Specifications:

• Item Number WJT-7839-HD
• Working Table Size 78" x 39"
• Table Load Capacity 2 Tons
• Table Height 33.5"
• Shipping Weight 1500lbs
• Table Flatness +/- .0025"
• Number of Mounting Surfaces 5
• Mounting Hole Size 28mm
• Mounting Hole Spacing 100mm
• Shipping Dimensions (Inches) 89x41x13
• Dimensions L x W x H 80" x 45" x 45"
  * specifications subject to change without notice.
