• Description

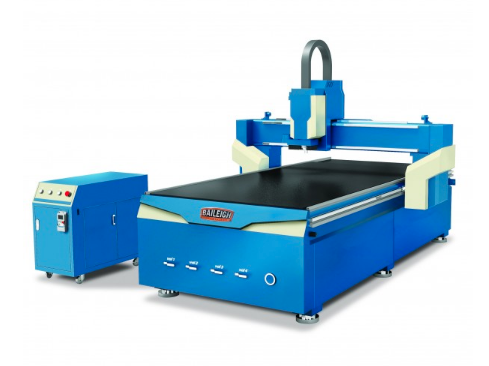

1018908, Baileigh WR-105V-ATC, 220V 3Ø 5'x10' CNC Router Table, Vacuum Table, 12HP HSD Spindle, 6pc ATC, and Software Package

This CNC wood router table can automatically change tooling in just 8 seconds. You can program profile switches right into your design to save time and maintain precision during industrial production runs.



Features:

  • Large 5’ x 10’table.
  • Arrives pre-built with correct alignment. No complicated set-up process.
  • CNC wood router table comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
  • This industrial router machine runs on 220-volt 3-phasepower.
  • Powerful 12hp spindlecan tackle hard materials without flinching.
  • 9 kilowatt air-cooled spindlewill stay accurate through years of production.
  • Variable spindle speed, from 0 to 24,000 rpm.
  • Servo motorsensure smooth running at both fast and slow speeds.
  • High gantry is up and away from material, allowing you to see what it’s doing.
  • Y axis moves far enough for the gantry to clear the table. You can take the material directly off; no need slant it awkwardly.
  • Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.

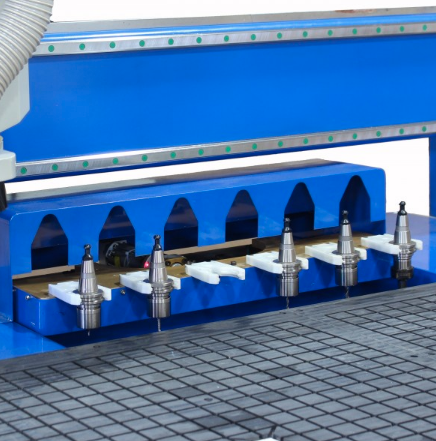

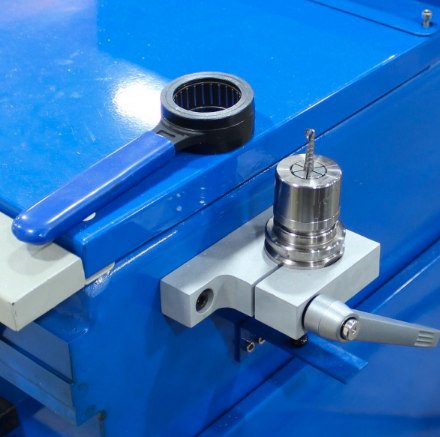

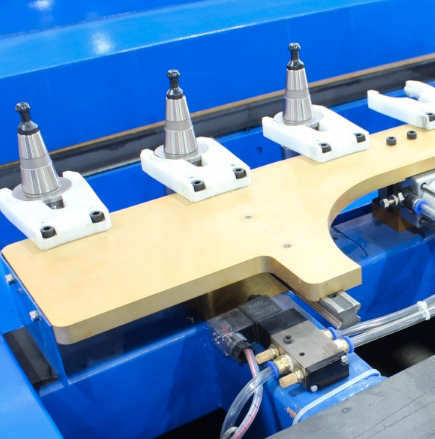

  • Pre-load up to 6 collets with your chosen profiles; the router will switch between them as programmed.

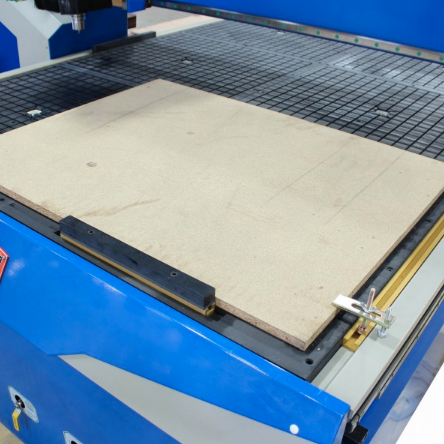

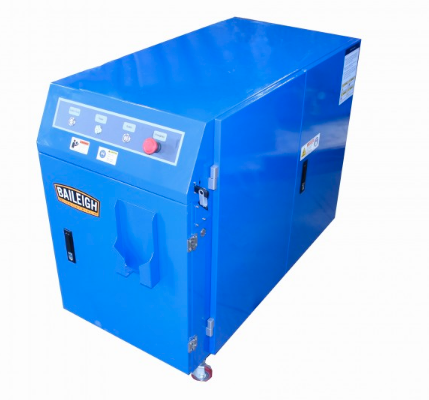

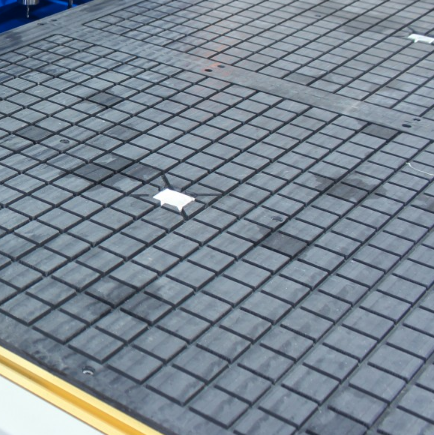

  • Powerful 7hp vacuum in the bed of the wood router machine holds the material in place during the cutting process.

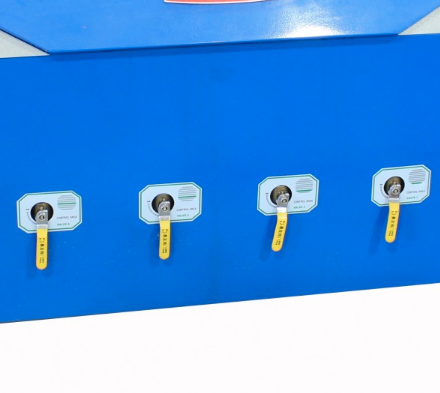

  • 4 vacuum zonesallow you to turn on the valve only for the area where you’re working.
  • Arrange each zone’s vacuum sealinto the shape of the material to provide well-distributed suction.

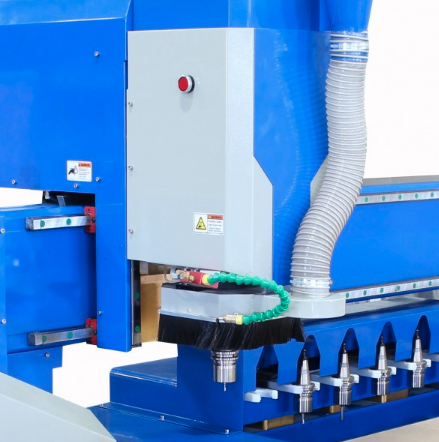

  • Dust shroudfits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
  • Fully-welded steel framekeeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
  • CNC wood router table covered by a 1-year parts warranty.



Specifications:

  • Item Number WR-105V-ATC
  • Shipping Weight 5500lbs
  • Actual Working Area 118" x 59"
  • Speeds Variable
  • Spindle Air Cooled
  • RPM 0-24000
  • Z Axis Stroke 8"
  • Maximum Moving Speed (Inches Per Minute) 2362
  • Maximum Engraving Speed (Inches Per Minute) 984
  • Reposition Accuracy 0.0015
  • Tool Diameters er32
  • Power 220V Three Phase
  • Length 140"
  • Width 110"
  • Height 89"
  • Horse Power 12
  • Weight (lbs) 3200
  • Table Style Vacuum
  • Notes applicable Materials - Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate,
  • Resin, Organic Board, Aluminum Composite Panel
  • Shipping Dimensions (Inches) 154x98x80 & 41x23x19
    * specifications subject to change without notice.



The WR-105V-ATC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the table via a USB drive.  To learn more or download a free trial, click the BobCAD-Cam logo above.
