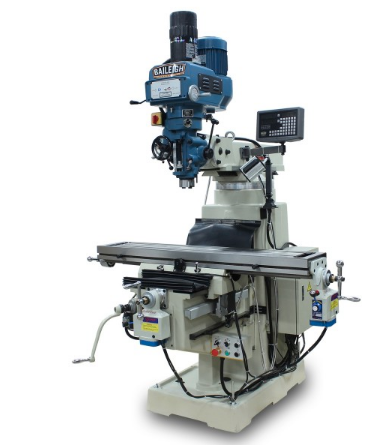

Baileigh VM-1054E-VS 10" x 54" Variable Speed Mill, NT40 Spindle, X,Y & Z Power Feeds, DRO 220V 3Phase 1020696

Baileigh VM-1054E-VS;  10" x 54"  Variable Speed Mill, NT40 Spindle, X,Y & Z  Power Feeds, DRO 220V 3Phase 1020696

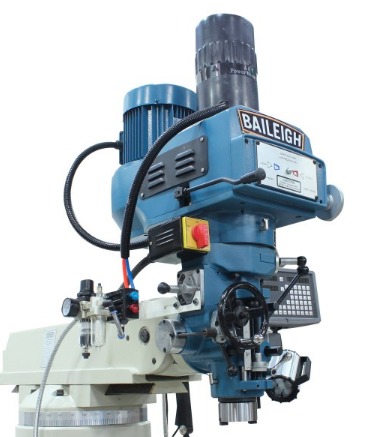

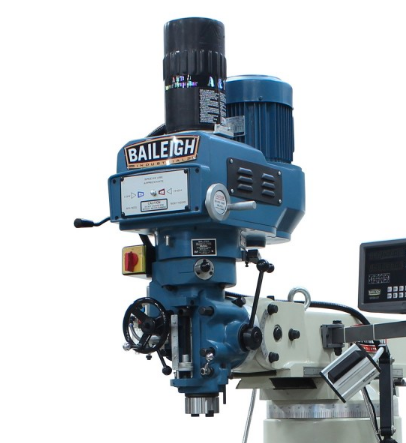

The VM-1054E-VS is a variable speed milling machine that runs from 60 to 4,200 rpm.  By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money.  Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well.  A larger spindle is stronger and has tighter tolerances over a longer period of time.  Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame.  The stronger you make he platform the better the cutting is.  Table size is another very important component when deciding which milling machine to buy and VM-1054E-VS has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.

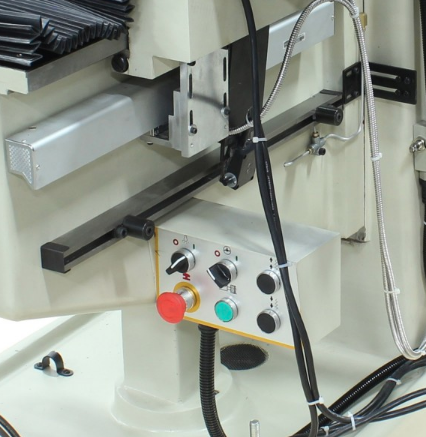

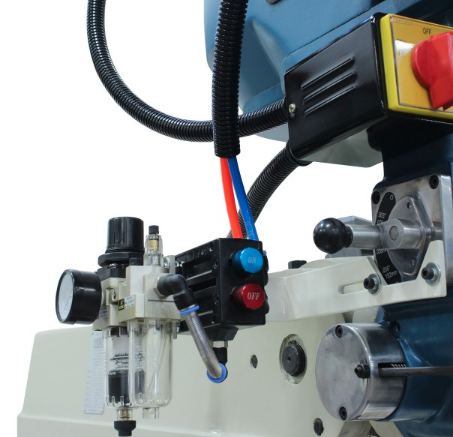

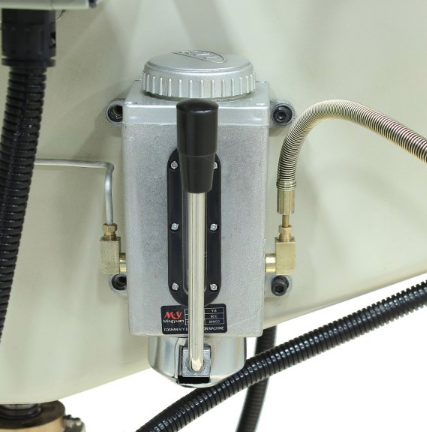

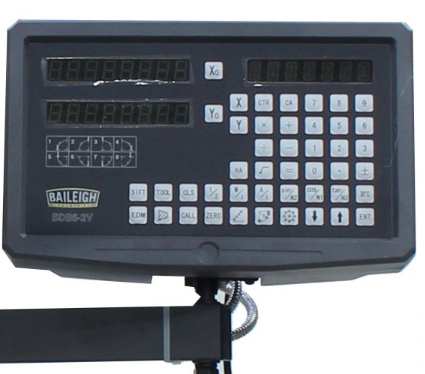

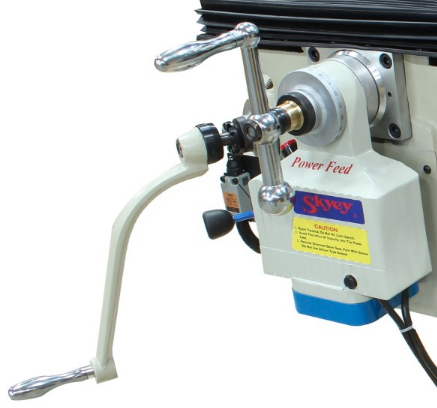

All three axis are powered on the VM-1054E-VS making it easy on the operator.  Another nice feature is the two axis digital readout that comes standard.  This digital readout is accurate to 1/10 of 1 thousandth of an inch.  A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054E-VS.

Specifications:

• Item Number VM-1054E-VS
• Table Size 54" x 10"
• Spindle Center To Column Min Max 7.87" – 26.77"
• Spindle Diameter 3.93"
• Spindle Feed Per Rev .0015"/.003"/.006"

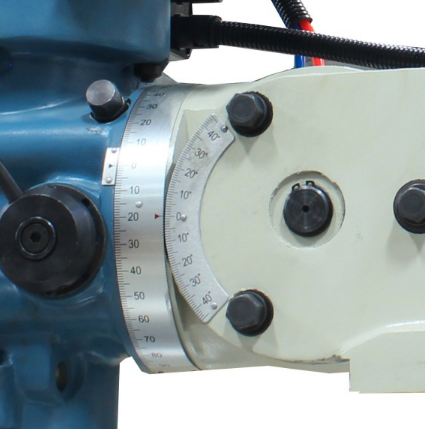

• Spindle Head Swivel 45° (F&R) 90° (R&L)
• Motor Spindle 3 hp
• Travel Auto X Axis 32"
• Travel Auto Y Axis 13.75"
• Travel Auto Z Axis 13"
• Spindle Nose To Table Min Max 4" – 17"

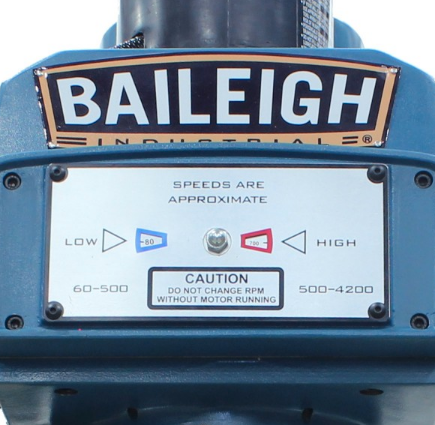

• Spindle Speed 60 – 4200 rpm
• Spindle Taper NT 40
• Table Load Capacity 550 lbs.
• T Slots .625"
• Motor Coolant 1/8 hp
• Cross Travel Of Ram 20"
• Power 220V / 3-phase
• Shipping Weight 3000lbs
• Spindle Travel 5"
• Shipping Dimensions (Inches) 72x72x77
  * specifications subject to change without notice.
