• Description

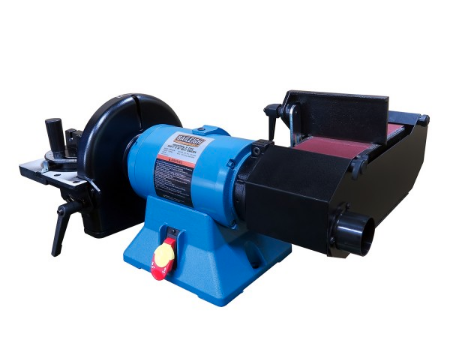

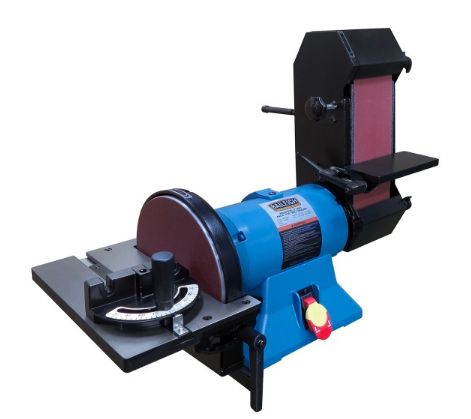

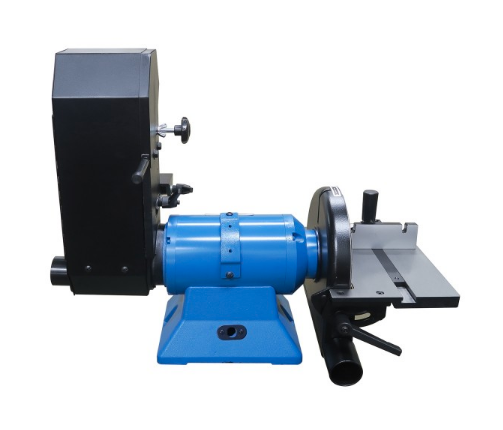

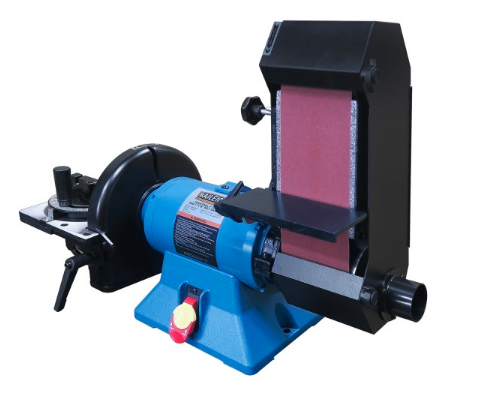

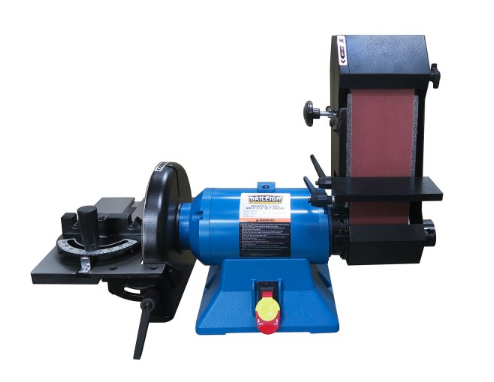

1227901, Baileigh DBG-9436, 110V, COMBINATION 2x48in BELT AND 9in DISK GRINDER

Save a lot of floor space in your shop with this benchtop 2-in-1 combination of an abrasive disc grinder and an abrasive belt grinder. Designed and built to very high standards, this machine will serve your shop for years to come.



Features:

  • Powerful 1 hp motor requires 115-volt single-phase power and will work in almost any fabrication shop setting.
  • 9" sanding disc.
  • Long 48" x 4" belt stays cool longer.
  • The abrasive disc grinder rotates at 3600 rpm and abrasive belt grinder rotates at 4712 fpm.
  • Large product support tables can be angled up to 45° for mitering edges.

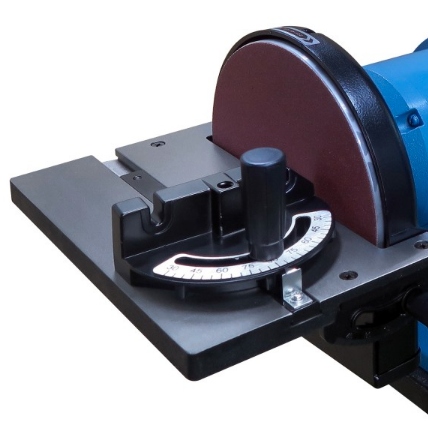

  • Disc side includes miter push block for safety.
  • Vacuum port for hooking up any standard shop vacuum to assist with dust collection.
  • Belt grinder includes tension control and tracking adjustments as standard features, not upgrades.
  • Baileigh backs this unit with a 1-year parts warranty and lifetime technical support.



Recommended for: Smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.



Specifications:

  • Item Number DBG-9436
  • Working Table Size 4-11/32" x 3" (Belt), 11-13/16" x 5-29/32" (Disc)
  • Base Size 9-1/2" x 8-1/16"
  • Noise 75dB @ 3'
  • Motor Hp 1
  • Table Angle Adj 45°
  • Belt Size L x W 36” x 4”
  • Belt Speed (ft./min.) 4712 fpm
  • Disc Diameter 9"
  • Disc Speed 3600 rpm
  • Power 115V
  • Shipping Weight 100lbs
  • Grit 80 (Disc and Belt)
  • Certification CSA
  • Shipping Dimensions (Inches) 48x45x50
    * specifications subject to change without notice.
