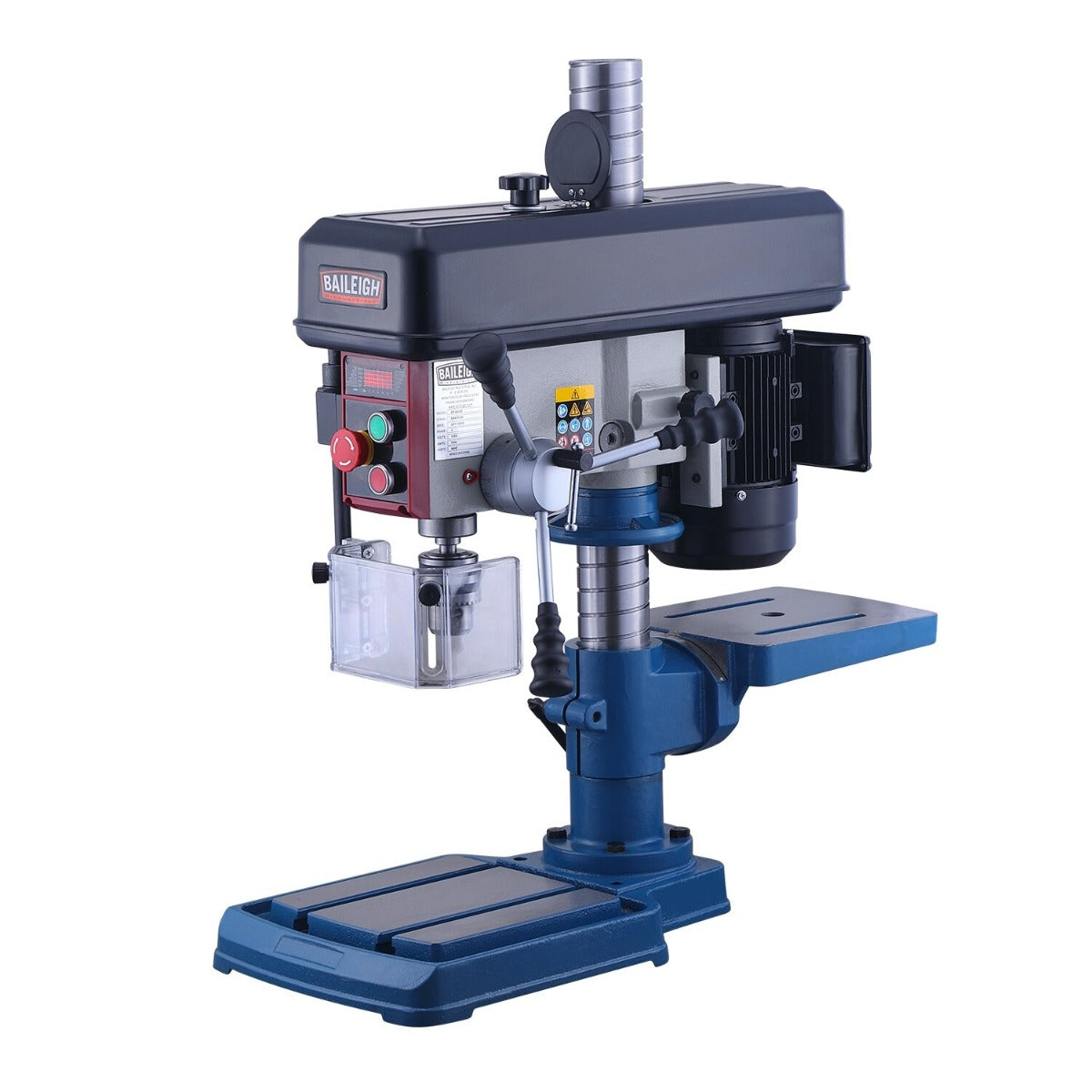

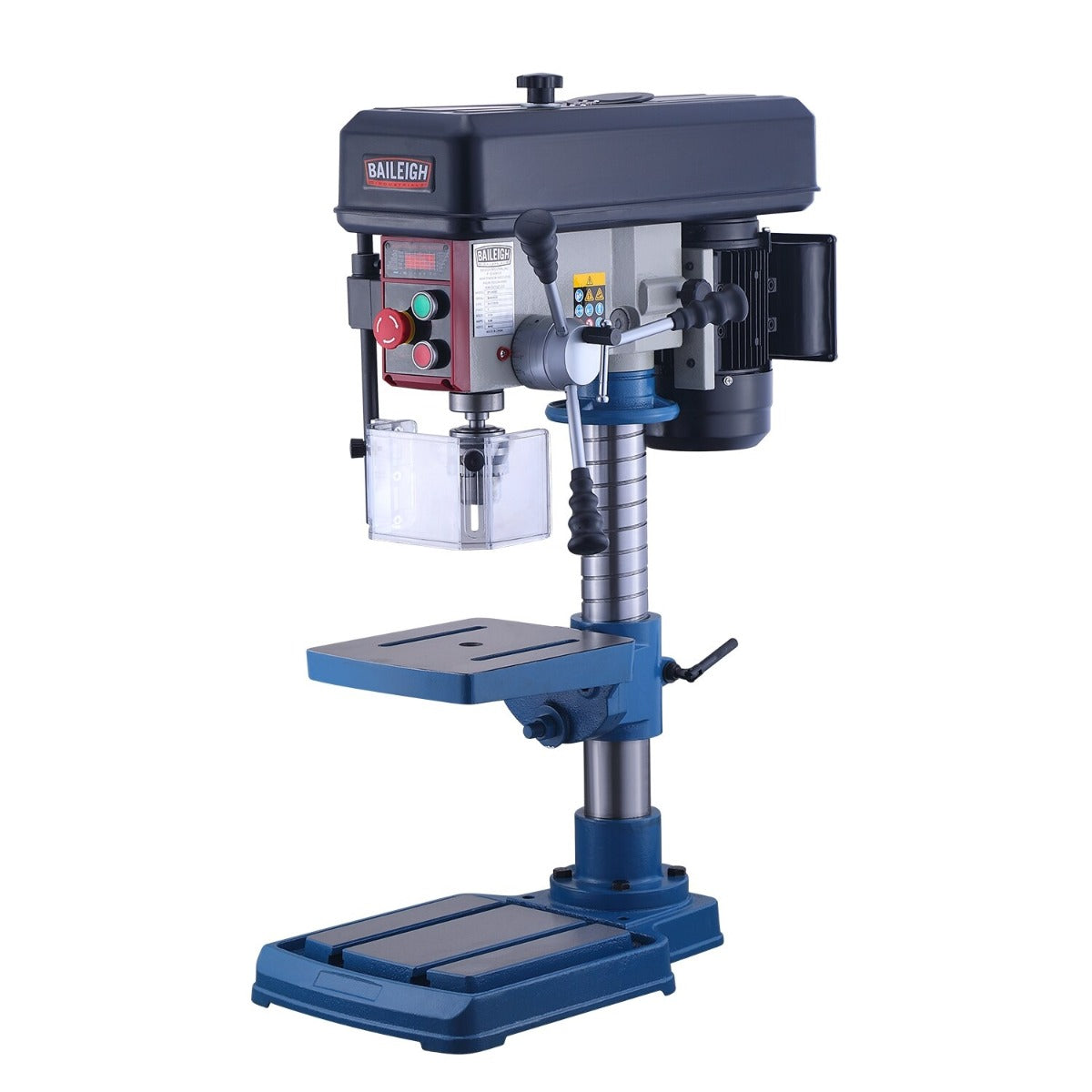

1228211, Baleigh DP-3814B - BENCH TOP DRILL PRESS

Looking for a small, compact, bench top drill press that has the power to do any task you ask of it at an economical price?  The DP-3814B 14" swing is just what you are looking for. This drill press runs smoothly even at full capacity—and will do so for years at your shop.



Features:

  • 1/2 hp motor requires 110-volt power and will work at virtually any shop or site.

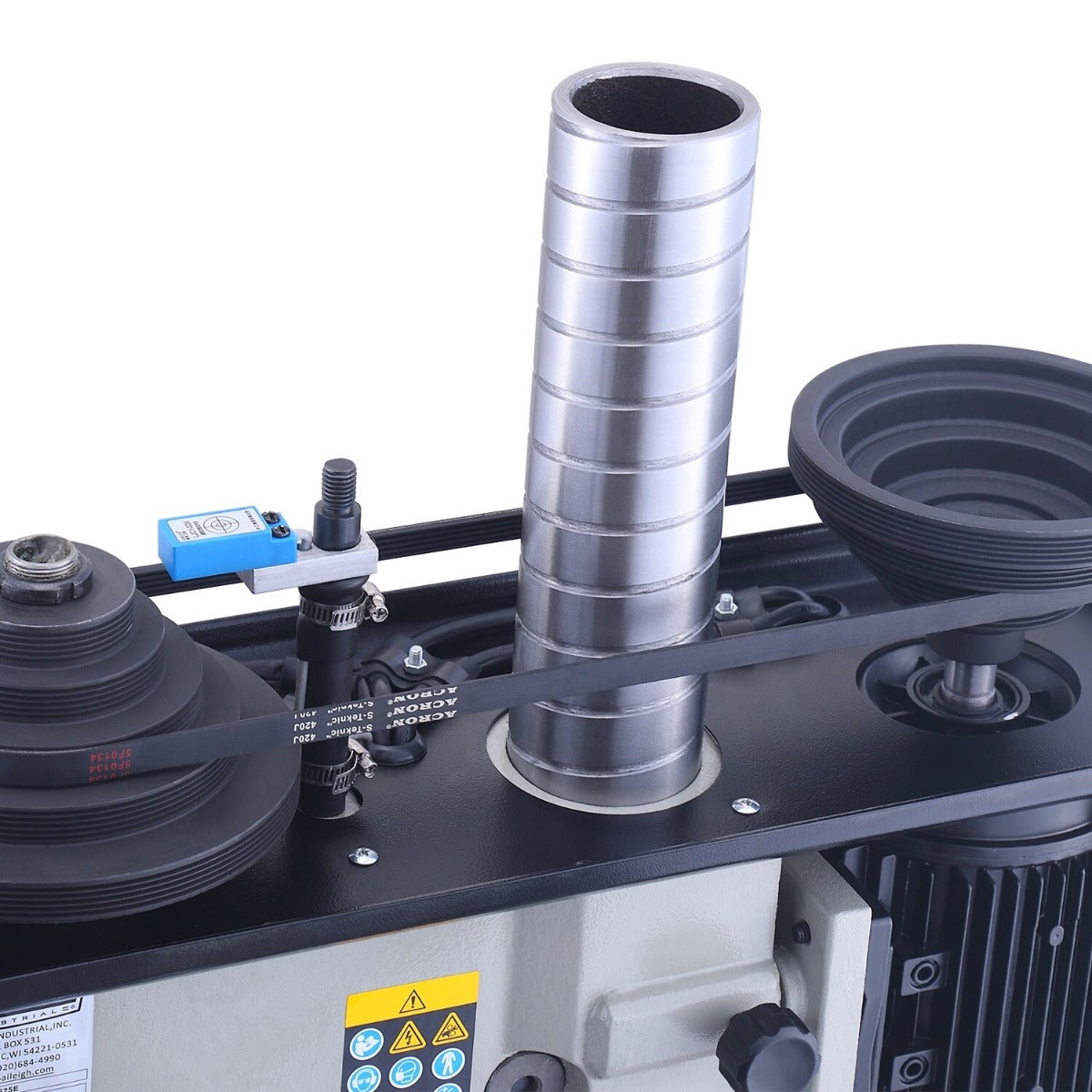

  • Belt-driven head drills a maximum capacity of 5/8” steel.
  • Spindle speeds in the range from 250 to 2900 rpm to suit your application.
  • 2-3/4" wide steel column eliminates flexing even when drilling at full capacity.

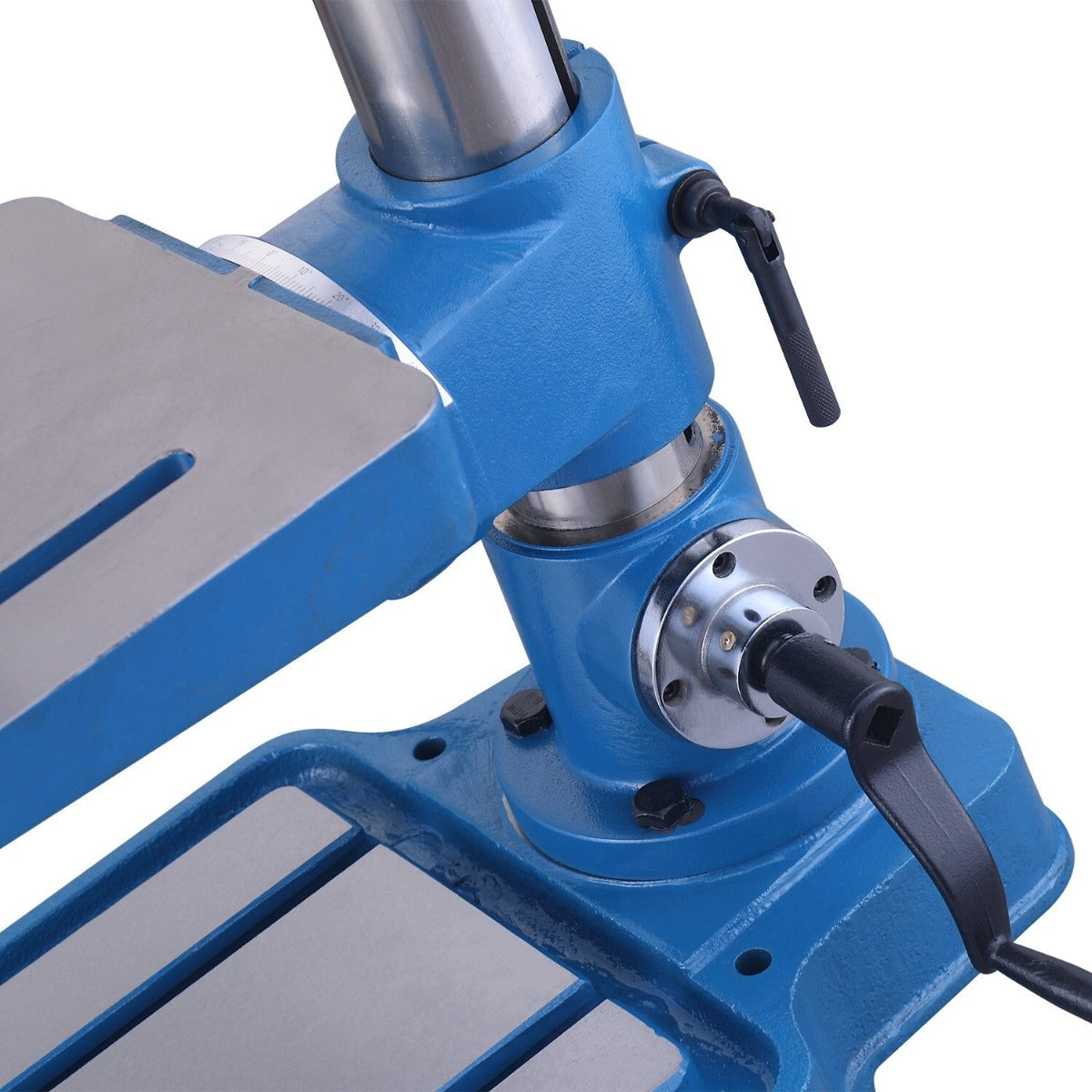

  • Easy to adjust table and head position with it's clever screw type column.
  • Rigid cast iron base and table add strength to the drill’s structure.
  • The table even tilts left or right to 45 degrees.
  • Includes a safety shield around the drill head to protect you.
  • Baileigh backs this bench-top drill press machine with a 1-year parts warranty



Specifications:

  • Maximum Load Capacity 132 lbs
  • Spindle Speeds 5
  • Drilling Capacity 5/8" Mild Steel
  • Swing 14"
  • Distance from Spindle to Table 11-1/2"
  • Distance from Spindle to Base 19-5/8"
  • Diameter of Column 2-3/4"
  • Spindle Taper B16

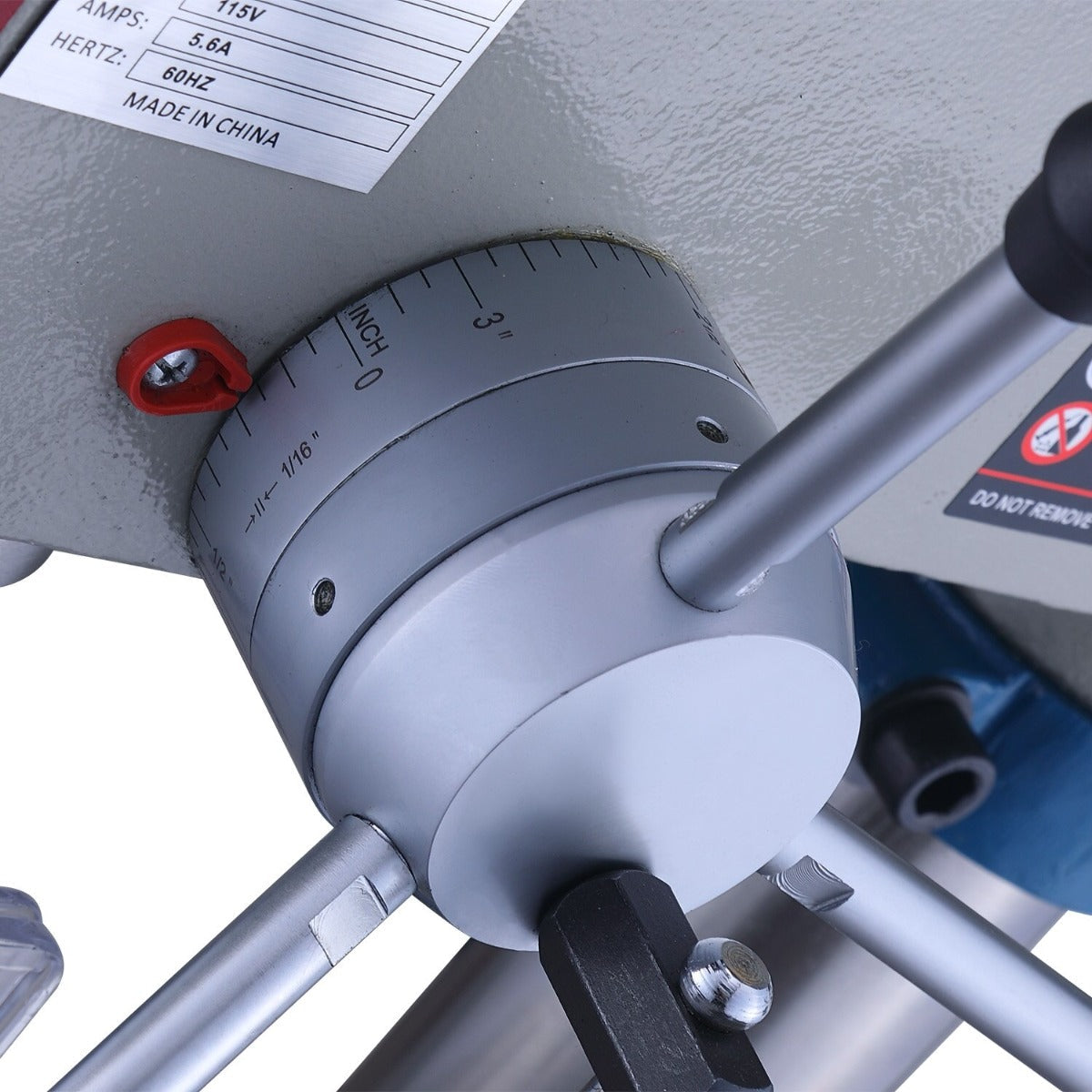

  • Spindle Travel 3-1/2"
  • Spindle Speed Range 250-2900 rpm
  • Table Size 9" x 10-1/4"
  • Base Size 18-3/4" x 12-1/2"
  • T-Slot Width 2 @ .531"
  • Overall Size 26-1/4" x 13" x 38-1/4"
  • Table Angle Adj L or R 45 Degrees
  • Chuck Capacity .03" - .625"
  • Power 110 Volt
  • Shipping Weight 194 lbs
  • Rotating Head Yes (360 degrees)
  • Speeds 16
  • Shipping Dimensions (Inches) 48x31x16
    * specifications subject to change without notice.
