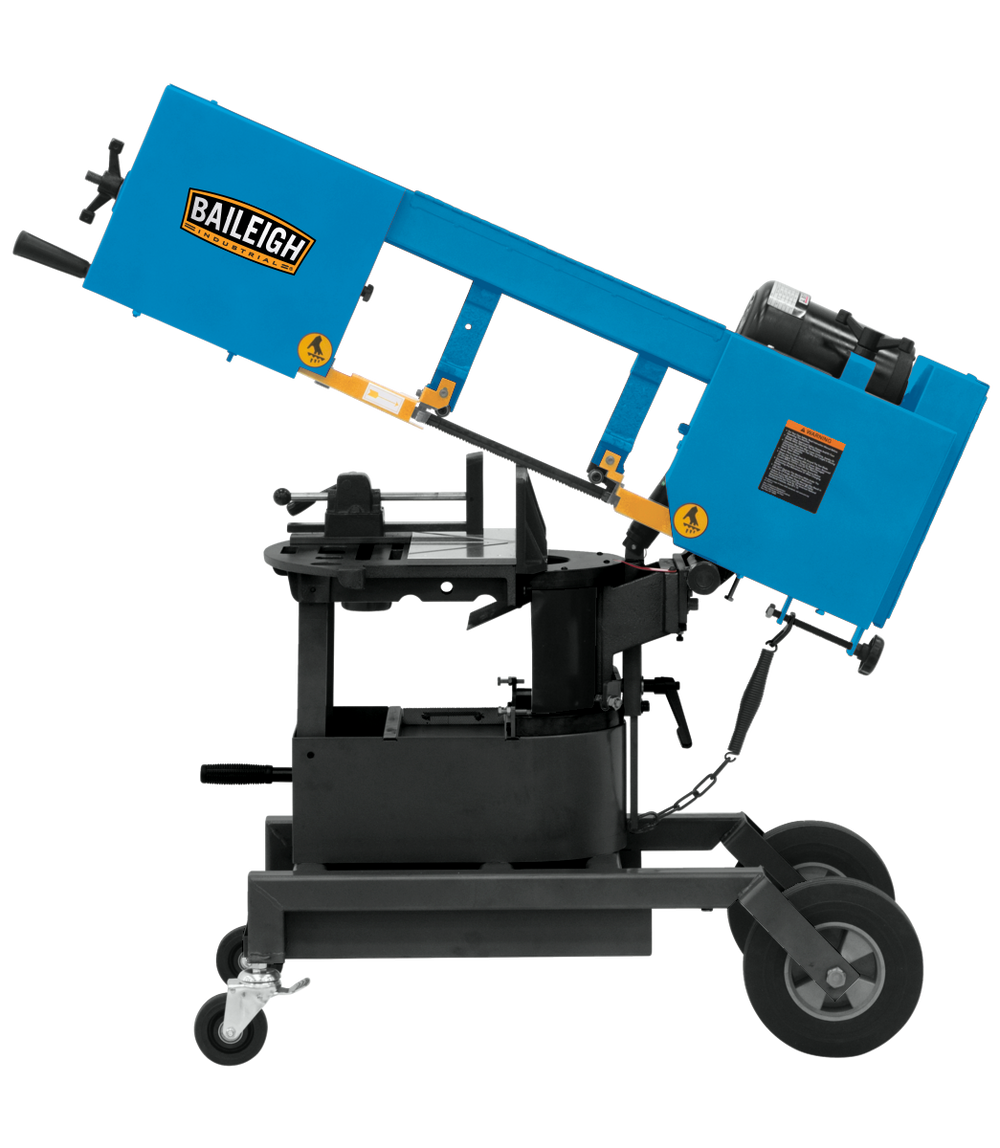

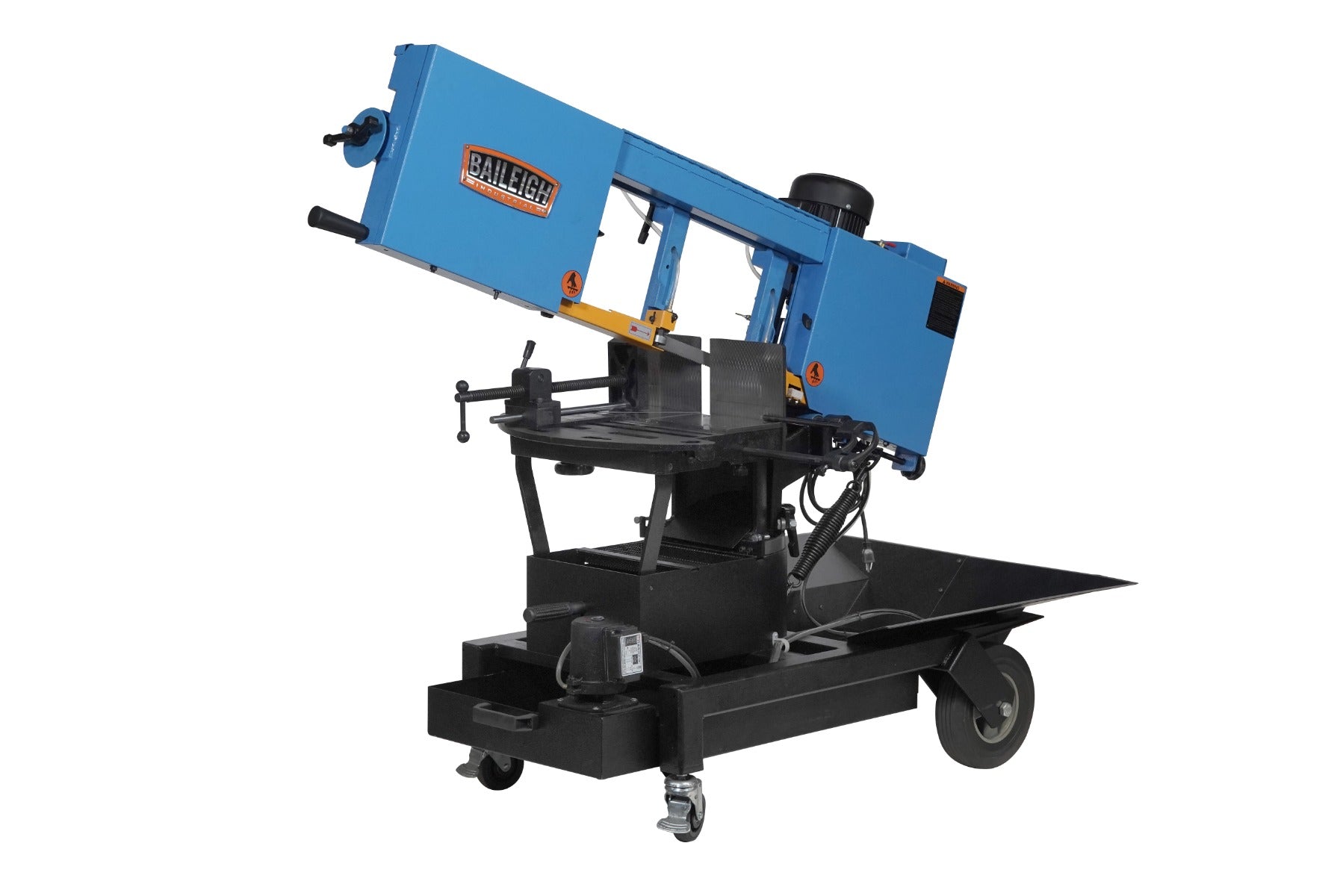

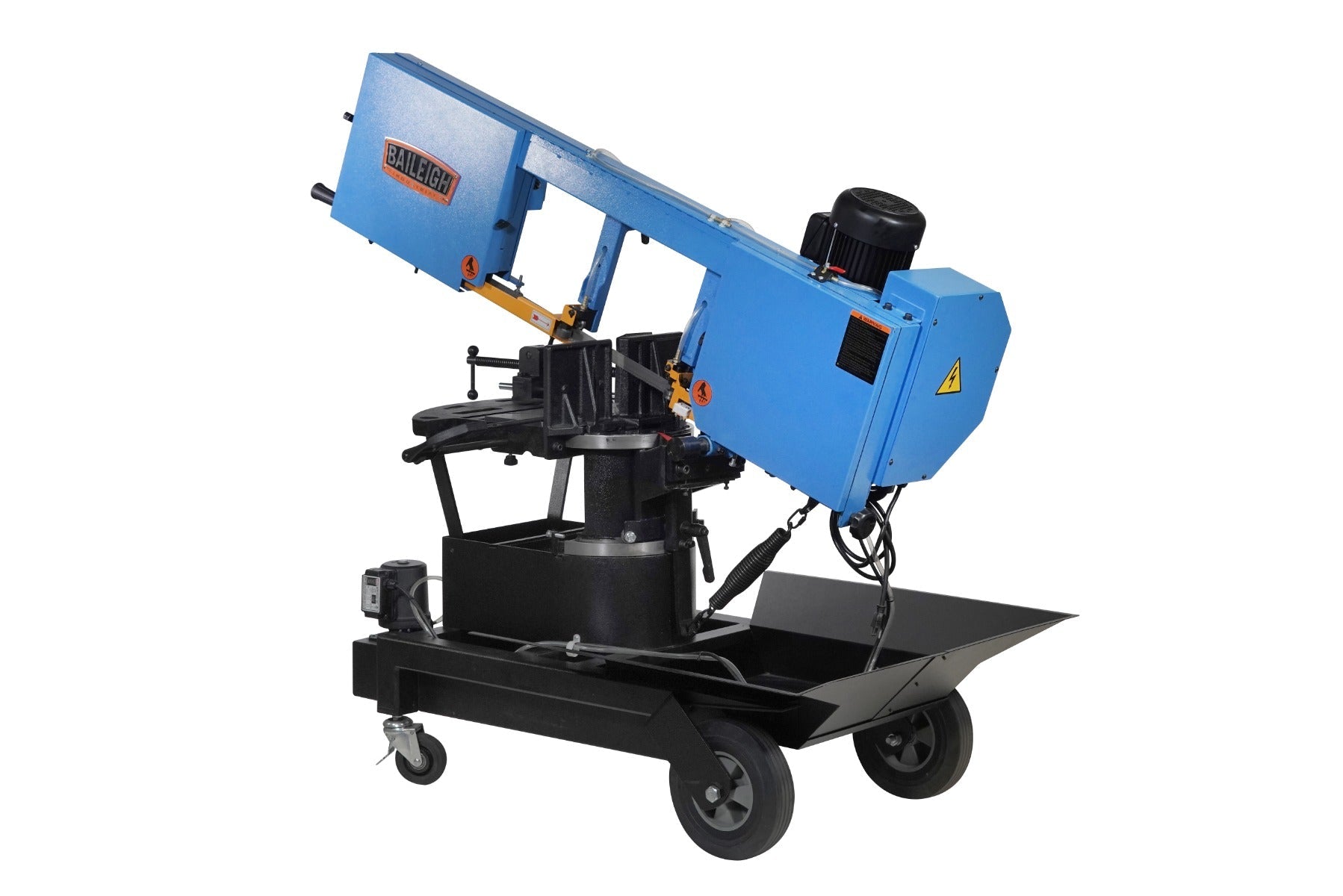

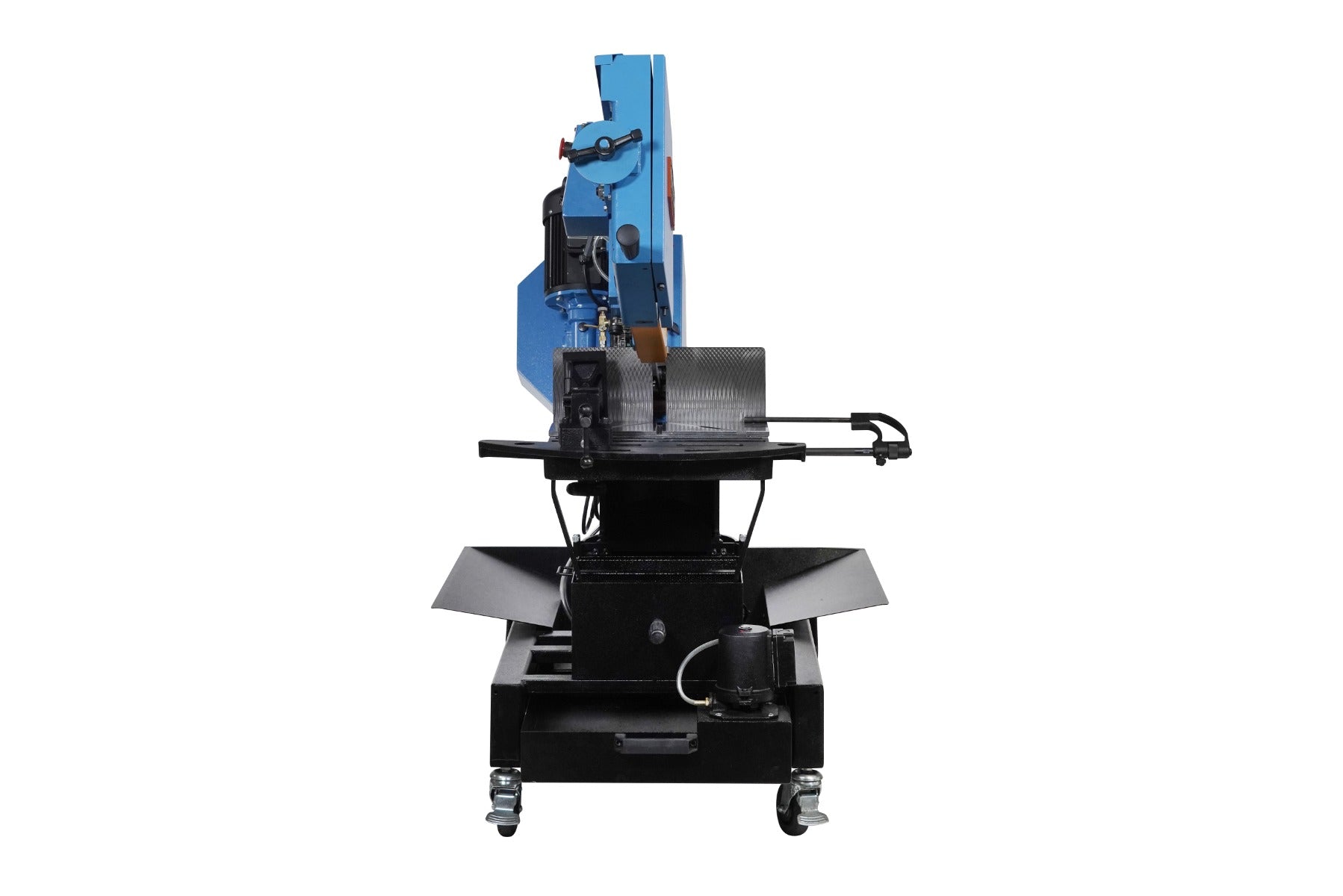

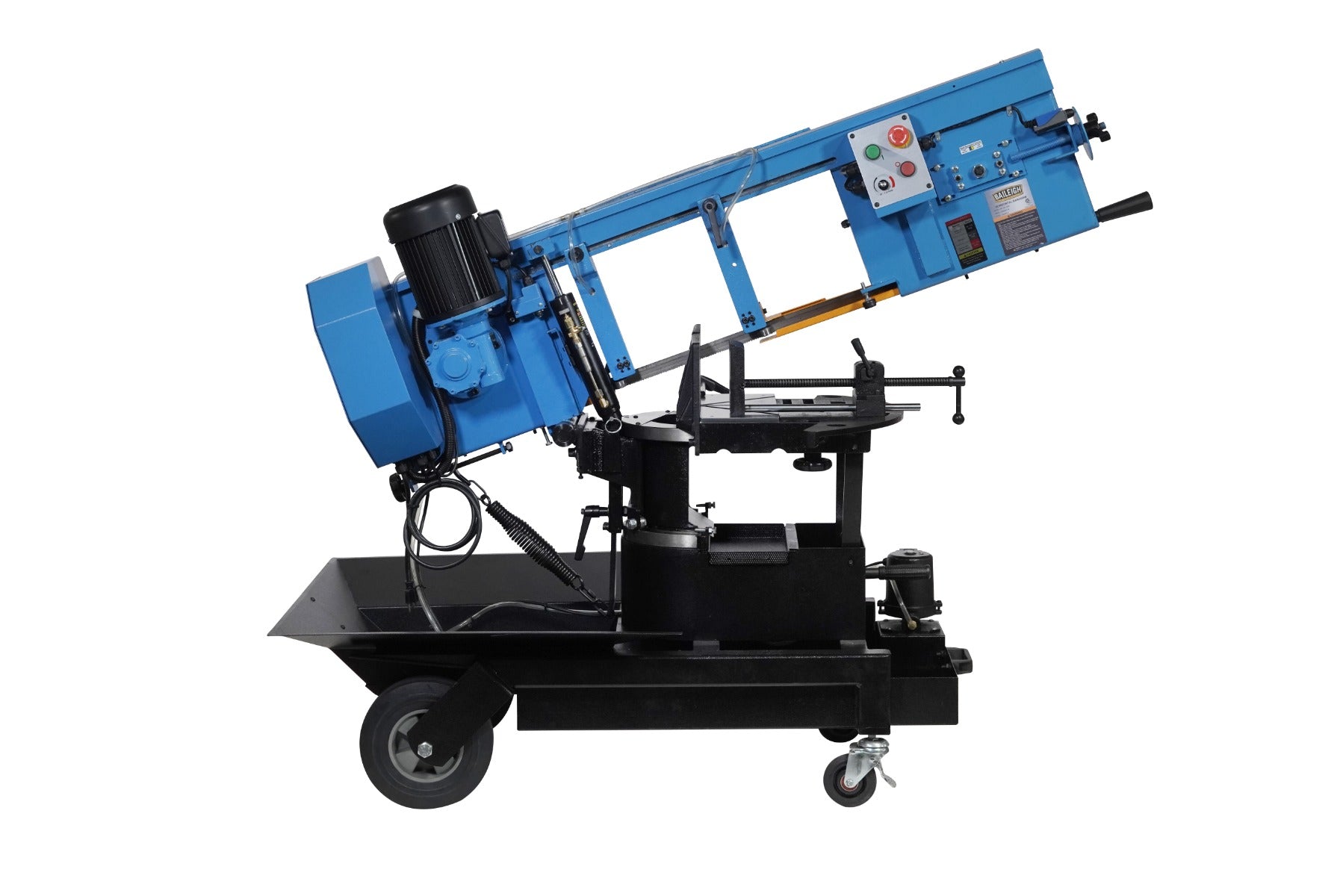

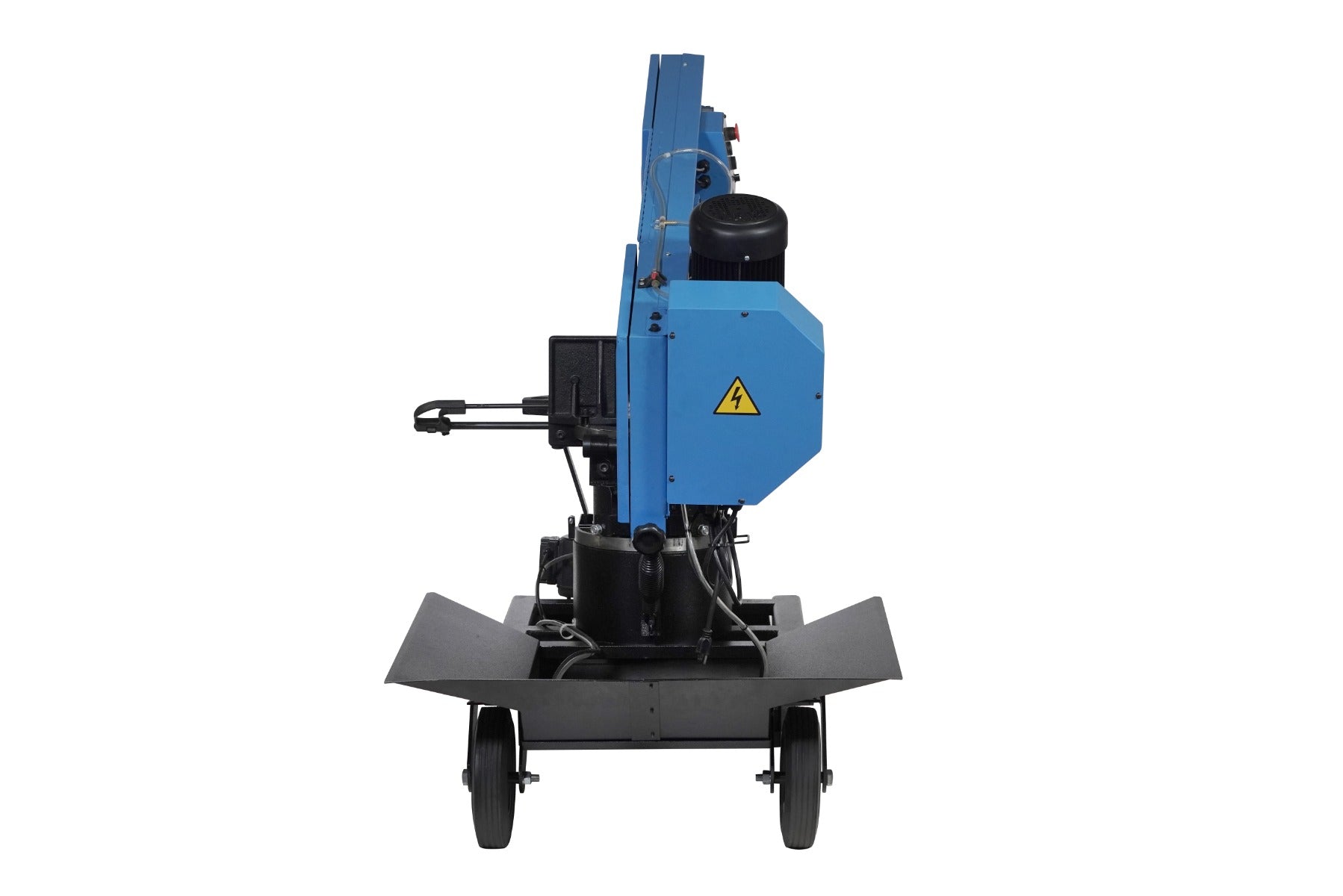

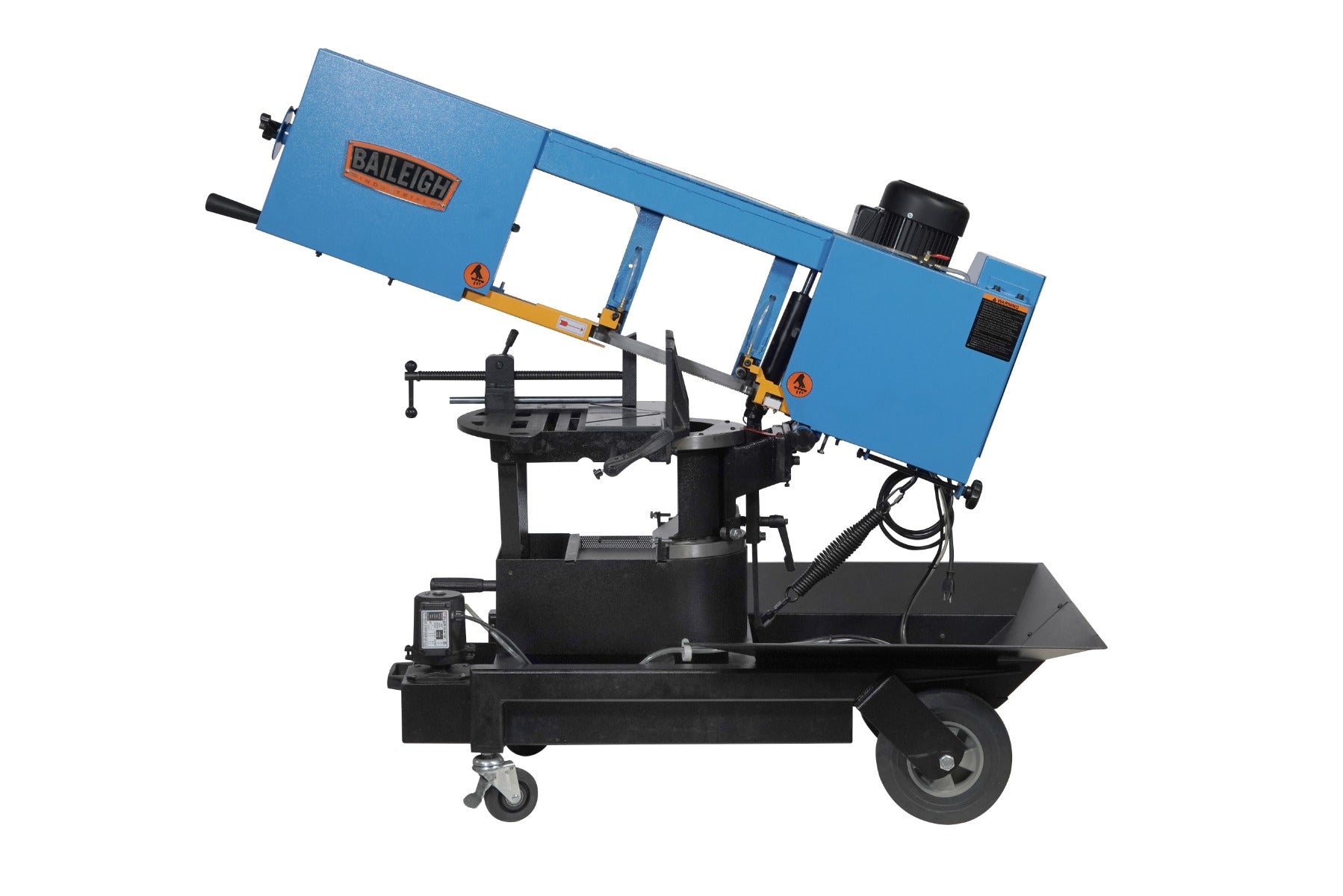

Baileigh BS-10VS 10" Variable Speed Dual Mitering Horizontal Vertical Portable Band Saw with Coolant 1HP, 115V, Single Phase 1232696

Looking for a "do-it-all" saw with large capacity at a great price?  Look no further than the BS-10VS, this saw has it all; horizontal and vertical configurations, inverter-driven variable speed, dual mitering, and coolant.  This saw is the complete package offering efficiency, performance, and safety.  See below for complete details.

Features:

• Efficiency



  • An inverter allows this saw to run on 115V single-phase power-driven by a durable three-phase motor.

  • Quick locking vise is easy to adjust to clamp various material sizes.

  • Large protractor for accurate and fast angle cuts

  • Easily converts from Horizontal to Vertical configuration providing maximum cutting flexibility with included Vertical Support Table.

  • Locking casters and robust rear wheels deliver effortless movement around the shop.

  • Wire blade brush prevents chip build-up in the blade guides providing cleaner cuts

  • Removable chip tray for easy disposal of waste material



• Performance



  • Dual mitering head produces quick & easy angle cuts to up to 45⁰ both left and right

  • Electronic Variable Speed (EVS) allows for the adjustment of blade speed "on the fly" while cutting providing access to a wider range of cutting materials

  • Hydraulic down feed control is easily adjustable allowing users to match feed rate to a variety of sizes & types of materials

  • Integrated coolant system produces cleaner cuts and extends the life of your blade

• Saftey

  • Fully guarded blade can be used in both Horizontal and Vertical configurations ensuring operator safety

  • CSA/CUS: Following strict guidelines and electrical requirements, this Baileigh saw is CSA/CUS certified

  • Automatic shut-off stops the sawing process once a cut is completed

  • Baileigh covers this metal band saw with a 1-year parts warranty.

Specifications:

• Item Number: BS-10VS
• Motor Hp: 1
• Coolant System: Yes
• Return: Manual
• Miter Adjustment: Swivel Head
• Miter Angle: 0 – 45° Left and Right
• Capacity Round 90°: 10"
• Capacity Square 90°: 8" x 8"
• Capacity Rectangle 90°: 8" x 9"
• Capacity Round 45°: 6.5"
• Capacity Square 45°: 5.5" x 5.5"
• Capacity Rectangle 45°: 8" x 5.5"
• Table Height: Horizontal - 28.75" / Vertical - 34.875"
• Blade Guide: Carbide x Roller
• Blade Size: 1" x .035" x 120"
• Blade Speed (fpm): 88 – 270 Variable
• Max. Vise Opening: 10"
• Descent Control: Hydraulic
• Coolant Pump: 1/8 hp
• Drive: Belt
• Power: 115V
• Shipping Weight: 584lbs
• Shipping Dimensions (Inches): 61" x 30" x 46"

Includes:

• Bandsaw with Vise.
• Installed saw blade
• Coolant Tray components with hardware
• Vertical cutting platform
• Work stop assembly
• Wheels & casters with hardware
• Handle with hardware
