1353001, Powermatic 3520C Lathe, 2HP, 1PH, 220V

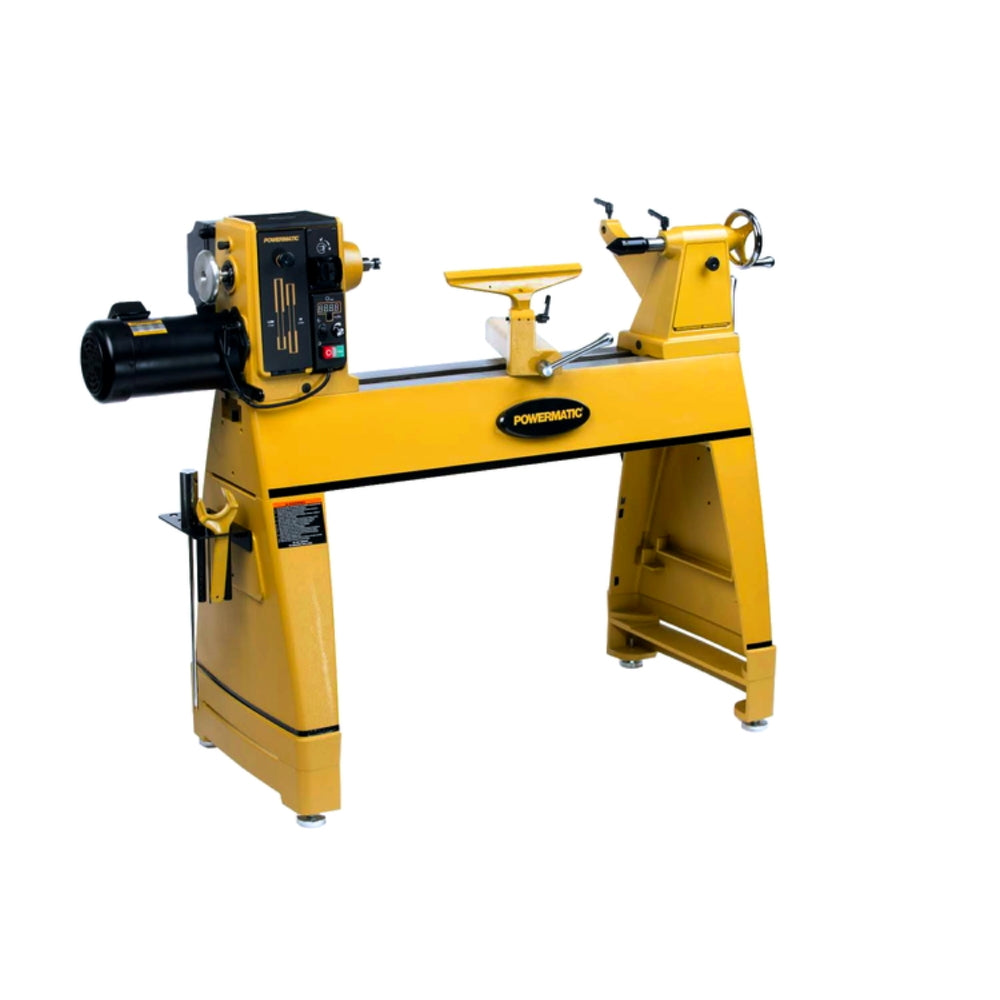

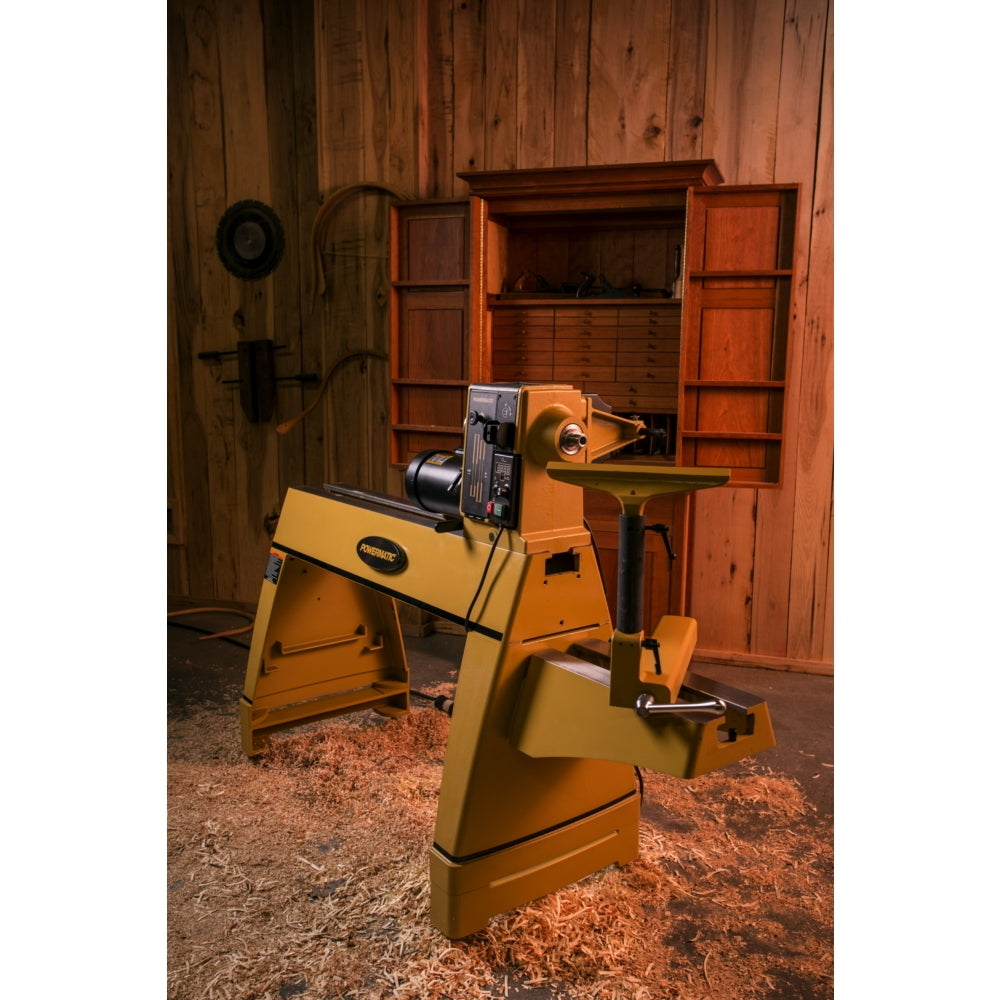

The Powermatic® 3520C is the fourth evolution of the time-honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high-speed ranges, the spindle lock, digital RPM readout, and a laser-etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 726 LBS (814 LBS with the bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two-position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

Features:

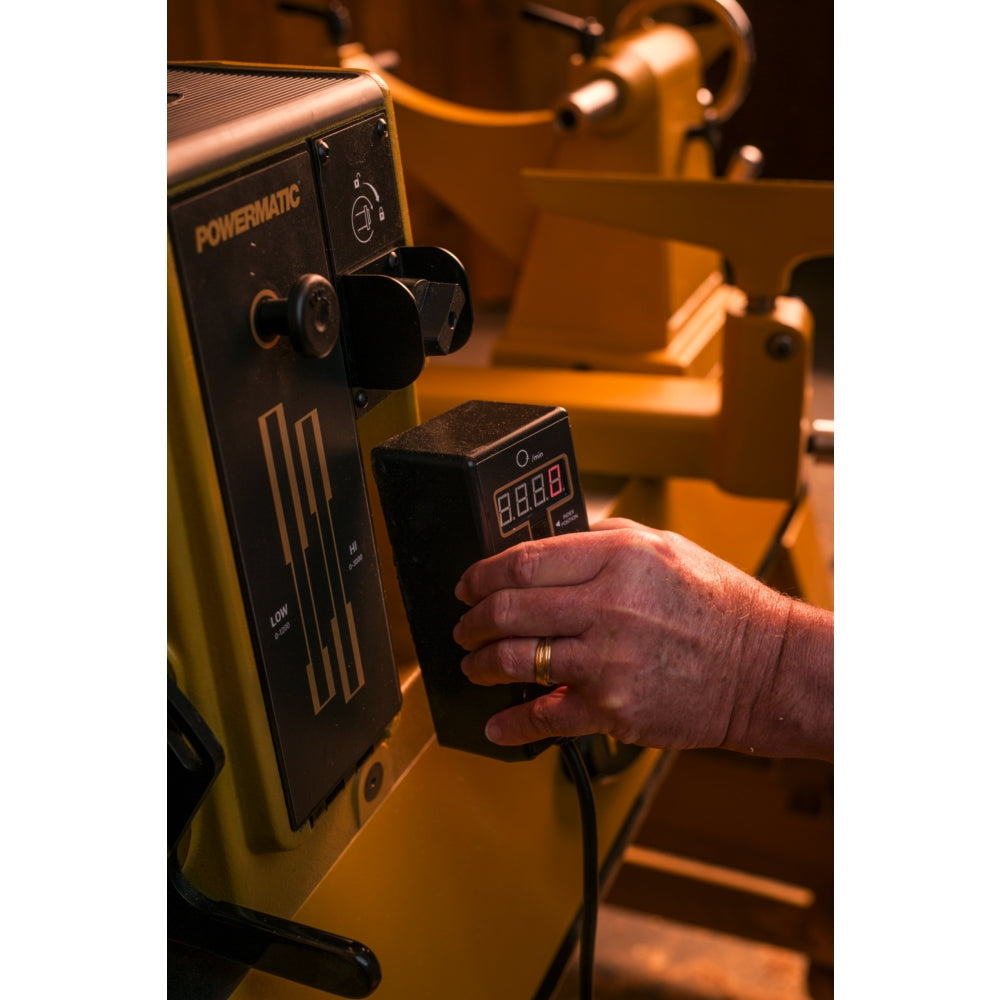

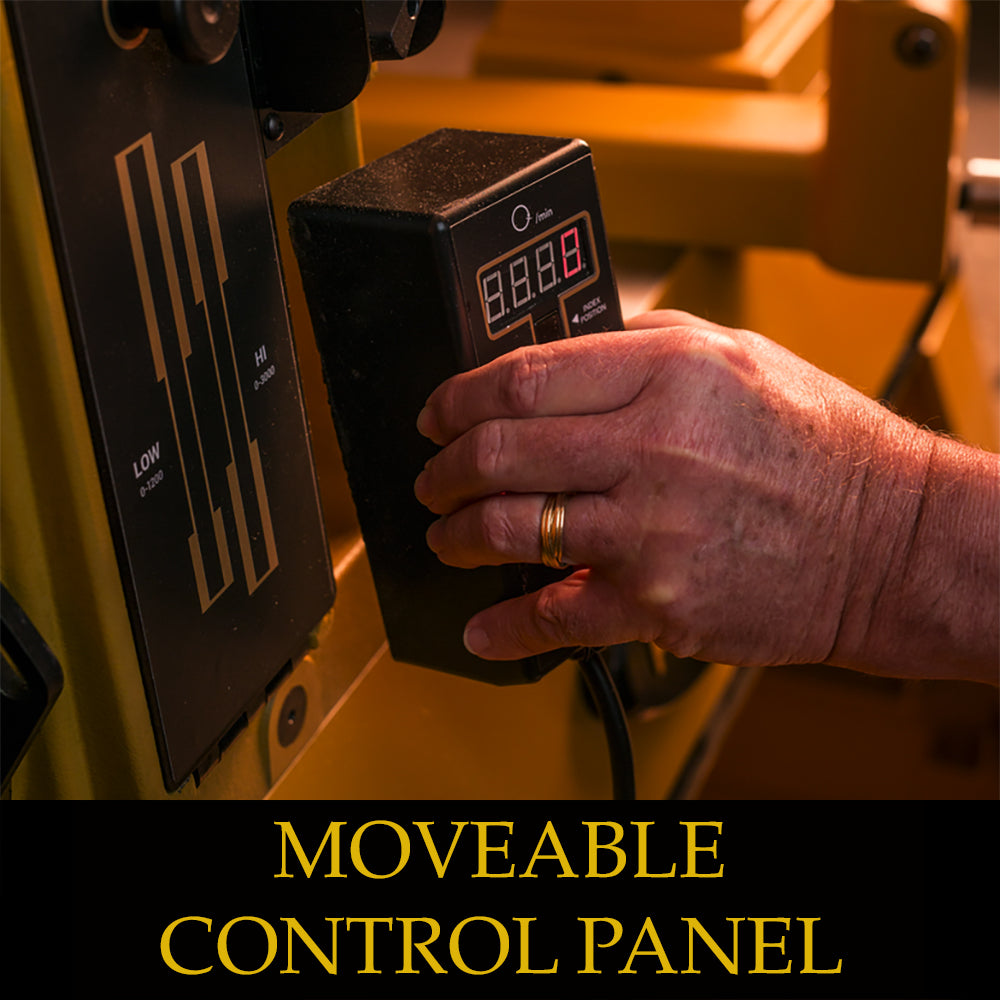

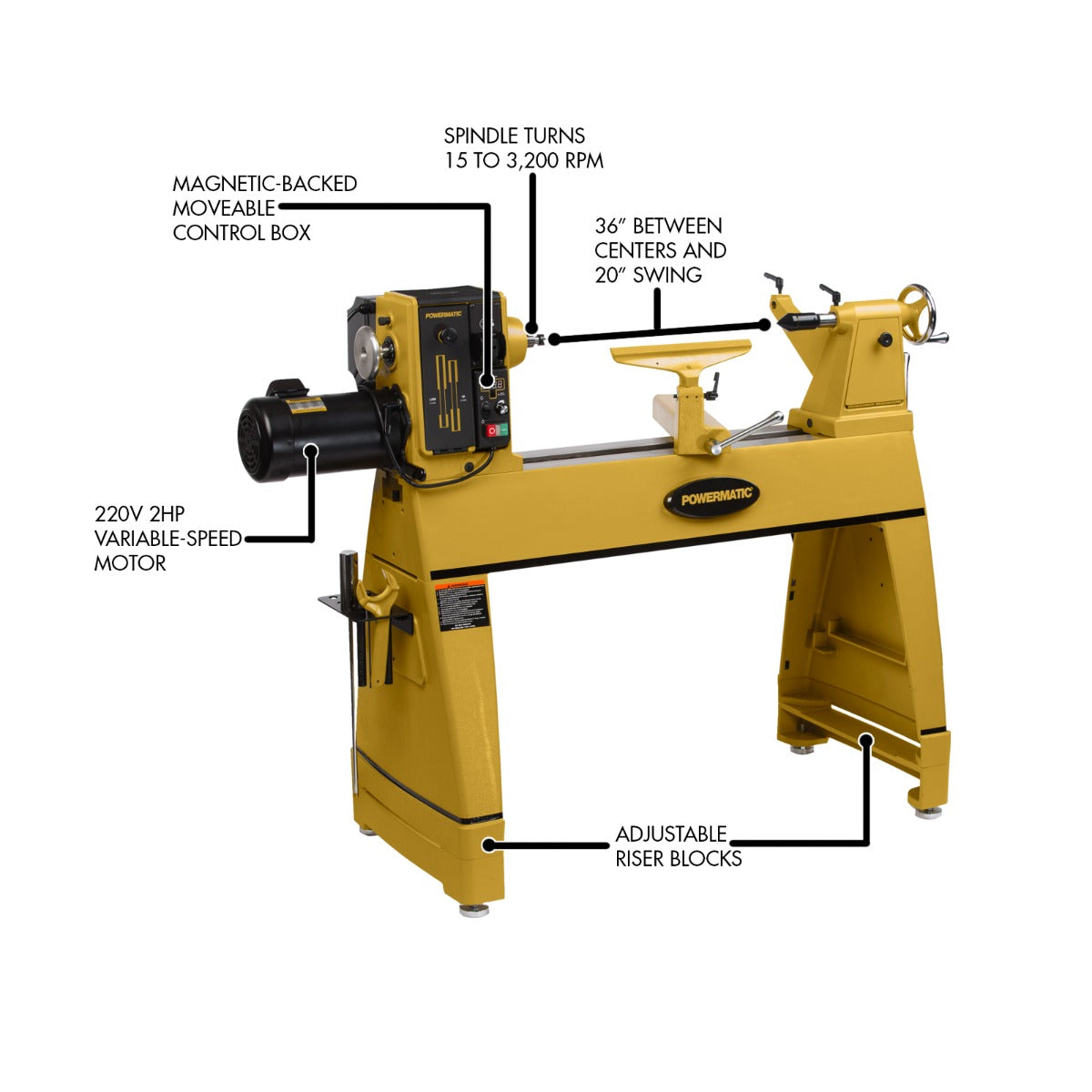

  • Moveable control box for customizable versatility
  • Main power disconnect switch located on the rear of headstock
  • Self-locating ergonomic spindle lock design for easy, one-handed operation
  • Upgraded banjo features a non-marring, pinch-style clamp for solid tool rest placement
  • Extended spindle nose increased access to the work piece

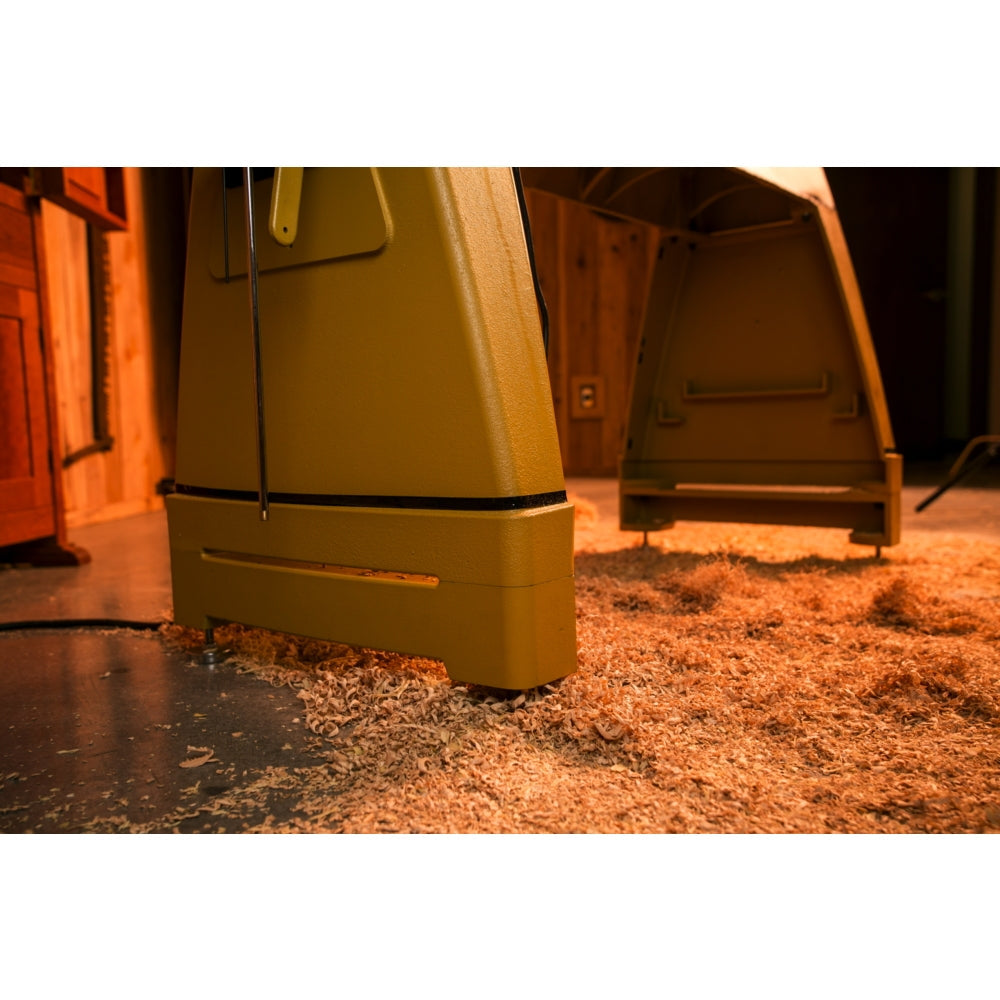

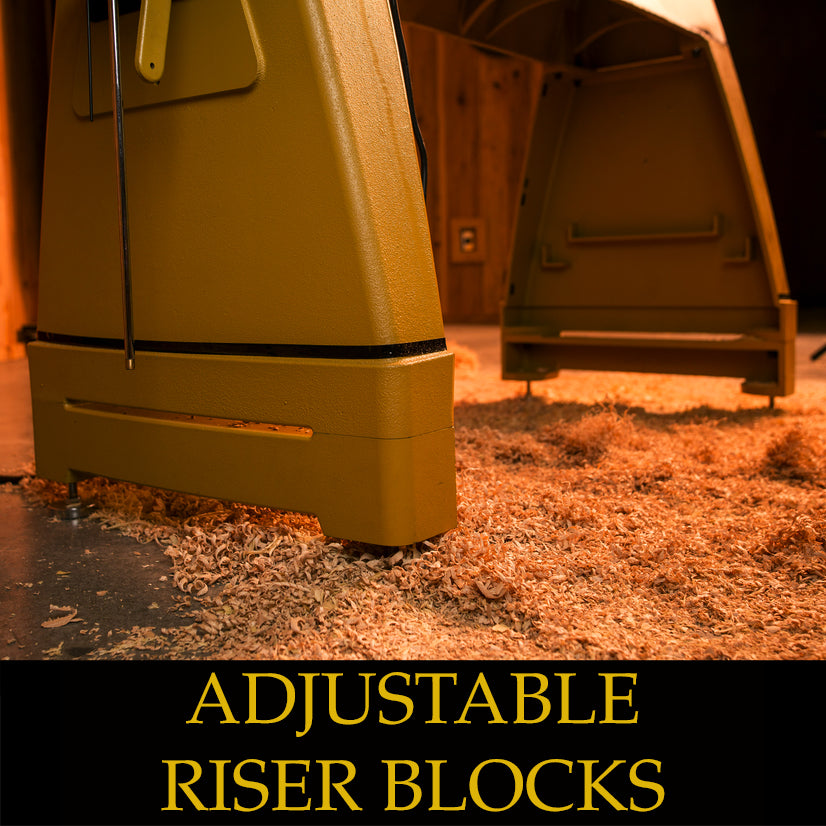

  • Adjustable Risers Blocks for 6-inches of height adjustment allowing maximum comfort when turning

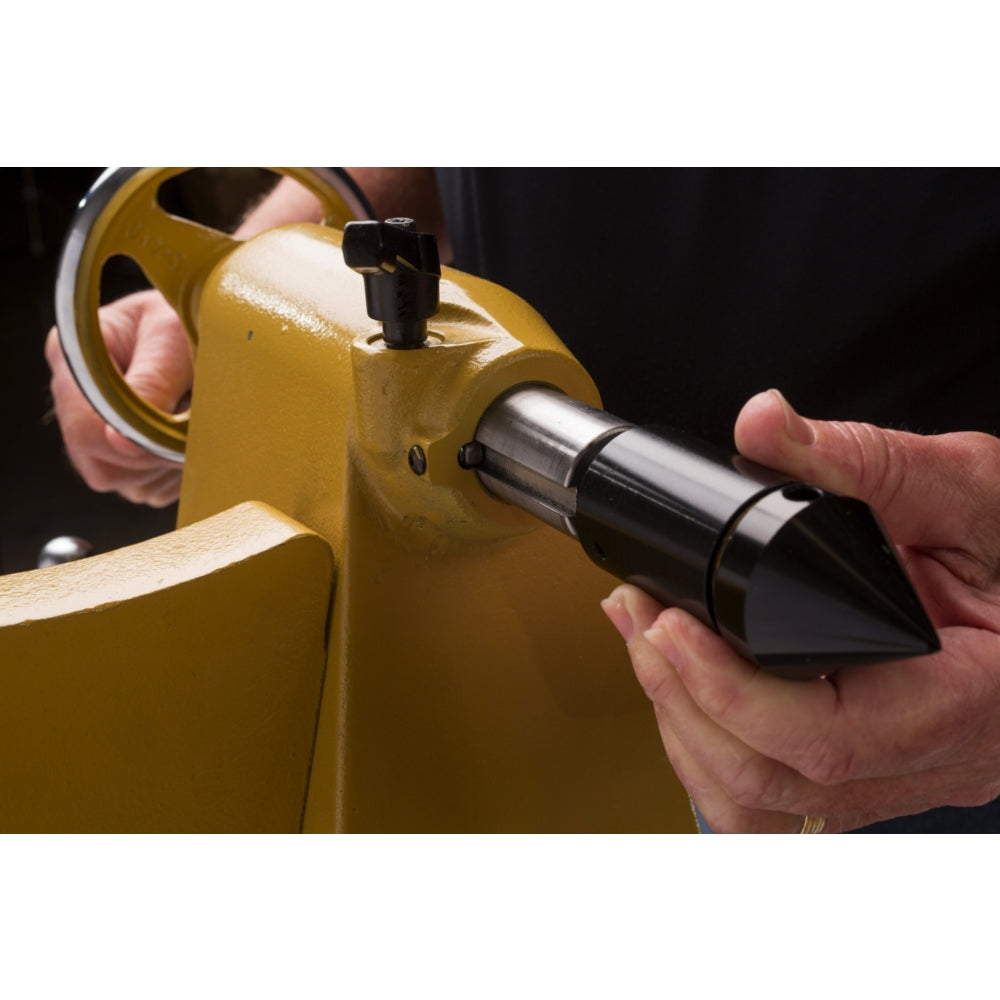

  • Tailstock incorporates Anti-rotation key and Acme threads for smoother operation and increased longevity

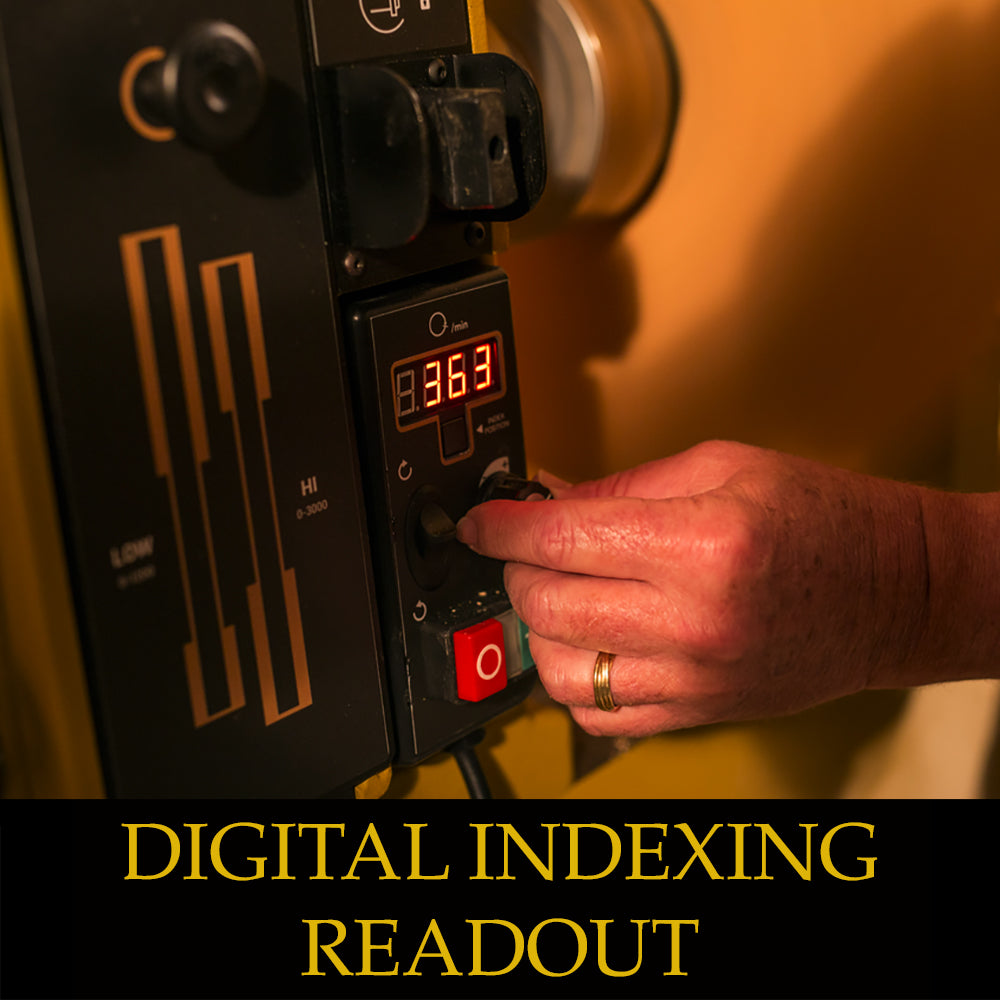

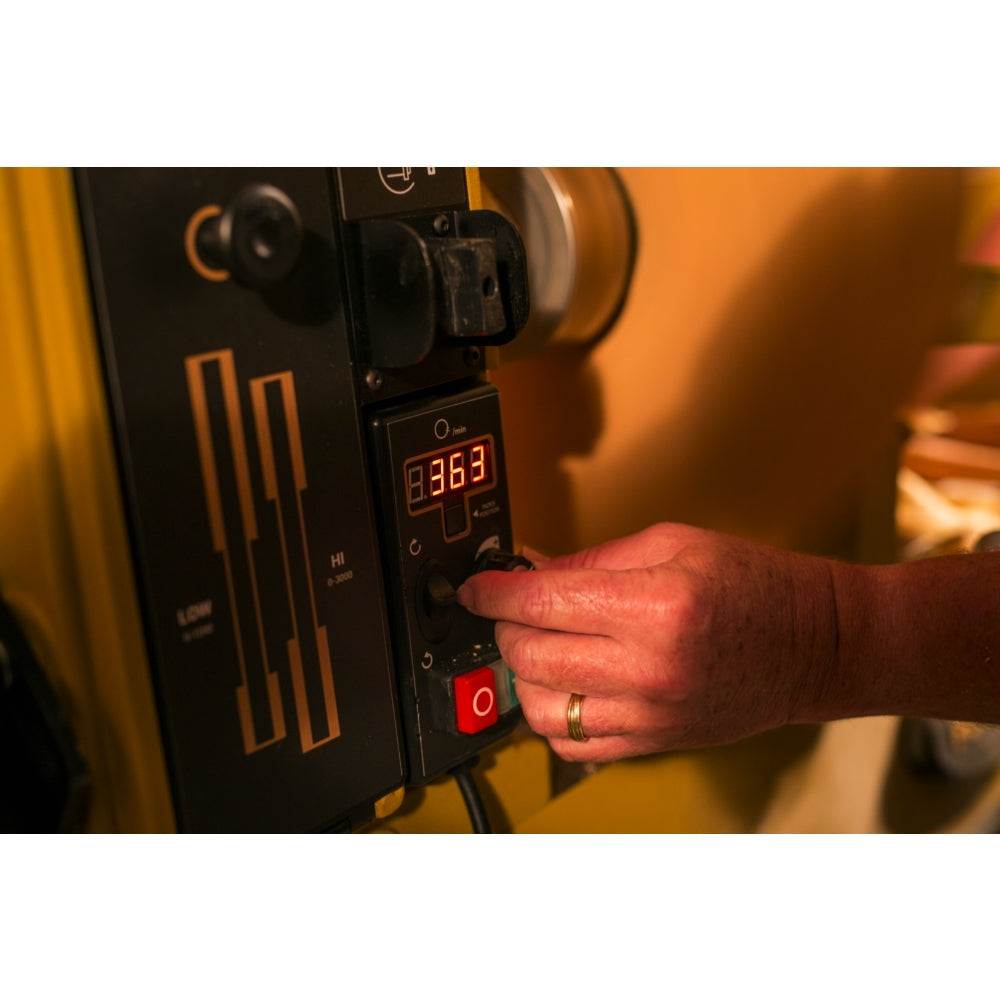

  • Digital Indexing Readout simplifies the indexing process for added precision
  • Fully enclosed VFD for increased user protection
  • Able to maintain speeds as low as 15 RPM
  • Increased Weight to 726LBS (814LBS with bed extension) for the most stable turning experience possible
  • Increased working capacity to a full 35 inches between centers
  • Optional safety shield
  • Following strict guidelines and electrical requirements, these Powermatic 3520C Lathes are CSA Certified

Specifications:

Size (In.)   20
Swing Over Bed (In.)   20
Swing Over Tool Rest Base (In.)   15-3/4
Distance Between Centers (In.)   36 w/dual bearing center
Headstock Movement   Full Length of Bed
Spindle Bore   5/8"
Tailstock Bore    3/8"
Spindle Taper   MT-2
Quill Taper   MT-2
Ram Travel Quill Travel   4-1/2"
Spindle Threads (In. x TPI)   1-1/4 x 8
Outboard External Threads (In. x TPI)   1-3/16-18UNC
Spindle Speeds   Low 15-1200/High 40-3200
Speed Range   15-3200
Number of Indexing Positions   48
Centerline of Spindle to Floor (In.)   40-5/8 without Risers
Outboard Turning   Yes
Bed Construction   Cast Iron
Motor Power (HP)   2
Motor Phase   3
Motor Voltage (V.)   220 Only
Prewired Voltage (V.)   220 Only
Wiring Remarks   Single Phase ONLY
Motor Current (Amps)   6.2
Recommended Circuit Size (Amps.)   20
