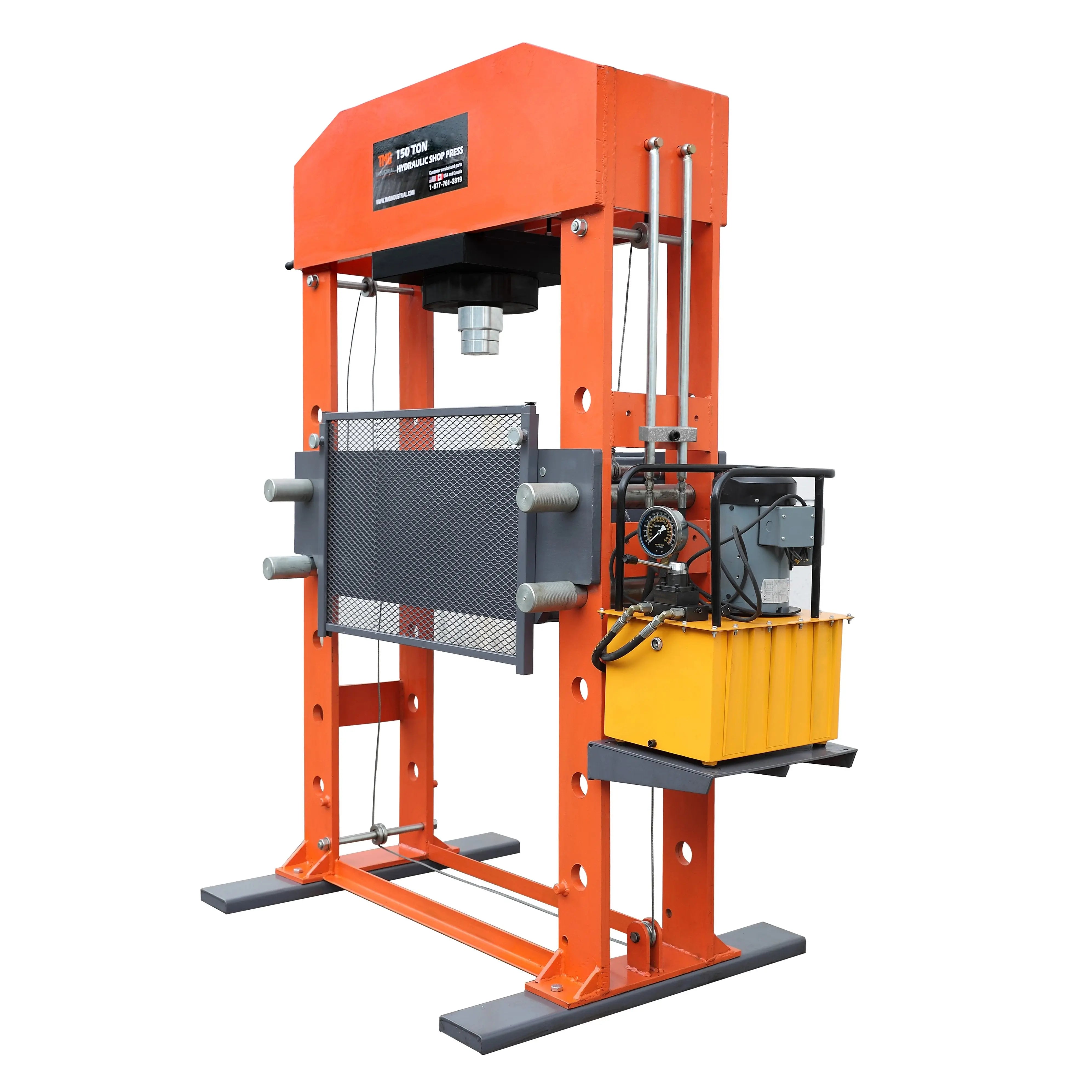

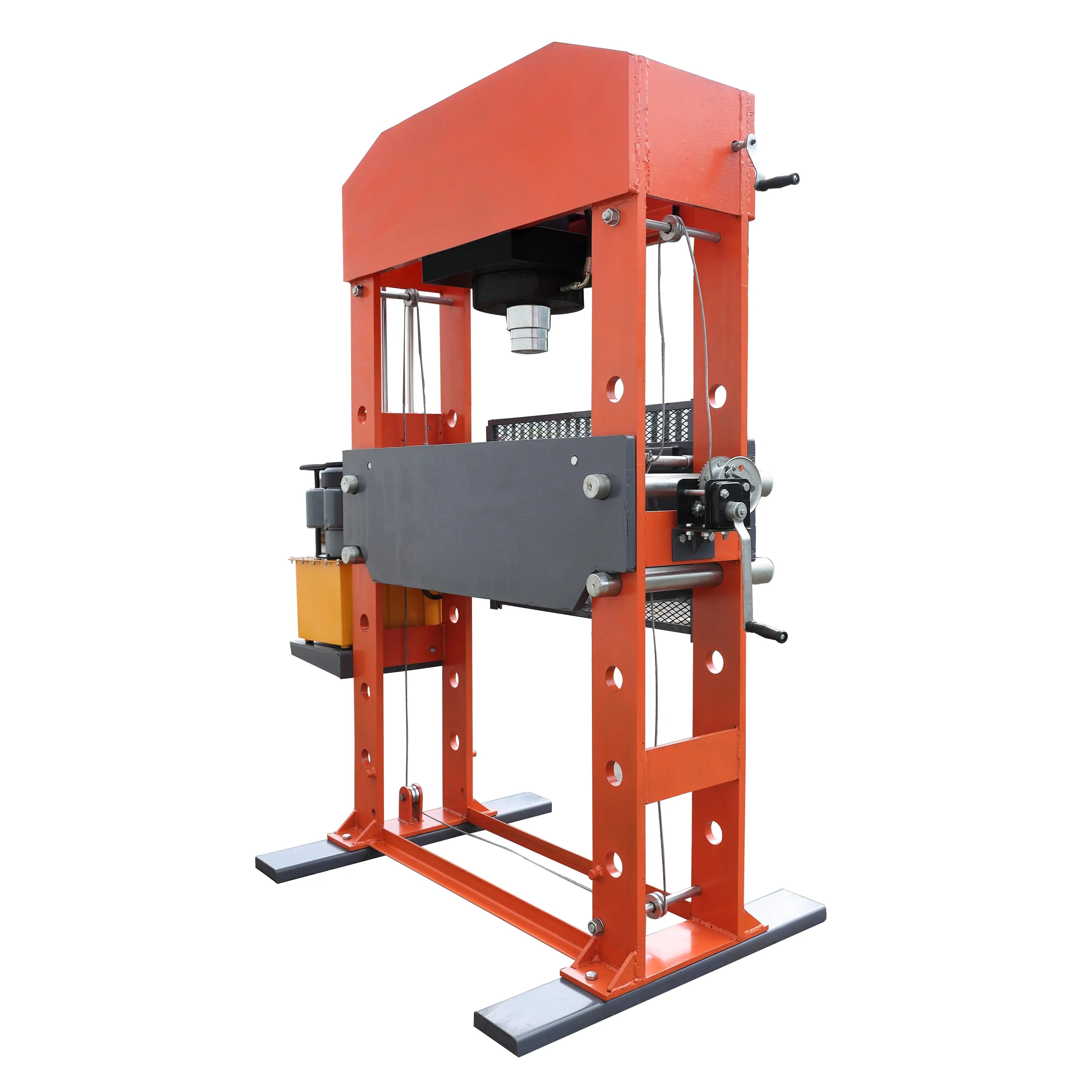

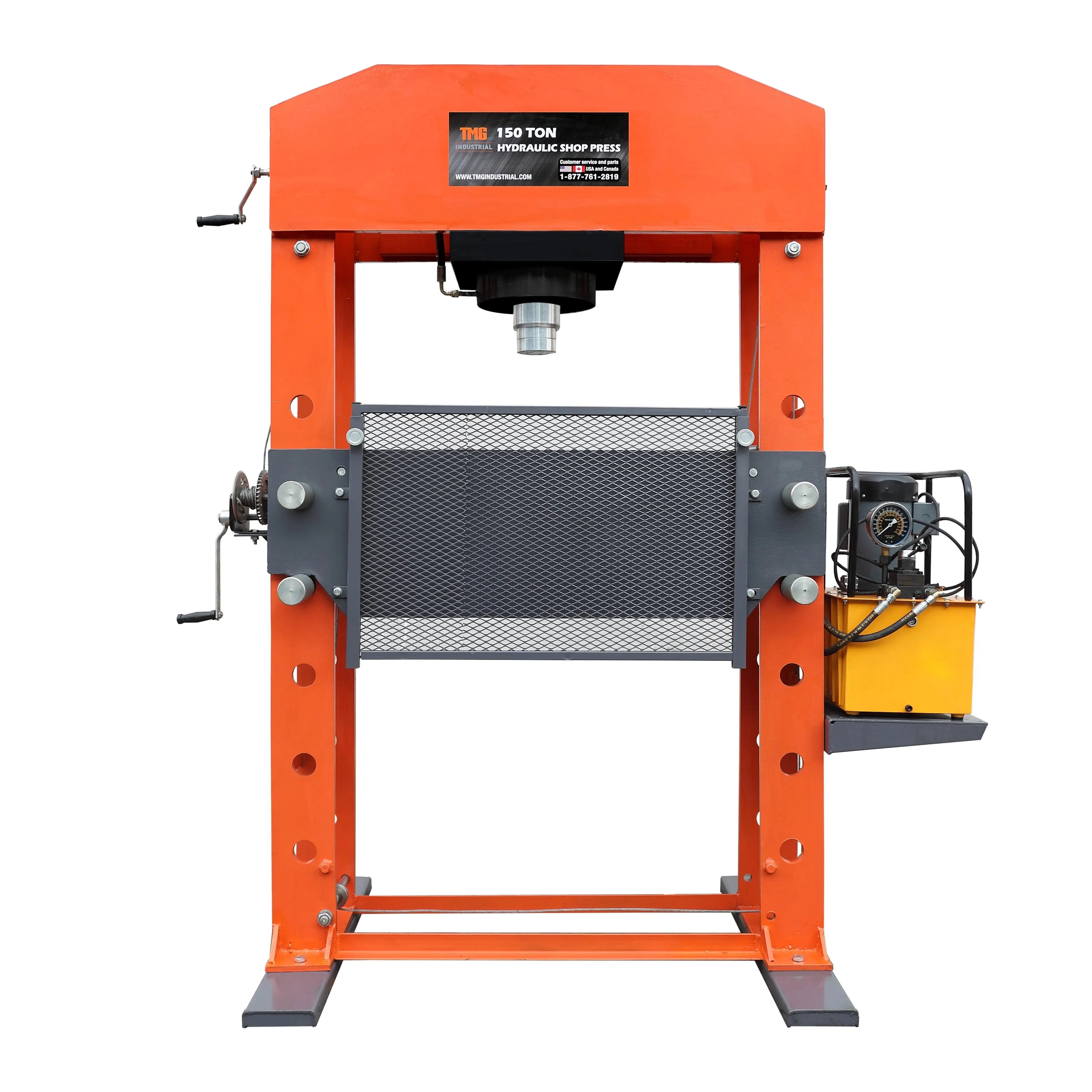

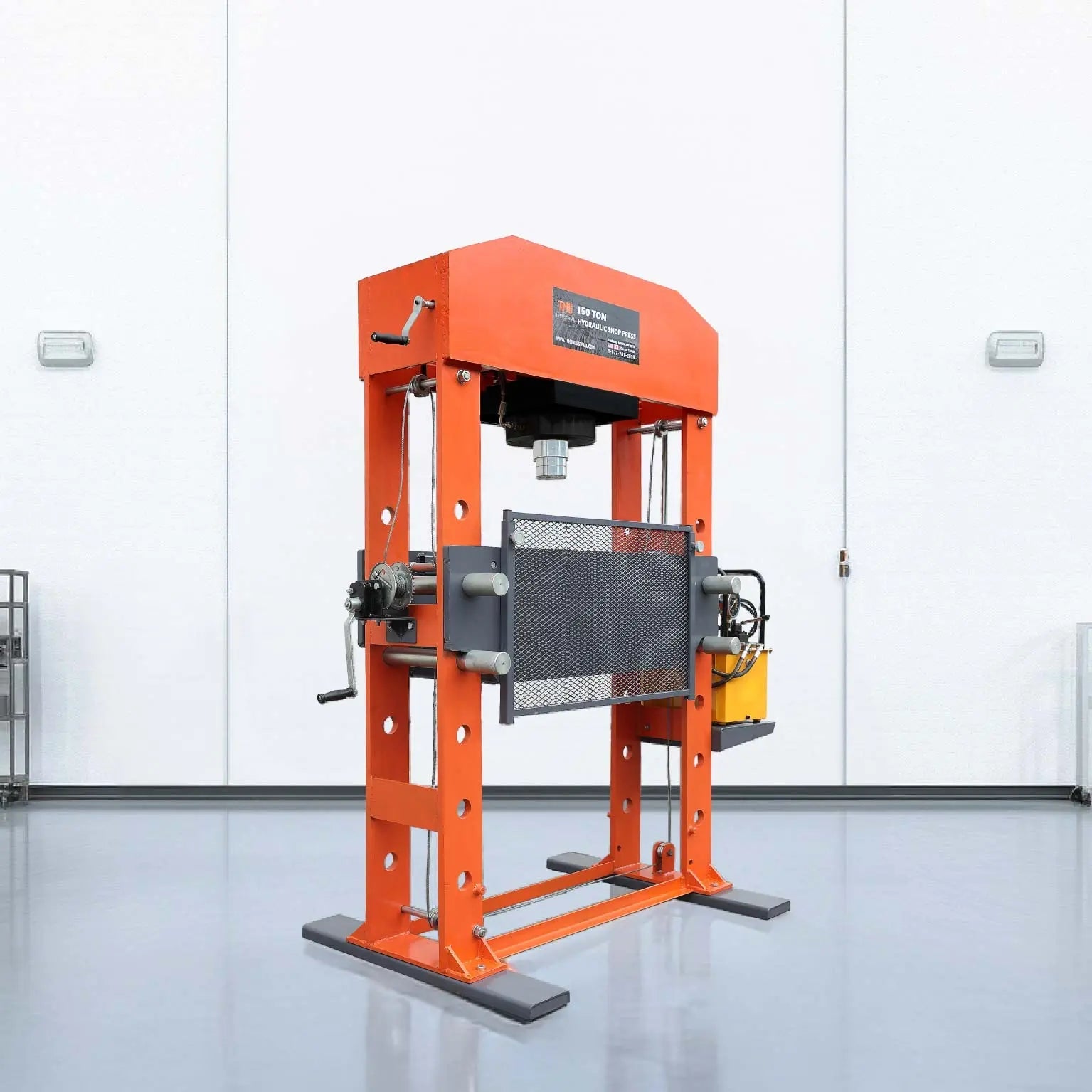

150 Ton Capacity Electric Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, TMG-SP150

The TMG-SP150 Hydraulic Shop Press is an essential piece of equipment for any type of automotive shop, machining, metalworks, fabrication or assembly operations. An incredible 150 ton pressing capacity makes pushing bearings onto shafts, stamp work, bending or flattening metal safe, efficient and easy to do. This press has a fully welded heavy-duty H-frame construction and protective grid guard that are both rigid, durable and built to last in any shop environment.

Sliding ram pressing head offers left/right movement and superior workpiece flexibility that will adapt to your specific work setting and requirements. A heavy duty hydraulic pump for total operator control, steady ram speed and smooth overall workflow. The steel cable crank winch provides ergonomic relief, eliminating excessive bending and allowing you to easily adjust the pressing bed up and down.

Made to handle tough jobs like gear and bushing removal, with an overload valve to prevent use beyond the machine's capacity and twin springs that help with retraction of the piston rod. The oil filled gauge can be read in US and metric tons, and allows you to accurately monitor your pressing force while operating.

We also carry the following hydraulic shop press models: TMG-SP50, TMG-SP75, TMG-SP100

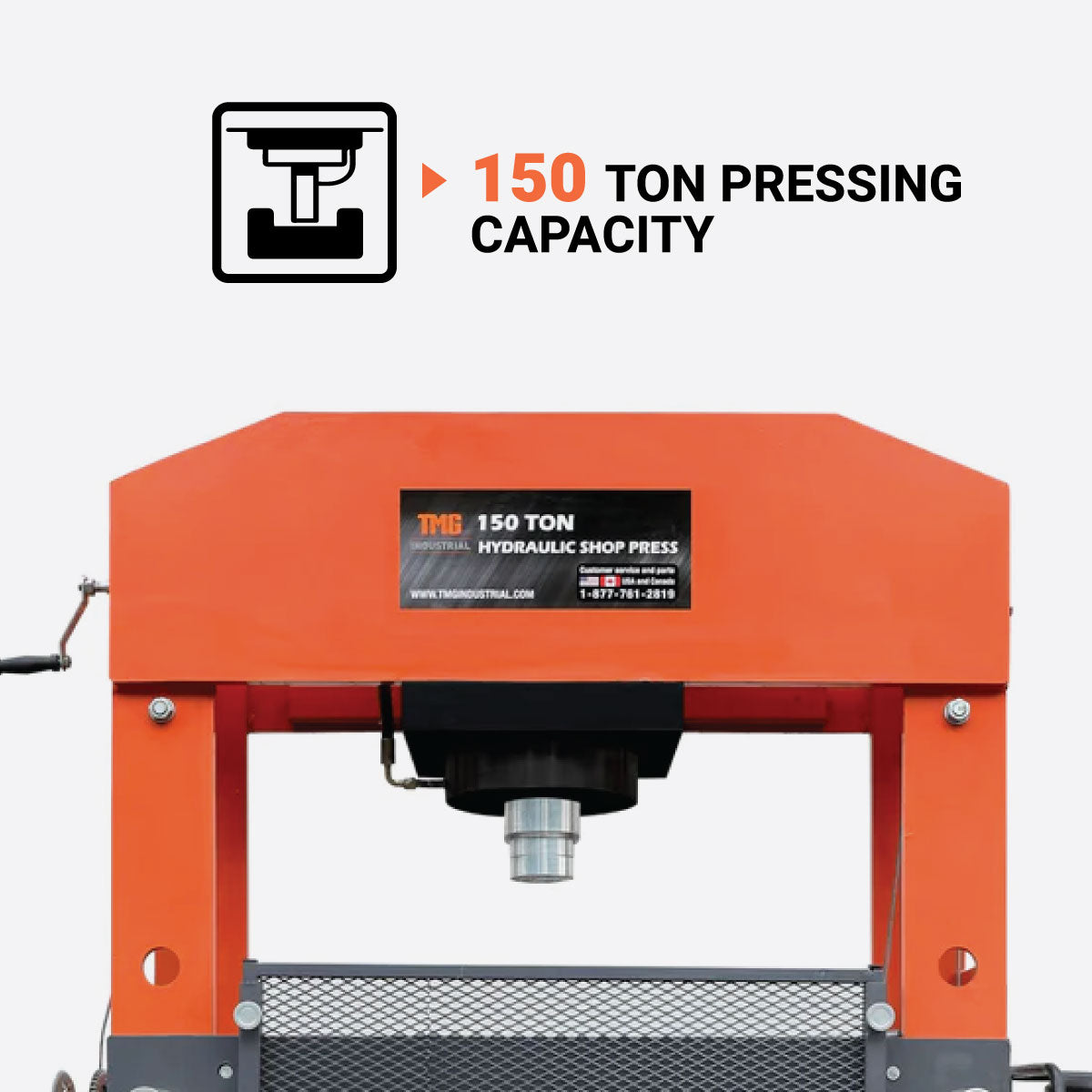

150-ton pressing capacity

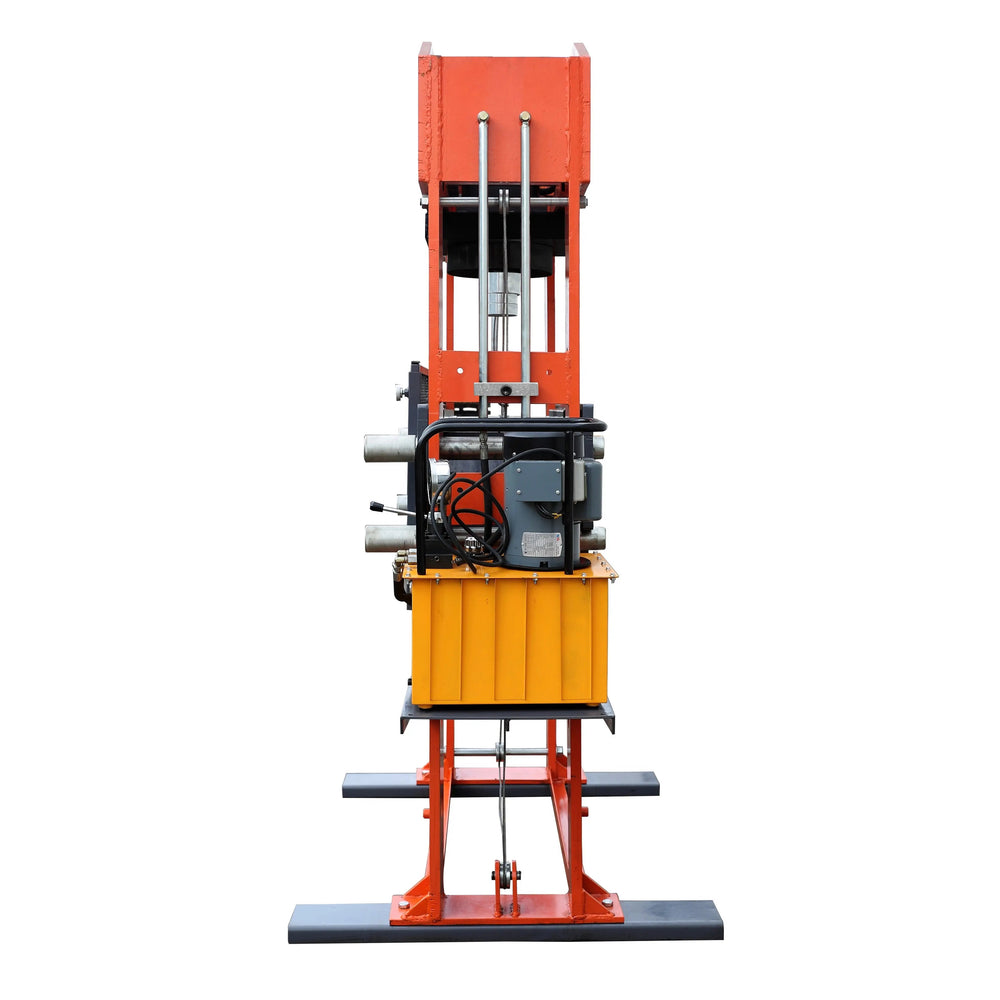

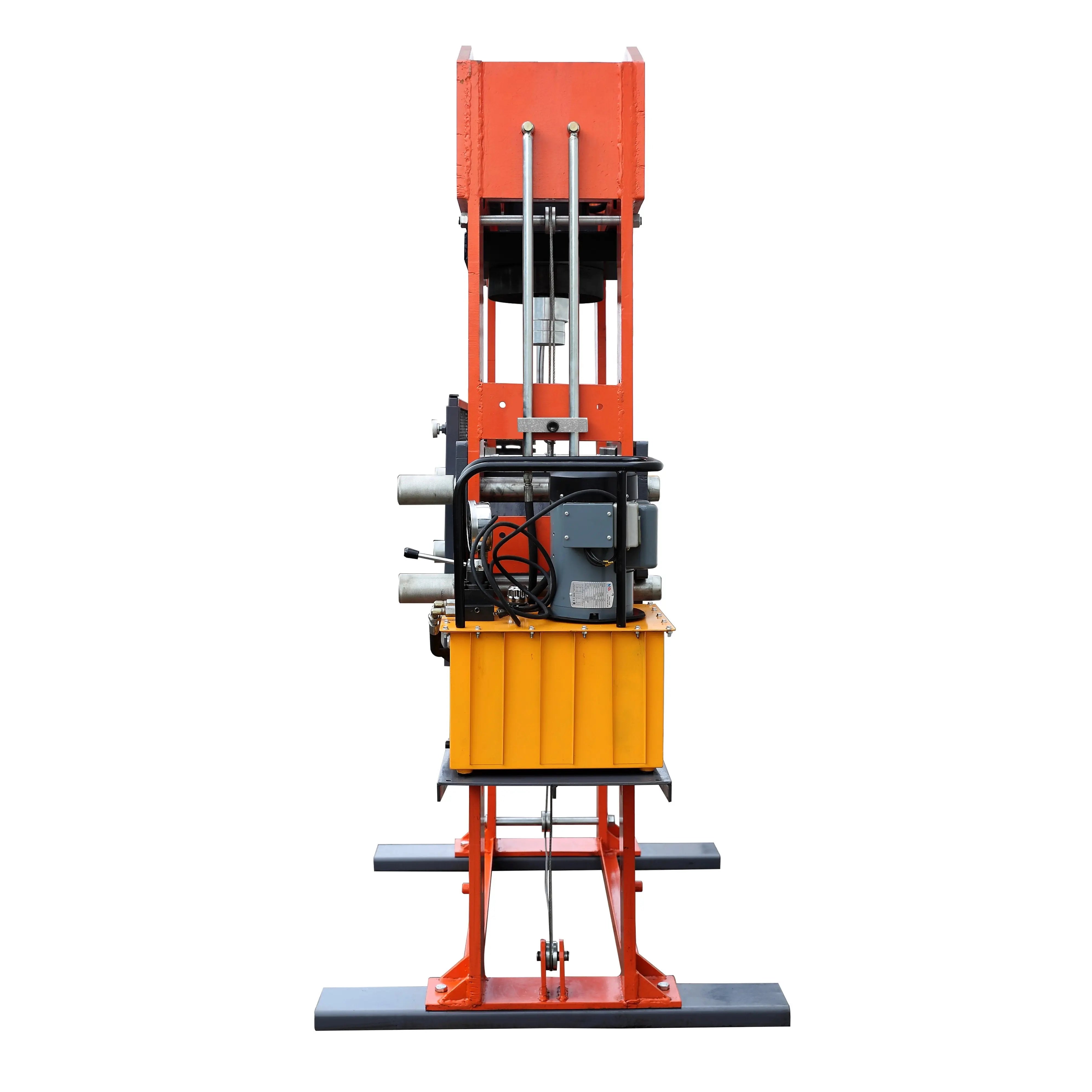

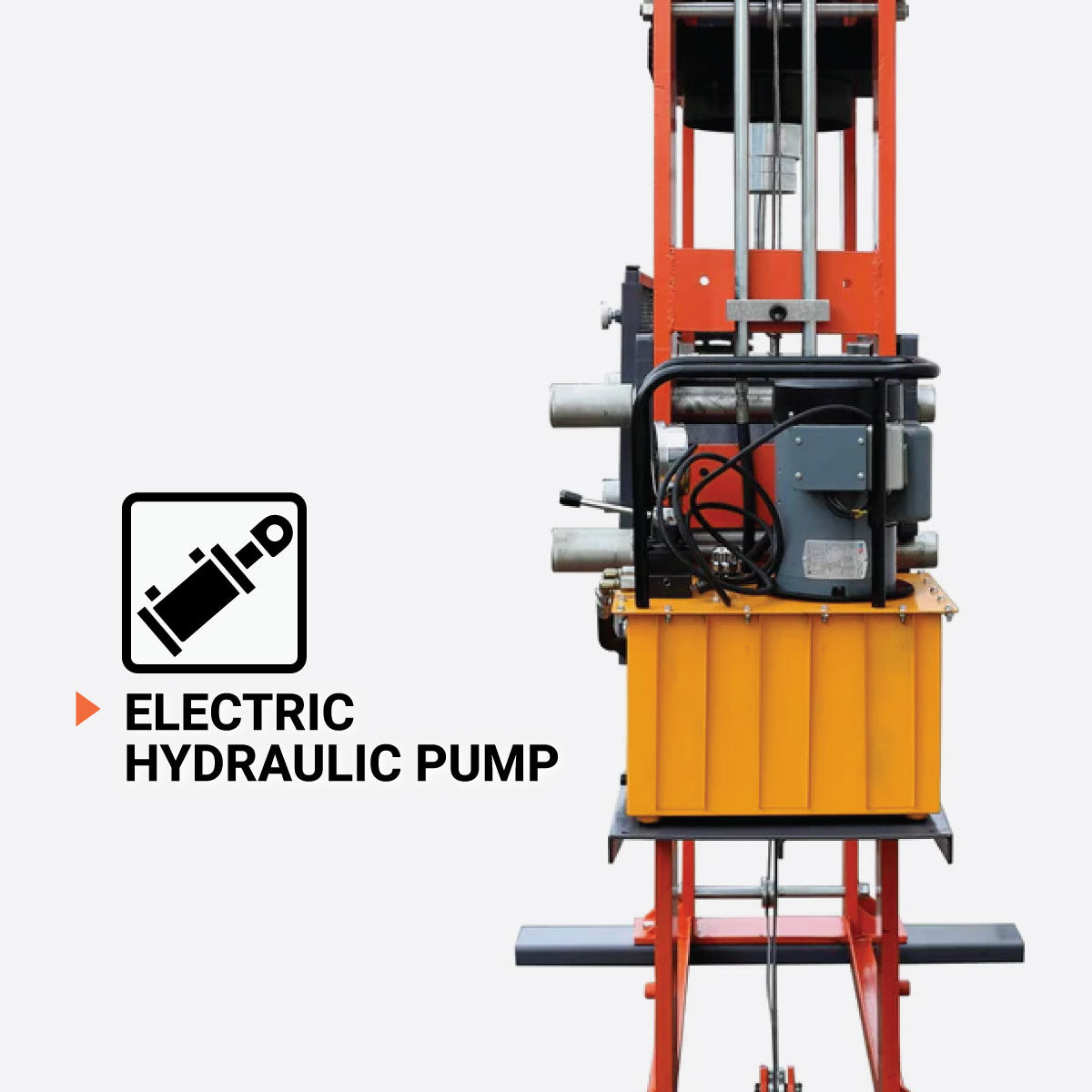

Heavy-duty hydraulic pump powered by electric motor

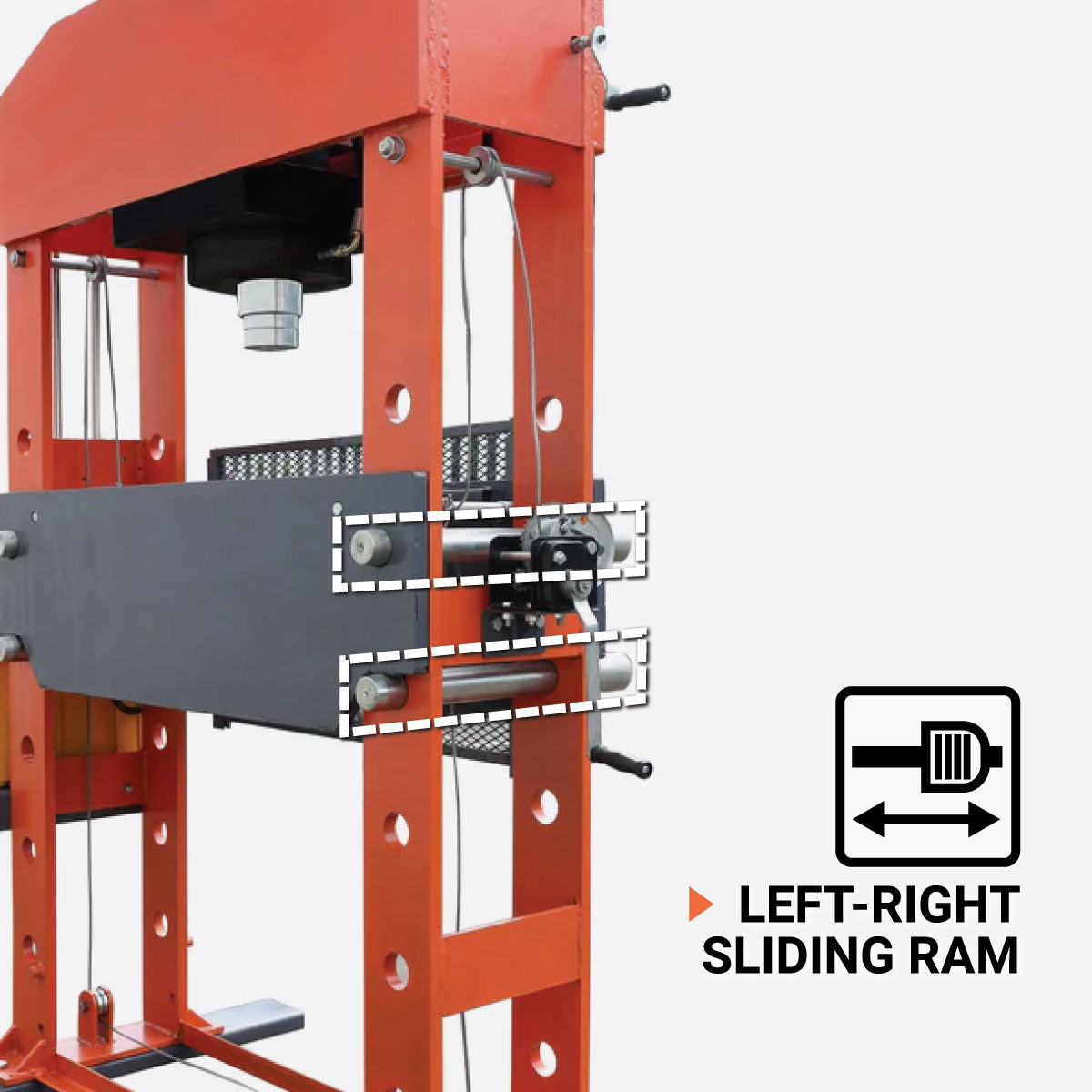

Left-right sliding ram movement for multiple work positions

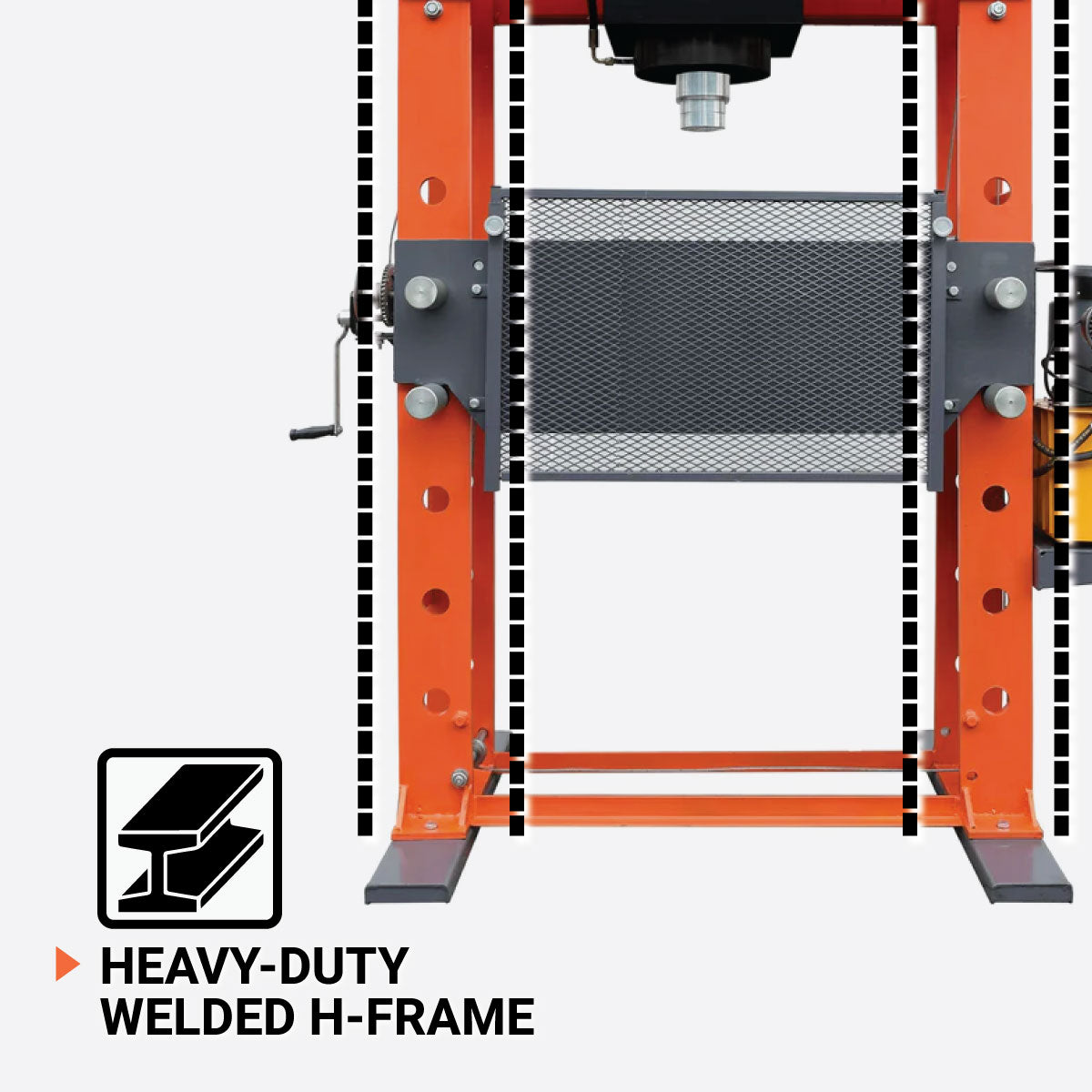

Heavily constructed and fully welded H-frame 

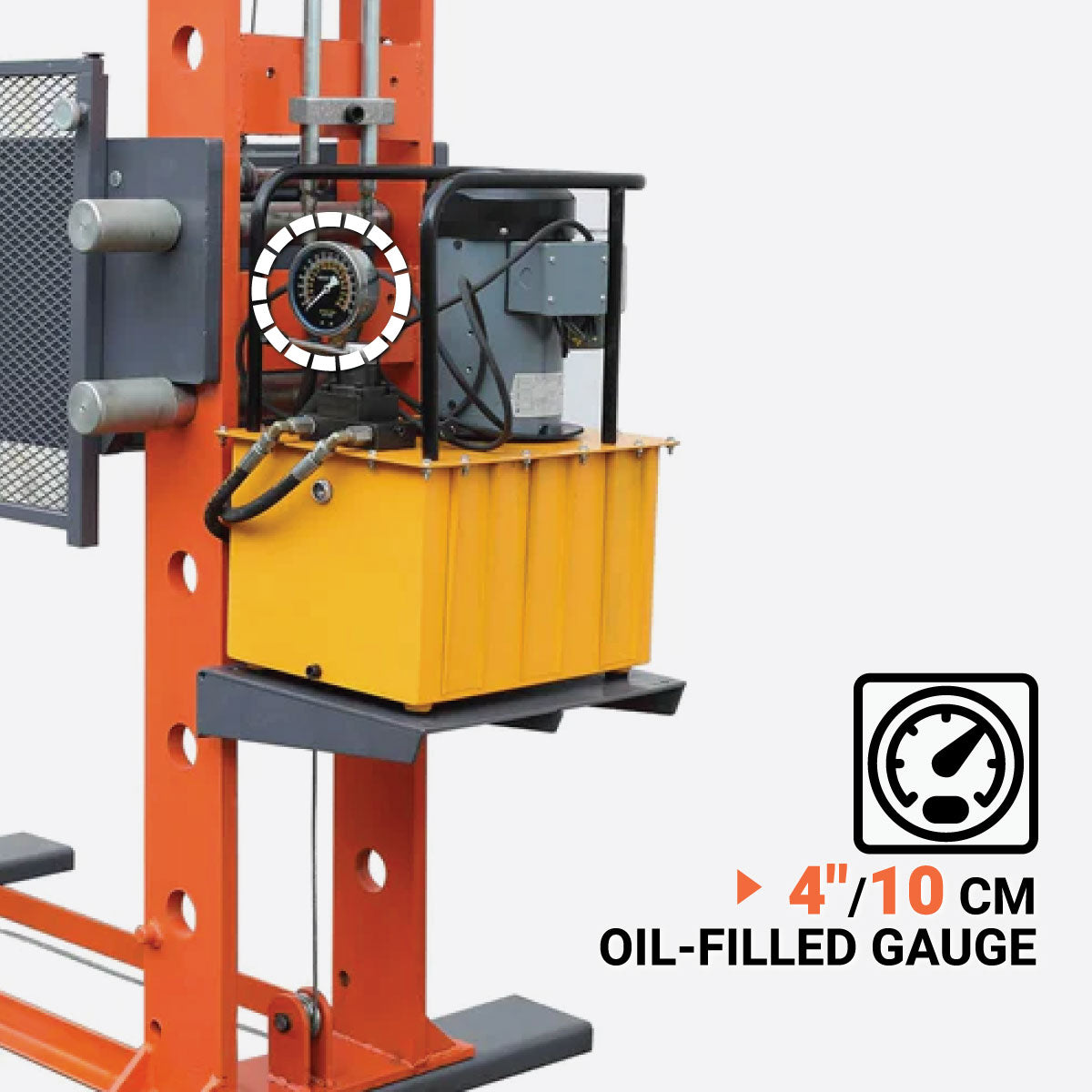

4" (10 cm) oil filled pressure gauge readable in dual units of measurement 

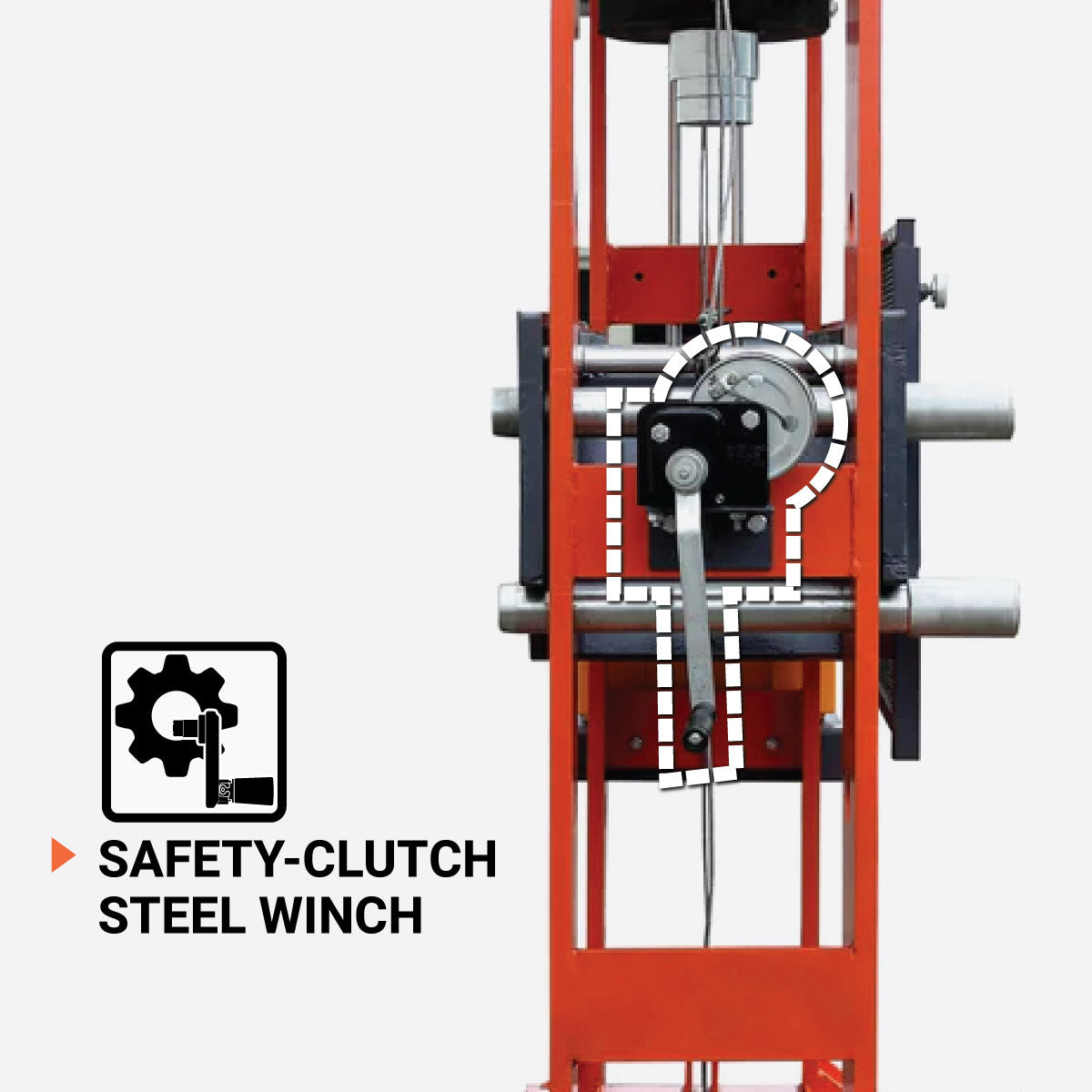

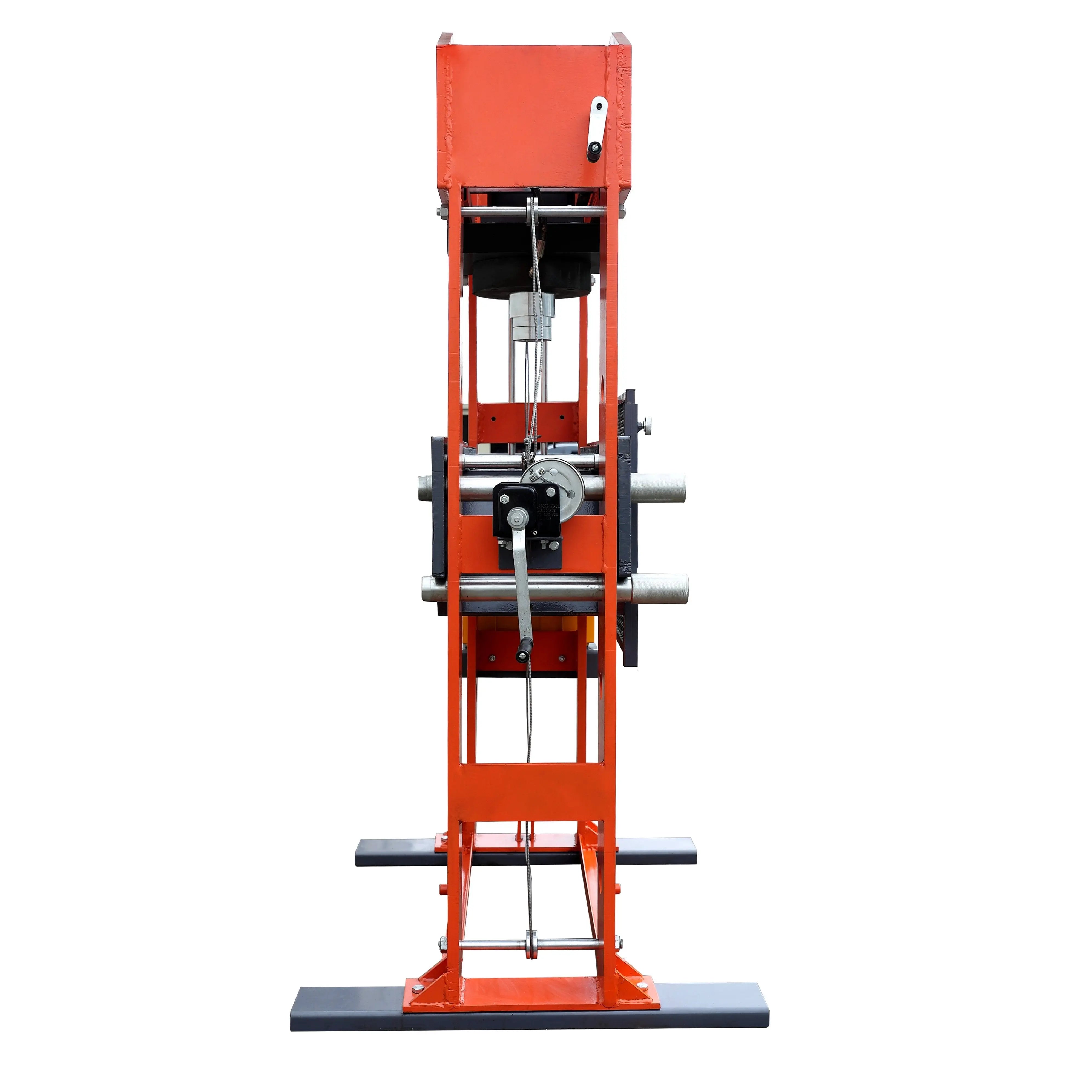

Steel cable crank winch with non-slip safety clutch for easy up/down adjustment

Specifications

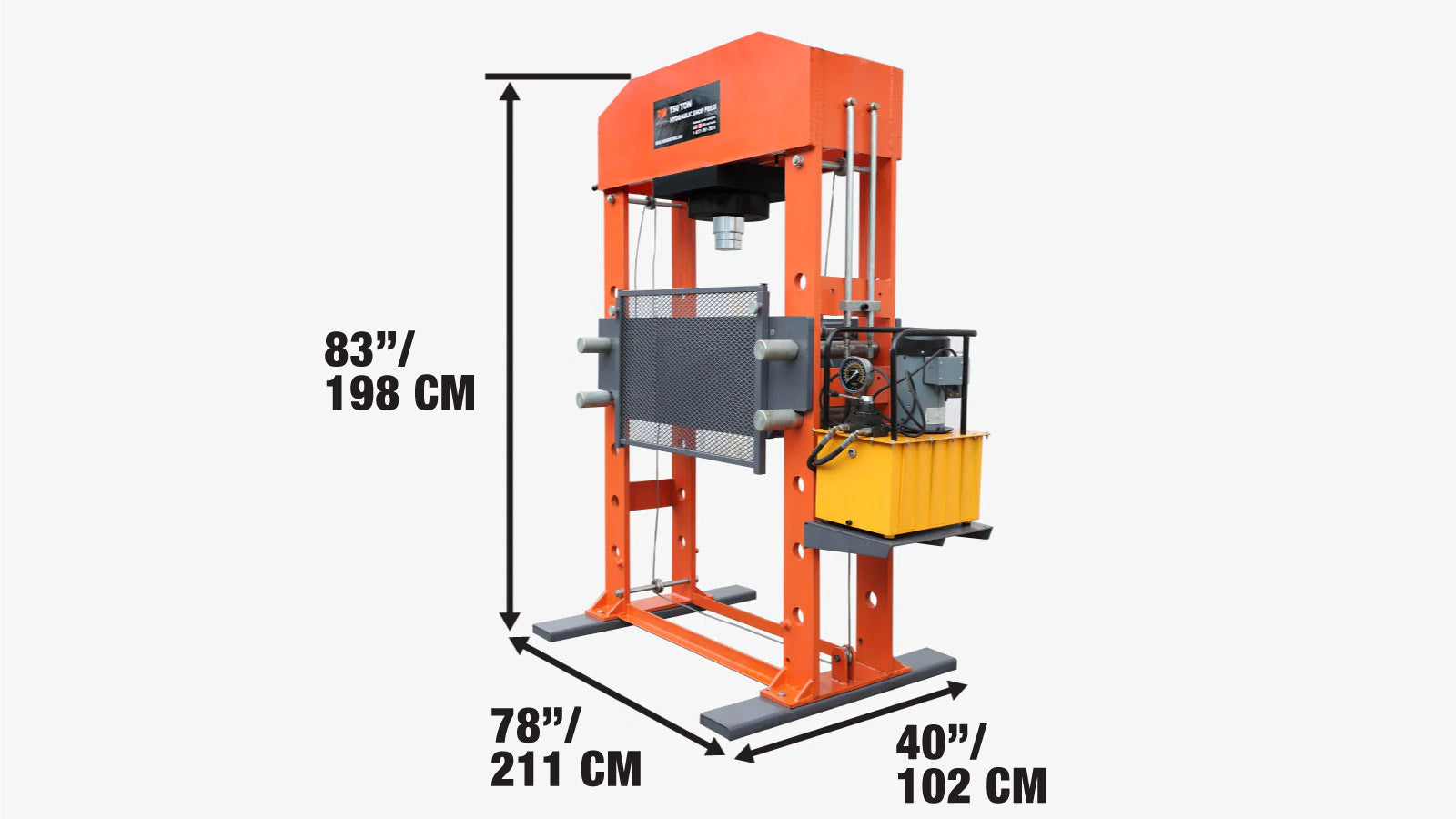

• Overall dimension: 78” x 40” x 83” (L x W x H)
• Frame internal width: 13-¾”
• Frame internal length: 39-⅜”
• Ram stroke: 13-¾”
• Ram diameter: 4-⅝”
• Ram left-right movement: 13”
• Ram pressing head diameter: 3-⅞”
• Protective grid guard: 36” x 23” (W x H)
• Carriage bed workable opening: 34” x 16” (L x W)
• Carriage bed pin diameter: 2-¼”
• Discharge pressure: 105-115%
• Max pump pressure: 8500 PSI
• Pressure gauge accurate to +/- 2.5%
• Maximum workpiece height allowed: 37”
• Hydraulic fluid for motor pump not included (ISO AW32 required)

Motor:

• CSA approved electric motor: 115 V, 60 Hz, 2 HP
• No-load speed: 1750 RPM

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in a wood crate shipping box
• Shipping dimension: 54” x 22” x 84” (L x W x H)
• Shipping weight: 2700 lb
