Powermatic 511 Panel Saw, 3HP, 1PH, 115V 1510007

Powermatic 511 Panel Saw, 3HP, 1PH, 115V 1510007

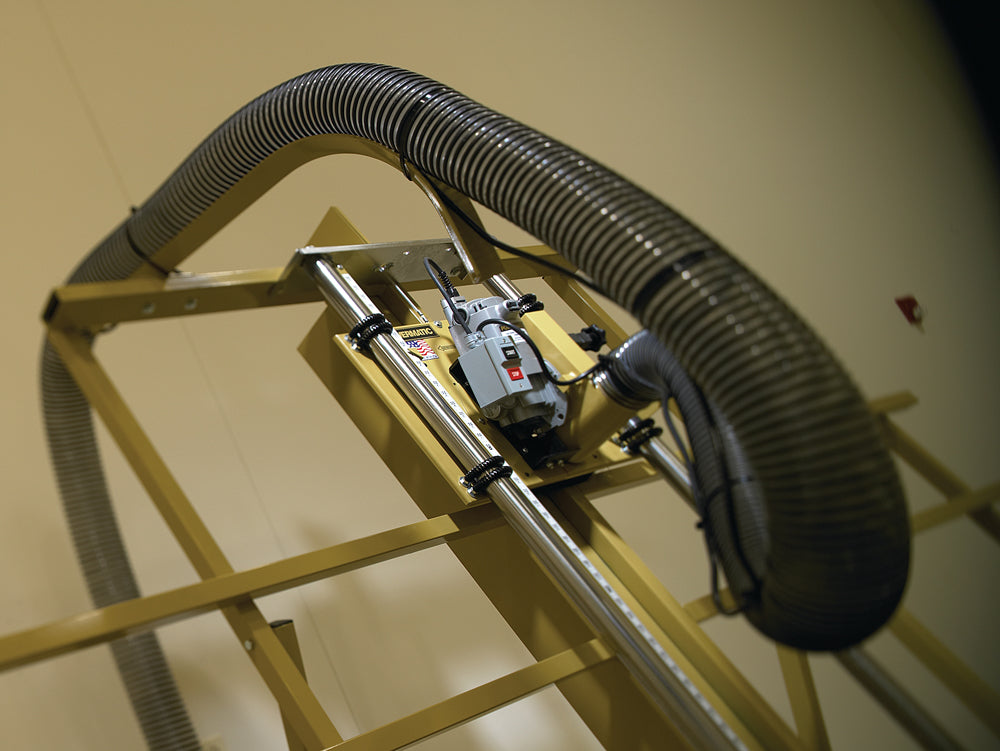

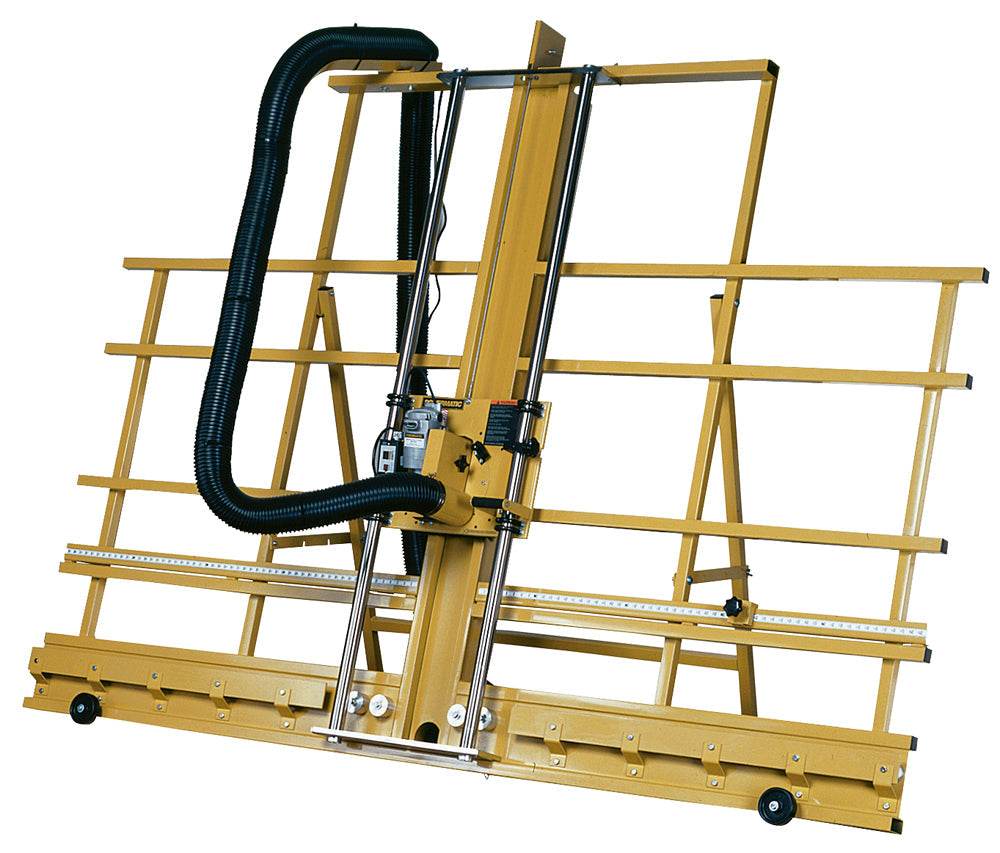

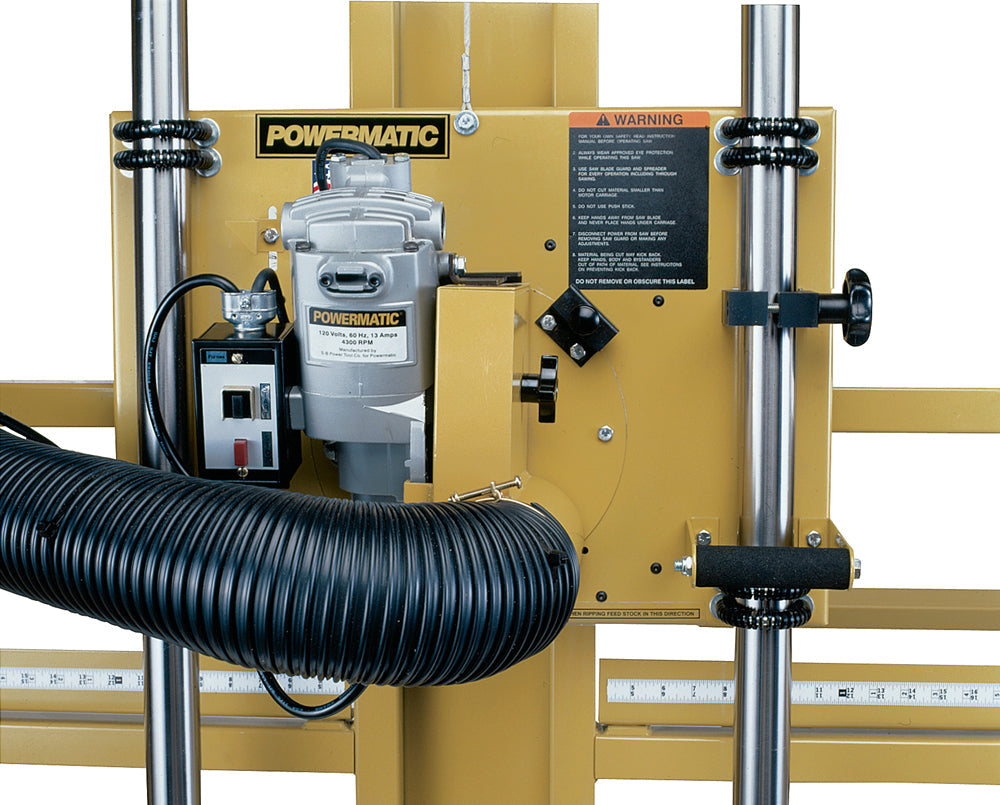

If you work with sheet goods, this 511 Vertical Panel Saw has plenty of power for the most demanding cuts. The carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the stainless steel rails. This Vertical Panel Saw features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5 feet tall. It also includes horizontal and vertical scales and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel.

Features:

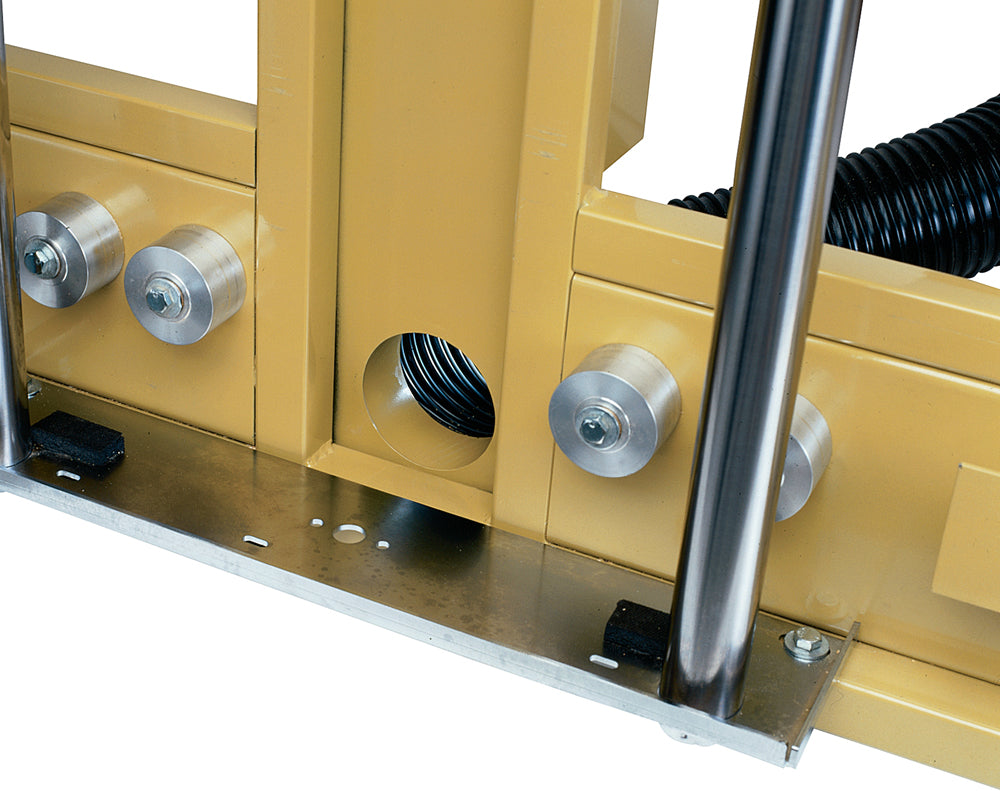

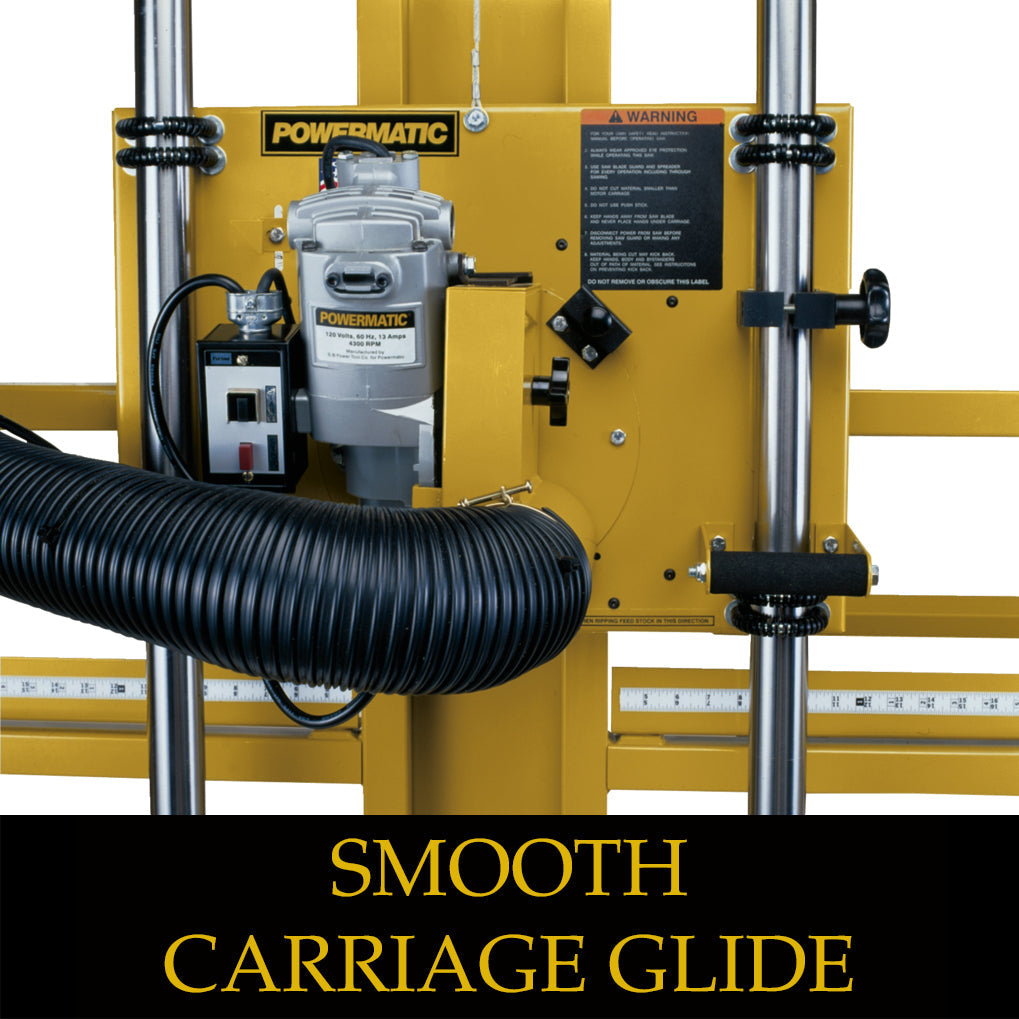

• Stainless steel guide tubes with eight guide roller assemblies provide smooth carriage glide

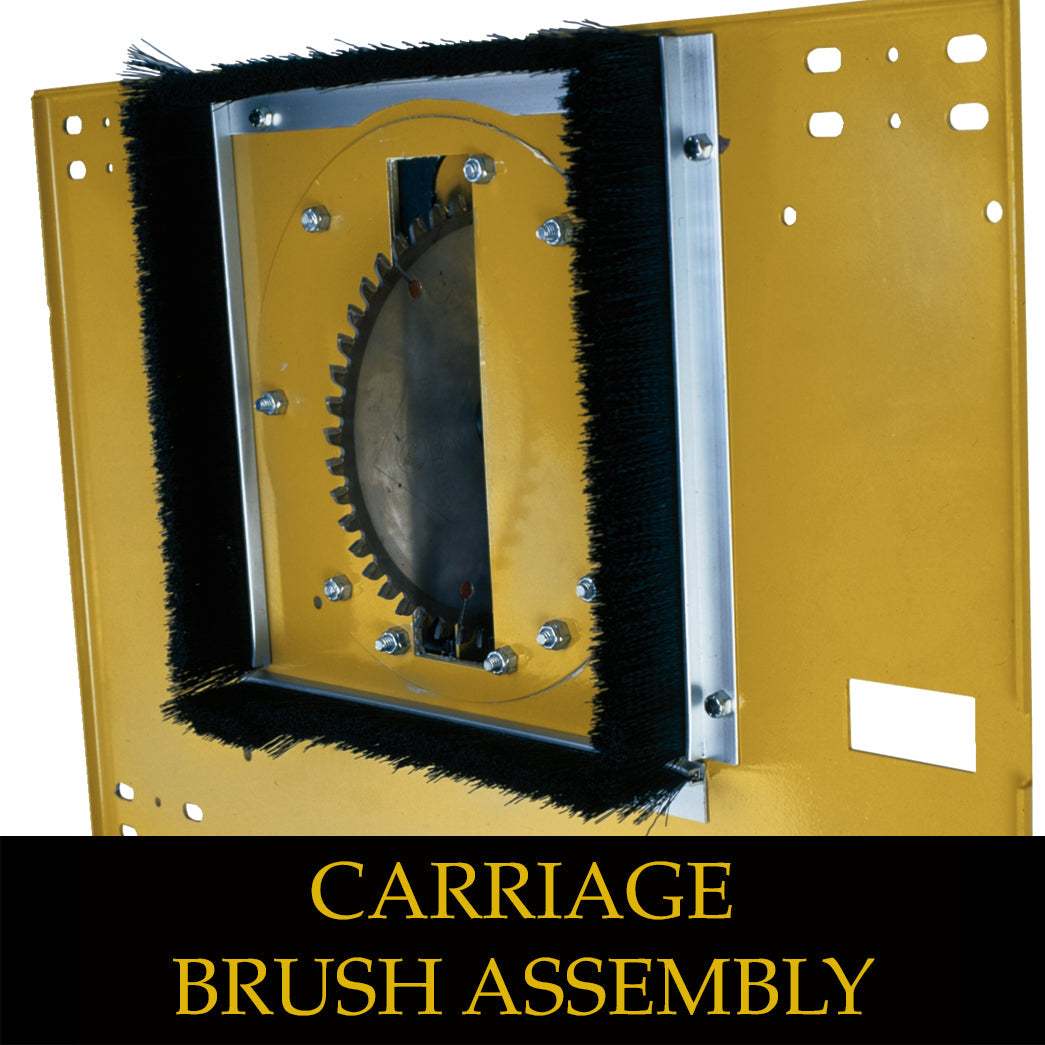

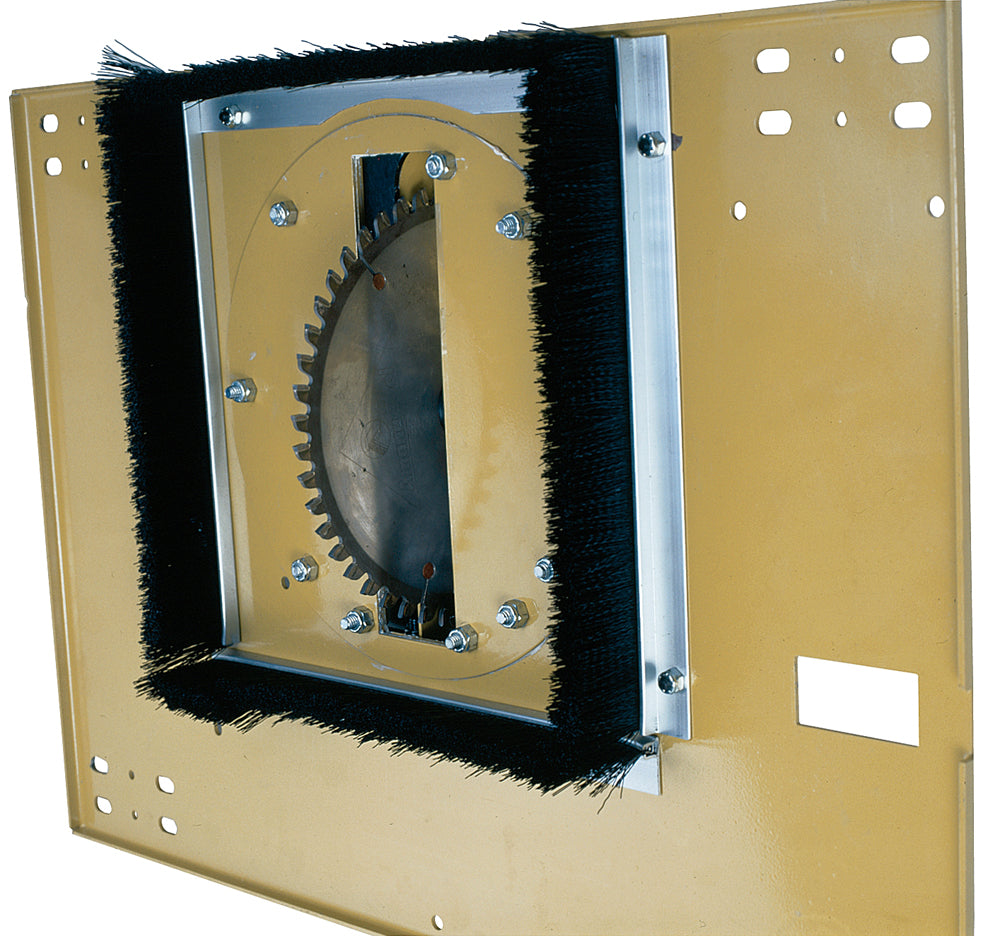

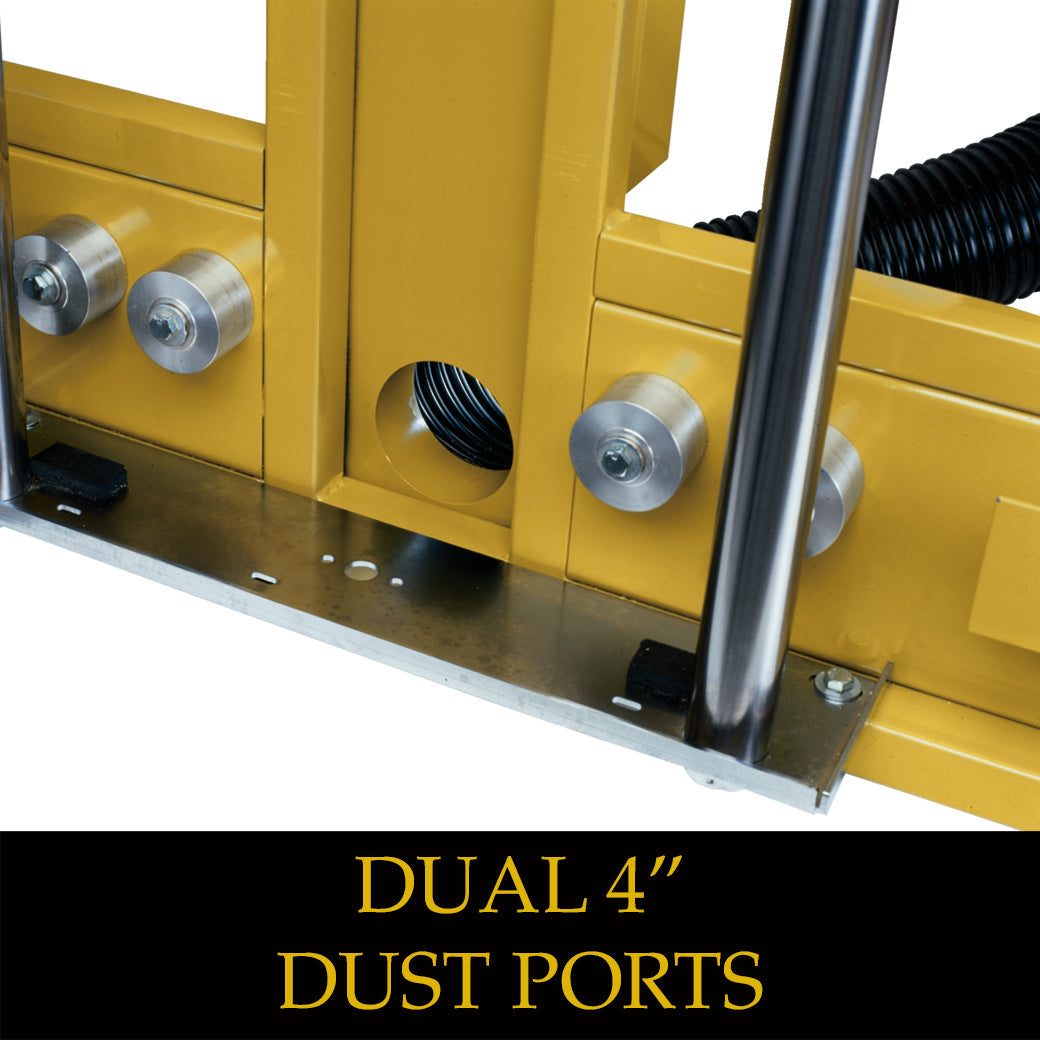

• Dual 4" dust ports with nylon brush surrounding blade for front and rear dust exhaust
• True counterweight system keeps the carriage where you position it while loading stock

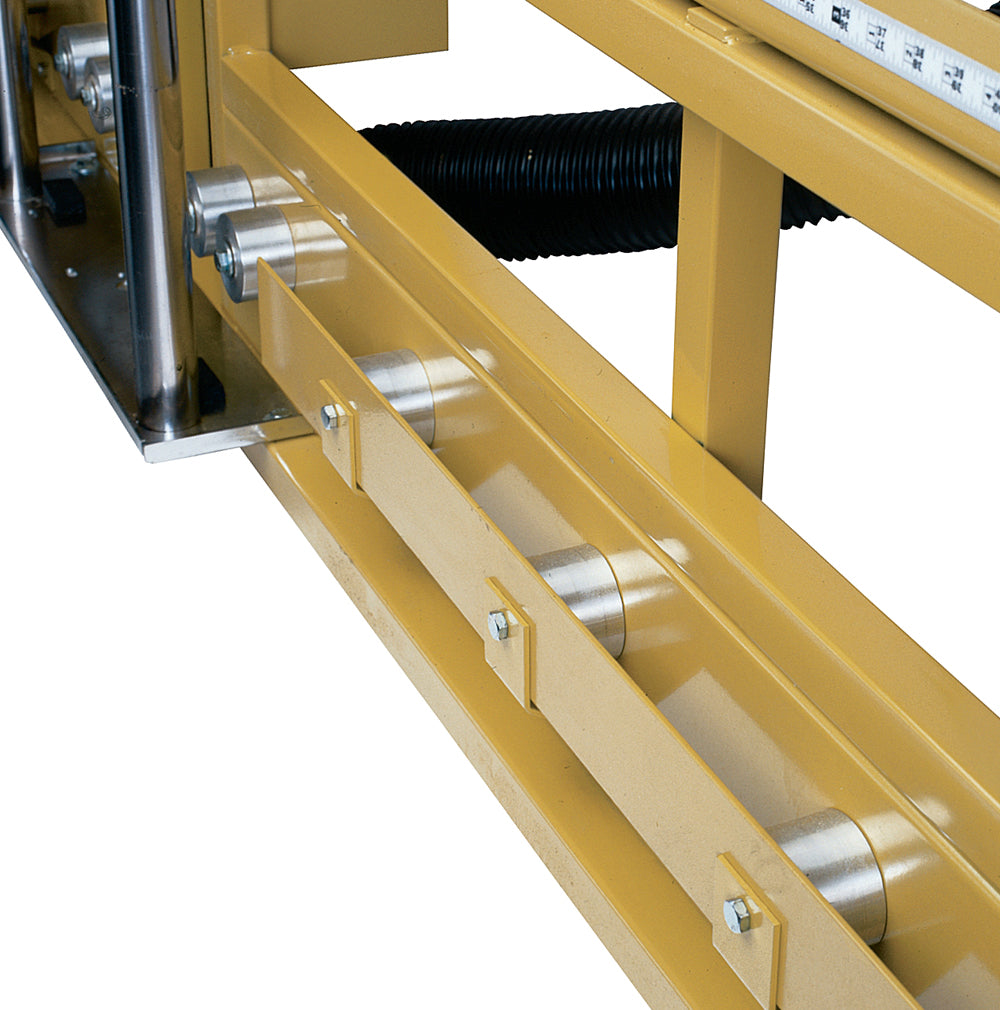

• Solid aluminum rollers with outside support brackets for square cuts Casters for easy mobility

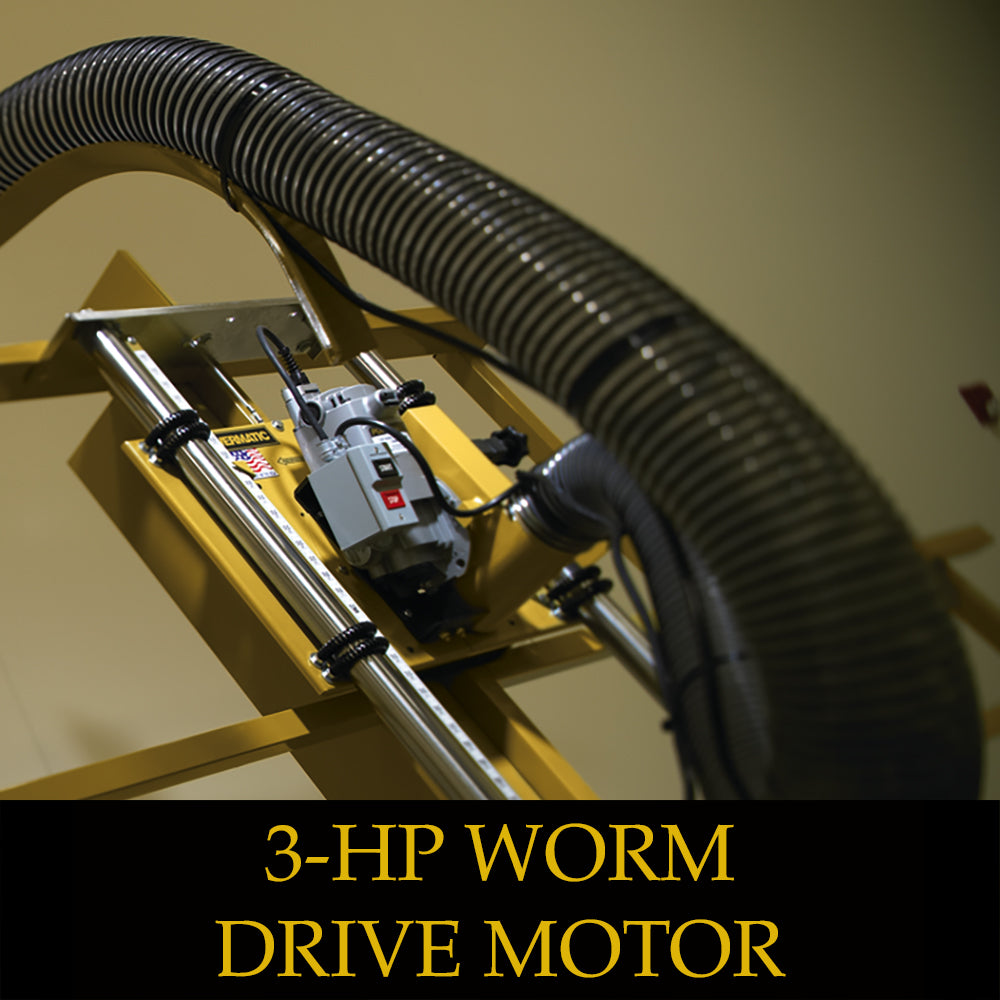

• 3HP Worm drive saw motor rotates in carriage to perform rip cuts

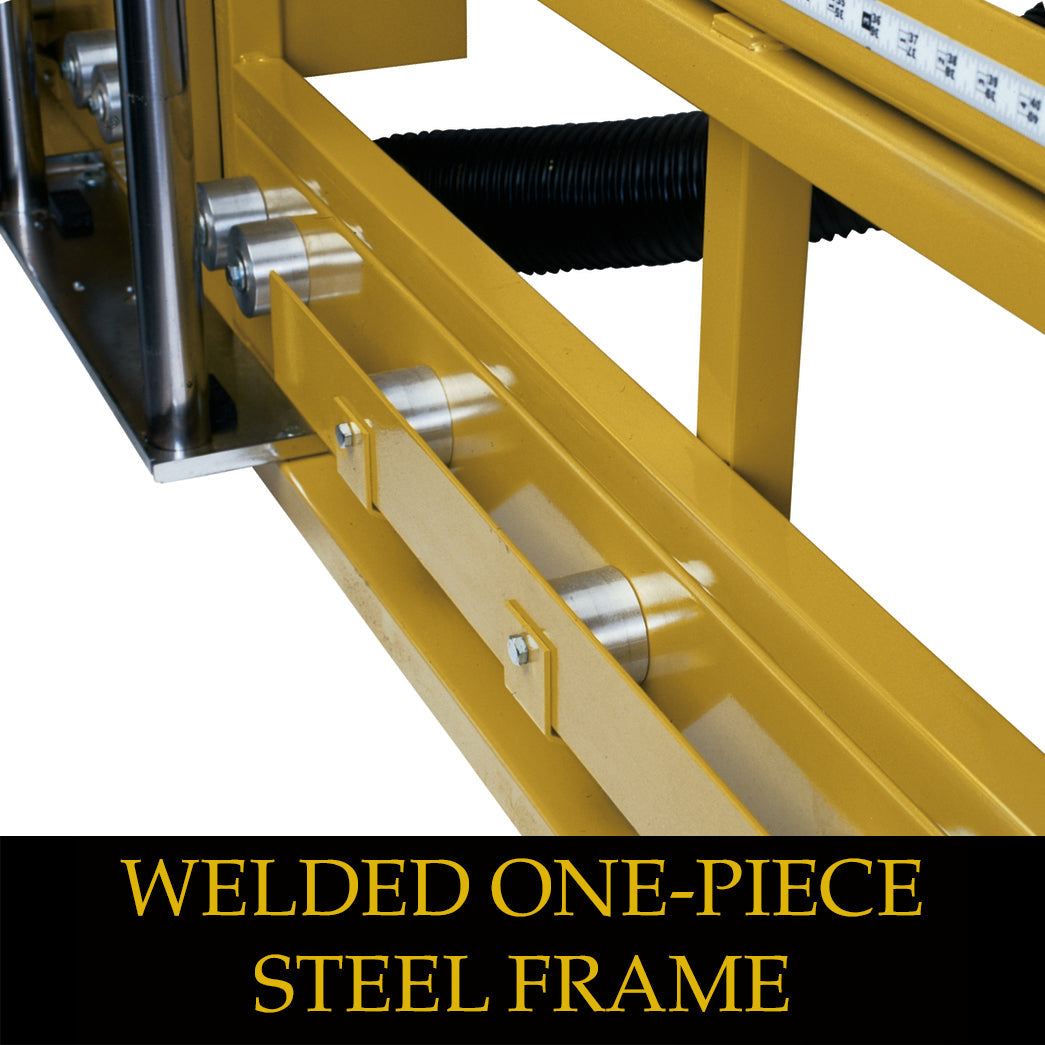

• Heavy-duty welded one-piece steel frame prevents vibration, ensures solid support

Specifications:

• Style (Type) Vertical
• Blade Diameter (In.) 8
• Arbor Diameter (In.) 5/8
• Maximum Cut Thickness (In.) 1-1/2
• Maximum Cross Cut Length (In.) 62
• Maximum Rip Length (In.) Unlimited
• Dust Port Outside Diameter (In.) 4
• Motor Power (HP) 3
• Motor Phase 1
• Motor Voltage (V.) 120
• Motor Current (Amps) 13

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
