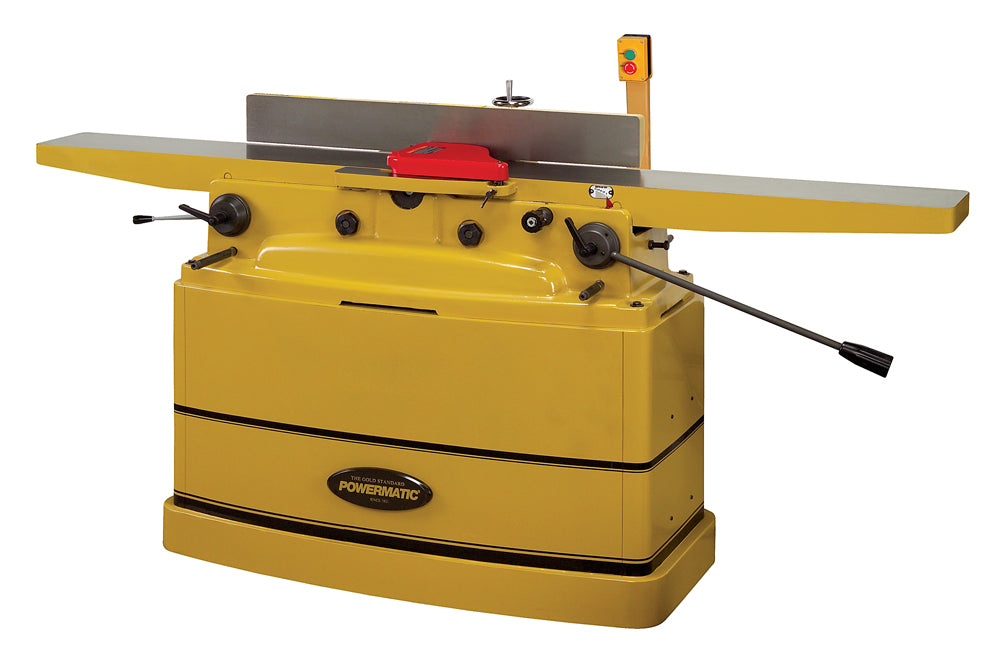

Powermatic PJ-882HH 8 in. Parallelogram Jointer with Helical Cutterhead, 2HP, 1PH, 230V 1610082

Powermatic PJ-882HH 8 in. Parallelogram Jointer with Helical Cutterhead, 2HP, 1PH, 230V 1610082

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.

Features:

• Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Extra long 82" table for expanded work support
• Parallelogram design helps maintain table parallelism and eases table raising and lowering
• Handwheel with worm gear system for precise fence tilting (Patented)
• 1/8" depth of cut limiter for fast table positioning
• High-mount switch for operator convenience
• No-mar fence insert protects table

Specifications:

• Number of Knives 54
• Standard Knife Size (L x W x T) (In.) 59/100 x 59/100 x 1/10
• Cutterhead Diameter (In.) 3-1/16
• Cutterhead Speed (RPM) 7,000
• Cutting Capacity (W x D) (In.) 8 x 1/2
• Table Size (L x W) (In.) 82 x 8
• Table Height from Floor (In.) 31-5/16
• Infeed Table Length (In.) 44
• Outfeed Table Length (In.) 38
• Fence Size (L x H) (In.) 44-3/4 x 38-3/16
• Fence Tilt (Deg.) 45 Forward, 45 Backward
• Fence Positive Stops (Deg.) 45, 90, -45
• Dust Collection Minimum CFM Required (CFM) 450
• Dust Port Outside Diameter (In.) 4
• Motor Power (HP) 2
• Motor Phase 1
• Motor Voltage (V.) 230
• Motor Current (Amps) 3/8

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
