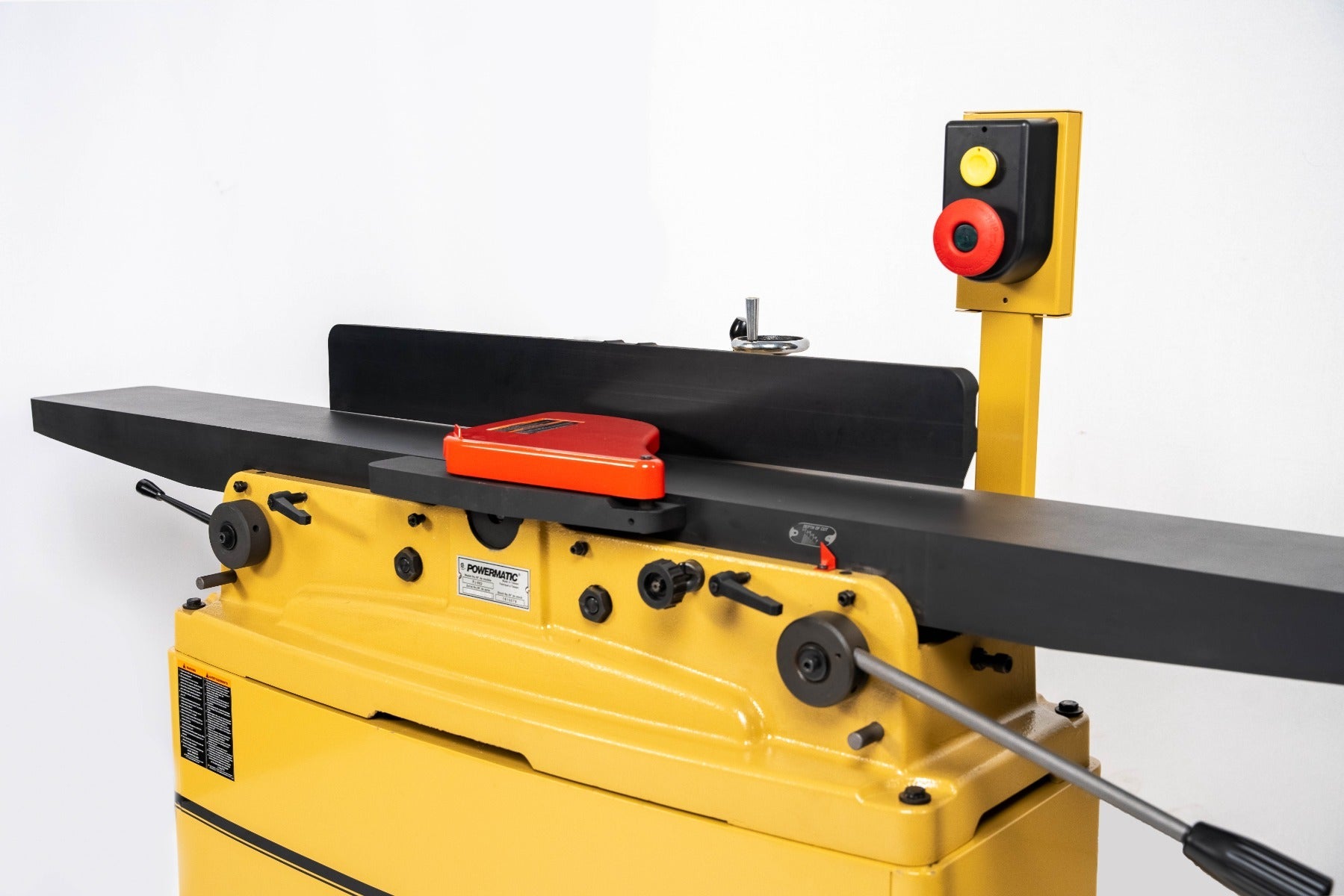

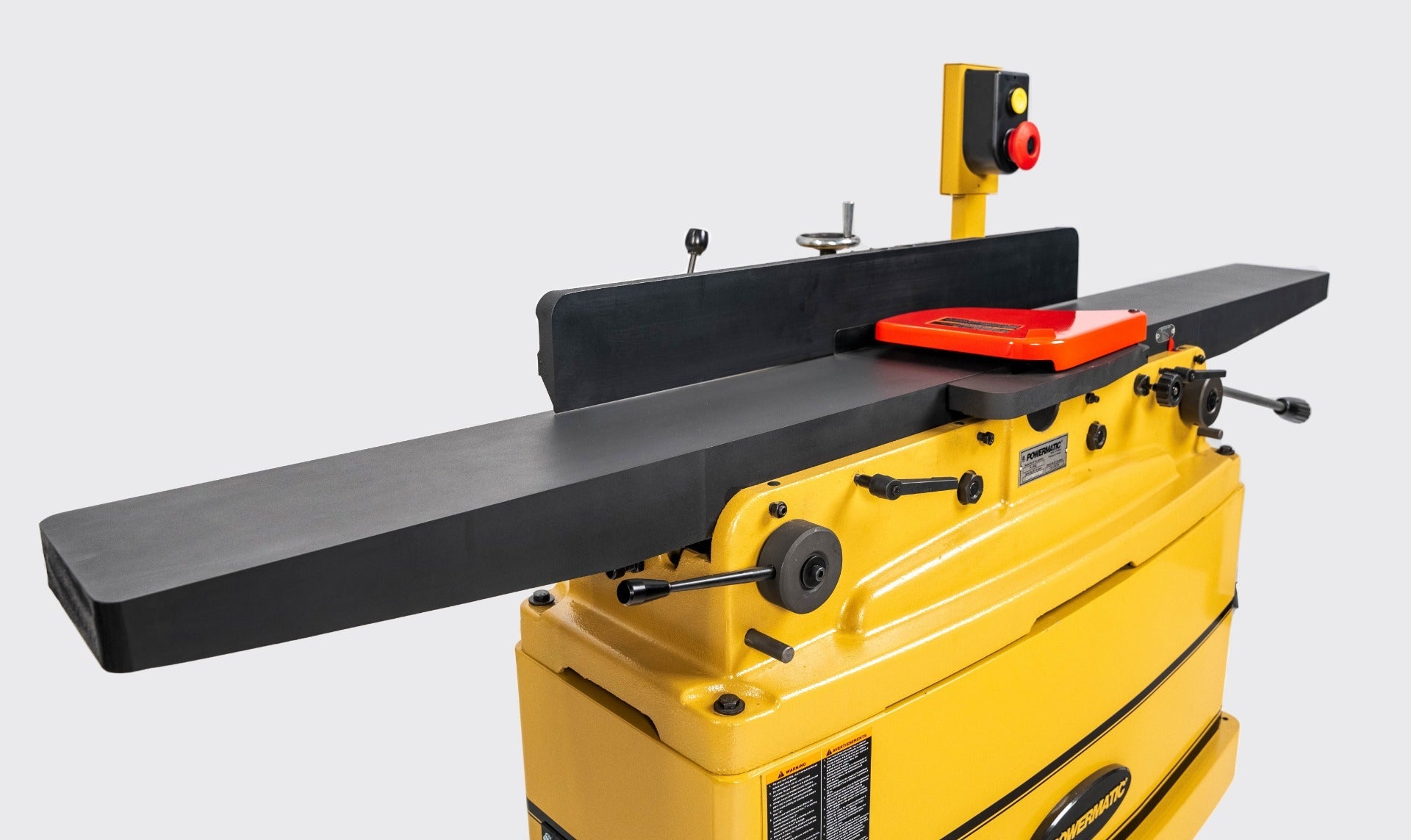

Powermatic PJ-882HHT 8 in. Parallelogram Jointer with ArmorGlide, 2HP 1PH 230V, HH 1610082T

Powermatic PJ-882HHT 8 in. Parallelogram Jointer with ArmorGlide, 2HP 1PH 230V, HH 1610082T

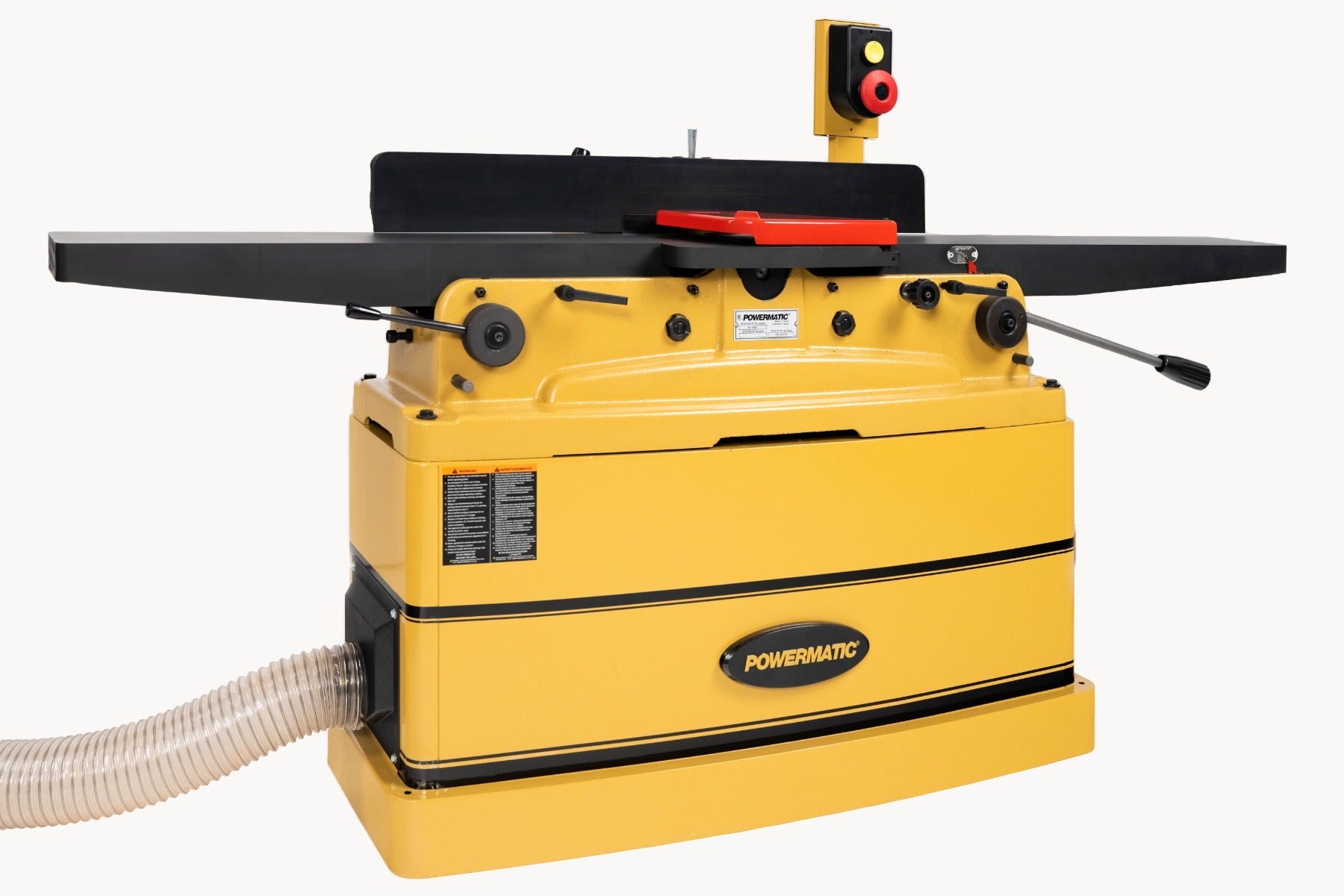

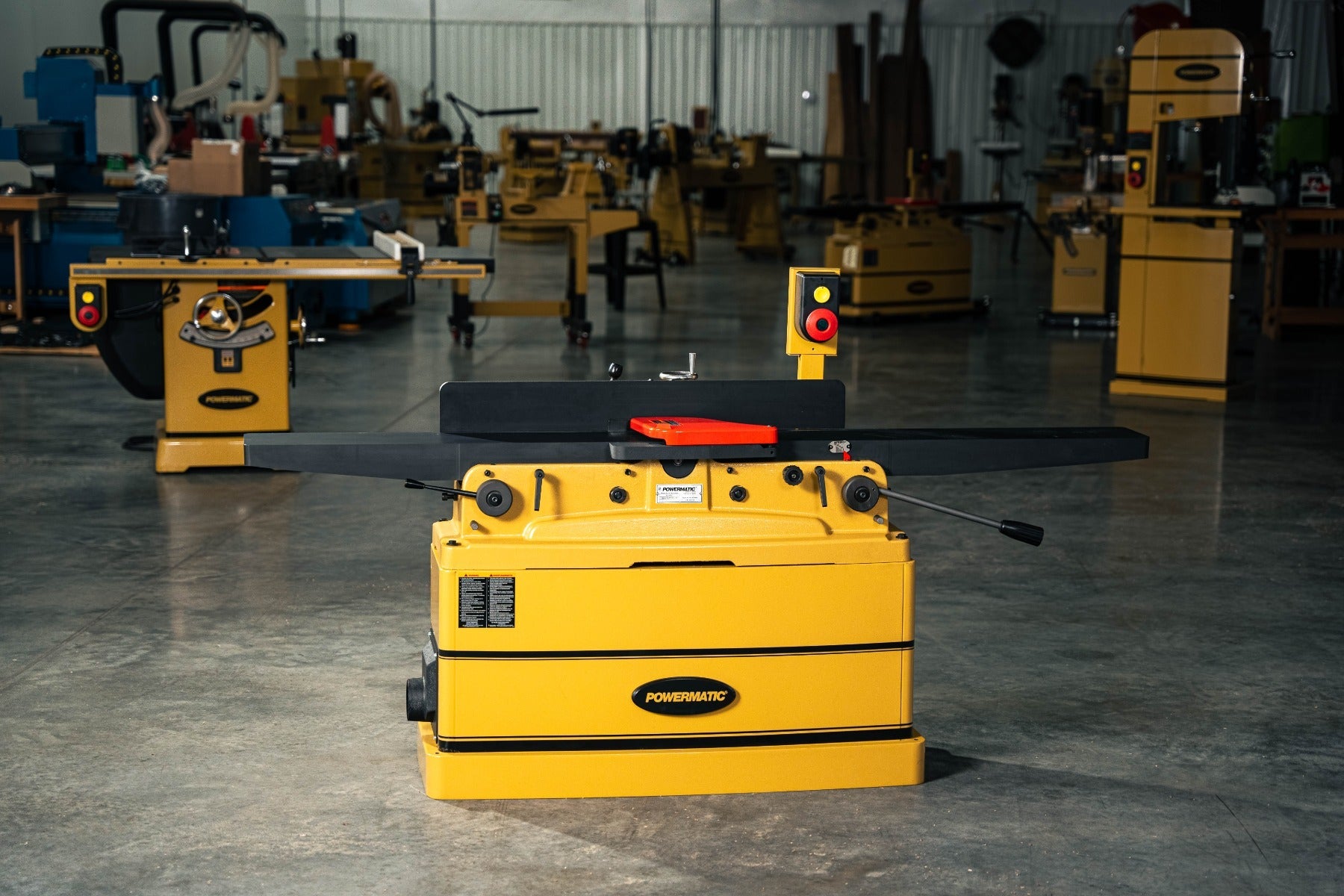

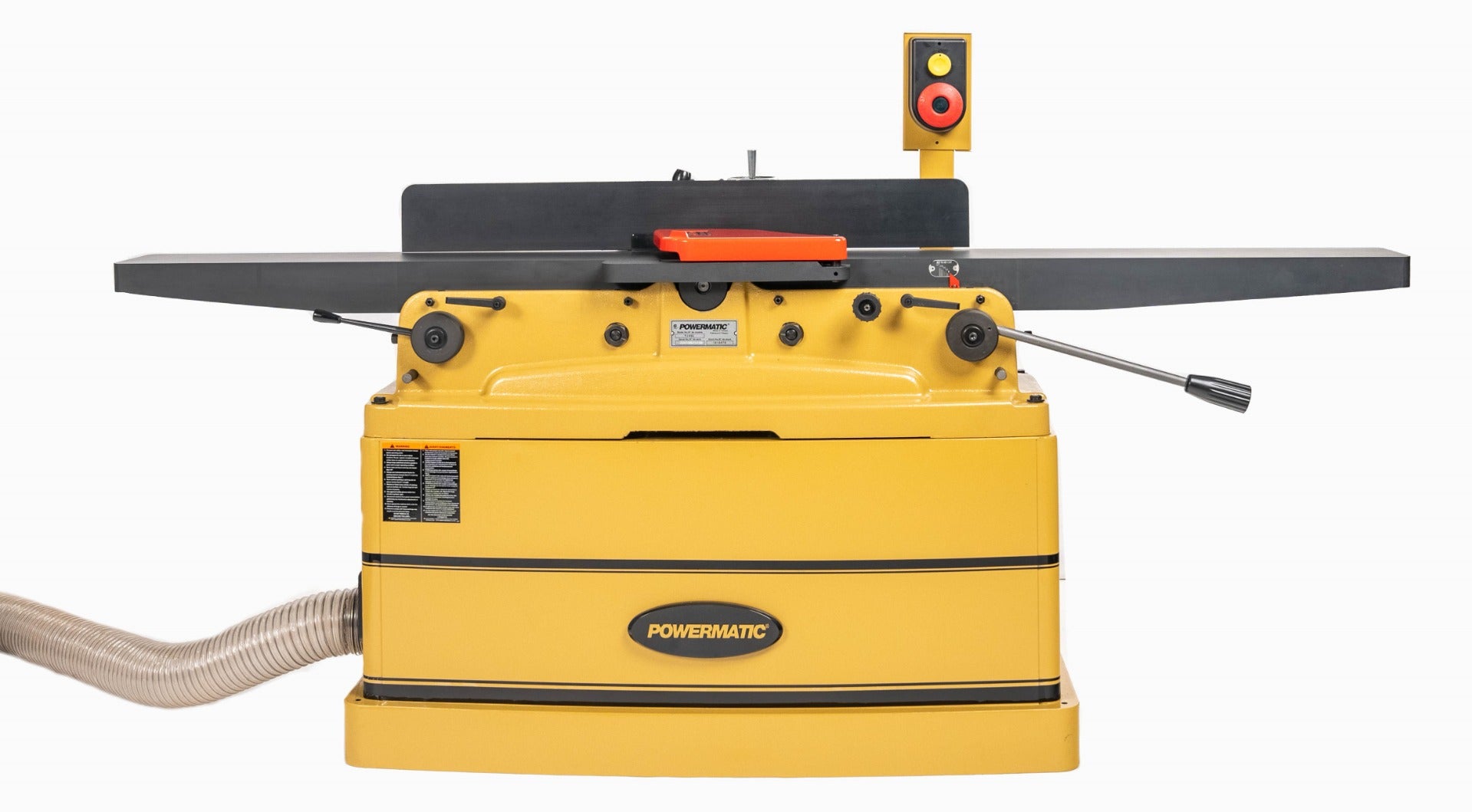

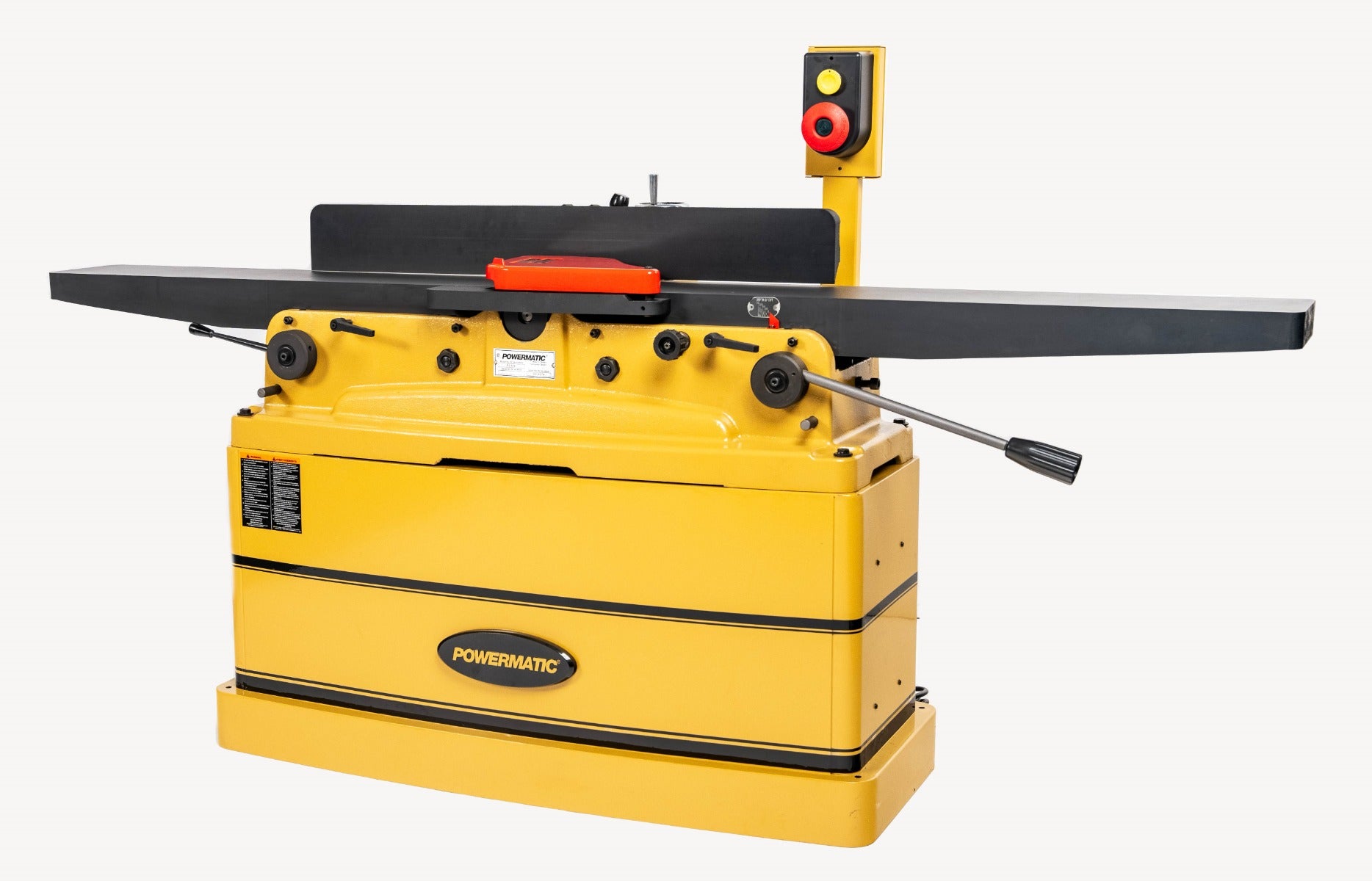

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ-882HHT 8-Inch Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts. These inserts produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed.

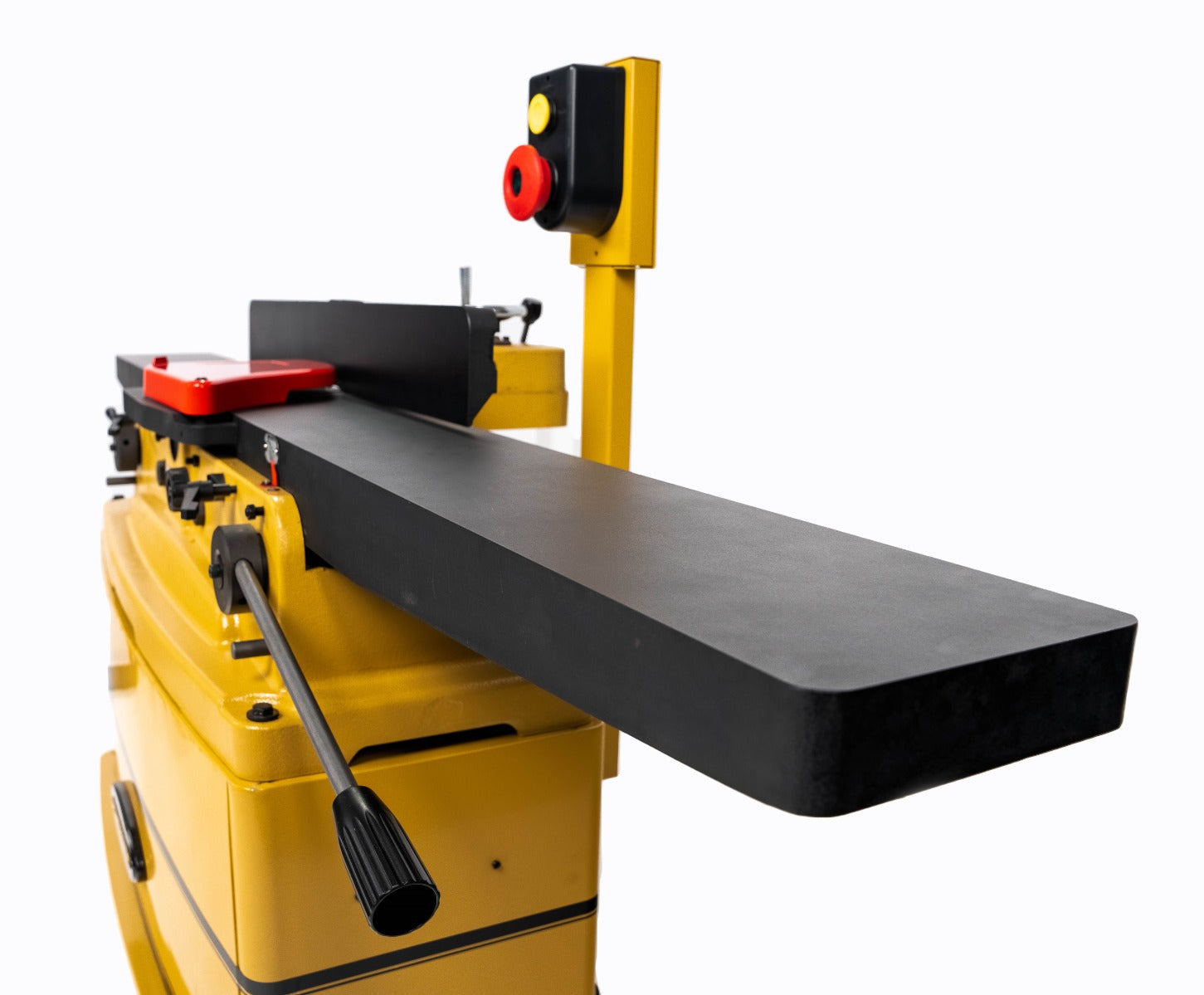

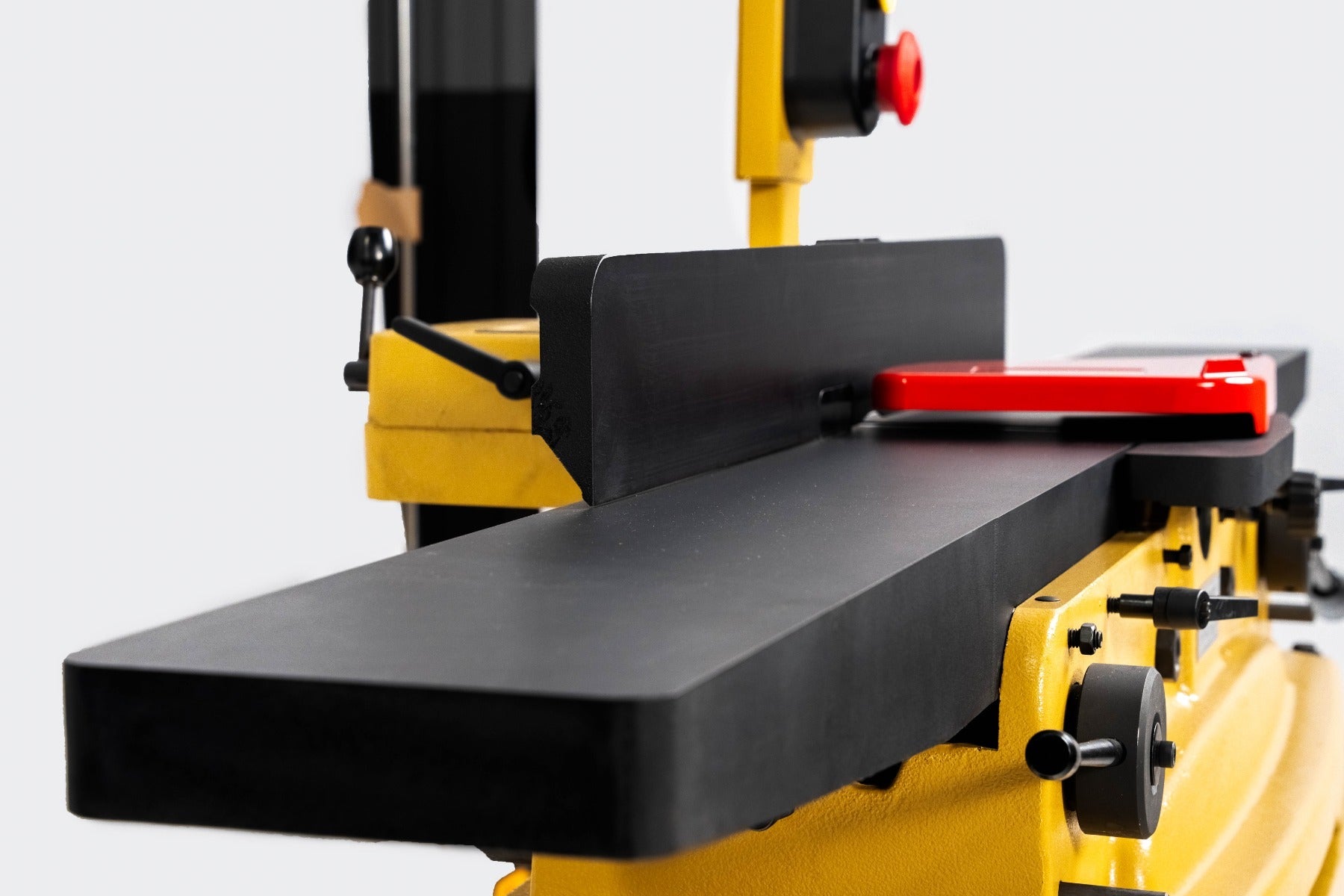

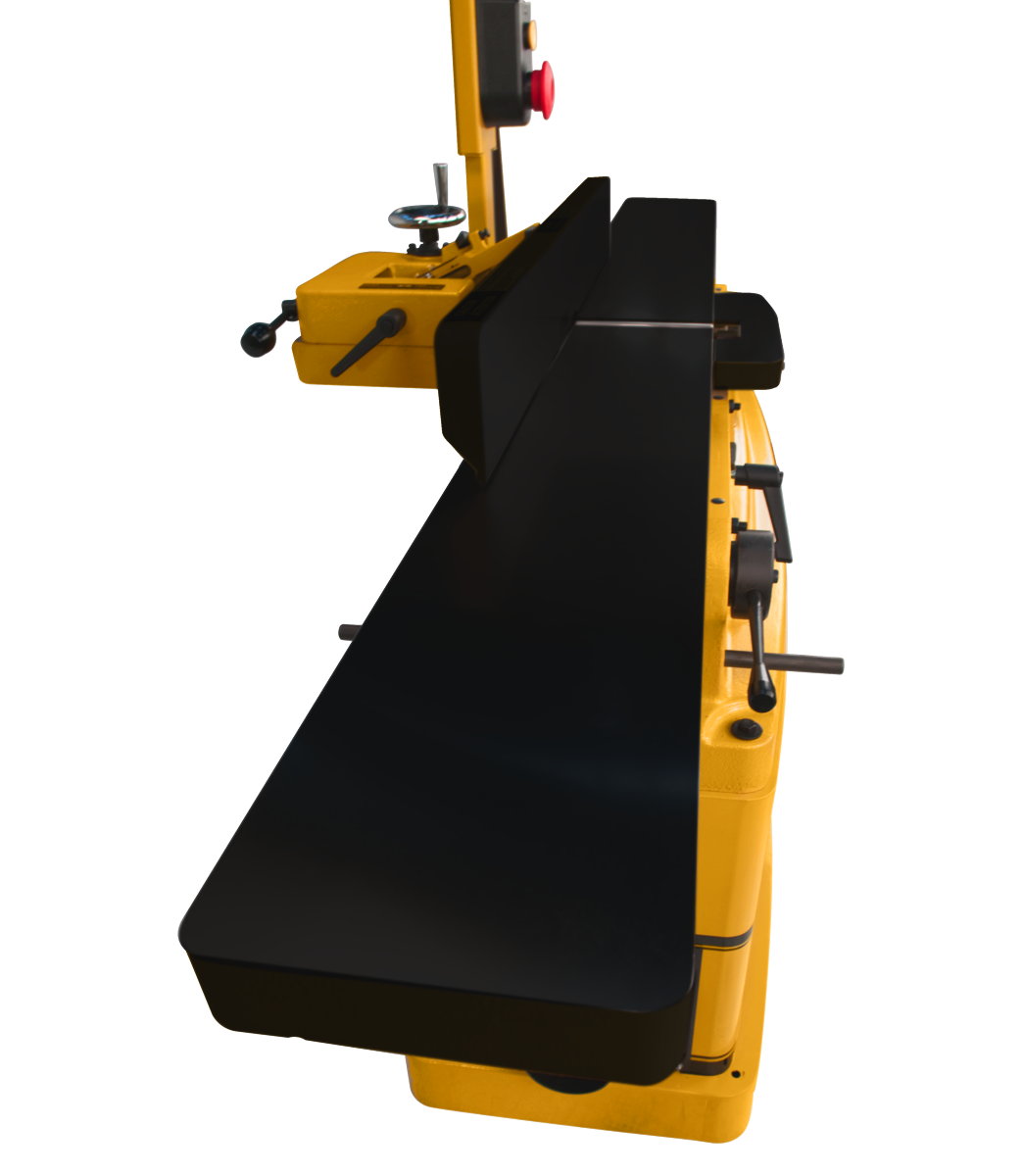

The jointer has an extra long 82-inch bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the table remains perfectly parallel, even after years of heavy use. The 2-HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.

Features:

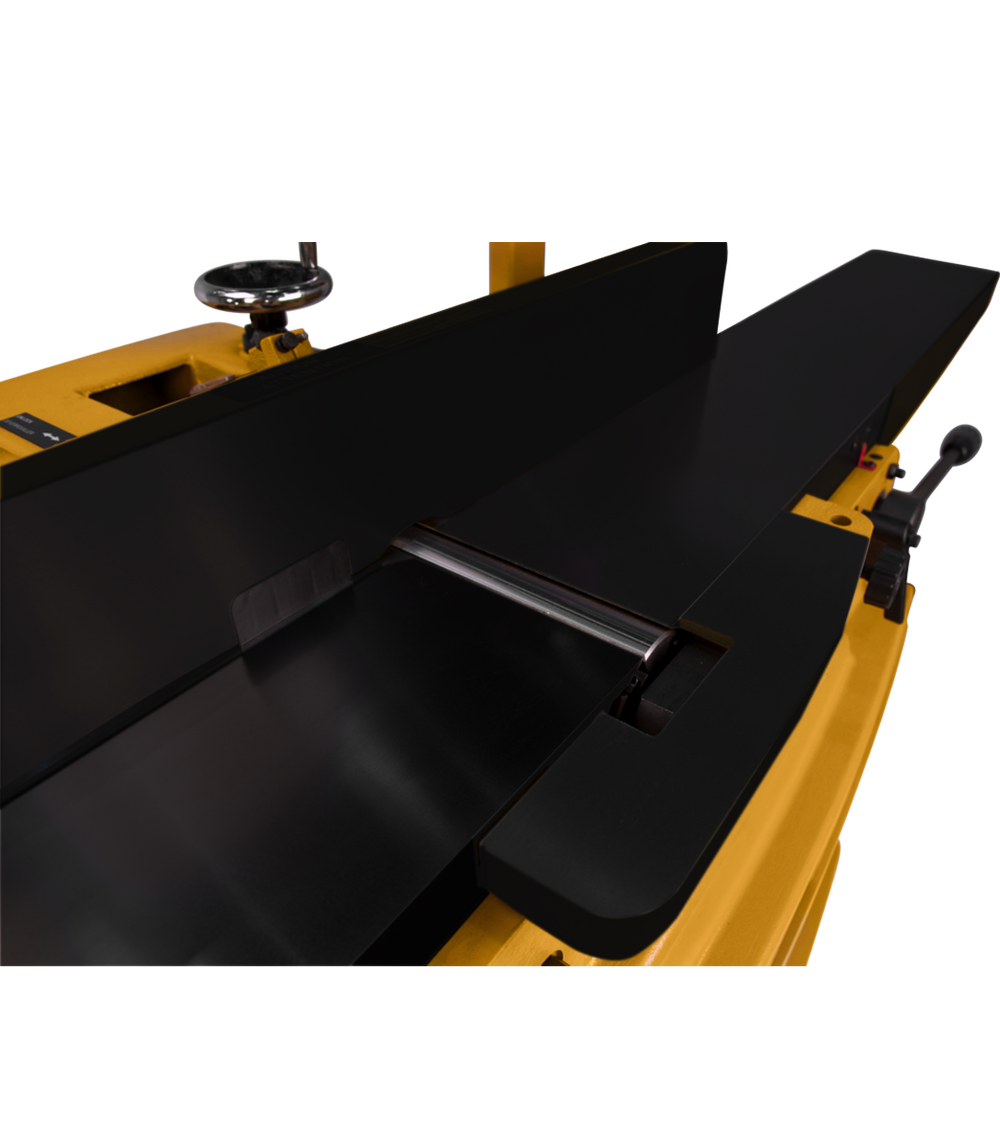

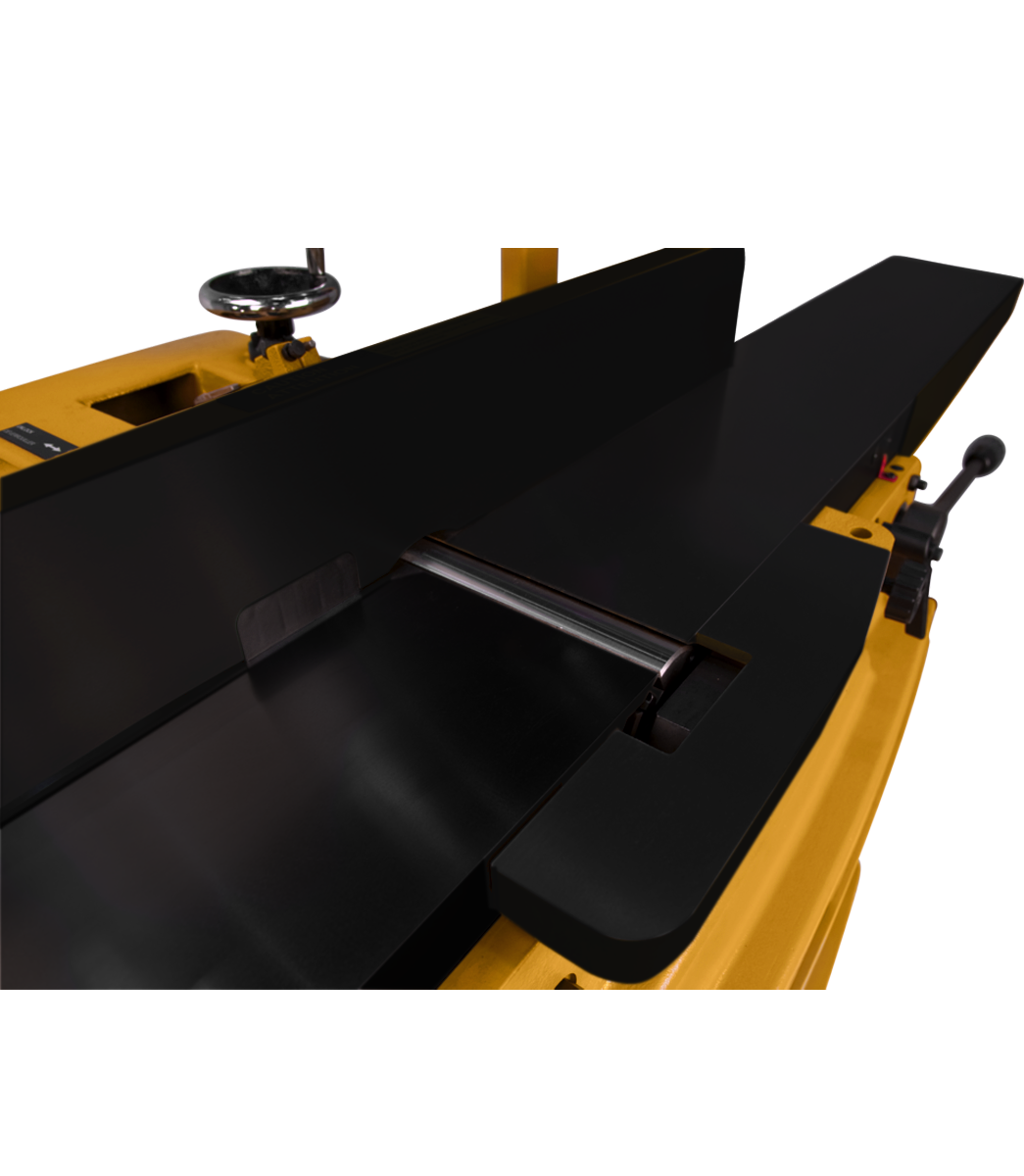

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control

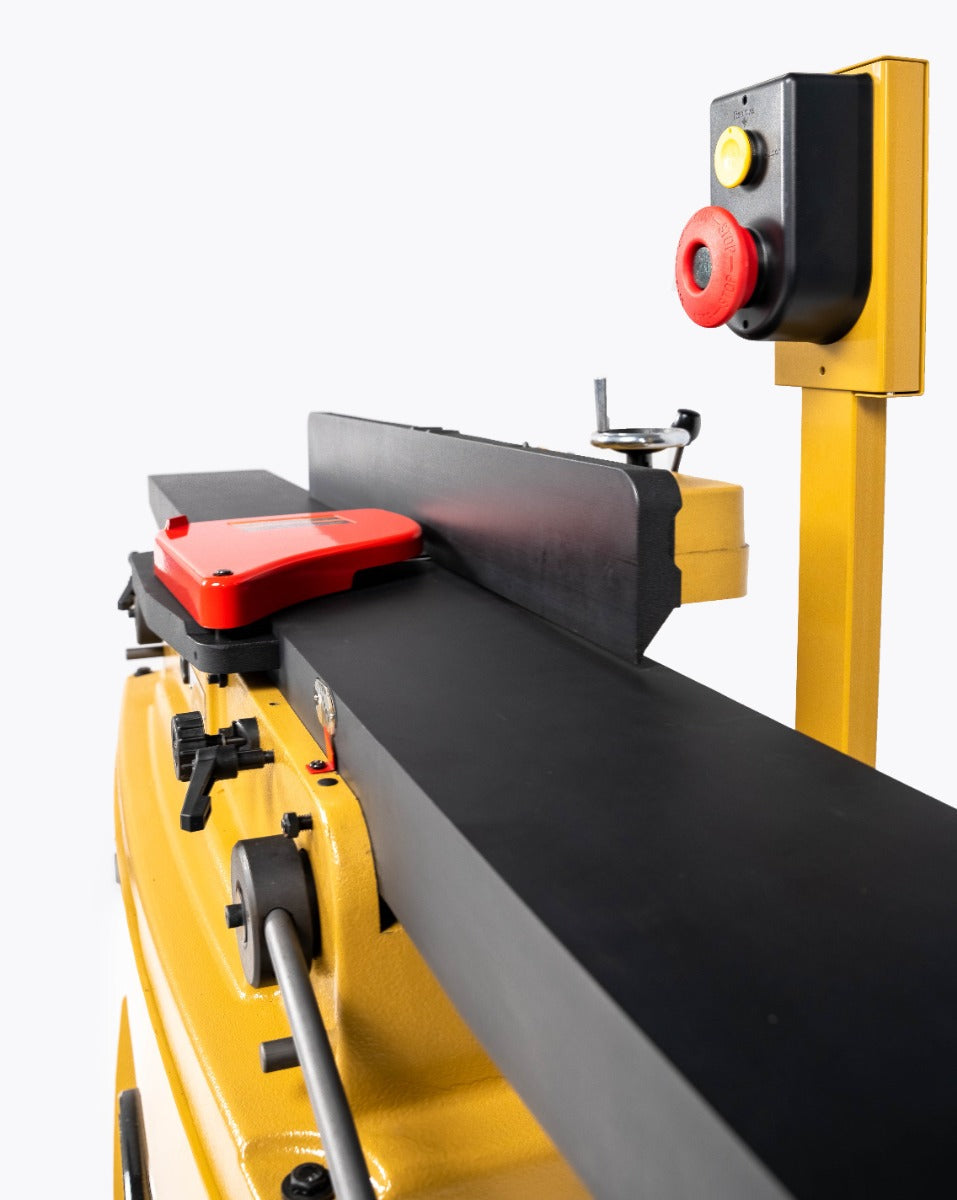

• High-mount switch for operator convenience

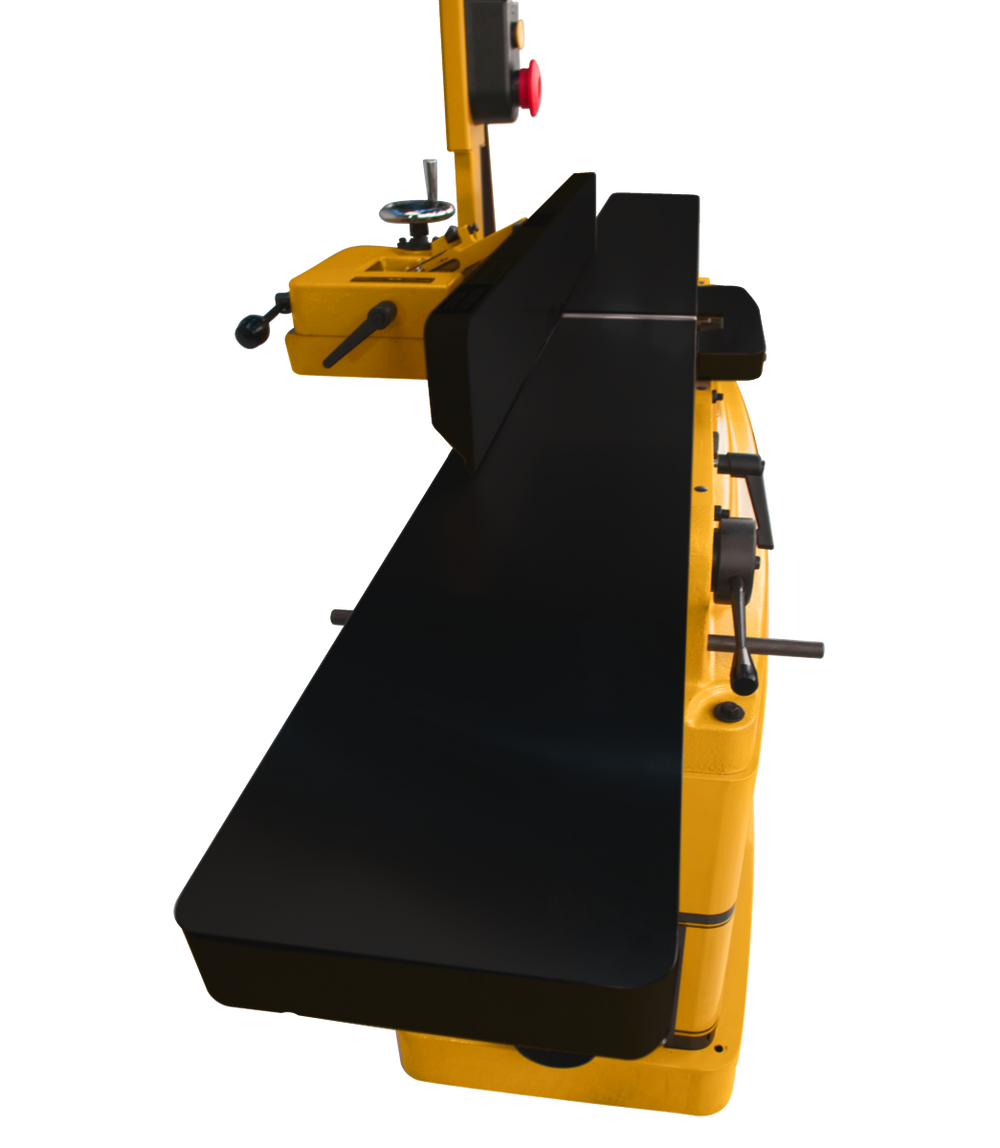

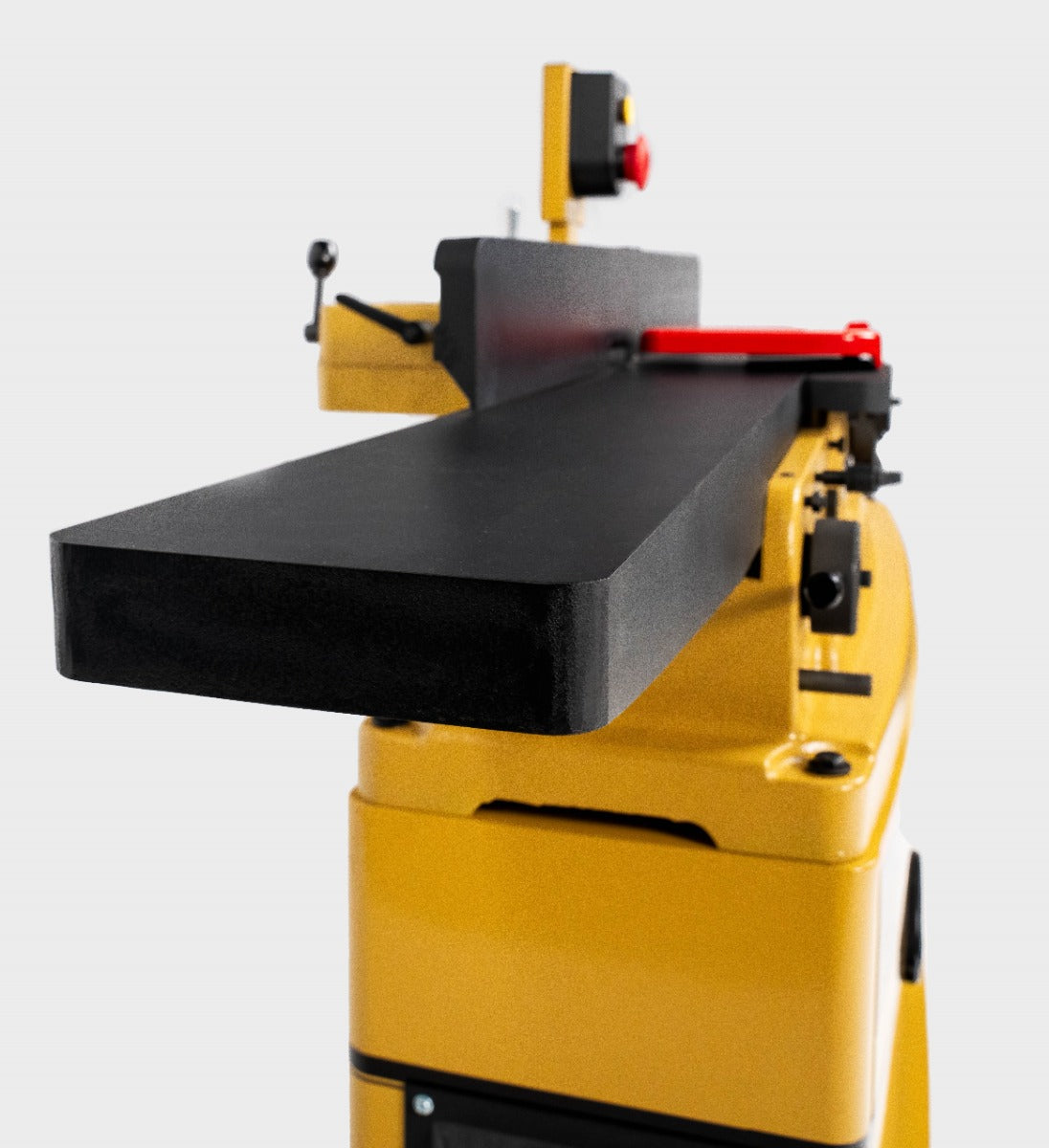

• Large 8 x 82 in. precision ground cast iron table surface for heavy-duty work
• 1/8-inch depth limiter control knob gives you quick adjustment ability and safety

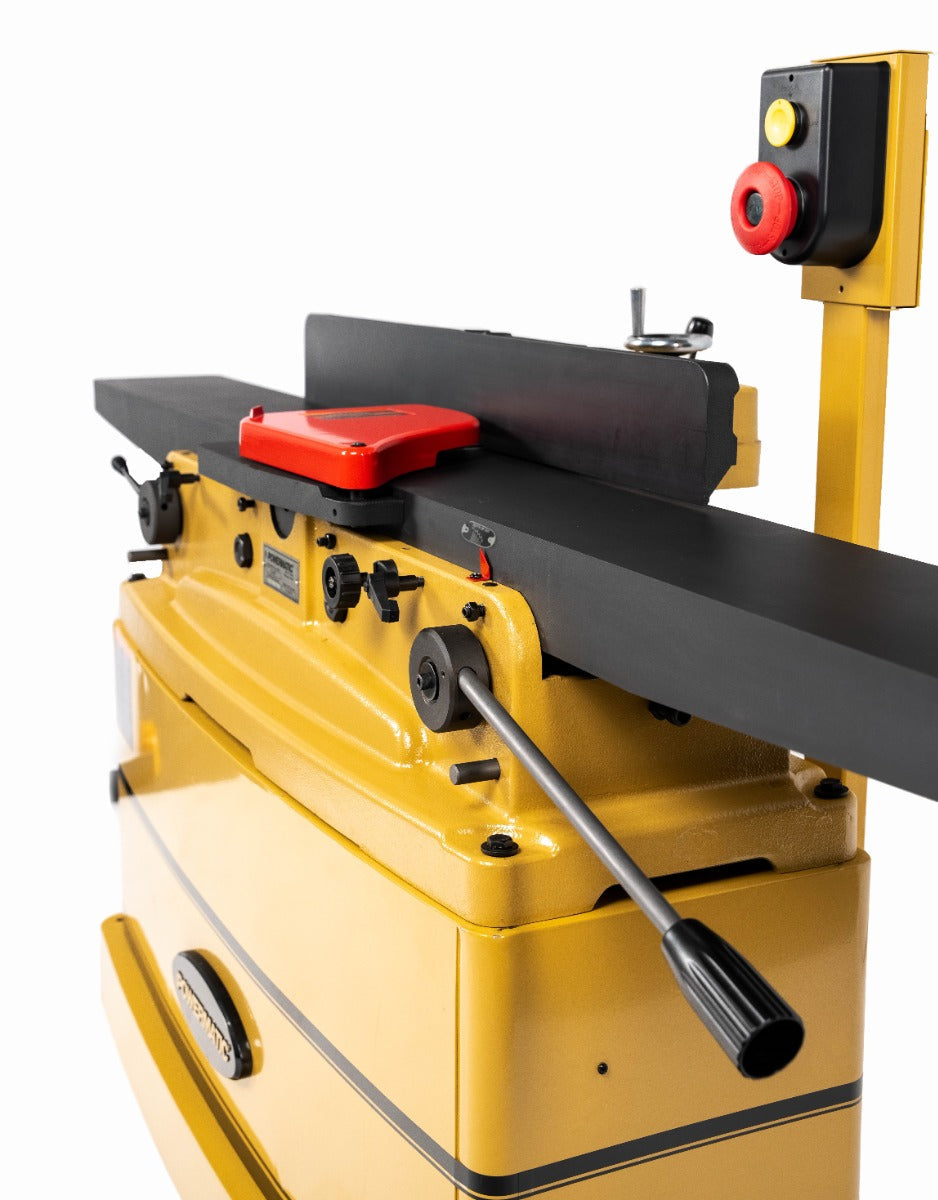

• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Patented handwheel with worm gear system for precise fence tilting
• NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8 in.

Specifications:

• Stock Number: PM1-1610082T
• Cuts Per Minute: Not Applicable
• Cutterhead Diameter (In.): 3-1/16
• Cutterhead Speed (RPM): 7000
• Cutting Capacity (W x D) (In.): 8 x 1/2

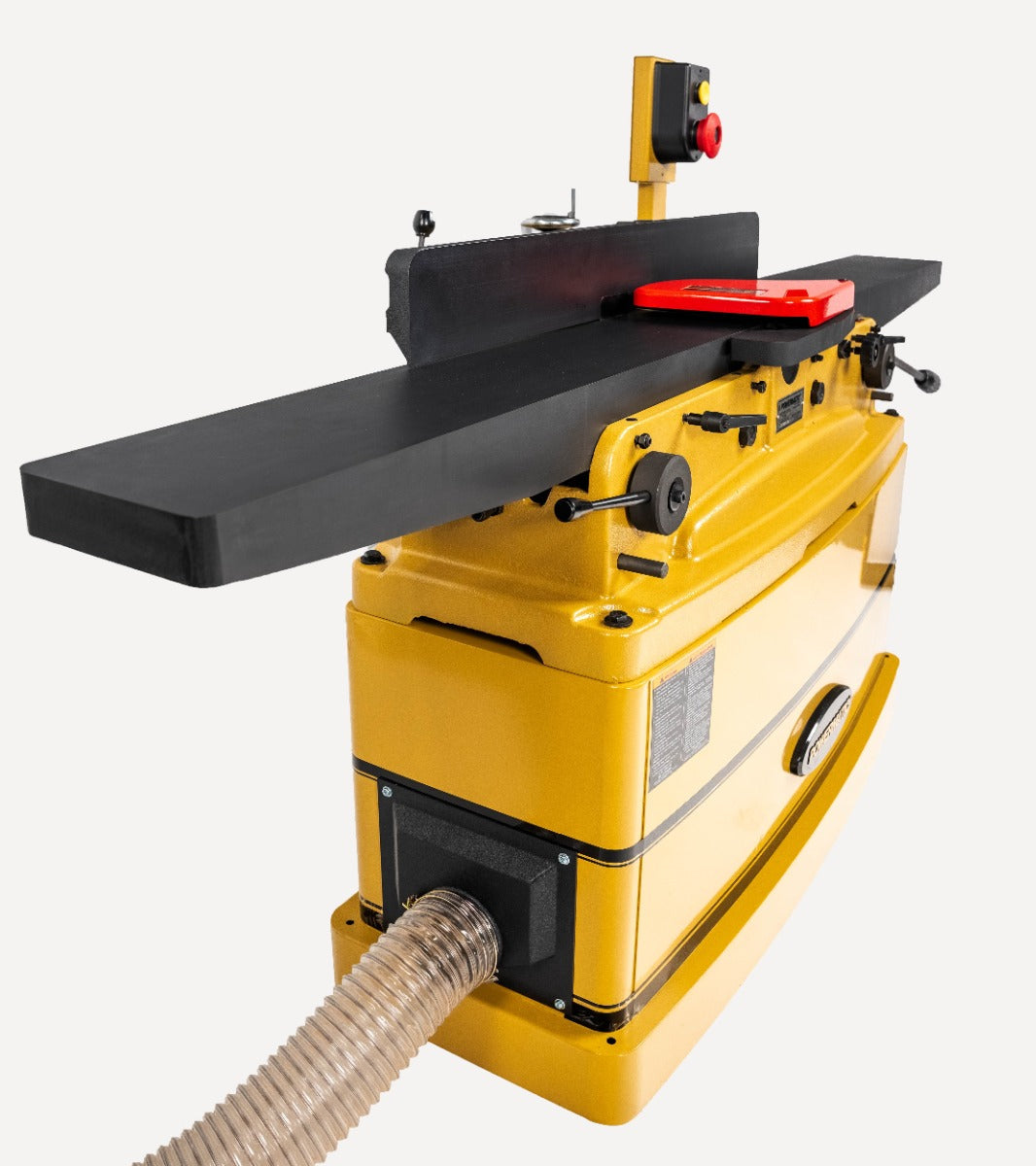

• Dust Collection Minimum CFM Required (CFM): 450
• Dust Port Outside Diameter (In.): 4
• Infeed Table Length (In.): 44
• Model Number: PJ-882HHT
• Motor Amps: 9
• Motor Power (HP): 2
• Motor Voltage (V.): 230
• Number of Knives: 54 four-sided inserts
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Recommended Circuit Size (Amps.): 20
• Type of Cutterhead: HELICAL
• Maximum Cutting Depth (In.): 1/8
