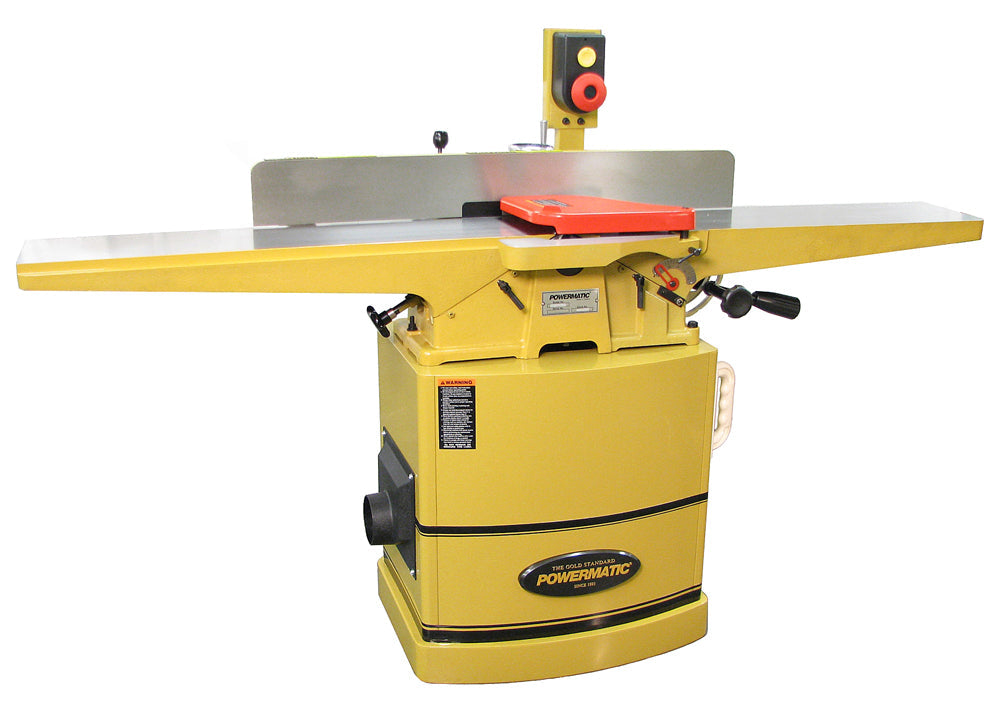

Powermatic 60C 8 in. Jointer with Magnetic Switch, 2HP, 1PH, 230V 1610084K

Powermatic 1610084K 60C 8 Inch 2HP 1PH 230V 60C Jointer (Replacement 1610077K)

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.

Features:

• High-speed heat-treated steel knives
• Extra long tables are mounted on dovetailed ways, for extended workpiece support
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
• High mount switch for operator convenience
• Handwheel operated worm gear system for smooth fence tilting
• Magnetic push blocks can be stored on the machine within constant reach
• Non-mar fence insert protects table surface
• Large extension rest on infeed table for rabbeting

Specifications:

• Number of Knives 3
• Standard Knife Size (L x W x T) (In.) 8 x 11/16 x 1/8
• Cuts Per Minute 21,000
• Cutterhead Diameter (In.) 3
• Cutterhead Speed (RPM) 7,000
• Cutting Capacity (W x D) (In.) 8 x 1/2
• Table Size (L x W) (In.) 73 x 8-1/2
• Table Height from Floor (In.) 32
• Infeed Table Length (In.) 35-1/4
• Outfeed Table Length (In.) 35-1/2
• Rabbeting Capacity (In.) Ω "
• Rabbeting Ledge (In.) 1/2
• Fence Size (L x H) (In.) 38 x 4-3/4
• Fence Tilt (Deg.) 45 Forward, 45 Backward
• Fence Positive Stops (Deg.) 45 Forward, 45, 90 Backward
• Dust Port Outside Diameter (In.) 4
• Motor Power (HP) 2
• Motor Phase 1
• Motor Voltage (V.) 230
• Motor Current (Amps) 3/8

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
