• Description

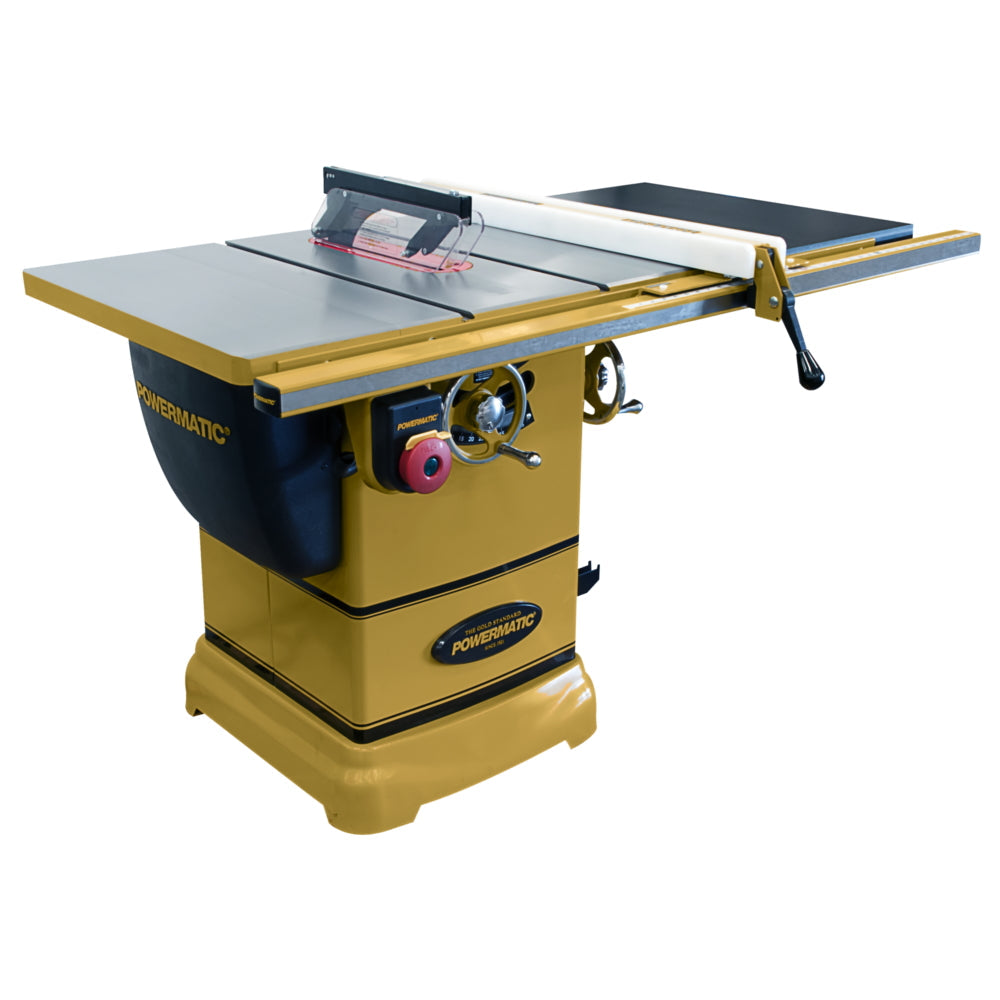

1791000K Powermatic PM1000 Table saw, 1-3/4HP 1PH, 30" Rip w/Accu-Fence System

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.



Features:

  • Cabinet saw that only requires 115V power
  • A blade surround and collection hose provide an unobstructed path, maximizing dust collection
  • Conveniently located hands free power switch
  • Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
  • The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
  • Exclusive AccuFence provides rigidity and precision
  • The poly-V belt drive system reduces vibration and maximizes efficiency
  • Ergonomically designed 7” handwheels provide momentum – making blade height and bevel adjustments easy
  • Arbor lock allows for one handed blade changes with minimal tools
  • Cast iron work surface features a beveled edge
  • Bevel scale is conveniently located with large, easy to read numbers
  • Hinged motor cover provides quick access to the interior of the cabinet
  • Includes standard kerf and standard kerf - low profile riving knives


Specifications:

  • Style (Type) Cabinet
  • Blade Diameter (In.) 10
  • Arbor Diameter (In.) 5/8
  • Arbor Speed (RPM) 4200
  • Maximum Depth of Cut at 90 Degrees (In.) 3-1/8
  • Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
  • Maximum Diameter of Dado (In.) 8
  • Maximum Width of Dado (In.) 13/16
  • Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
  • Maximum Rip Right of Blade (In.) 30
  • Maximum Rip Left of Blade (In.) 12
  • Table Type Cast Iron
  • Table Height from Floor (In.) 34-1/4
  • Table Size (In.) 20 x 27
  • Table Size with Extensions (In.) 40 x 27
  • Table Size with Full Extensions (In.) 57 x 27
  • Table T-Slot (In.) 3/4 x 3/8
  • Dust Collection Minimum CFM Required (CFM) 350
  • Dust Port Outside Diameter (In.) 4
  • Motor Power (HP) 1-3/4
  • Motor Phase 1
  • Motor Voltage (V.) 115/230
  • Prewired Voltage (V.) 115
  • Motor Current (Amps) 15/7.5
  • Recommended Circuit Size (Amps.) 20
  • Weight (Lbs.) 346.8



Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.


Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
