• Description

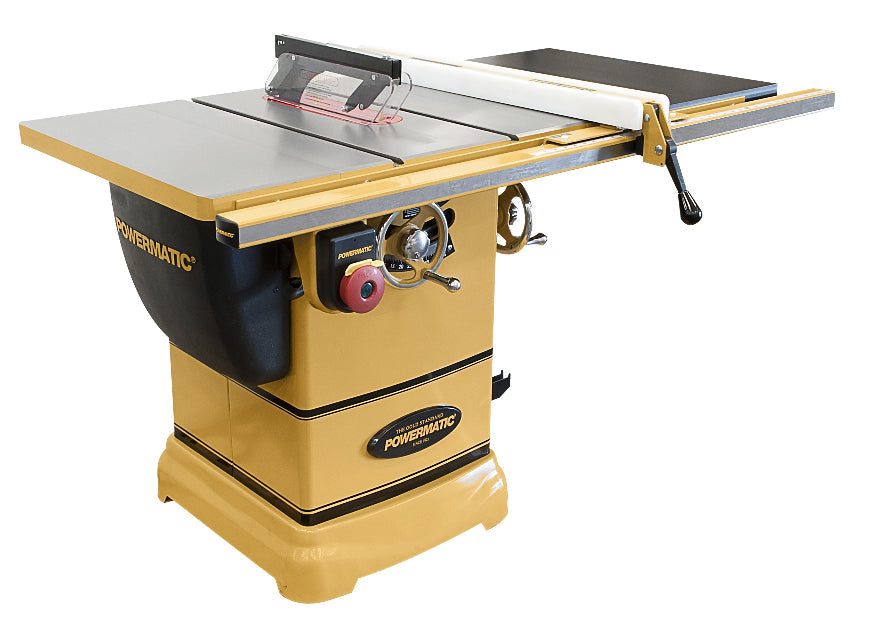

Powermatic 1791001K PM1000 Table saw, 1-3/4HP 1PH, 52" Rip w/Accu-Fence System

The PM1000 represents the positive evolution that is constantly in motion at Powermatic. With our groundbreaking table saw, Powematic has pushed the boundaries of innovation and ingenuity all in one motion. Experience the first cabinet saw that operates on a mere 115v of power. For quick and convenient adjustment for a full range of cuts, the rugged miter gauge swivels 60 degrees in either direction. Enjoy the efficiency and unconventional quiet operating noise enabled by the Poly –V drive belt system. The arbor lock setup is designed to let the builder make one handed blade changes. Stop experimenting with brands that don’t deliver, and go with the sure fired resolution in Powermatic.

Features:

  • Cabinet saw that only requires 115V power
  • A blade surround and collection hose provide an unobstructed path, maximizing dust collection
  • Conveniently located hands free power switch
  • Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
  • Poly-V drive belt system delivers efficient, quiet operation
  • The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
  • Exclusive AccuFence provides rigidity and precision
  • Ergonomically designed 7” handwheels provide momentum – making blade height and bevel adjustments easy
  • Enclosed cabinet with cast iron base for rigidity
  • Heavy-duty deluxe micro-adjust miter gauge with aluminum extruded 13" extension fence, for good
  • Arbor lock allows for one handed blade changes with minimal tools
  • Cast iron work surface features a beveled edge
  • Bevel scale is conveniently located with large, easy to read numbers
  • Hinged motor cover provides quick access to the interior of the cabinet


Specifications:

  • Style (Type) Cabinet
  • Blade Diameter (In.) 10
  • Arbor Diameter (In.) 5/8
  • Arbor Speed (RPM) 4200
  • Maximum Depth of Cut (In.) 3-1/8
  • Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
  • Maximum Rip Left of Blade (In.) 12
  • Maximum Rip Right of Blade (In.) 52
  • Maximum Diameter of Dado (In.) 8
  • Maximum Width of Dado (In.) 13/16
  • Table Type Cast Iron
  • Table Height from Floor (In.) 34-1/4
  • Table Size (In.) 20 x 27
  • Dust Collection Minimum CFM Required (CFM) 350
  • Dust Port Outside Diameter (In.) 4
  • Motor Power (HP) 1-3/4
  • Motor Phase 1
  • Motor Voltage (V.) 115/230
  • Prewired Voltage (V.) 115
  • Motor Current (Amps) 15/7.5
  • Recommended Circuit Size (Amps.) 20

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.


Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
