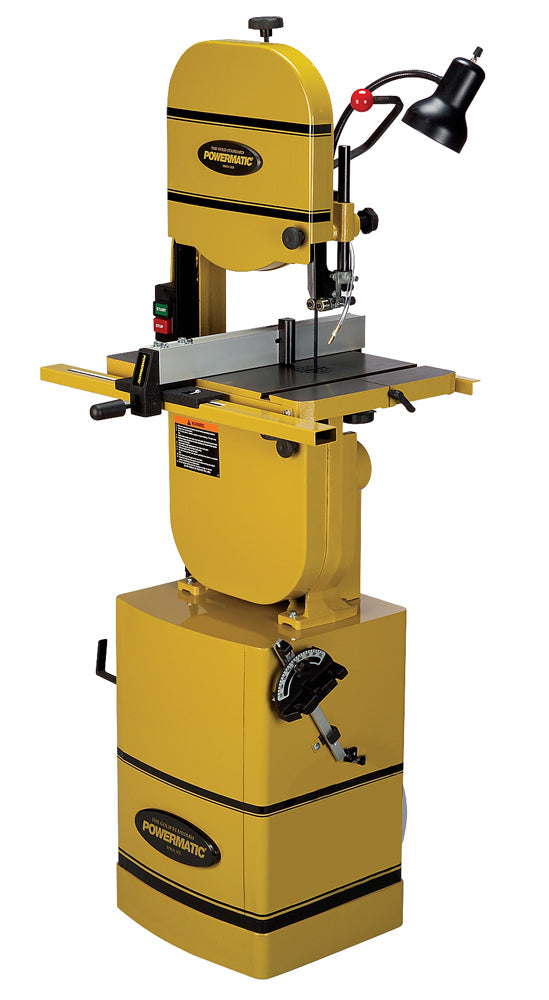

Powermatic 1791216K PWBS-14CS Bandsaw, 1.5HP 1PH 115/230V

The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

Features:

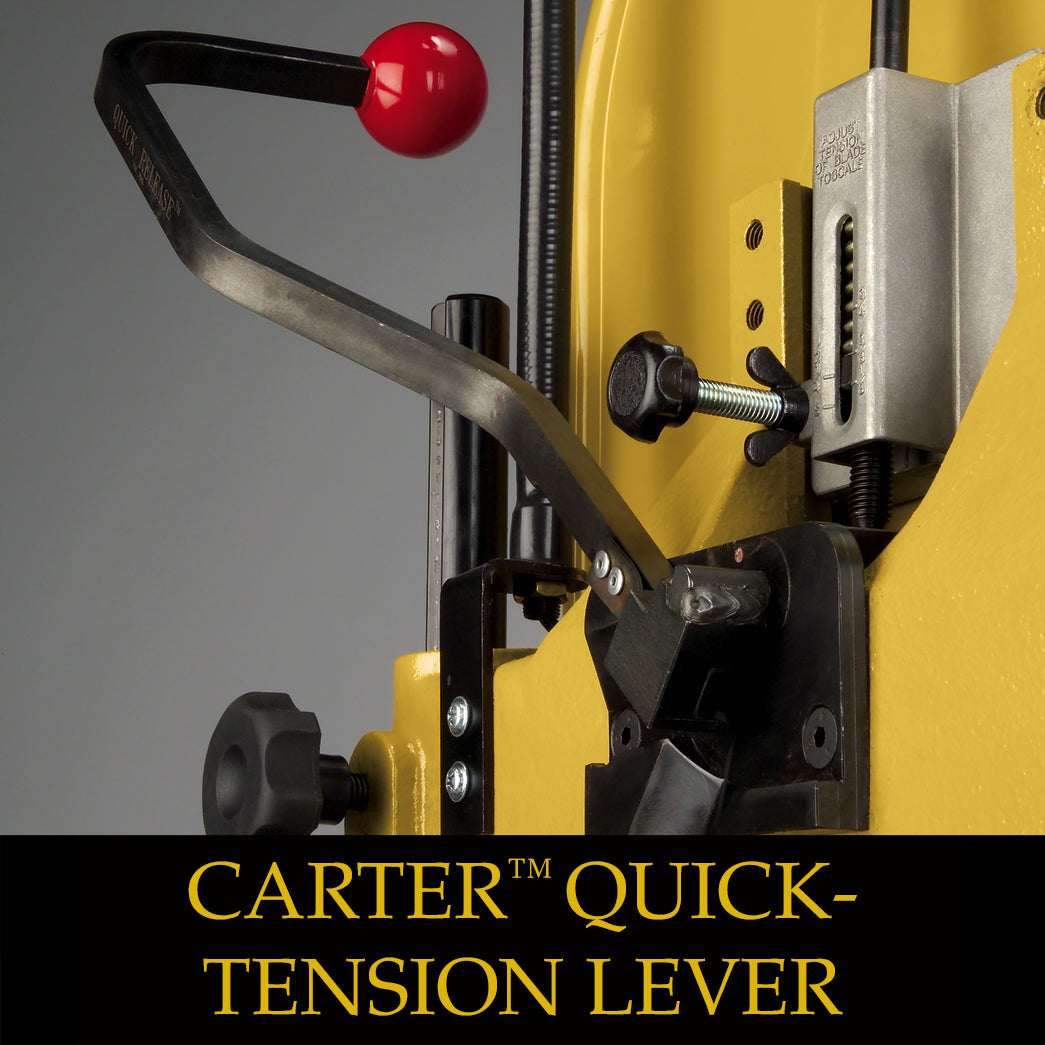

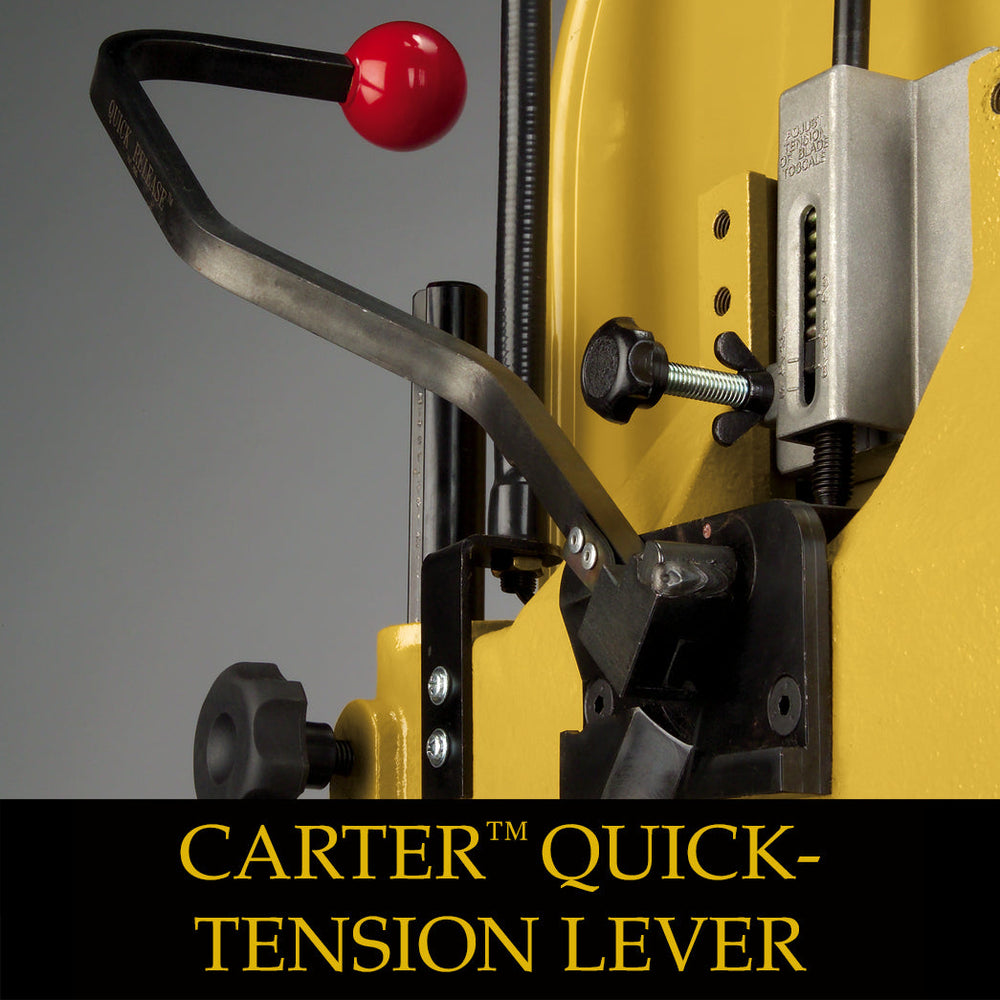

  • CARTER™ quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use

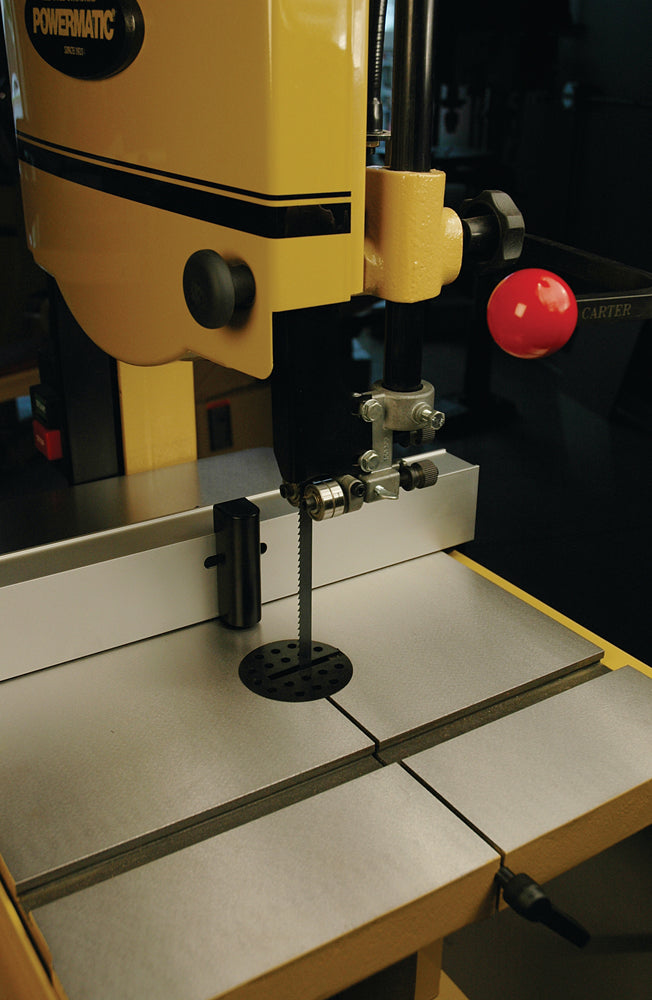

  • Extra-large, two piece cast iron table consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20"
  • Chip blower ensures a clean, visible cut line

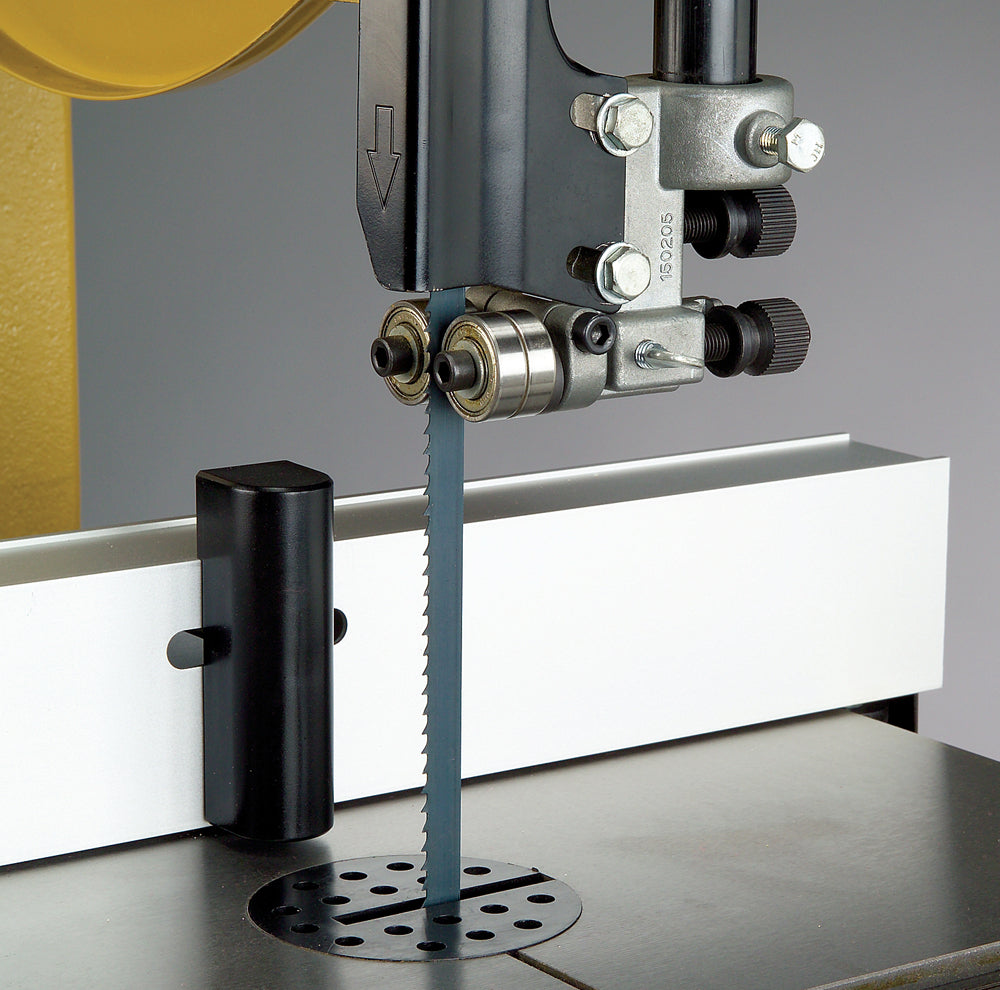

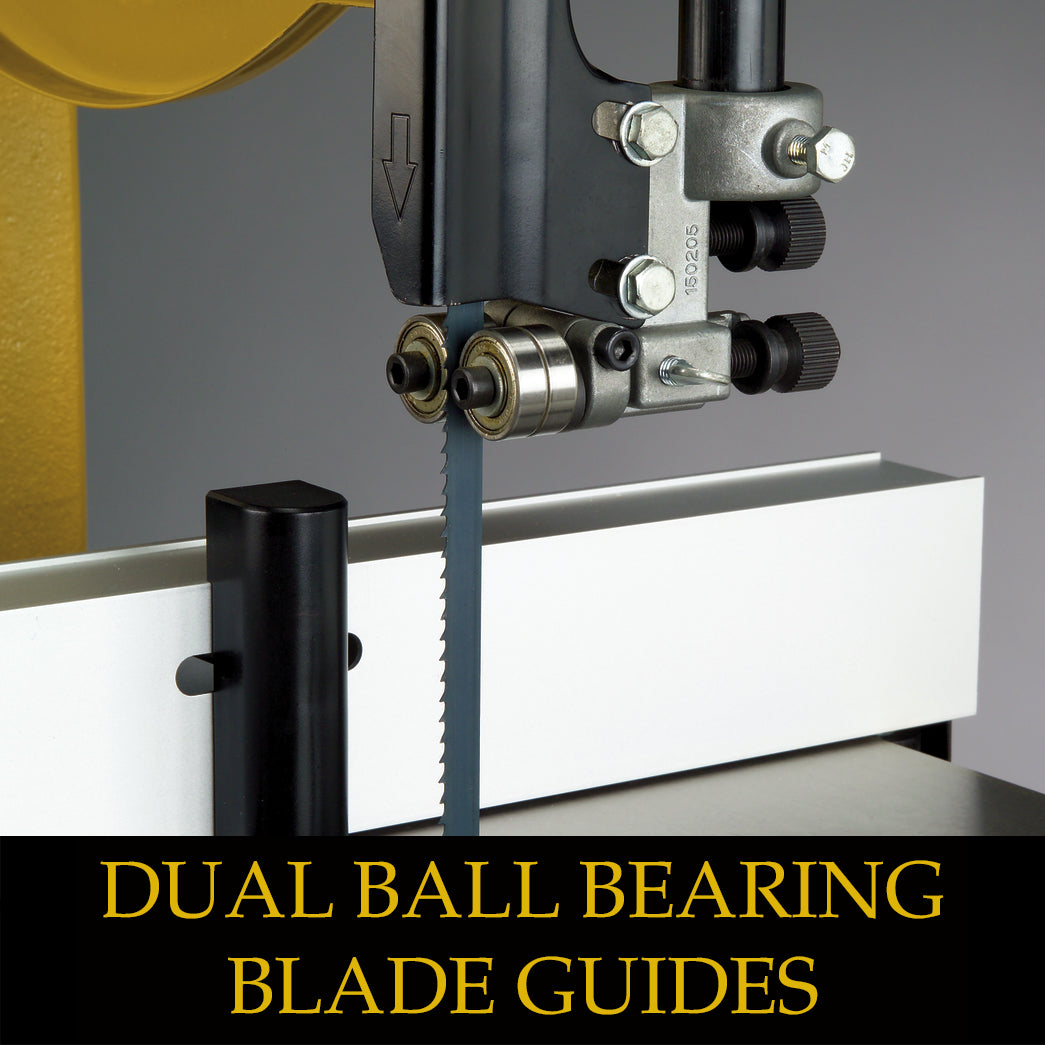

  • Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
  • Exclusive design, quick-release precision T-square style rip fence with 4" resaw attachment

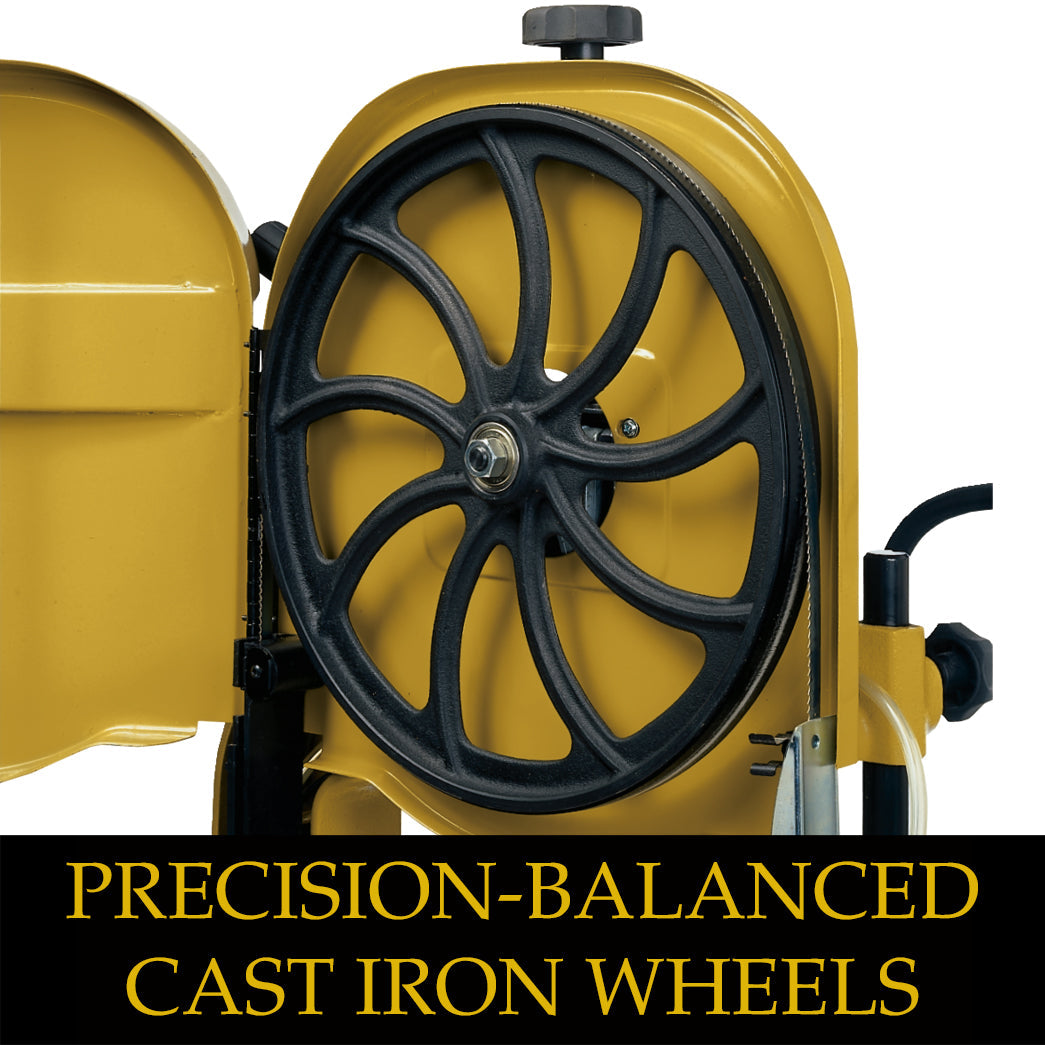

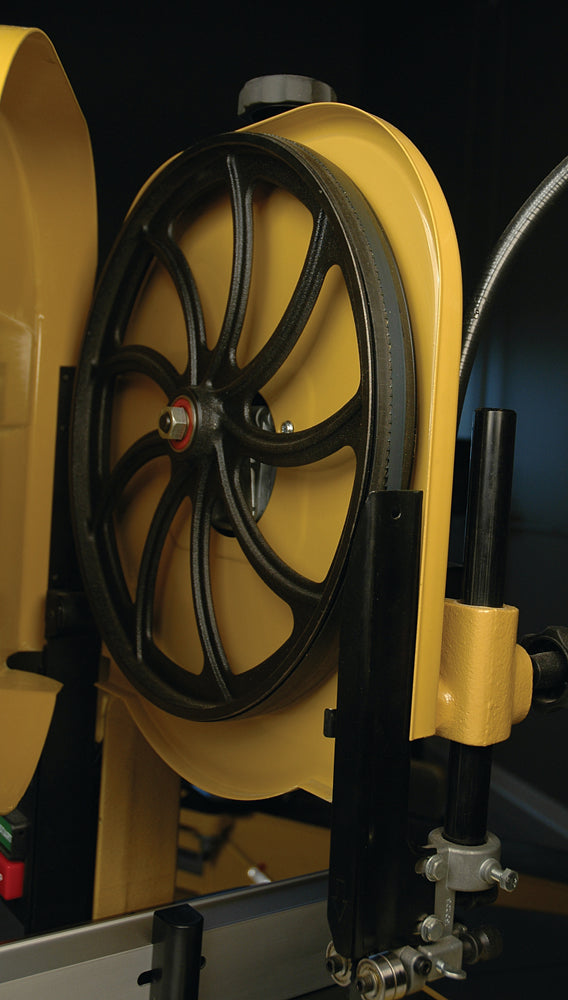

  • Precision balanced, nine spoke cast iron wheels reduce vibration
  • Easy to read tensioning gauge settings indicated in "blade width" increments
  • Full 6" under guide capacity with 13-1/2" width capacity
  • 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
  • Rigid one-piece welded stand requires no assembly
  • Standard Equipment:
  • CARTER™ quick tension release
  • Adjustable miter gauge
  • T-style rip fence with resaw assembly
  • 3/8" bandsaw blade
  • Gooseneck work lamp and chip blower

Specifications:

  • Style (Type) Bandsaw
  • Band Saw Size/Wheel Diameter (In.) 14
  • Cutting Capacity Width (In.) 13-1/2
  • Cutting Capacity Height (In.) 6
  • Blade Length (In.) 93-1/2
  • Blade Speed (SFPM) 3,000
  • Table Size (L x W) (In.) 15 x 15
  • Table Size with Extension (L x W) 15 x 20-1/2
  • Table Height from Floor (In.) 44
  • Maximum Saw Blade Width (In.) 3/4
  • Minimum Saw Blade Width (In.) 1/8

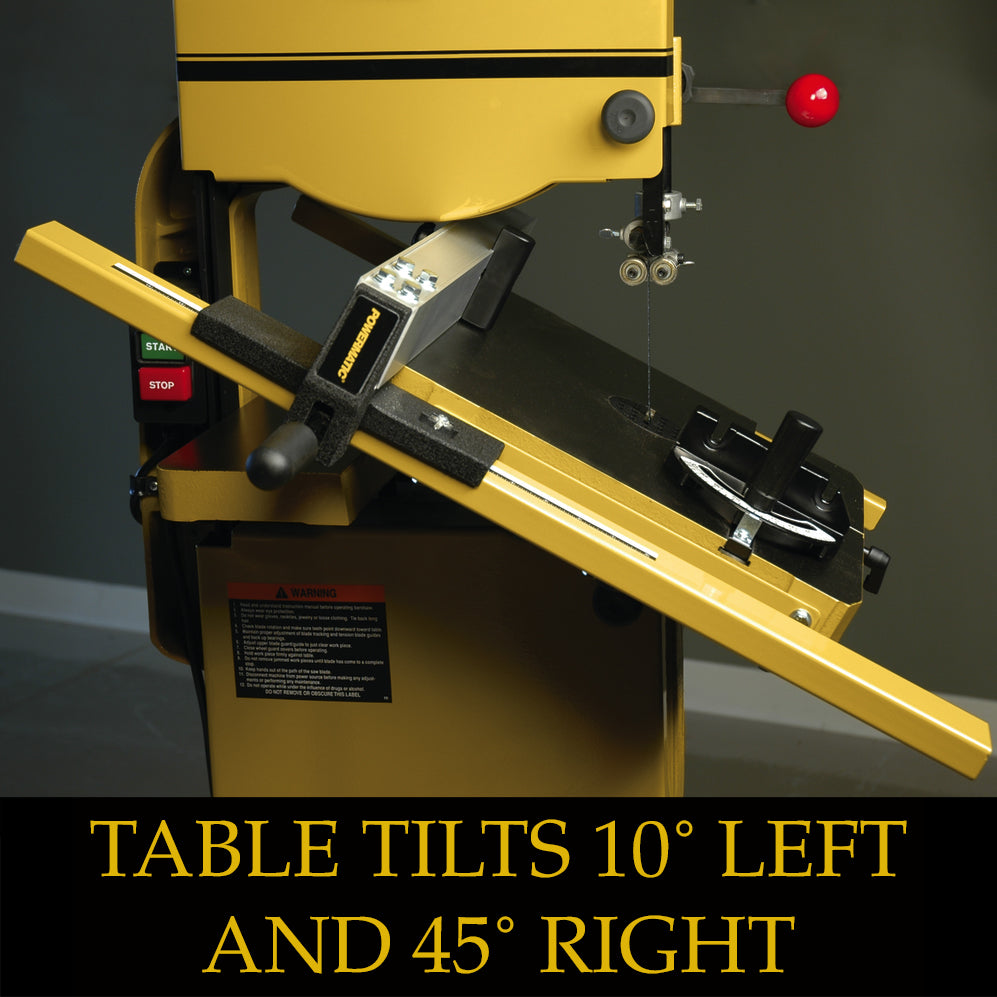

  • Table Tilt (Deg.) 10 Left, 45 Right

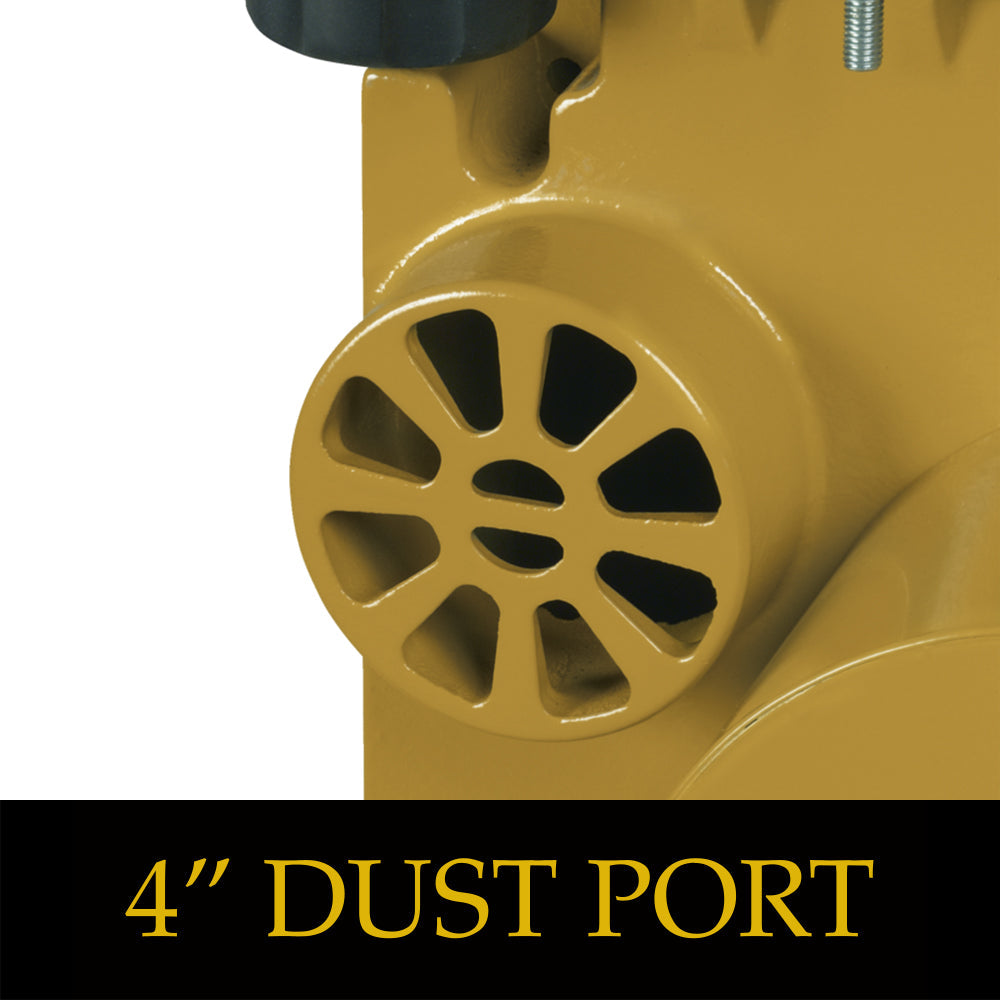

  • Dust Port Outside Diameter (In.) 4

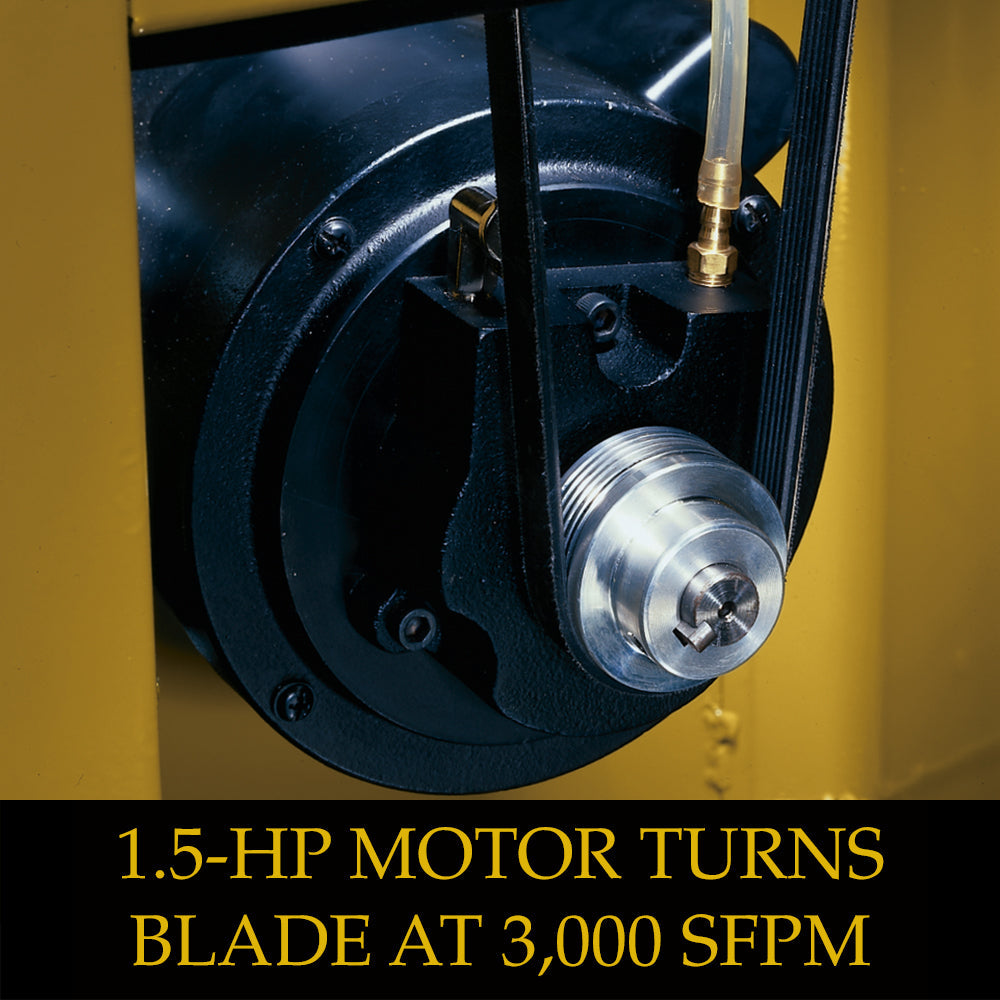

  • Motor Power (HP) 1-1/2
  • Motor Phase 1 P
  • Motor Voltage (V.) 115, 230
  • Prewired Voltage (V.) 115
  • Motor Current (Amps) 11, 5-1/2

Includes:

  • Riser block (1791217) qty 1
  • Manuals


Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.



Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
