• Description

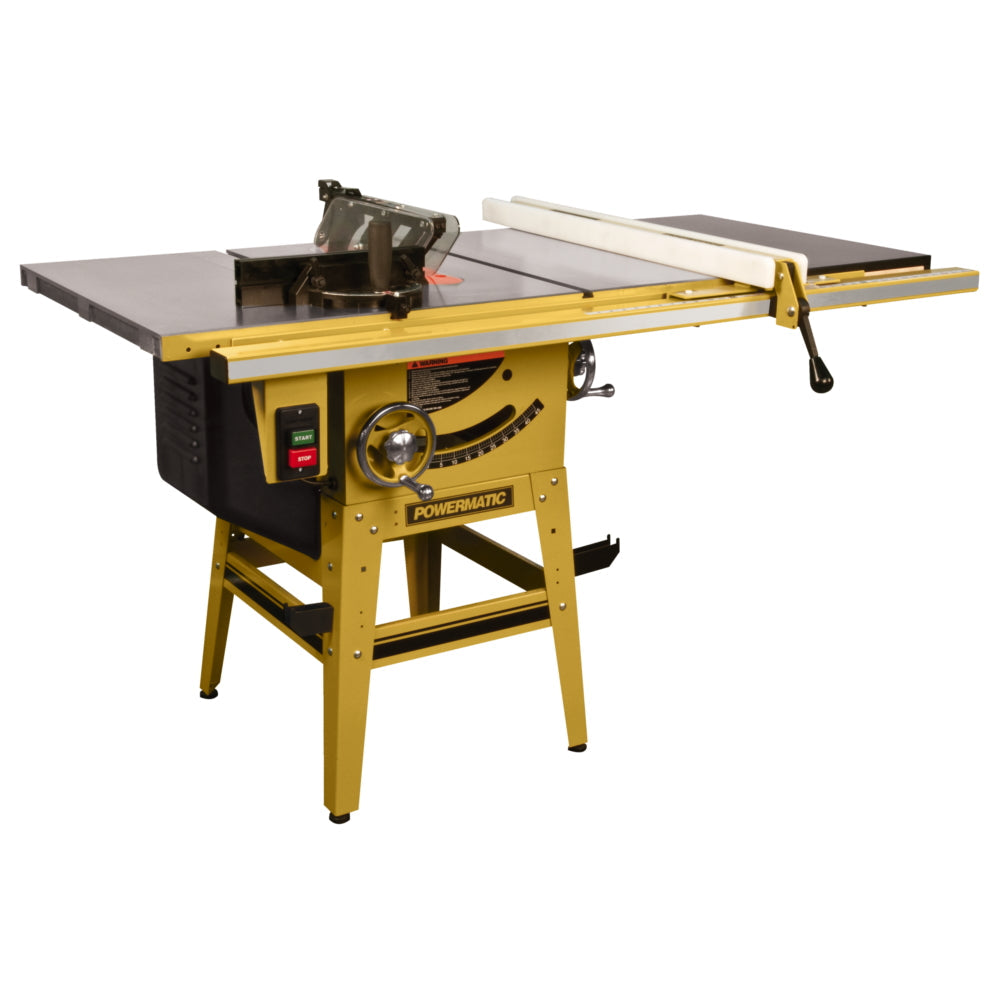

1791230K, Powermatic Table Saw 64B, 1.75 HP 115/230V, 50" Accu-Fence System w/Riving Knife

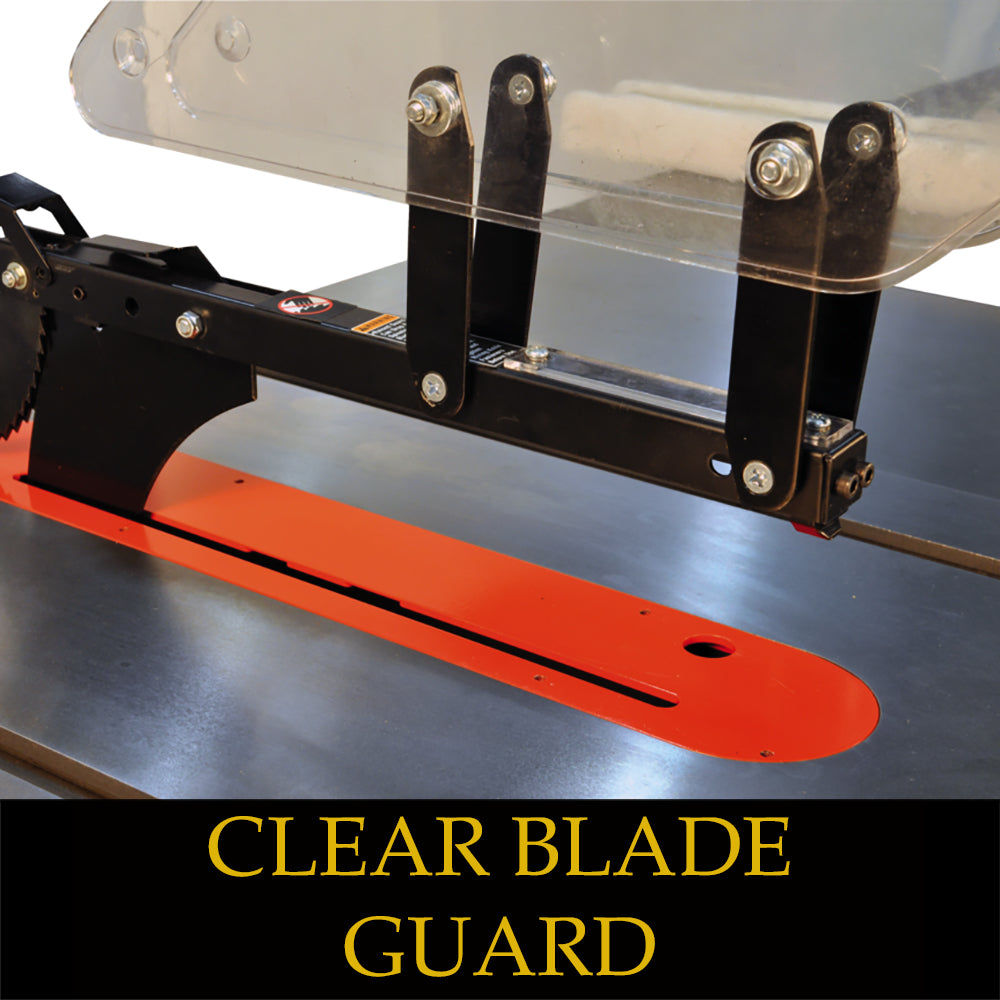

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops, and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.



Features:

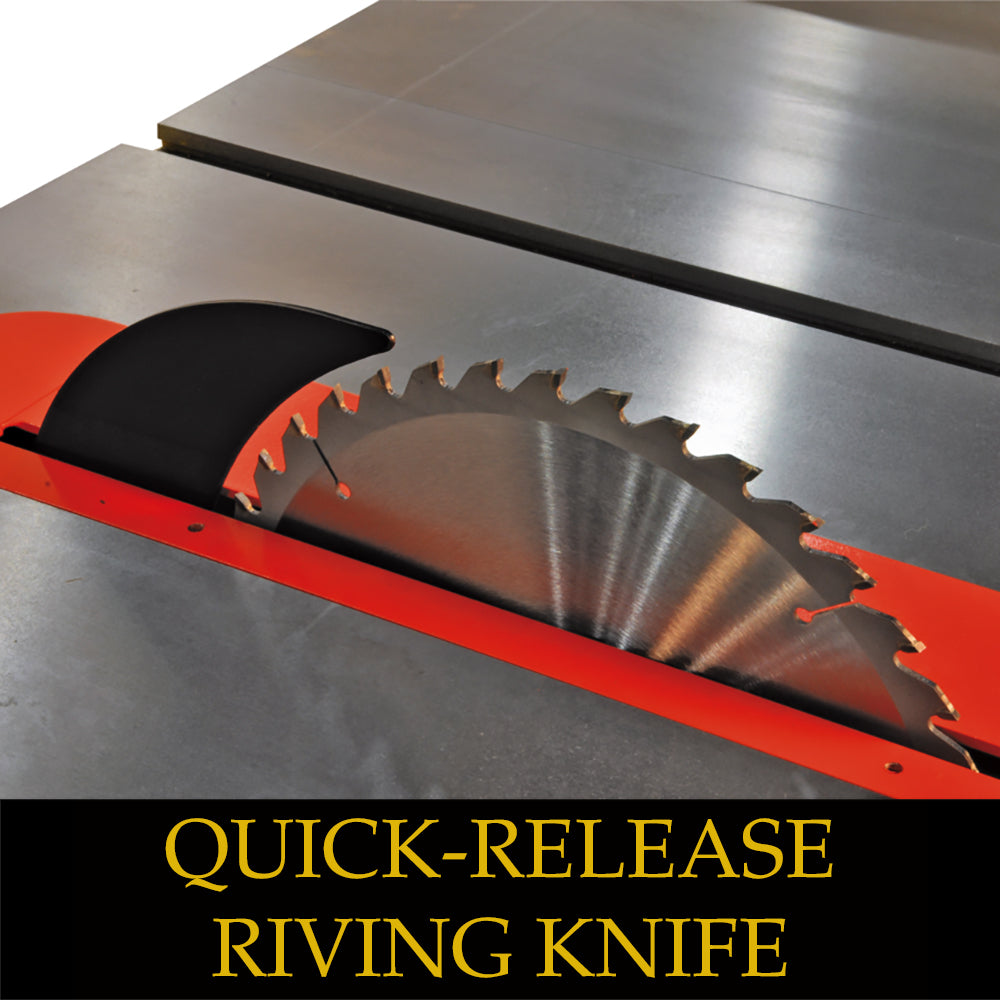

  • Riving knife maintains close blade proximity to reduce chance of kickback

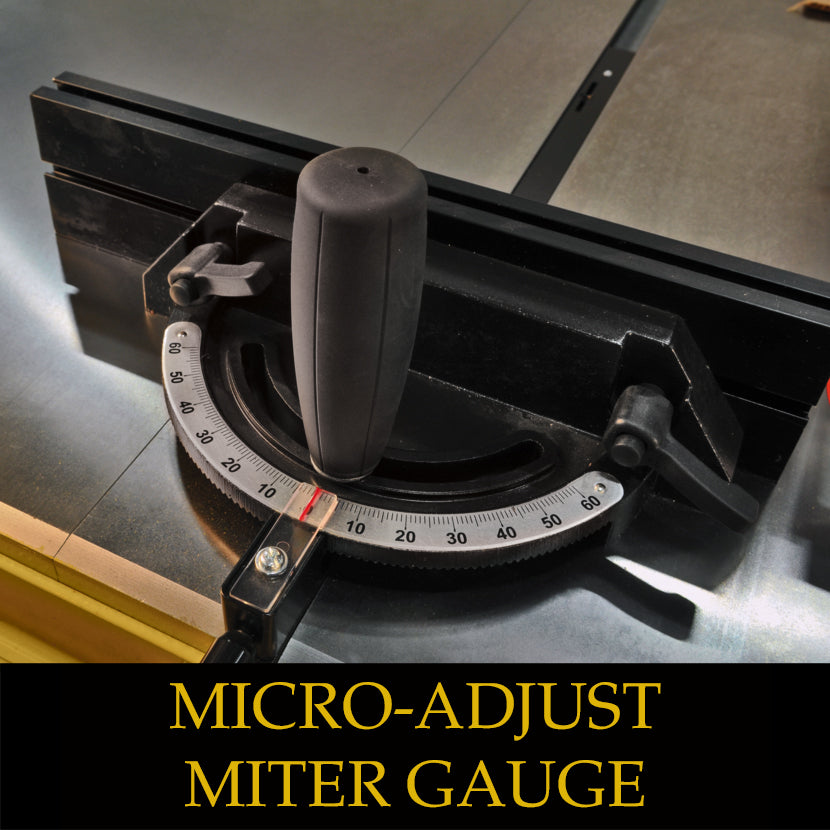

  • Micro-adjust miter gauge with extension plate offers wider crosscut support
  • Blade guard and riving knife have quick release for tool-less mounting and removal
  • Precision ground cast iron table and wings have beveled edge for smooth miter gauge entry
  • Built-in extraction port increases dust collection efficiency
  • Heavy cast iron trunnion ensures smooth blade positioning

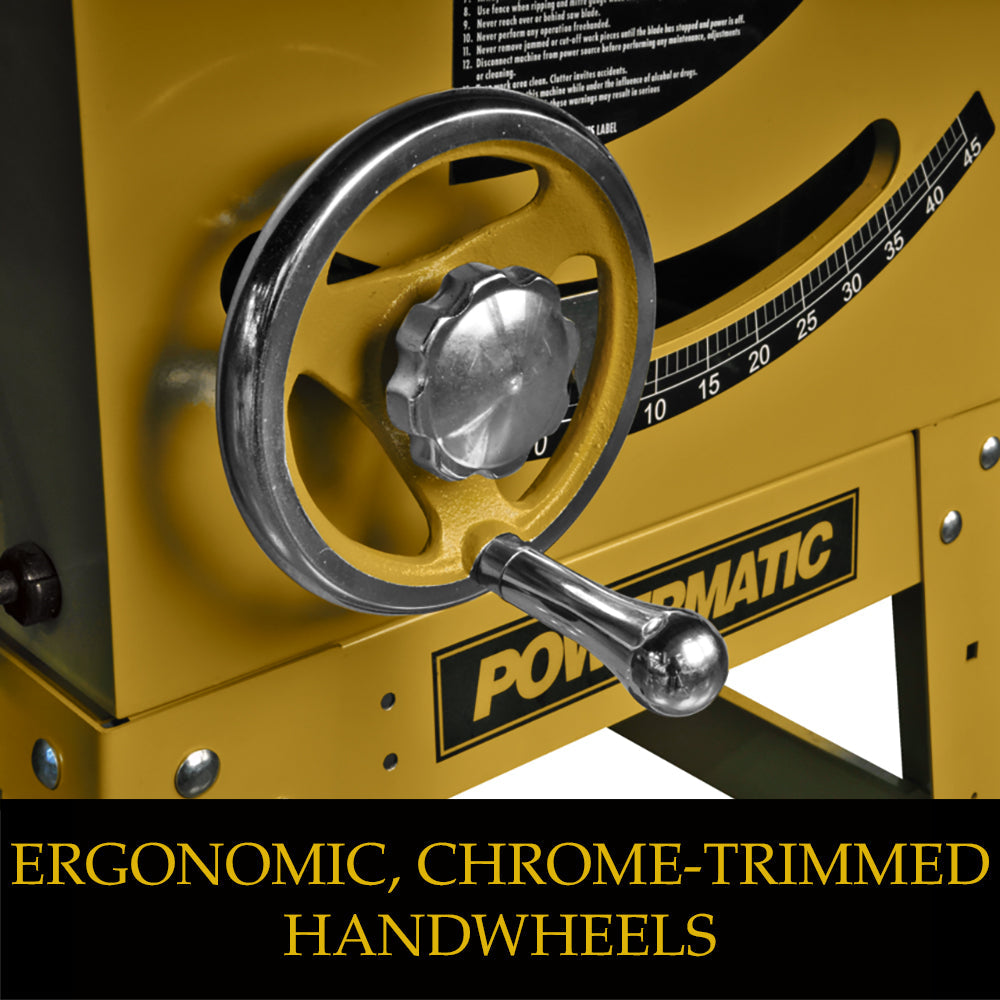

  • Chrome trimmed handwheels are ergonomically designed

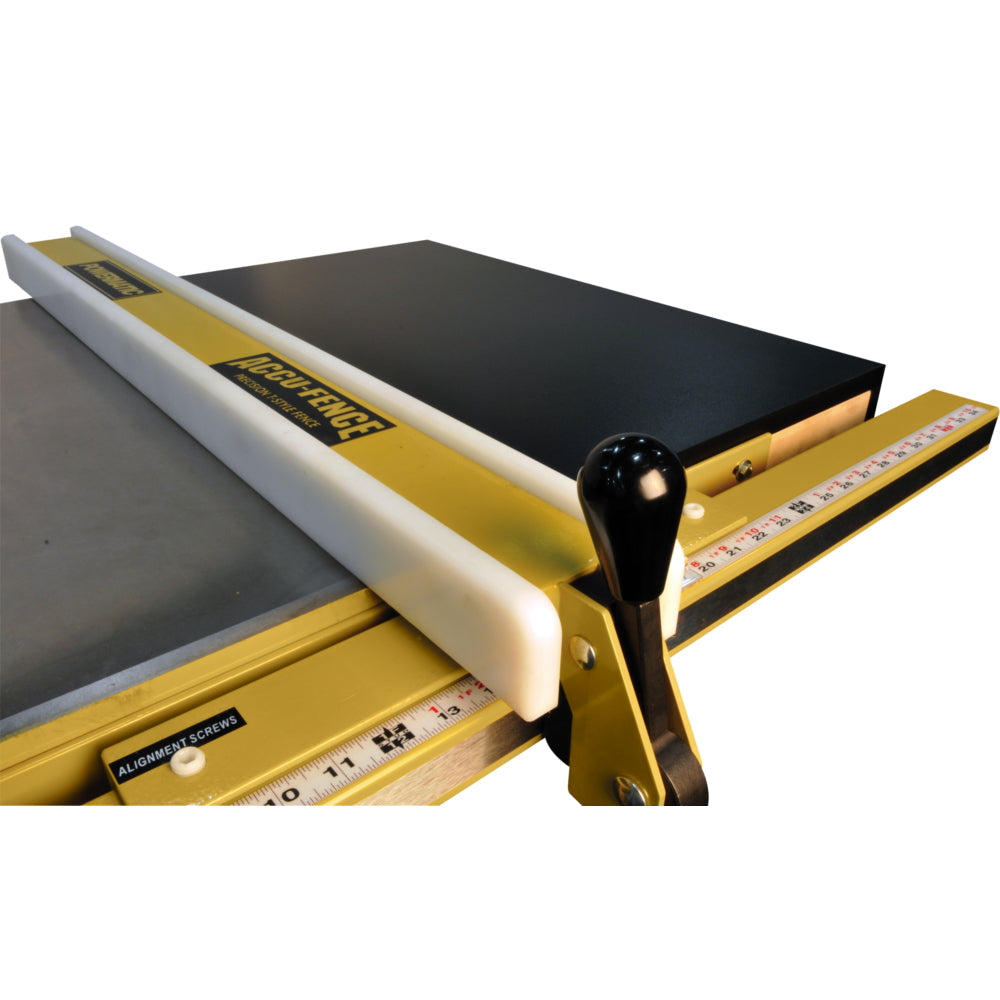

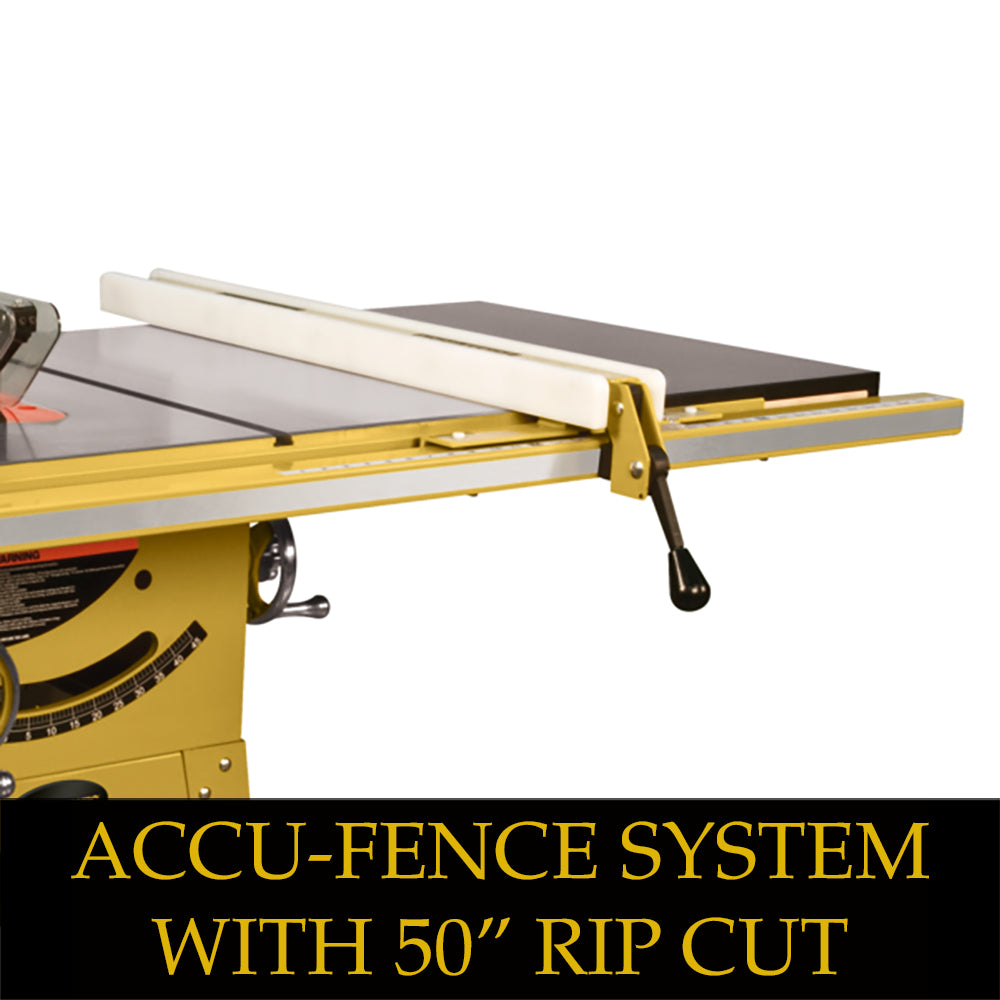

  • Accu-Fence locks to rail without play
  • (Blade not included)


Specifications:

  • Style (Type) Contractor
  • Blade Diameter (In.) 10
  • Arbor Diameter (In.) 5/8
  • Arbor Speed (RPM) 3,800
  • Maximum Depth of Cut at 90 Degrees (In.) 3-1/8
  • Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
  • Maximum Diameter of Dado (In.) 8
  • Maximum Width of Dado (In.) 13/16
  • Table in Front of Saw Blade at Maximum Depth of Cut (In.) 11-1/2
  • Maximum Rip Right of Blade (In.) 50
  • Maximum Rip Left of Blade (In.) 12
  • Table Type cast iron
  • Table Height from Floor (In.) 36
  • Table Size (In.) 20-1/8 x 27
  • Table Size with Extensions (In.) 44-1/4 x 27
  • Table Size with Full Extensions (In.) 79-5/8 x 27
  • Table T-Slot (In.) 3/4 x 3/8
  • Dust Collection Minimum CFM Required (CFM) 350
  • Dust Port Outside Diameter (In.) 4
  • Motor Power (HP) 1-3/4
  • Motor Phase 1
  • Motor Voltage (V.) 115/230
  • Prewired Voltage (V.) 115
  • Motor Current (Amps) 15,/7.5
  • Recommended Circuit Size (Amps.) 20



Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.


Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
