Powermatic 1791250 1632, 5HP, 1Ph, 230V (1/4HP, 1Ph Feed Motor) Sander (Woodworking)

Powermatic 1791250 1632, 5HP, 1Ph, 230V (1/4HP, 1Ph Feed Motor) Sander (Woodworking)

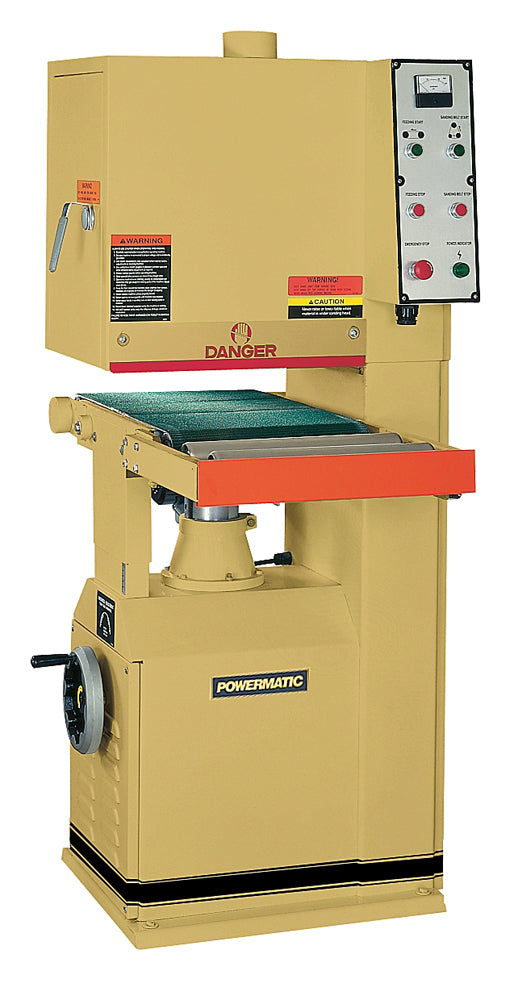

The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

Features:

• The combination head promotes a more consistent finish
• Pneumatic sanding belt tracking keeps belt centered
• Conveniently mounted load meter maintains constant check during operation
• Limiters will stop sander instantly if belt breakage occurs
• Side access door for easy belt changes
• Standard Equipment:
• 5HP motor
• Emergency rail stop
• Emergency stop button
• Dust collection port
• 17" x 54" sanding belt

Specifications:

• Style (Type) Open End Belt
• Maximum Board Width (In.) 16 (32)
• Maximum Board Thickness (In.) 5
• Minimum Board Length (In.) 13-3/4
• Sanding Belt Speed (FPM) 2,200
• Sanding Belt Size (In.) 17 x 54
• Dust Collection Minimum CFM Required (CFM) 800
• Dust Port Outside Diameter (In.) 4
• Feed Motor Power (HP) 1/4
• Motor Power (HP) 5
• Motor Phase 1
• Motor Voltage (V.) 230

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
