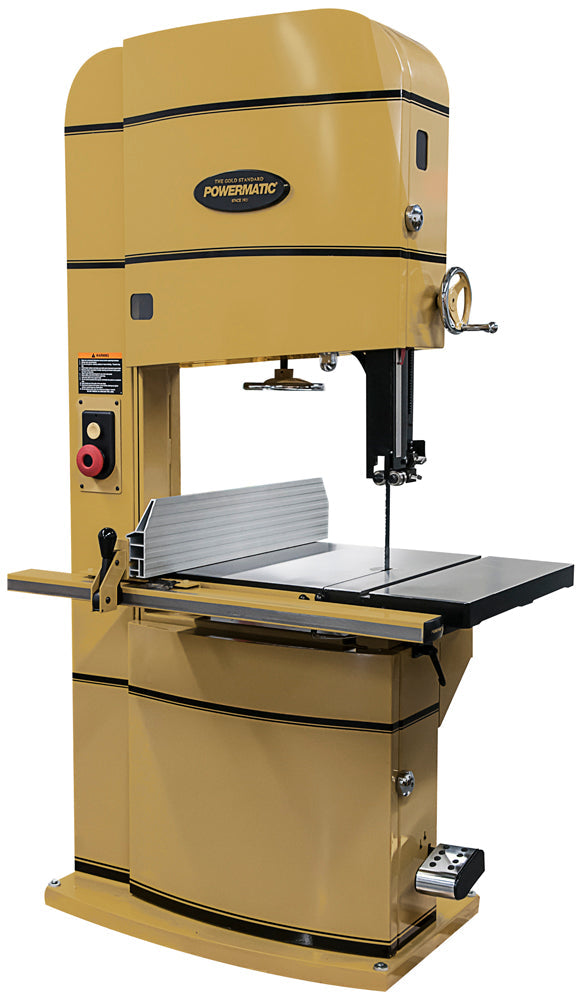

Powermatic PM2415B-3 24 in. Bandsaw, 5HP, 3PH, 230/460V 1791260B

Powermatic PM2415B-3 24 in. Bandsaw, 5HP, 3PH, 230/460V 1791260B

At Powermatic, The need for quality, heavy duty, and dependable, durable machinery is understood. That’s why our band saws have been put through a thorough reimagining process in order to go beyond the borders of traditional standards. First Powermatic took the horse power up to 5 in order to be able to handle all band saw applications. Then, the overall accuracy and safety was maximized by integrating exclusive Powermatic T-square Accu-Fence which is completely adjustable for perfect alignment to the blade and squaring to the table. A sturdy cast iron housing and work table better accommodates larger work pieces. Powermatic also implemented more cut accuracy through high end blade guides that require no tolls for adjustment and provide added stability.

Features:

• Exclusive Powermatic T-Square style Accu-Fence® maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position
• Solid steel resaw post for optimum rigidity
• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending)
• Heavy duty upper wheel support and tracking mechanism for smooth operation
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
• High end blade guides with tool less adjustment provide stability, increasing cut accuracy
• Four sided blade guard for optimum protection
• Integrated foot brake stops a coasting blade
• Magnetic switch protects the motor from harm due to potential electrical supply issues
• Heavy-duty 5 horsepower motor provides power needed for all projects
• 460V operation requires an additional 460V magnetic switch – part PM1800B-043C

Specifications:

• Cutting Capacity Width (in.) 24
• Cutting Capacity Height (in.) 15
• Blade Length (in.) 183
• Blade Speed (SFPM) 2500/4800
• Maximum Saw Blade Width (in.) 1-1/2
• Minimum Saw Blade Width (in.) 1/4
• Table Size (L x W) (in.) 24 x 34
• Table Tilt (deg.) 10 Left, 45 Right
• Table Height from Floor (in.) 35
• Miter Gauge Positive Stops 45, 90
• Dust Collection Minimum CFM Required (CFM) 600
• Dust Port Outside Diameter (in.) 4
• Motor Current (Amps) 15/7.5
• Motor Power (HP) 5
• Motor Phase 3
• Motor Voltage (V) 230/460
• Prewired Voltage (V) 230
• Overall Dimensions (L x W x H/in.) 40 x 42 x 81-1/2
• Net Weight (lbs.) 968

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
