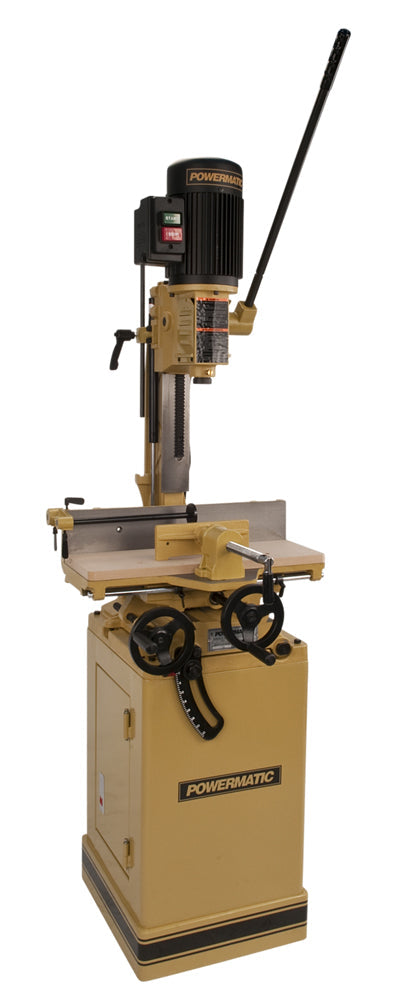

Powermatic 719T Tilt Table Mortiser with Stand, 1HP, 1PH, 115/230V 1791264K

Powermatic 1791264K 719T 20-1/4 Inch x 7 Inch Tilt Table Mortiser with Stand

The 719T Tilt Table Mortiser features heavy-duty cast iron construction and a powerful 1HP motor for the most demanding jobs. The head is mounted using adjustable gibs to assure years of trouble-free service. The heavy rack and pinion gear system utilizes a spring-loaded six position adjustable handle for movement. A handy depth stop gives a uniform depth of mortise. A large 20-1/4" x 7" table gives plenty of work support and will adjust to any angle between 0 and 35°. The table can also move left to right and forward and back on dovetail ways with the large handwheel controls. Adjustable linear stops and flip down stop allow for precision repeatability. The quick adjust clamp provides plenty of work-holding force and will swivel to accommodate angled workpieces. The heavy enclosed steel cabinet provides plenty of storage inside for chisels and accessories.

Features:

• Sturdy cast iron construction with precision-machined column and table
• Quick position table mounted swiveling vise clamp accommodates angled work pieces
• Feed lever features size positions allowing for quick adjustments

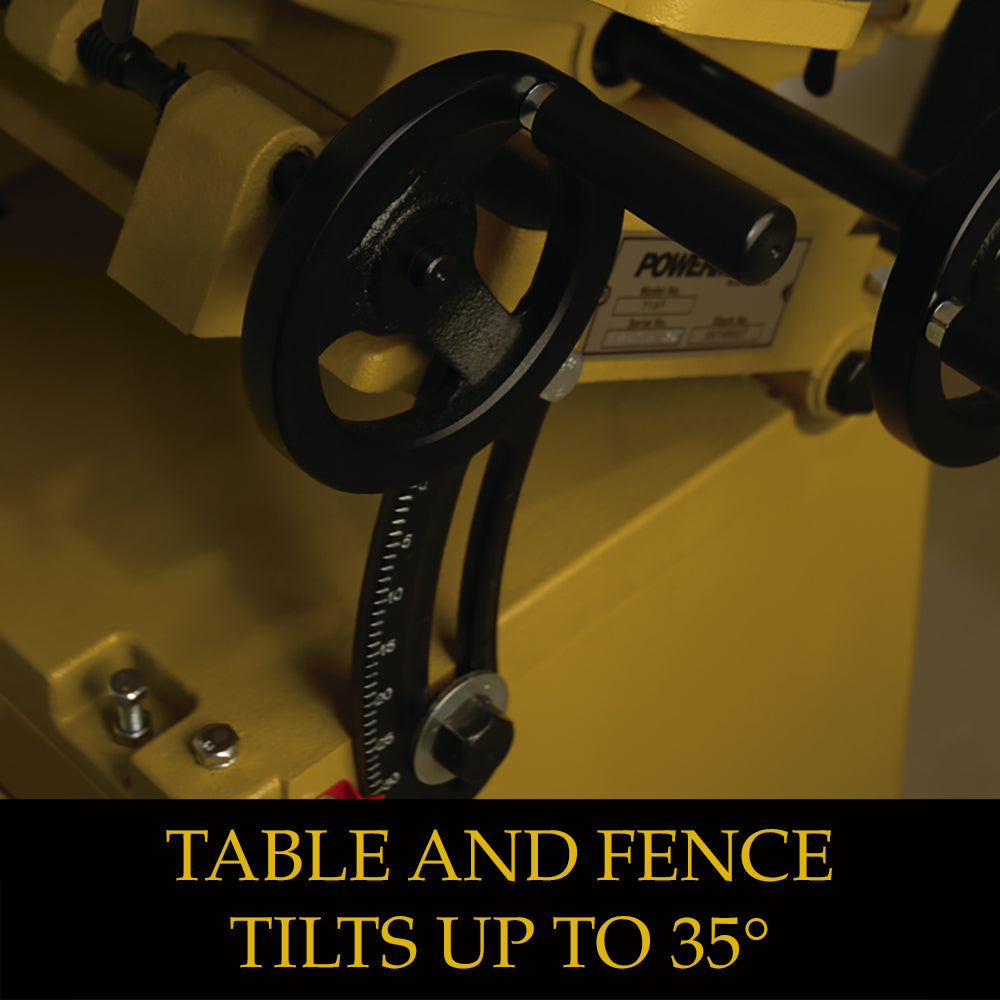

• Table and fence tilt from 0 to 35° for angled mortises
• Gas cylinder controlled rack and pinion system for smooth head raising and lowering

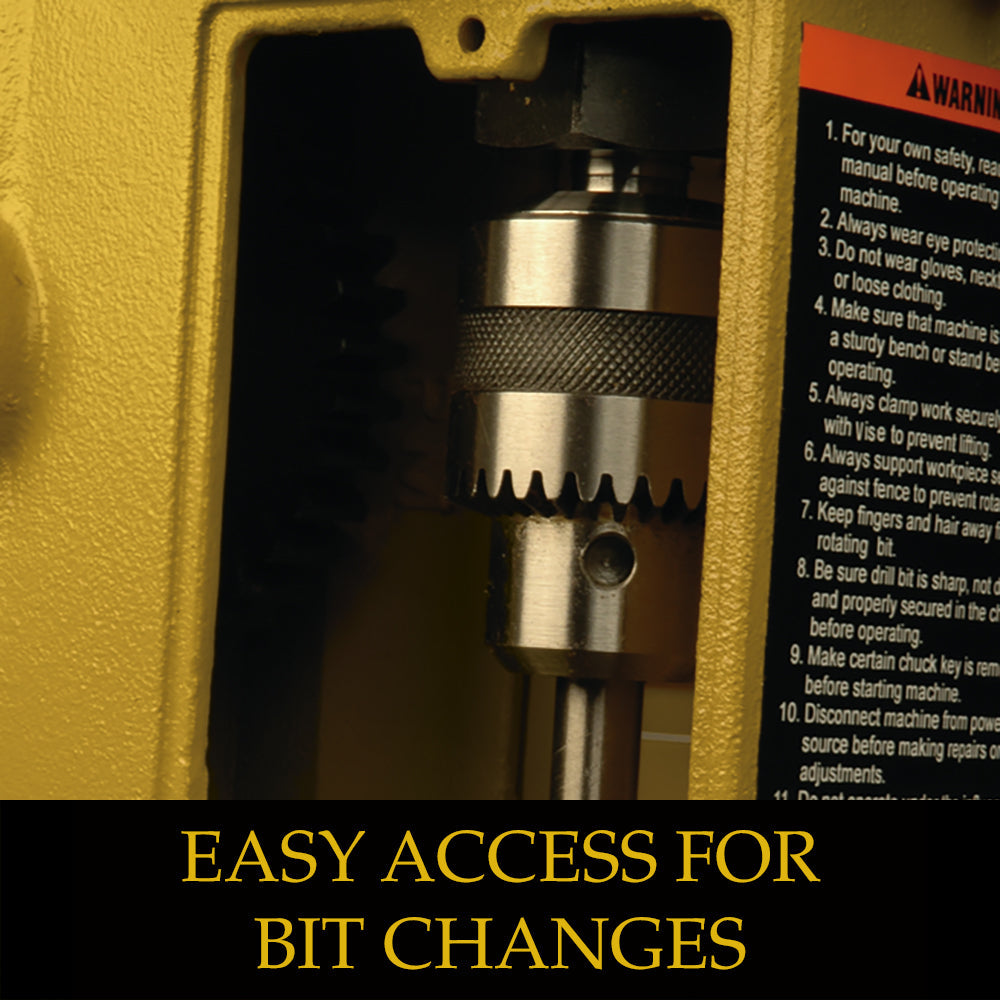

• Hinged chuck door allows easy access for quick bit changes
• Quick adjust depth stop for uniform mortise depths
• Provided 5/8", 3/4" and 1-1/8" bushings allow multiple chisel shank sizes

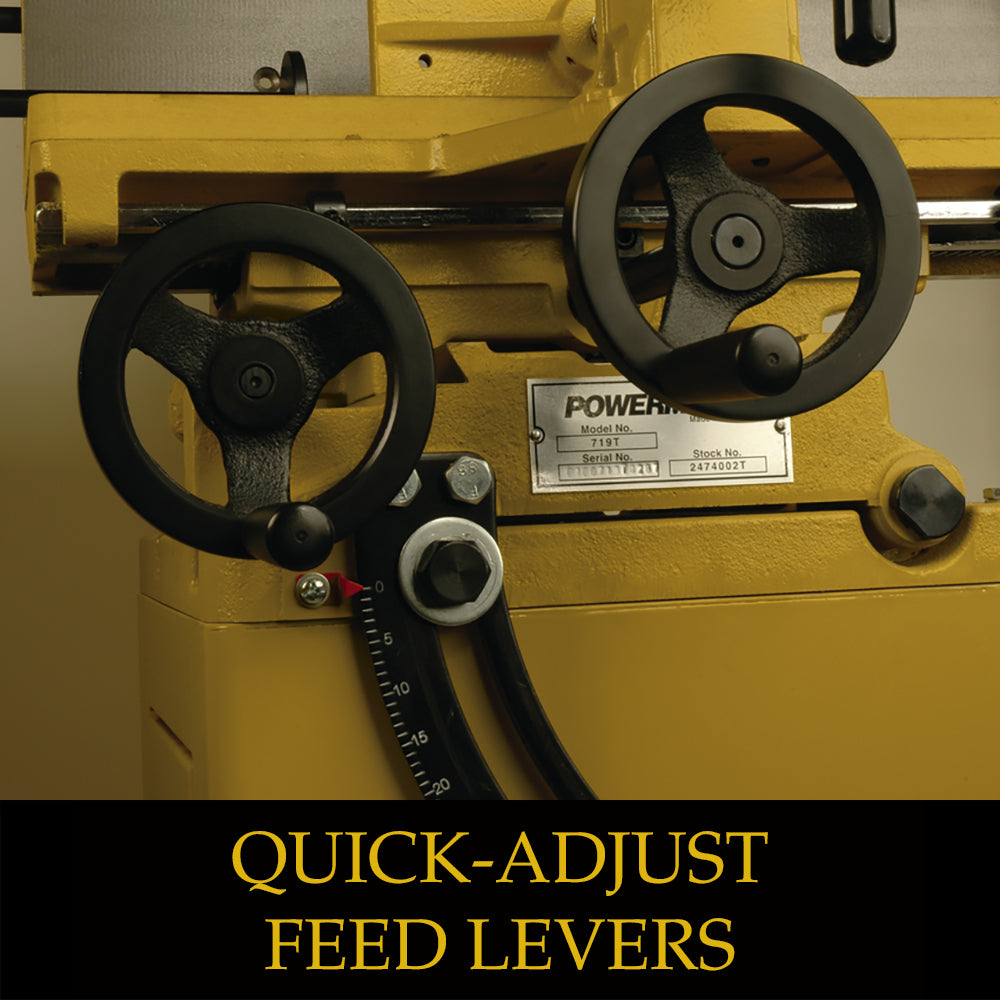

• Handwheels control smooth linear and cross table motions
• Adjustable work stop for repeat cuts

Specifications:

• Style (Type) Tilt Table
• Chisel Capacity (In.) 1/4 - 1
• Chisel Center to Fence (In.) 4
• Chisel Shank Capacity (In.) 5/8, 3/4, 1-1/8
• Chisel Stroke (In.) 10-3/4
• Bushing Size (In.) 5/8, 3/4, 1-1/8
• Chuck Size (In.) 1/2
• Spindle Speed (RPM) 1,725
• Spindle Taper N.A.
• Table Size (L x W) (In.) 7 x 20-1/4
• Table Tilt (Deg.) 0 - 35
• Table Travel - Cross (In.) 4
• Table Travel - Longitudinal (In.) 15-1/2
• Fence Size (L x H) (In.) 4-1/2 x 20-1/4
• Base Size (In.) 14 x 16
• Motor Power (HP) 1
• Motor Phase 1
• Motor Voltage (V.) 115, 230
• Prewired Voltage (V.) 115
• Motor Current (Amps) 11, 5-1/2

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
