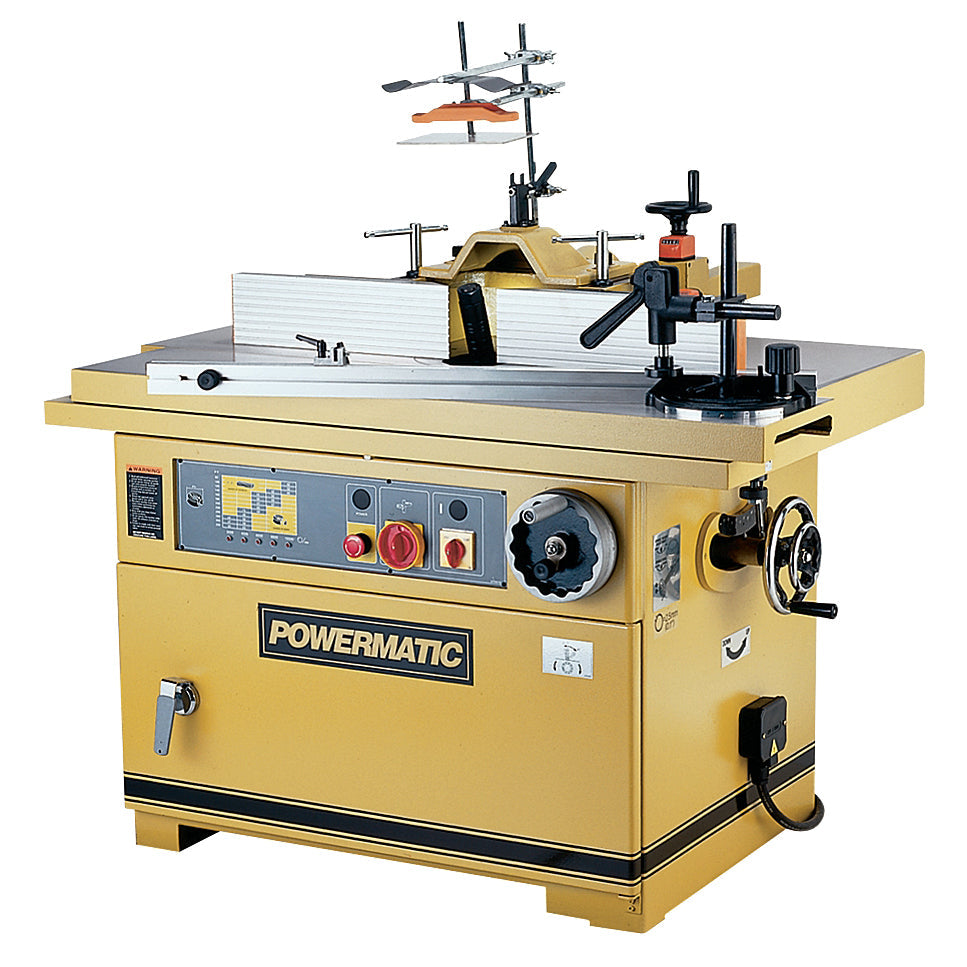

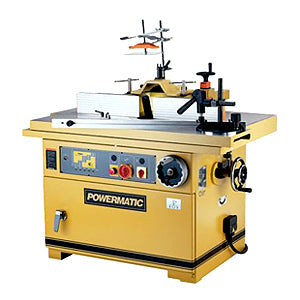

Powermatic TS29 Shaper with Sliding Table, 7.5HP, 3PH, 230/460V 1791284

Powermatic TS29 Shaper with Sliding Table, 7.5HP, 3PH, 230/460V 1791284

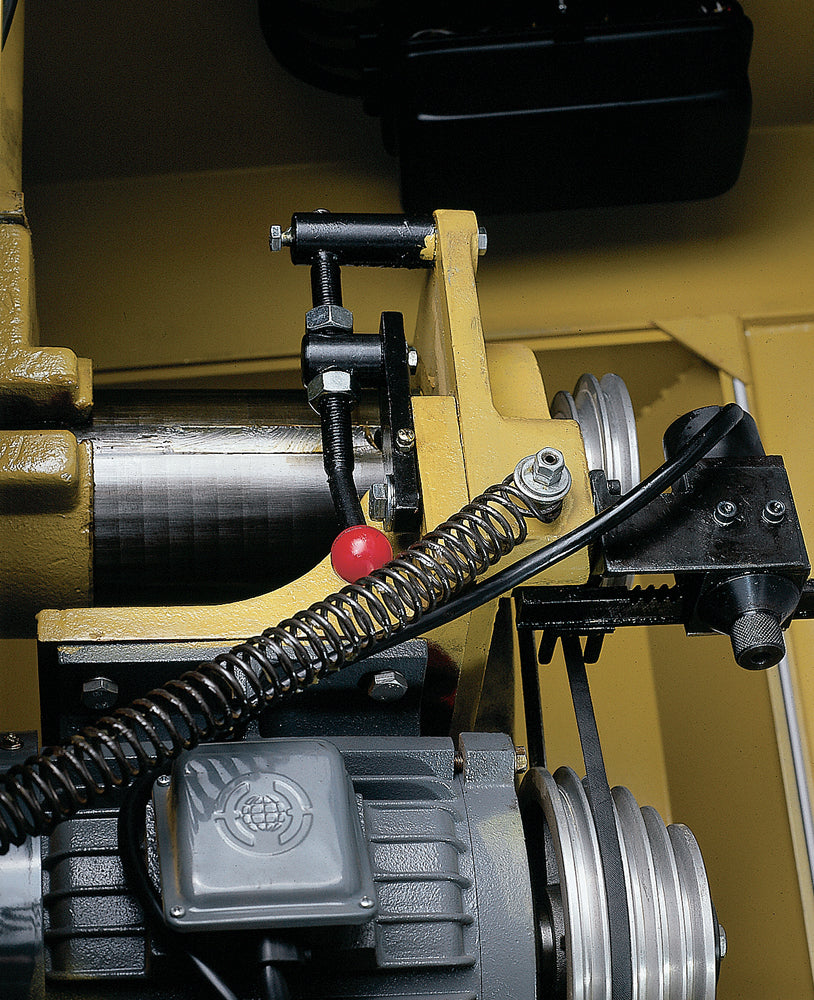

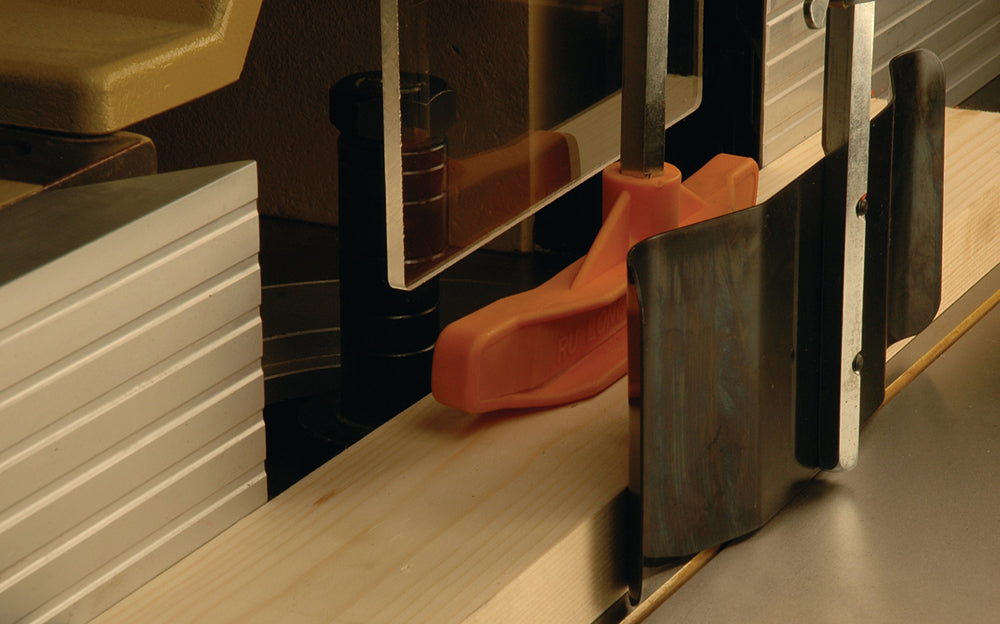

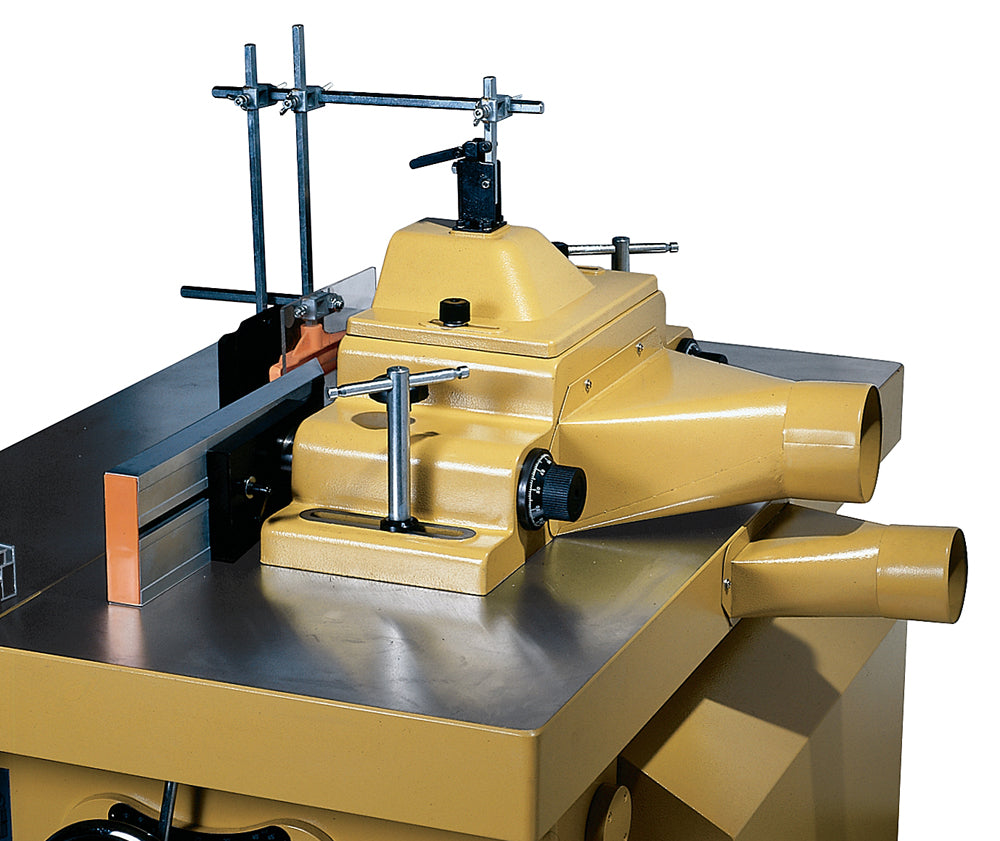

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

Features:

• Sliding table with 4-foot stroke works with miter head, hold-down and fence to accomodate everything from multiple end cuts to tenons

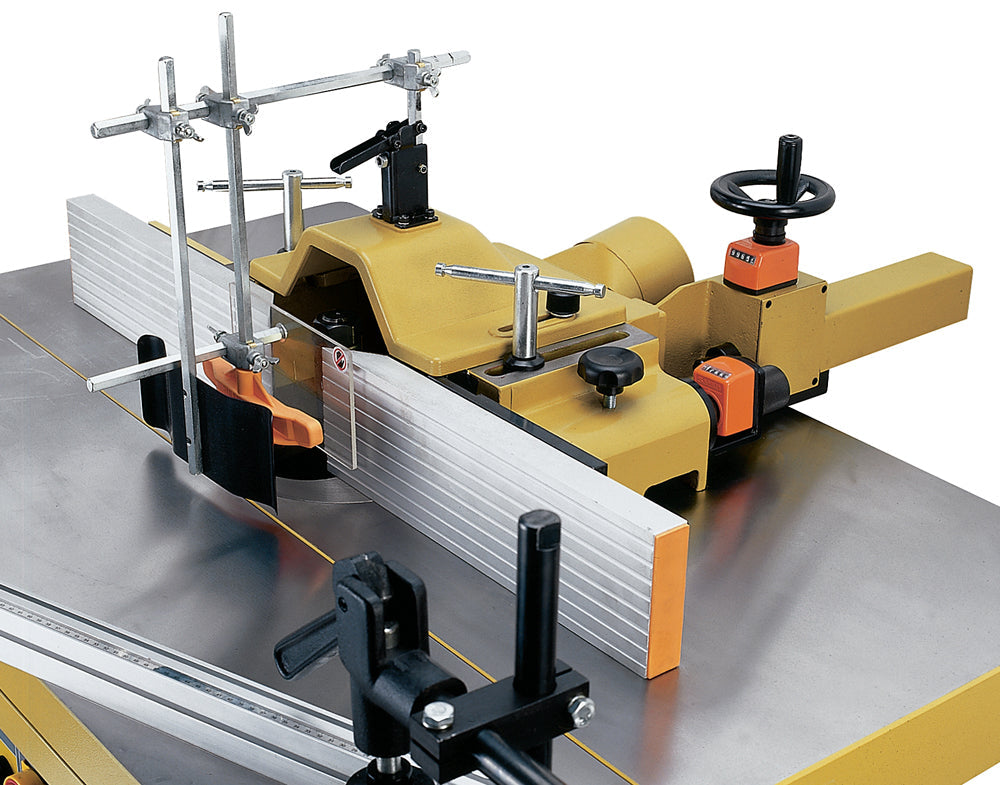

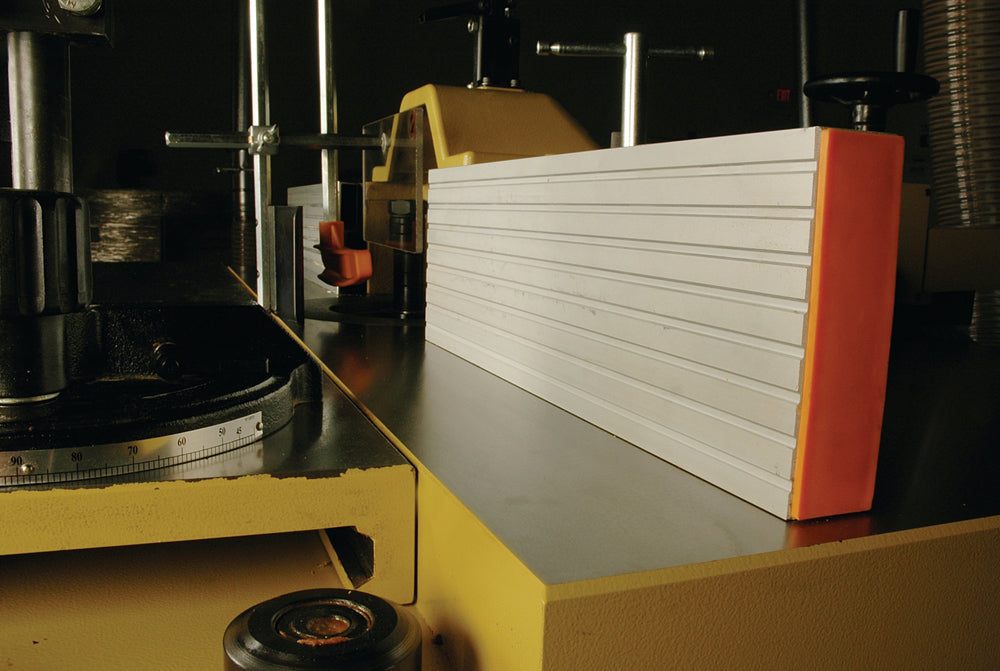

• Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
• Large table with built-in slider with room for stock feeder

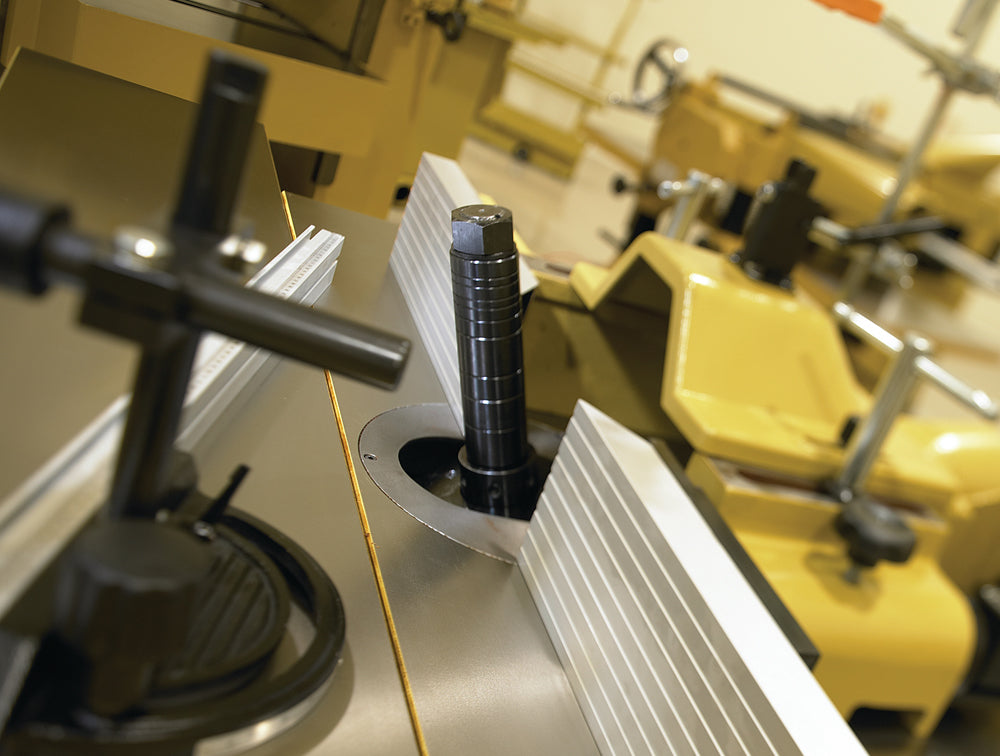

• 7" vertical spindle travel allows stacked tooling
• Spindle tilts negative 5° to positive 45° for increased versatility
• Large diameter multiple table inserts accomodate virtually any size cutter

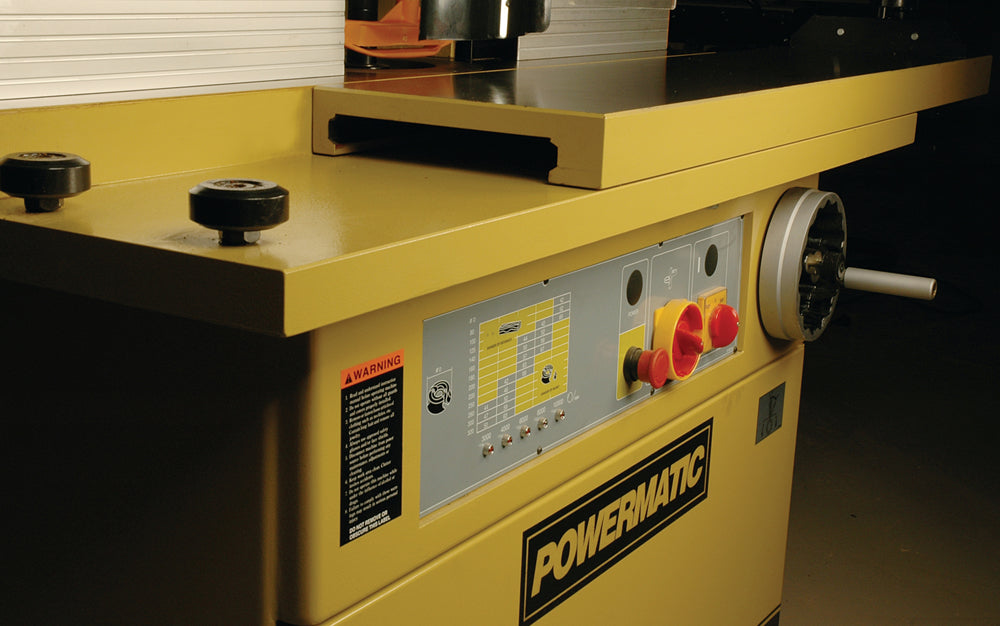

• Five spindle speeds in forward and reverse with lighted indicator

Specifications:

• Style (Type) Shaper
• Spindle Speed (RPM) 3,000, 4,000, 6,000, 8,000, 10,000
• Maximum Spindle Diameter (In.) 1-1/4

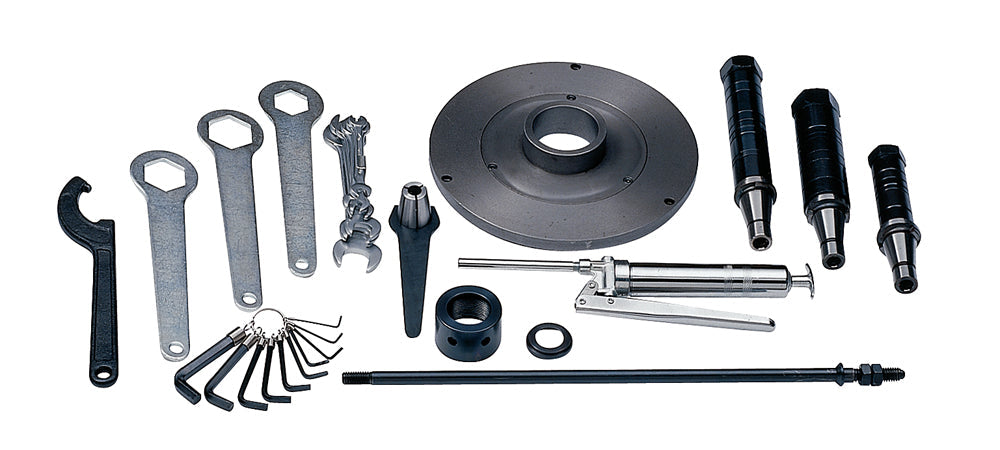

• Spindle Size Under Nut (In.) 3/4 (3-1/2), 1 (6-1/4), 1-1/4 (6-1/4)
• Spindle Travel (In.) 7
• Spindle Tilt (Deg.) 45 Forward, 5 Back
• Reversible Yes
• Router Bit Collet Included 1/4, 1/2
• Maximum Diameter Cutter Above Table (In.) 12
• Maximum Diameter Cutter Below Table (In.) 9
• Table Inserts (In.) 3: One Tilting, Two Straight
• Table Size (In.) 51-1/2 x 33-1/2
• Table Travel (In.) 49-1/4
• Sliding Table Size (In.) 11-1/4 x 51-1/4
• Fence Size (L x H) (In.) 46 x 5
• Fence Travel (Major and Minor) (In.) 5-3/8, 3-5/8
• Dust Port Outside Diameter (In.) 5
• Dust Collection Minimum CFM Required (CFM) 800
• Electrical Controls Yes
• Motor Power (HP) 7-1/2
• Motor Phase 3
• Motor Voltage (V.) 230, 460
• Prewired Voltage (V.) 230

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
