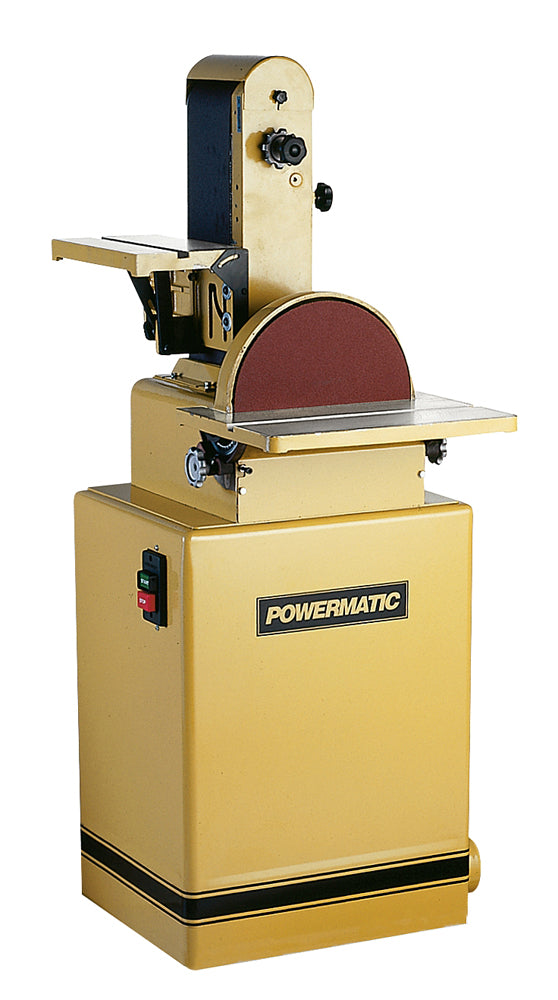

Powermatic 1791291K 31A, 6" x 48" Belt, 1-1/2HP, 1Ph, 115V/230V, Manual Switch Disc/Belt Sander (Woodworking)

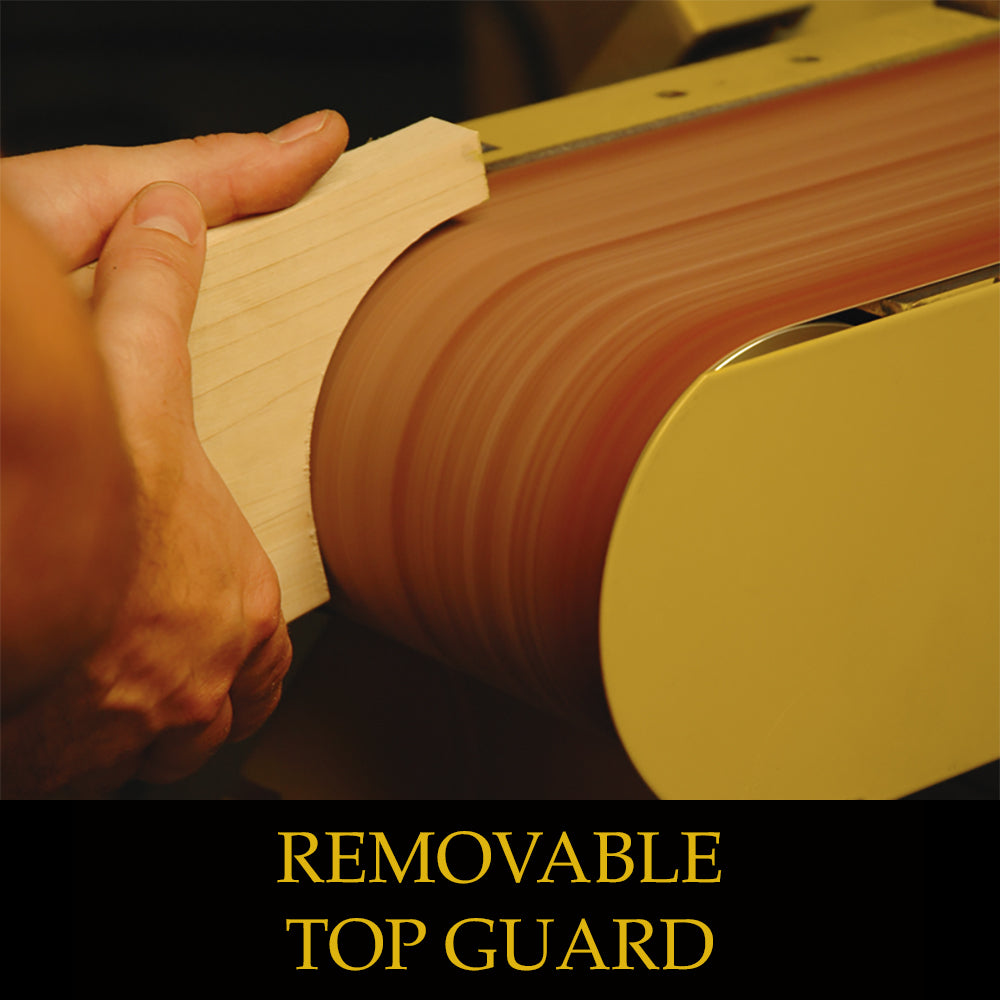

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle

Features:

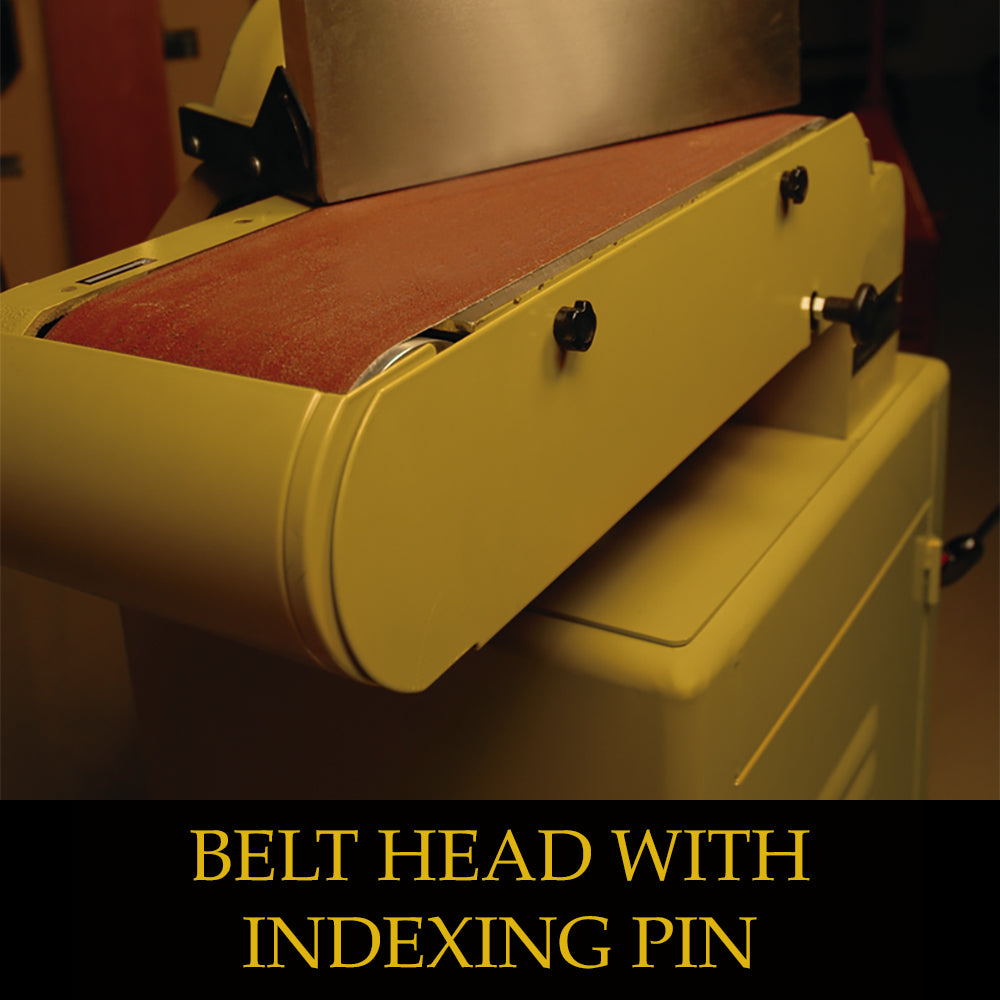

  • Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops

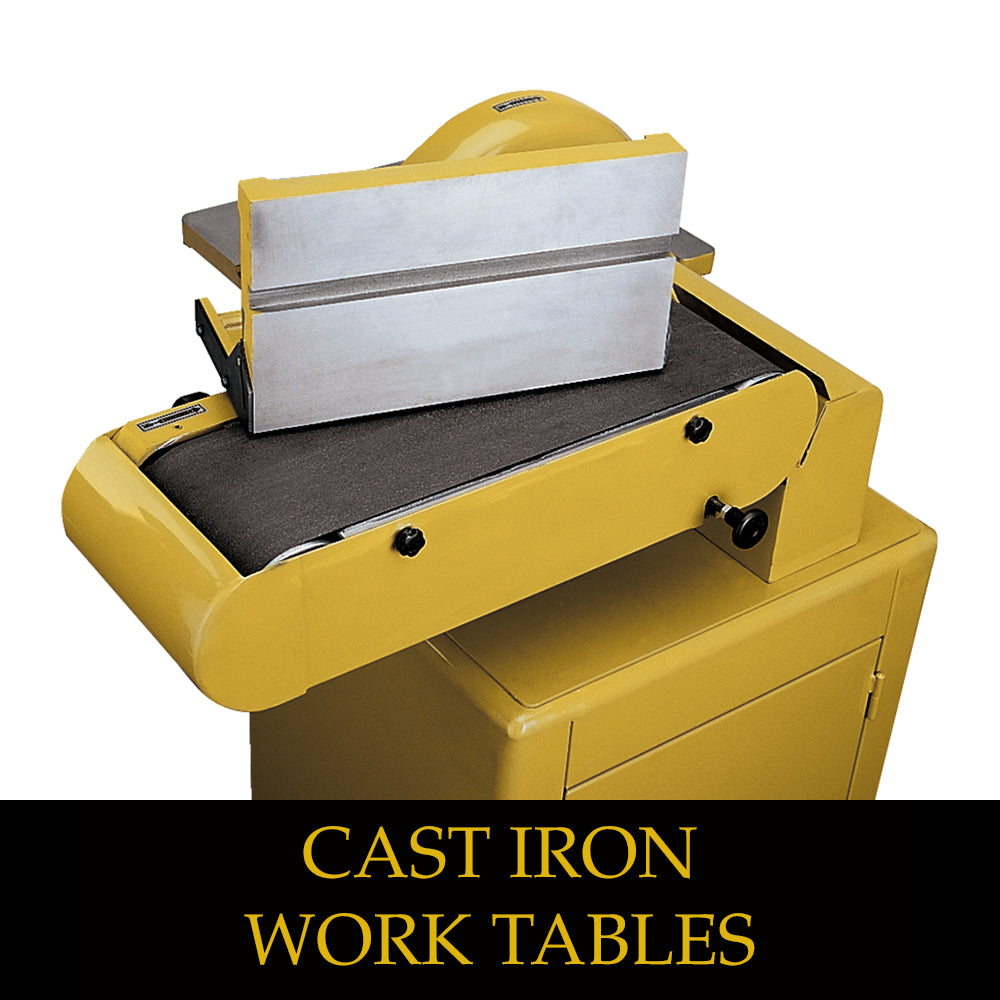

  • Belt and disc tables are precision ground cast iron with miter slots

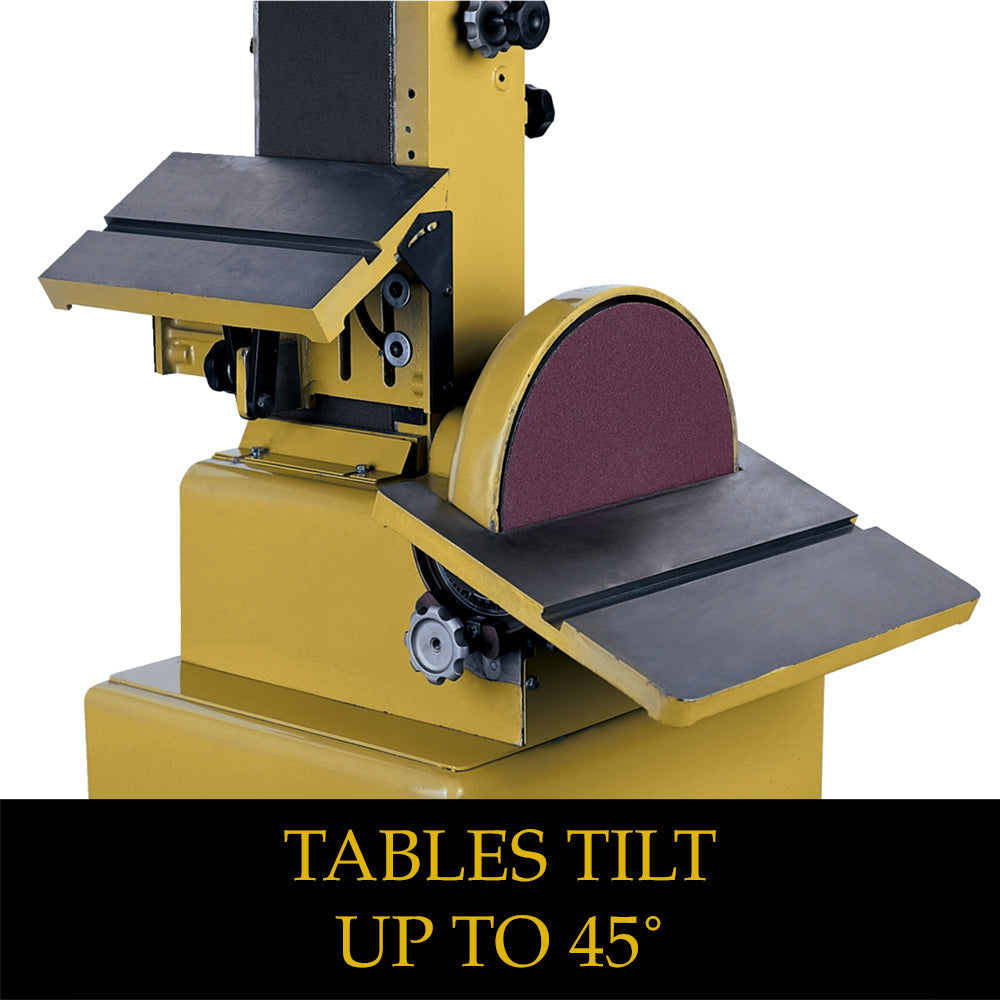

  • Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding

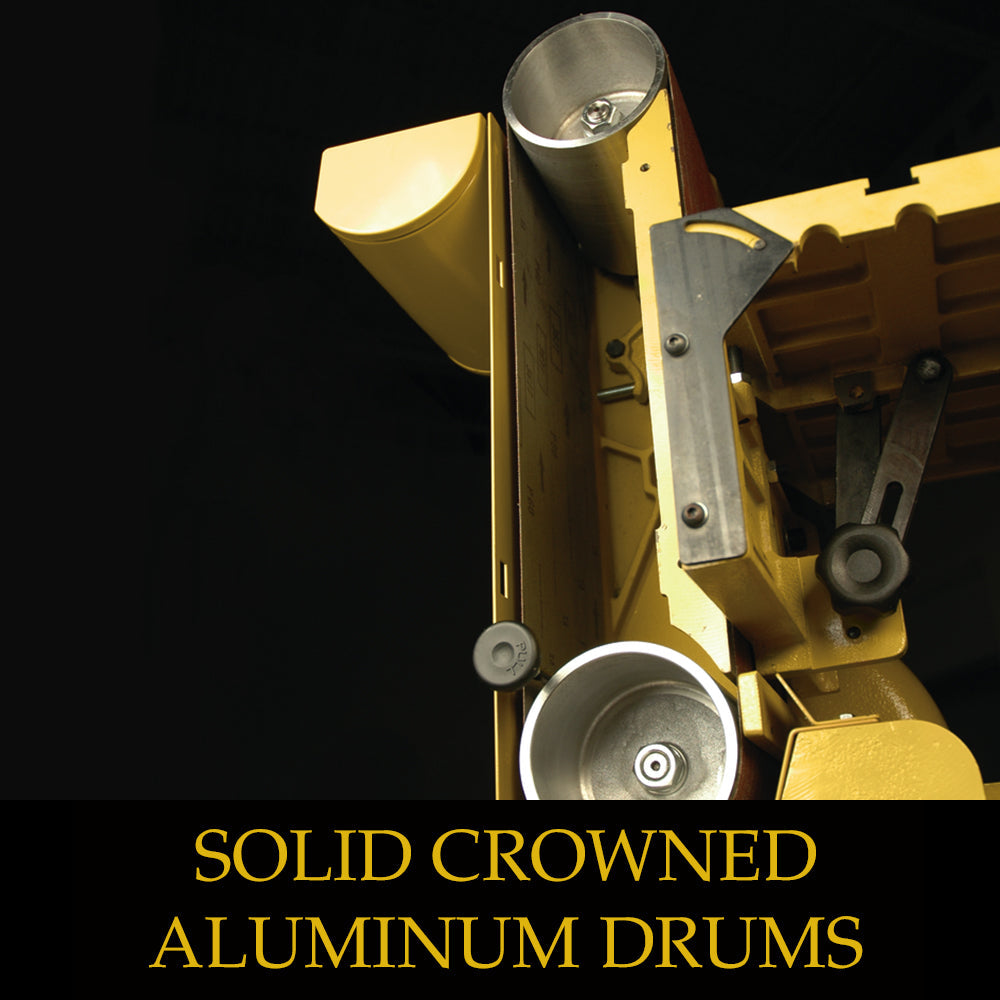

  • Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
  • 12" disc is balanced for flat, even coverage


Specifications:

  • Style (Type) Combination Belt/Disc
  • Disc Diameter (In.) 12
  • Disc Speed (RPM) 2,375
  • Disc Table Tilt (Deg.) 15 Up, 45 Down
  • Disc Table Size (L x W) (In.) 17-1/4 x 9
  • Sanding Belt Size (L x W) (In.) 48 x 6
  • Belt Speed (RPM) 2,410
  • Belt Table Tilt (Deg.) 45 Down
  • Belt Table Size (L x W) (In.) 13-1/4 x 7-1/2
  • Sanding Arm Locking Positions 0, 45, 90
  • Dust Collection Minimum CFM Required (CFM) 400
  • Dust Port Outside Diameter (In.) 4
  • Motor Power (HP) 1-1/2
  • Motor Phase 115, 230
  • Motor Voltage (V.) 115, 230
  • Prewired Voltage (V.) 115
  • Wiring Remarks Push Button Switch
  • Motor Current (Amps) 14, 7


Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.




Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
