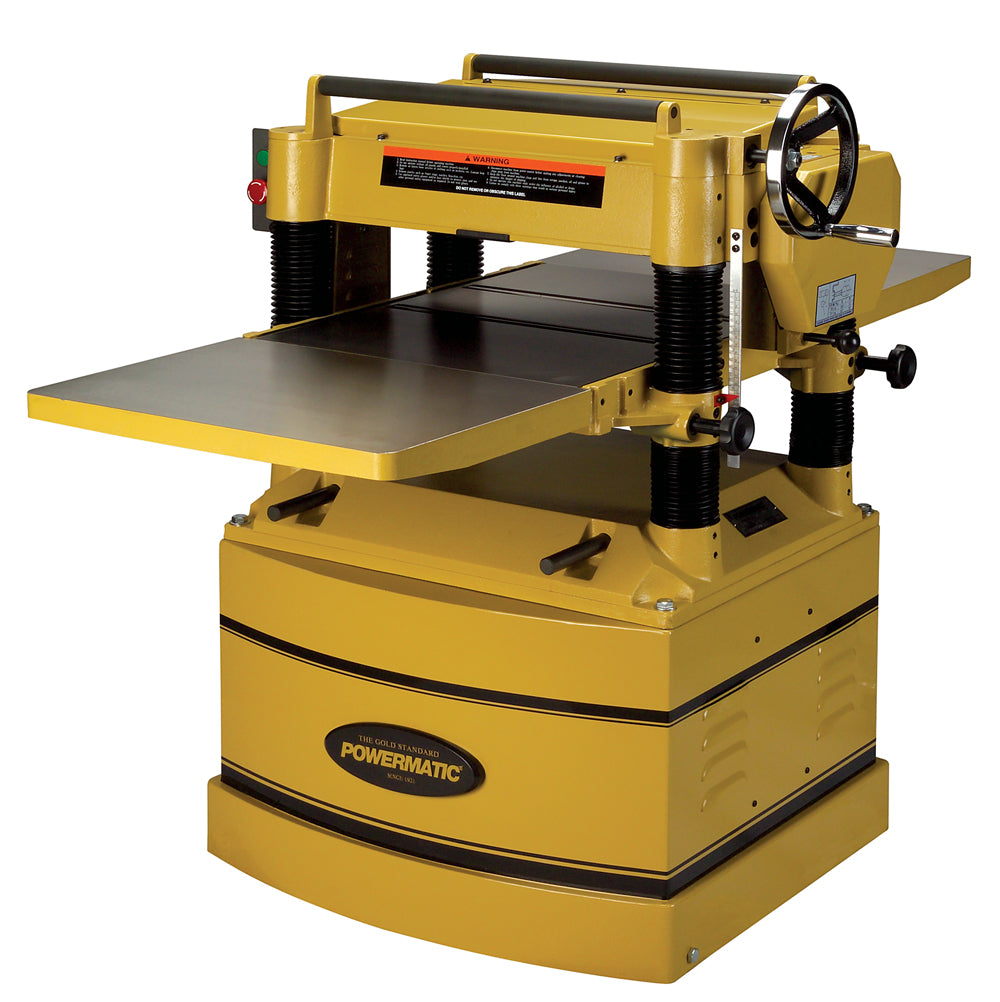

Powermatic 209 20 in. Planer, 5HP, 1PH, 230V 1791296

Powermatic 209 20 in. Planer, 5HP, 1PH, 230V 1791296

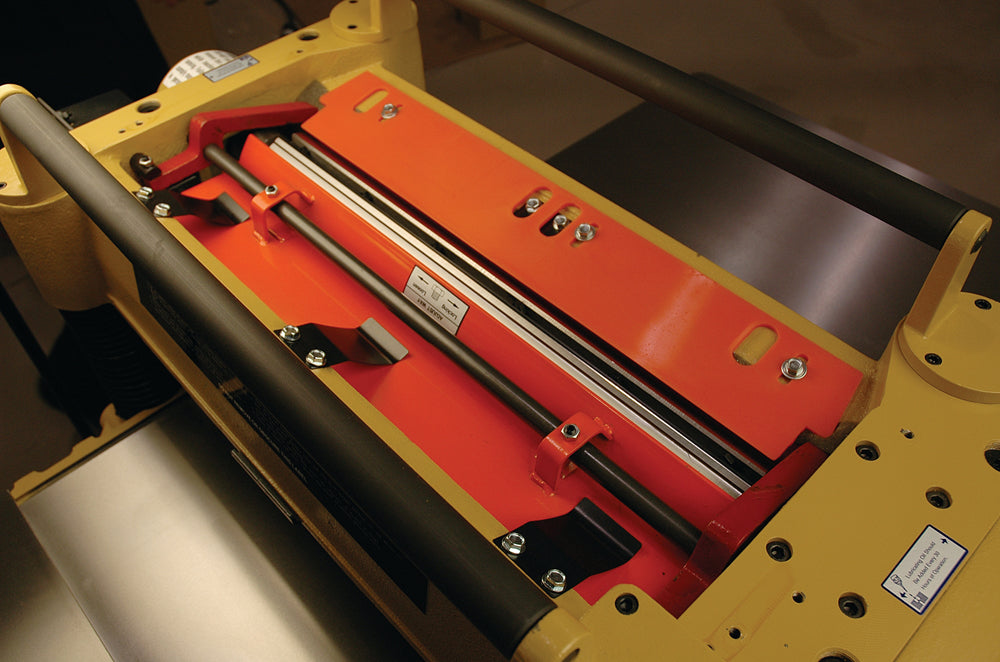

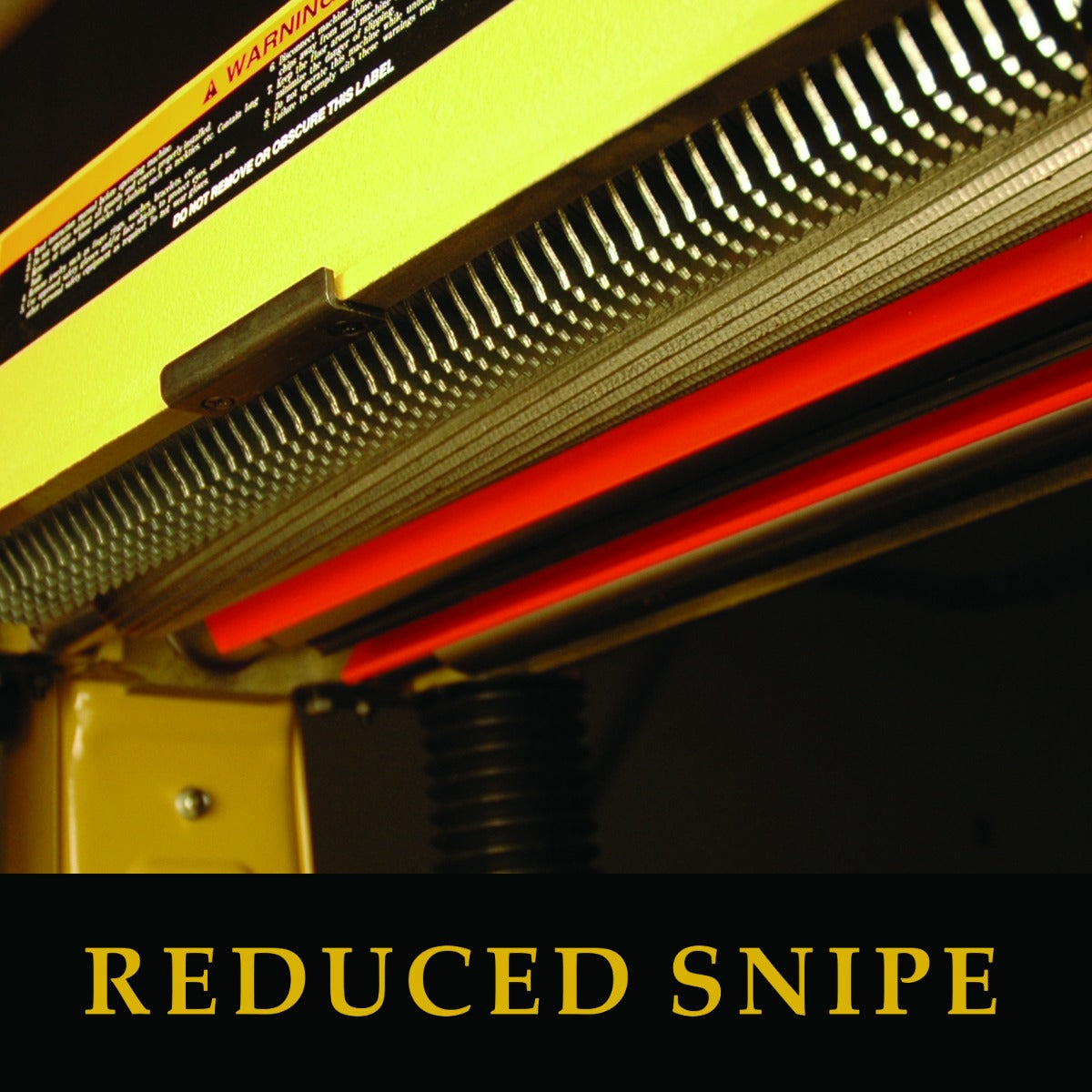

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features:

• Knife setting gauge
• 5HP motor and 20" planing capacity for heavy duty work

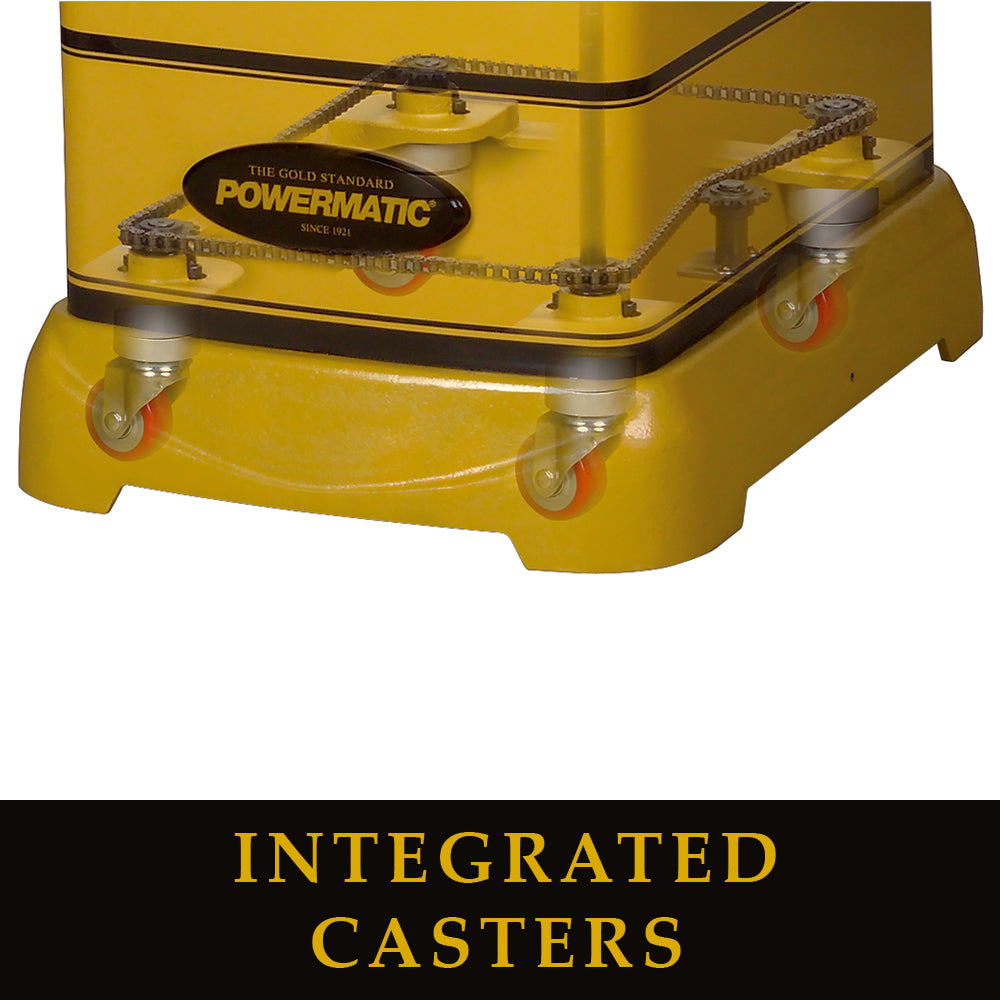

• Fully enclosed base cabinet with integrated casters for shop mobility
• Cast iron table with extensions creates a big 55-1/2" x 20" working area
• Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
• Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
• Standard Equipment:
• Single-sided knives
• 5" diameter dust port
• Cast iron extension tables

Specifications:

• Style (Type) Planer
• Cutterhead Speed (RPM) 5,000
• Cutterhead Diameter (In.) 3-3/16
• Cuts Per Minute 20,000
• Number of Knives 4
• Maximum Depth of Cut (In.) 3/32
• Maximum Planing Width (In.) 20
• Maximum Planing Thickness (In.) 8
• Minimum Planing Length (In.) 6-3/4
• Feed Rate (FPM) 24, 31; 16, 20 with Gear Change
• Number of Speeds 4
• Range of Speeds 24, 31, 16, 20
• Bed Rollers Adjustable from Front N.A.
• Table Support 4 Column
• Digital Readout Inch / Metric
• Dust Collection Minimum CFM Required (CFM) 900
• Dust Port Outside Diameter (In.) 5
• Motor Power (HP) 5
• Motor Phase 1
• Motor Voltage (V.) 230
• Prewired Voltage (V.) 230

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
