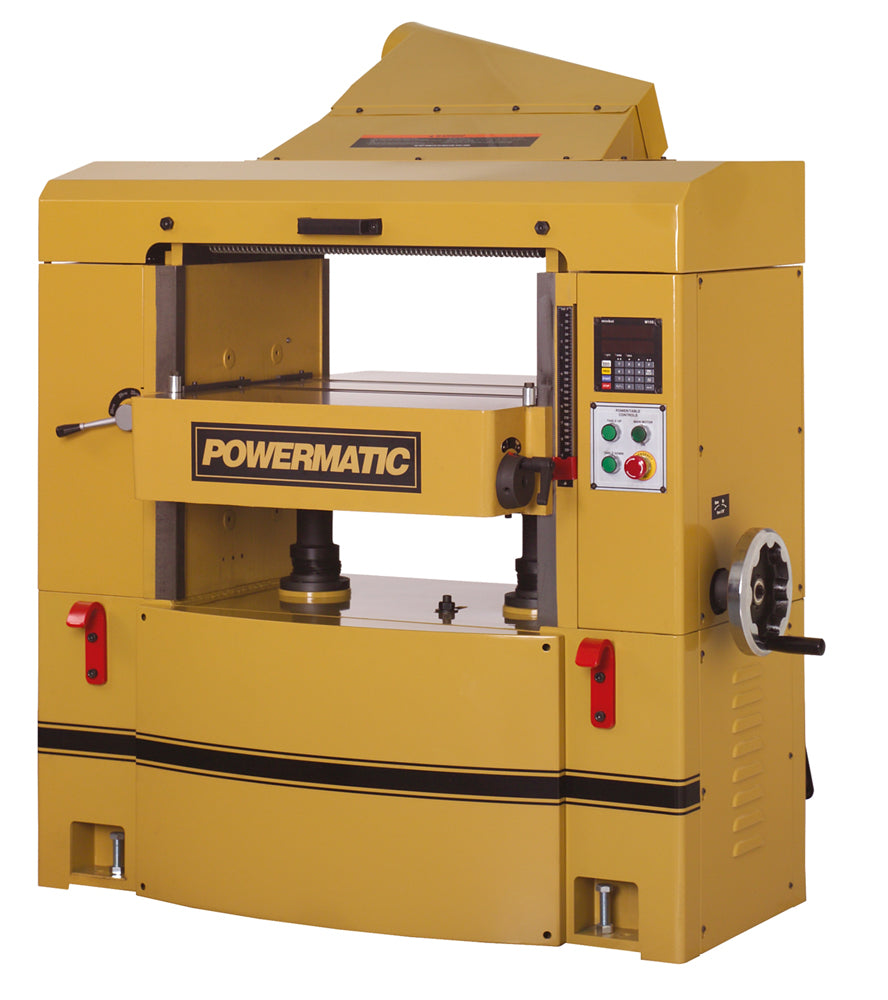

Powermatic WP2510 25 in. Planer, 15HP, 3PH, 230/460V 1791303

Powermatic WP2510 25 in. Planer, 15HP, 3PH, 230/460V 1791303

The POWERMATIC® WP2510 Planer has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3" diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05". The hood features a built-in 5" diameter dust chute.

Features:

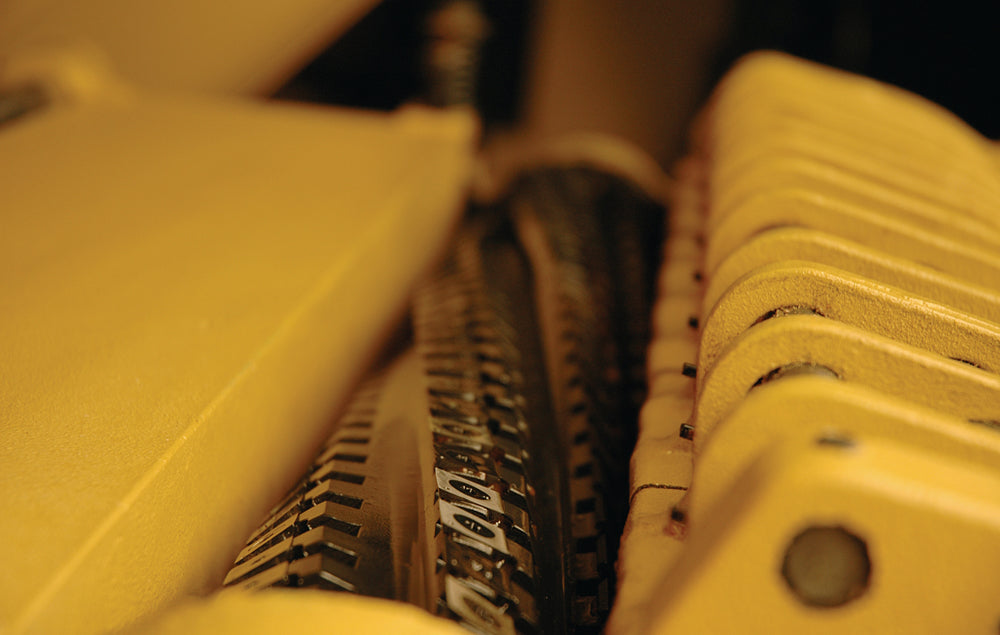

• Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels

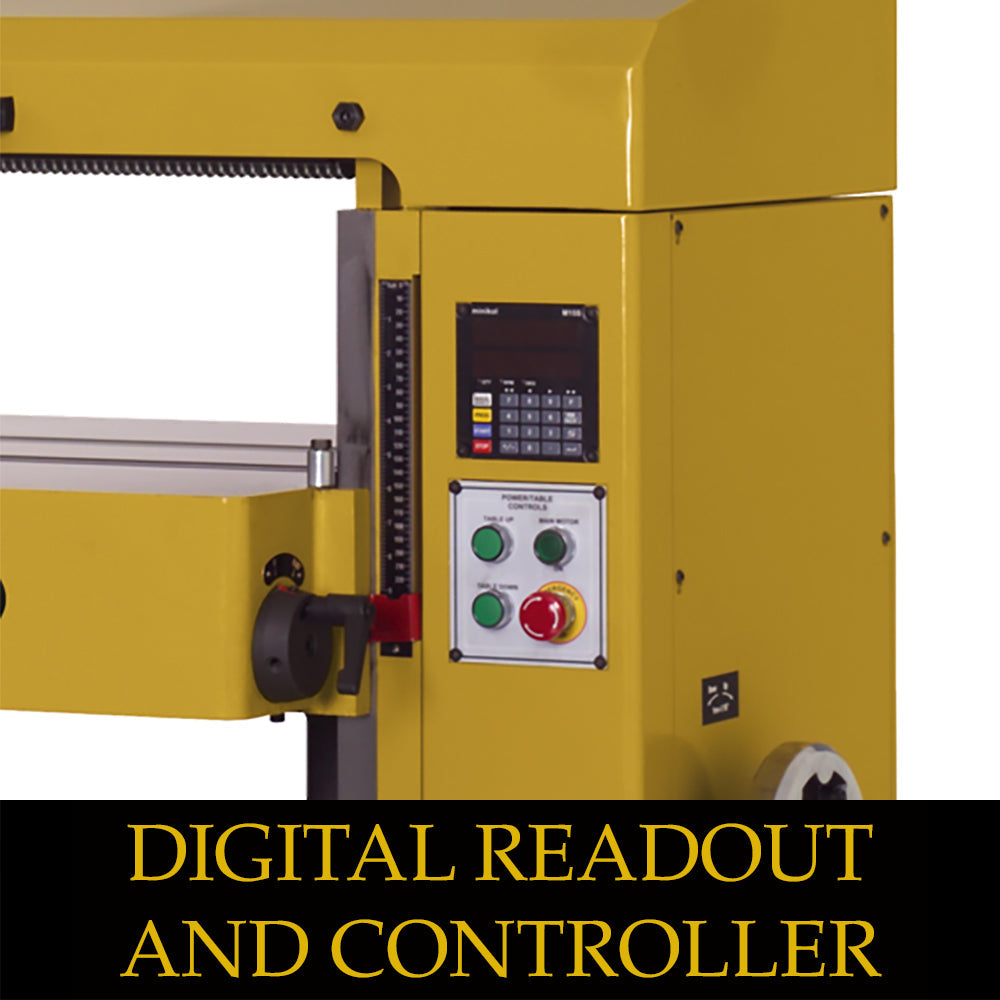

• Digital readout and simple PC controller make quick and easy table height set ups

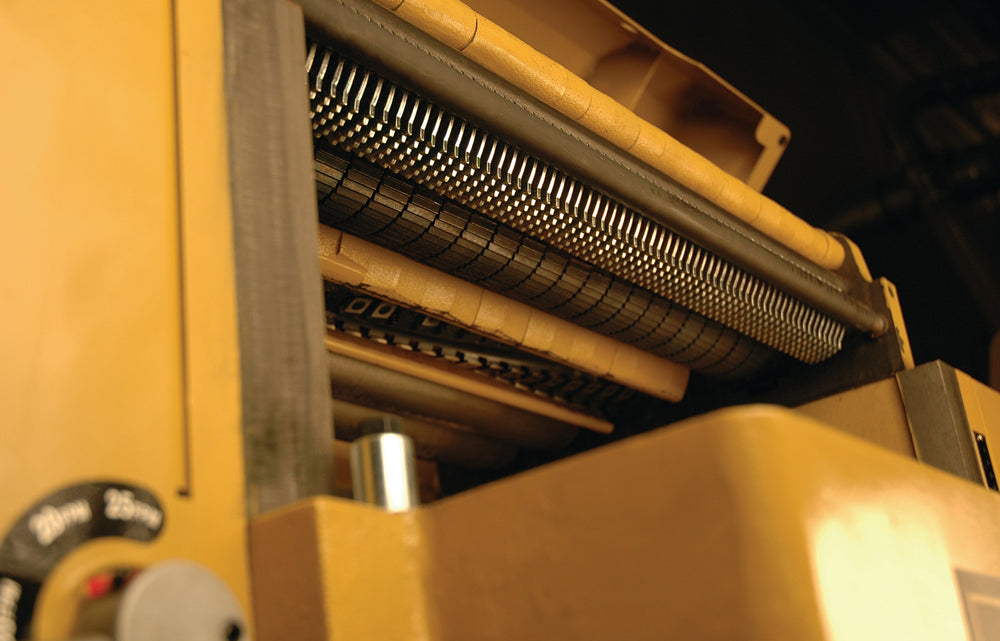

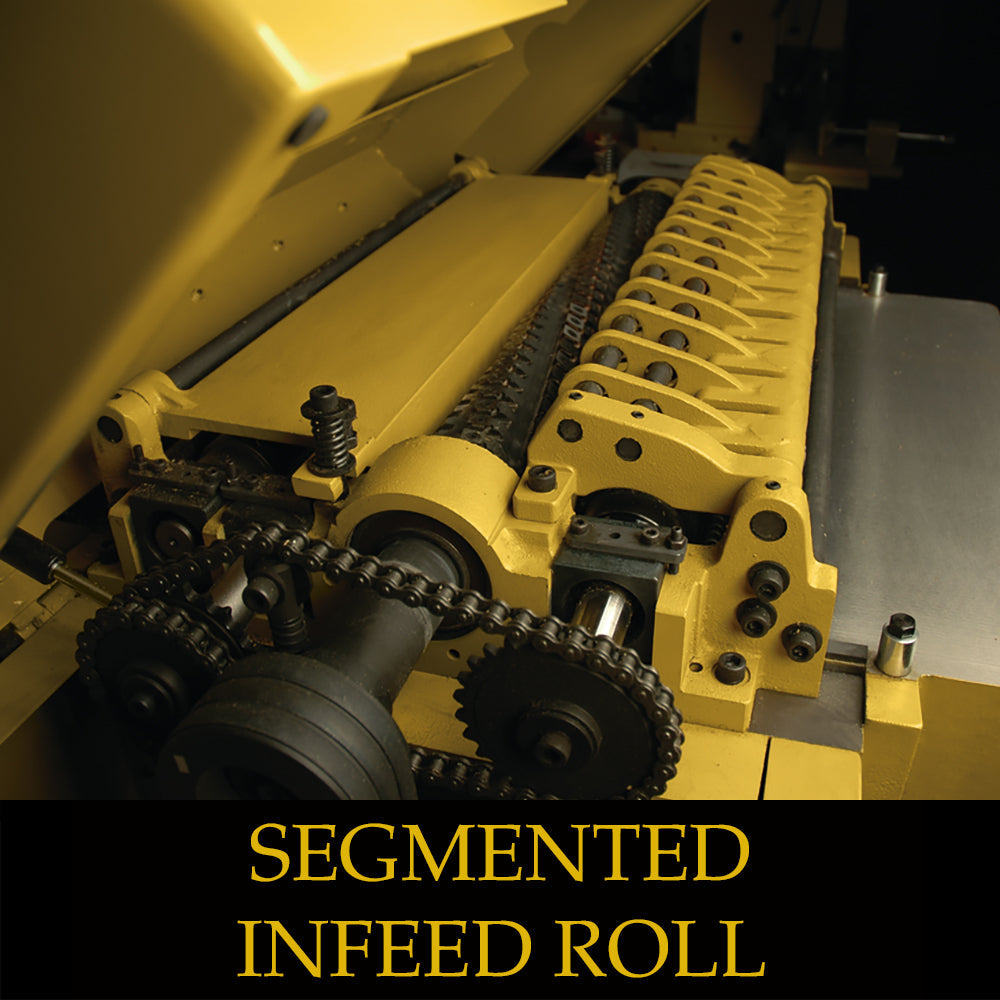

• Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
• Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
• 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
• Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
• Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
• 3 speed feed selector allows you to quickly change feed rates
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
• Dust hood features built-in 5" dust chute for efficient dust collection
• Standard Equipment:
• Helical head with four sided inserts
• Dust hood with 5" diameter dust port
• Segmented infeed rollers
• Segmented chip breakers
• Tool kit with pneumatic screwdriver for removing the cutterhead insert blades

Specifications:

• Style (Type) Planer
• Cutterhead Speed (RPM) 5,000
• Cutterhead Diameter (In.) 3-3/8
• Cuts Per Minute 30,000
• Number of Knives 174 Four-Sided Inserts
• Maximum Depth of Cut (In.) 1/4
• Maximum Full Width Depth of Cut (In.) 1/8
• Maximum Planing Width (In.) 25
• Maximum Planing Thickness (In.) 9-1/4
• Minimum Planing Length (In.) 10
• Feed Rate (FPM) 20, 25, 30
• Segmented Infeed Roller Diameter (In.) 3
• Outfeed Roller Diameter (In.) 3
• Bed Rollers Adjustable from Front 0 - 0.05
• Maximum Height of Rollers Parallel to Tabletop (In.) 0.05
• Table Size (L x W) (In.) 32-3/16 x 26
• Table Support 2 Column
• Column Diameter (In.) 2-1/2
• Digital Readout Inch / Metric
• Dust Collection Minimum CFM Required (CFM) 600
• Dust Port Outside Diameter (In.) 5
• Motor Power (HP) 15
• Motor Phase 3
• Motor Voltage (V.) 230
• Prewired Voltage (V.) 230

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
