Powermatic DT65 Dovetailer with Pneumatic Clamping, 1HP, 1PH, 230V 1791305

Powermatic DT65 Dovetailer with Pneumatic Clamping, 1HP, 1PH, 230V 1791305

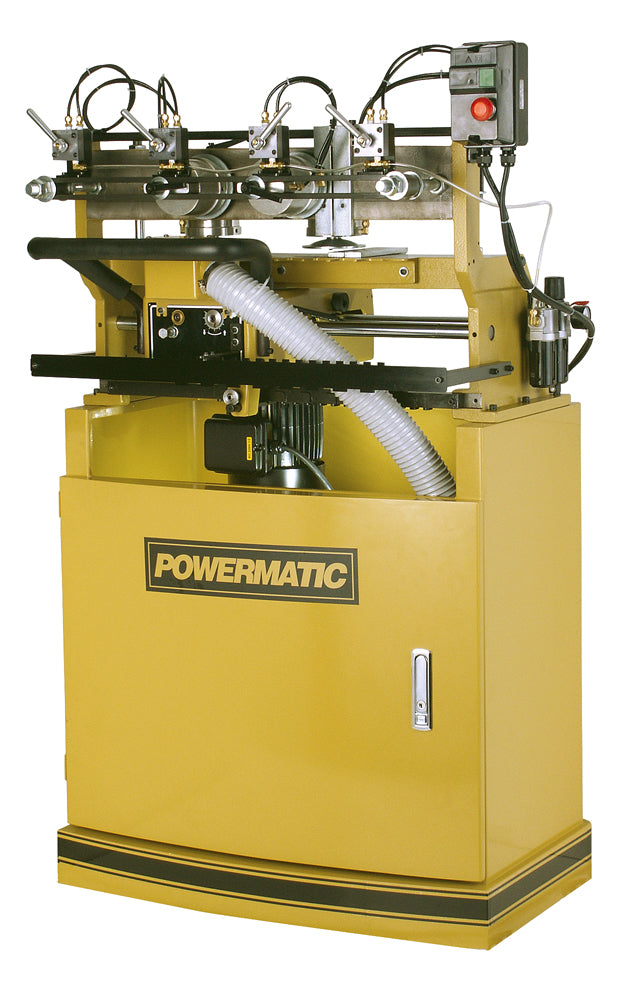

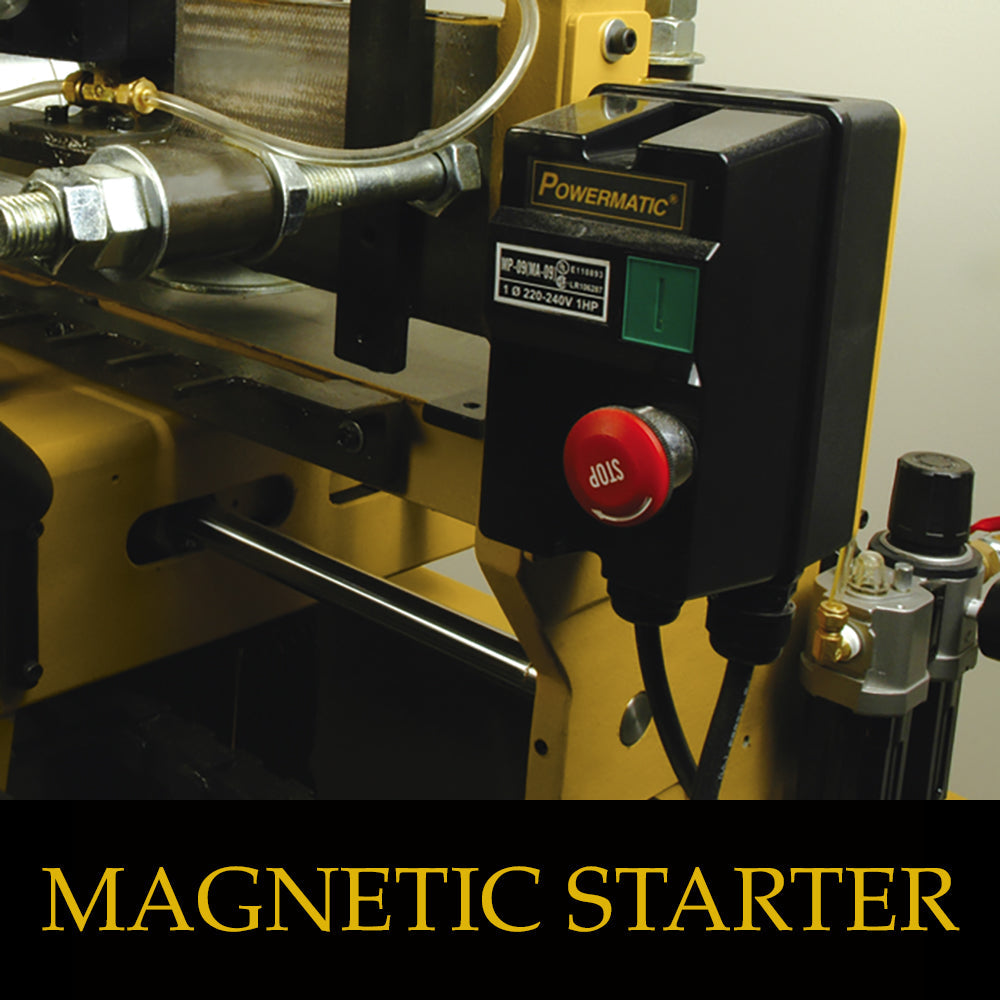

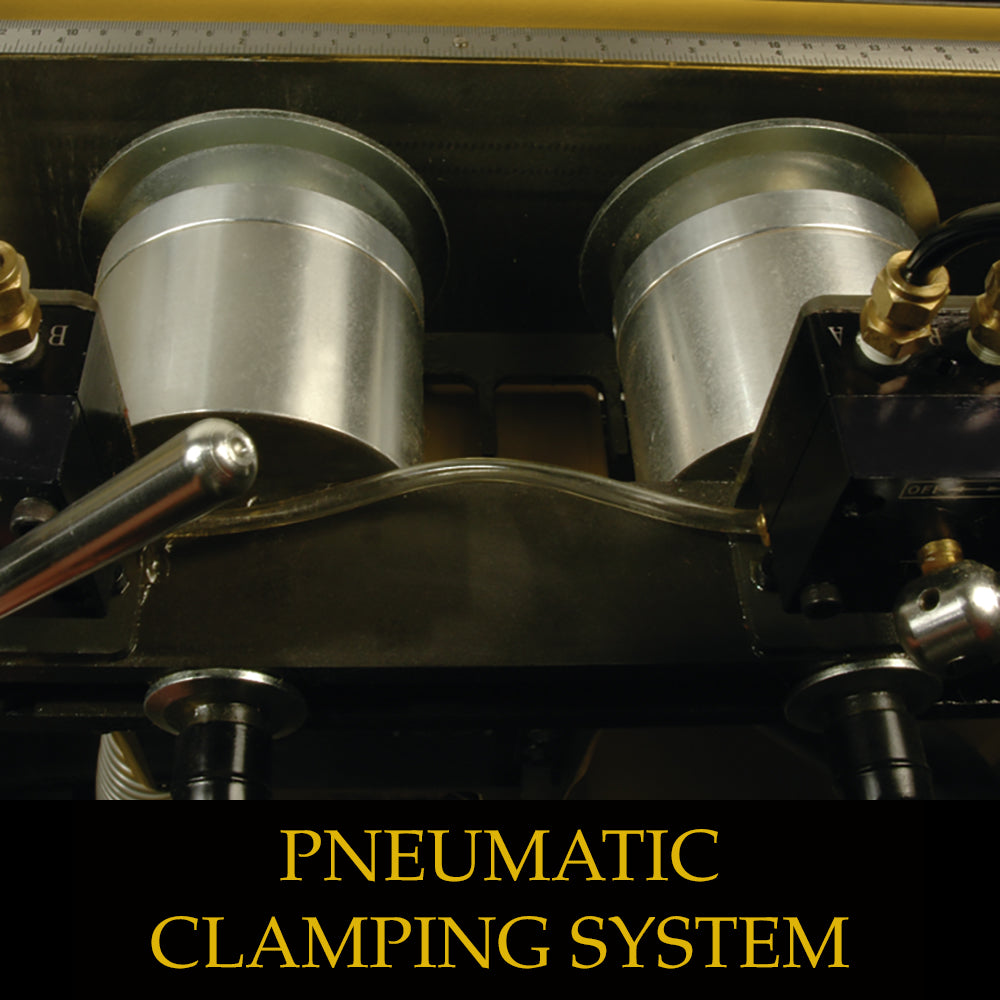

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.

Features:

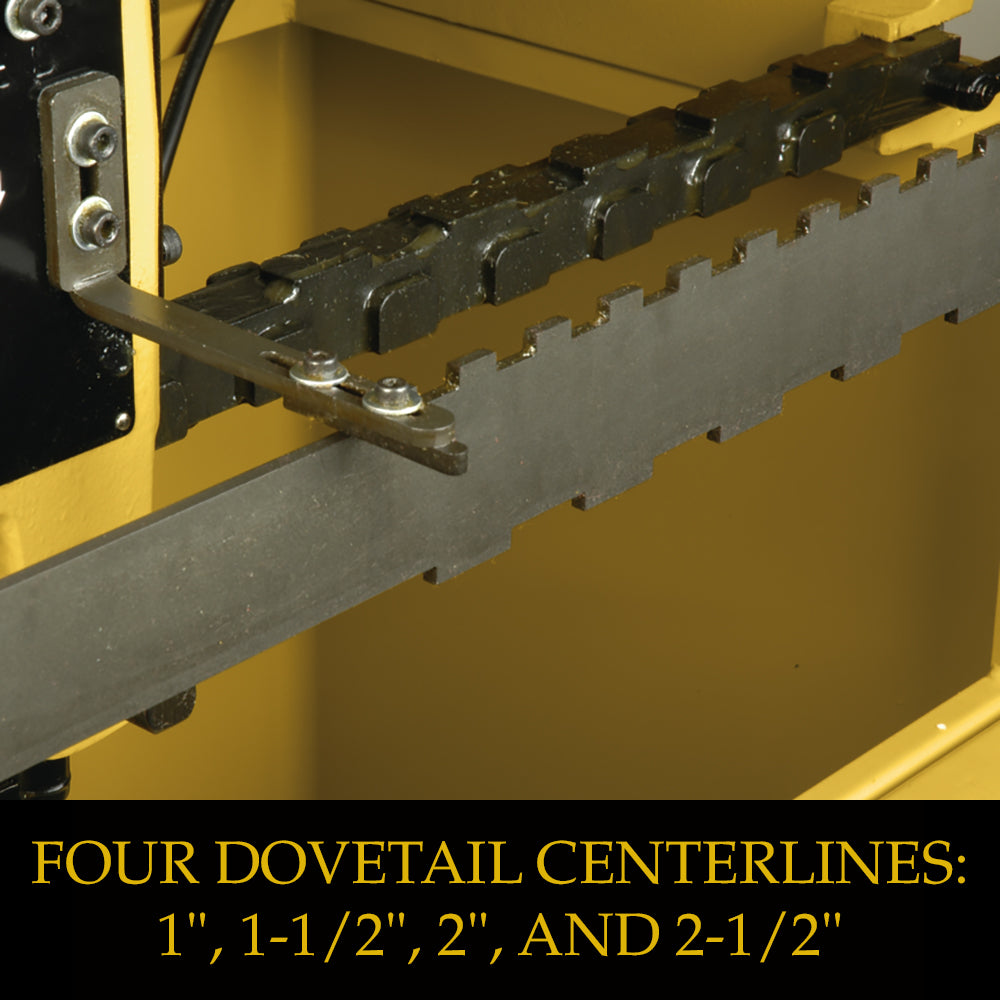

• Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
• Manual eccentric clamping will keep boards firm
• Eccentric spindle collet for resharpened cutters
• Spring loaded carriage makes for smooth, effortless dovetail cutting

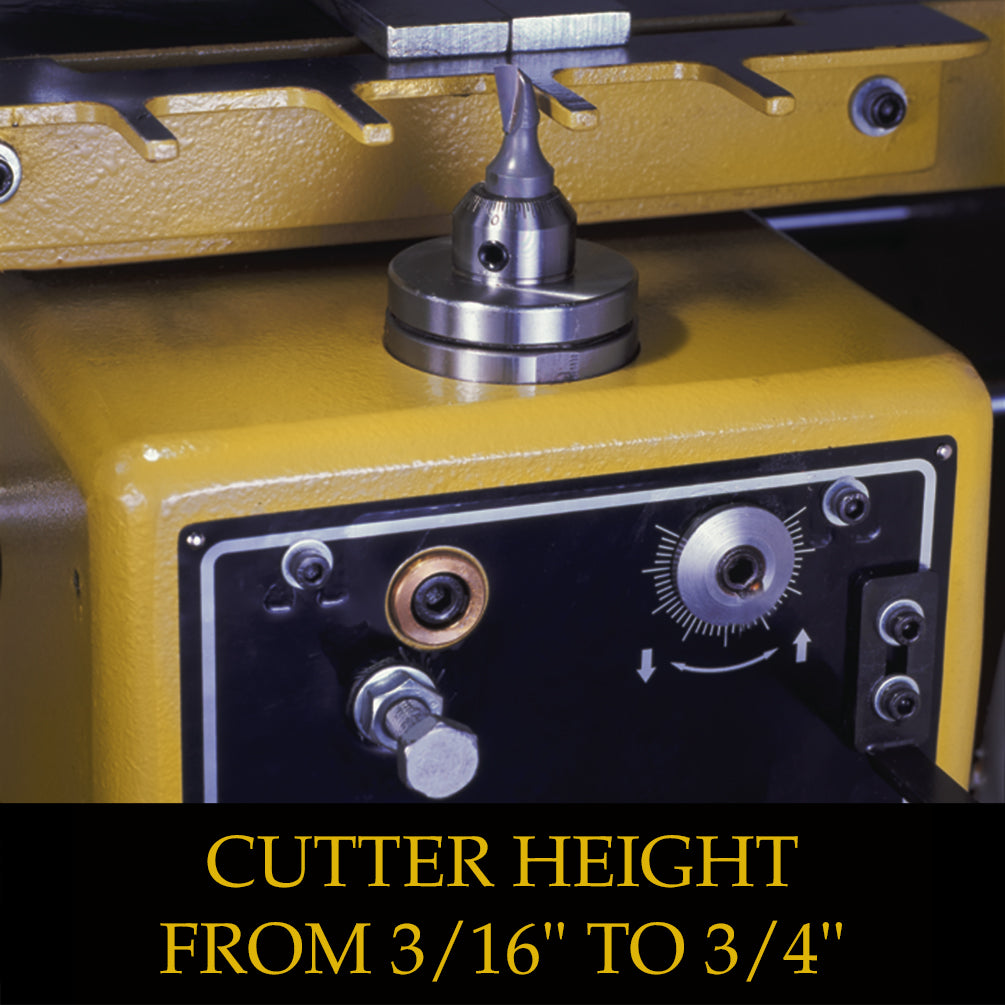

• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses

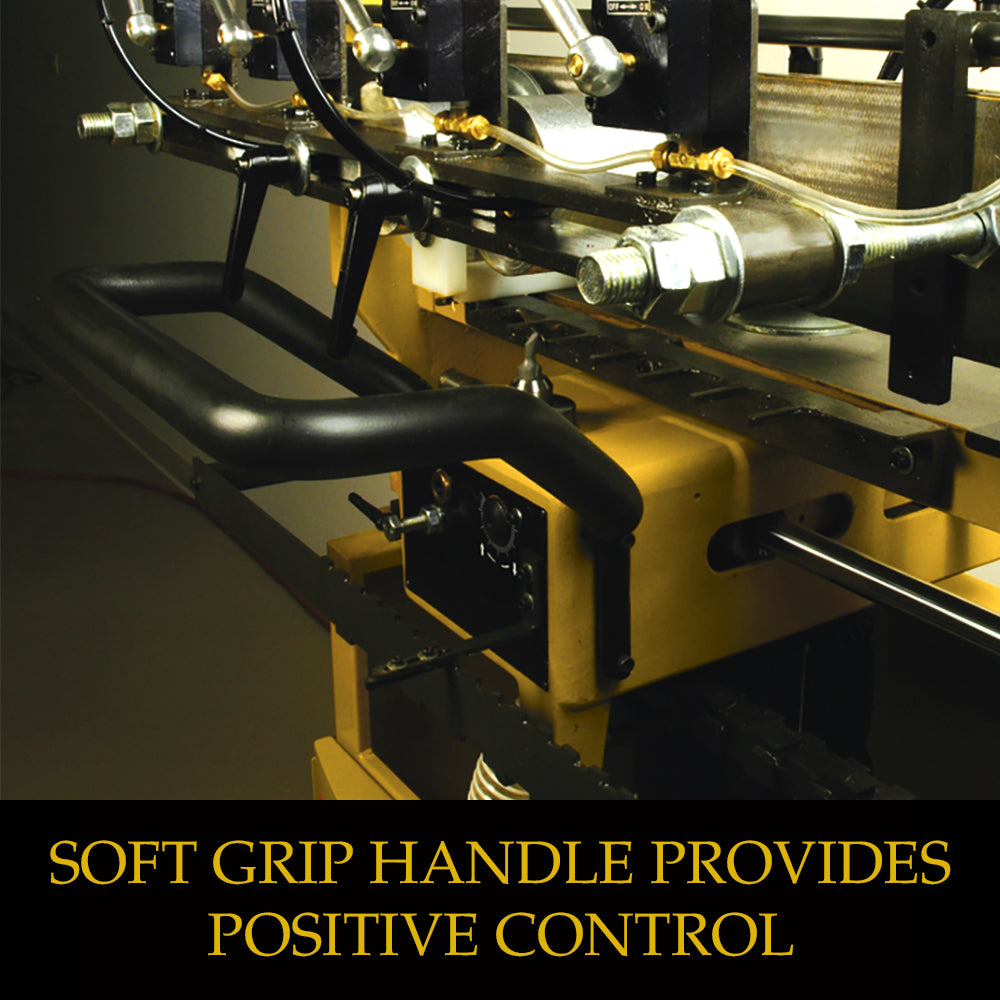

• Extra large soft grip handle provides positive control and comfort
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• 1HP motor transfers plenty of power via the drive belt to the spindle
• Standard Equipment:
• Four-sided template
• Workstops
• Tool kit
• Dovetail bit
• Dust chute with hose

Specifications:

• Style (Type) Pneumatic
• Number of Dovetail Center Lines 3
• Minimum Work Piece Size (L x W)(In.) 7-7/8 x 2-3/8
• Maximum Work Piece Size (In.) 59 x 16-1/2
• Minimum Dovetail Height (In.) 3
• Maximum Dovetail Height (In.) 3
• Minimum Front Thickness (In.) 9
• Maximum Front Thickness (In.) 2
• Minimum Side Thickness (In.) 3
• Maximum Side Thickness (In.) 1
• Center to Center Dovetail Spacing (In.) 1, 1-1/2, 2, 2-1/2
• Number of Spindles 1
• Spindle Speed (RPM) 18,500
• Table Height From Floor (In.) 45
• Dust Collection Minimum CFM Required (CFM) 500
• Dust Port Outside Diameter (In.) 2-1/2, Rear 4
• Motor Power (HP) 1
• Motor Phase 1
• Motor Voltage (V.) 230 V

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
