Powermatic 1285 12 in. Jointer with Helical Cutterhead, 3HP, 1PH, 230V 1791307

Powermatic 1285 12 in. Jointer with Helical Cutterhead, 3HP, 1PH, 230V 1791307

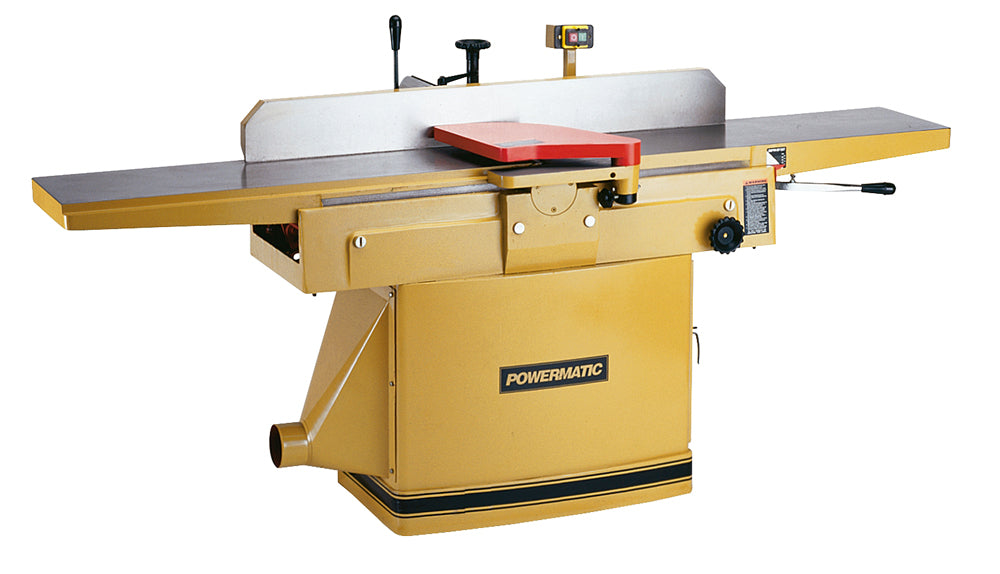

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.

Features:

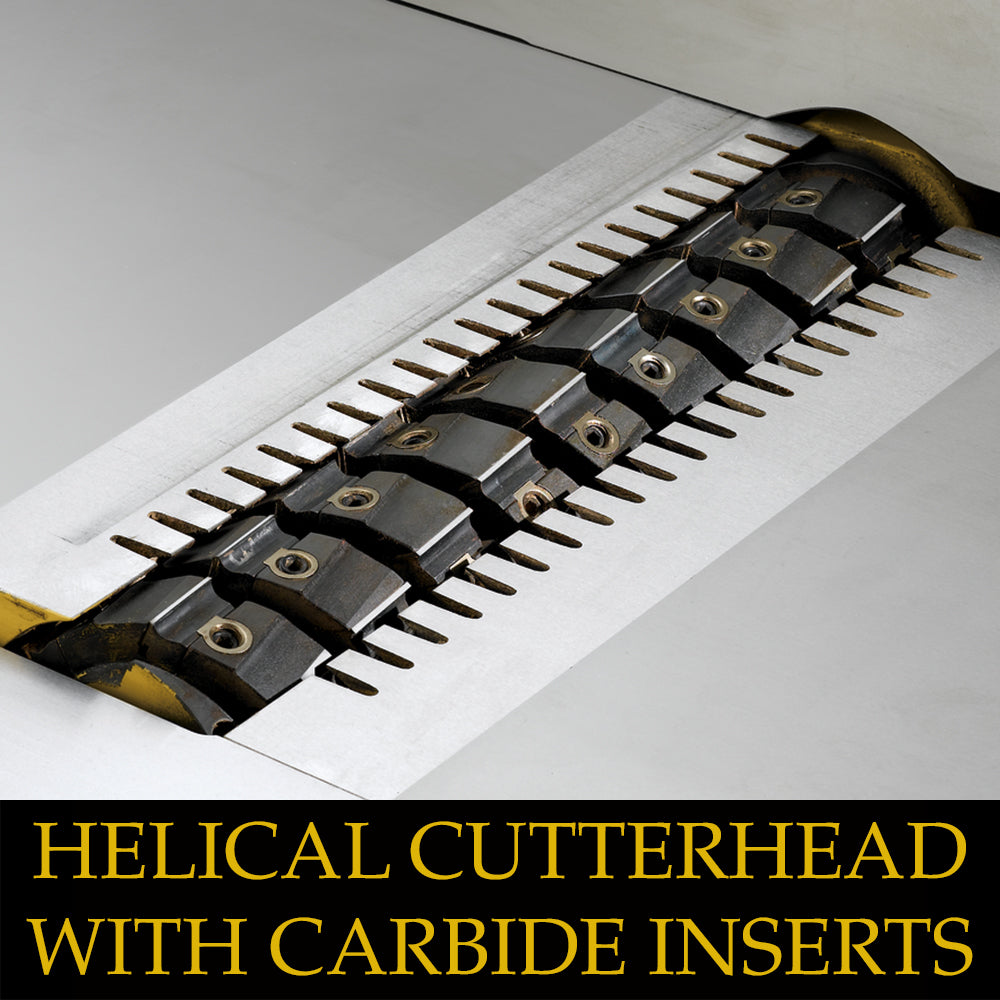

• Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments

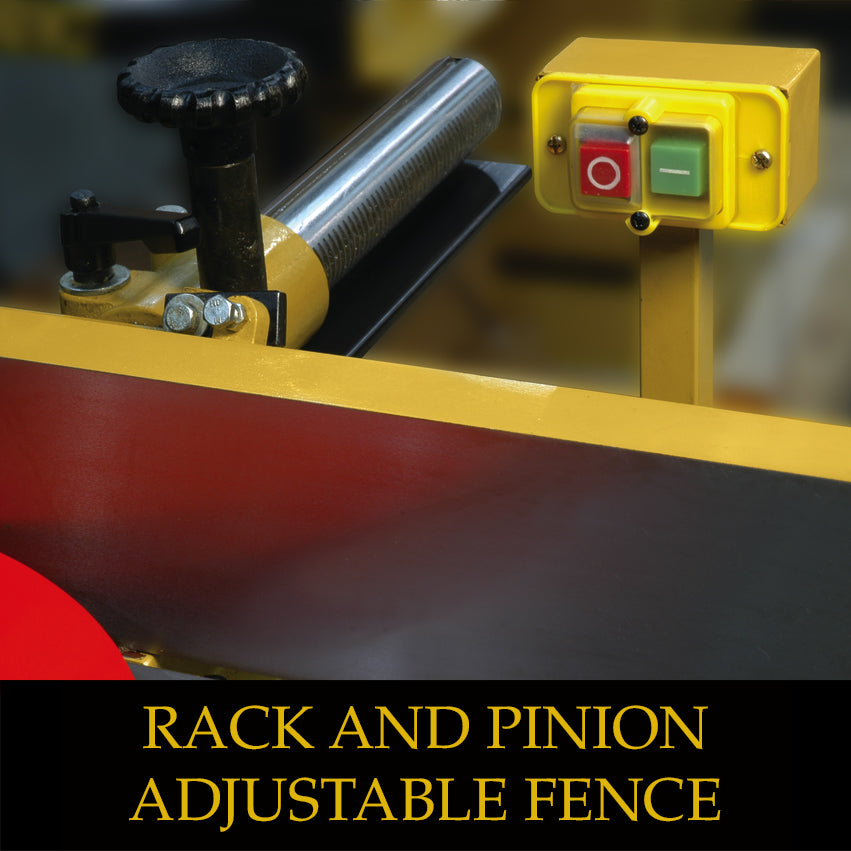

• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments

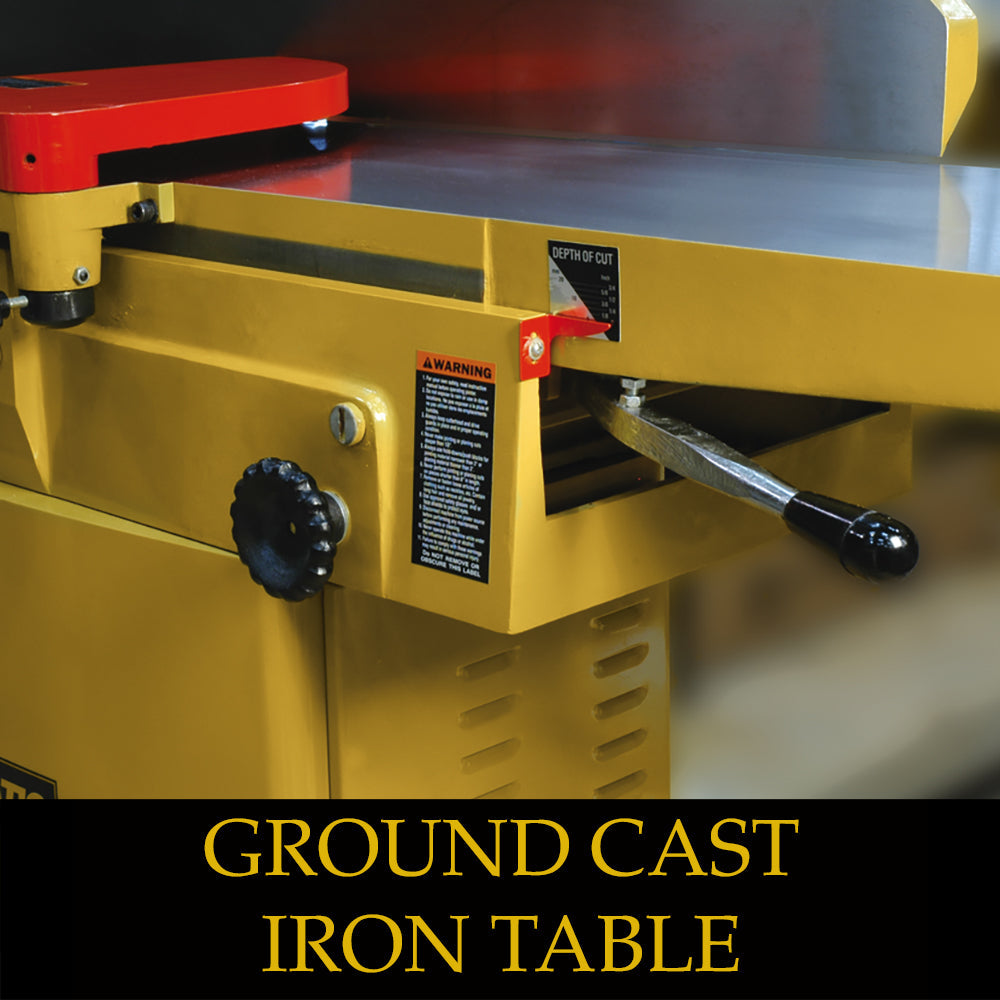

• Large 84" x 12" table surface for heavy-duty work
• Table "lips" on both sides of cutterhead aid in noise reduction
• Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
• 3HP motor provides plenty of power
• Standard Equipment:
• Cutterhead guard
• Heavy duty fence
• Dust port
• Push blocks
• Tool kit

Specifications:

• Number of Knives 44
• Standard Knife Size (L x W x T) (In.) 30 x 12 x 2
• Cutterhead Speed (RPM) 5,000
• Cutting Capacity (W x D) (In.) 11-3/4 x 3/4
• Table Size (L x W) (In.) 84 x 12
• Table Height from Floor (In.) 31-1/2
• Fence Size (L x H) (In.) 47 x 5-1/2
• Fence Tilt (Deg.) 45 Left, 45 Right
• Fence Positive Stops (Deg.) -45, 45, 90
• Dust Collection Minimum CFM Required (CFM) 800
• Dust Port Outside Diameter (In.) 6
• Motor Power (HP) 3
• Motor Phase 1
• Motor Voltage (V.) 230

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
