Powermatic 1285T 12 in. Parallelogram Jointer with ArmorGlide, 3HP 1PH 230V, HH 1791307T

Powermatic 1285T 12 in. Parallelogram Jointer with ArmorGlide, 3HP 1PH 230V, HH 1791307T

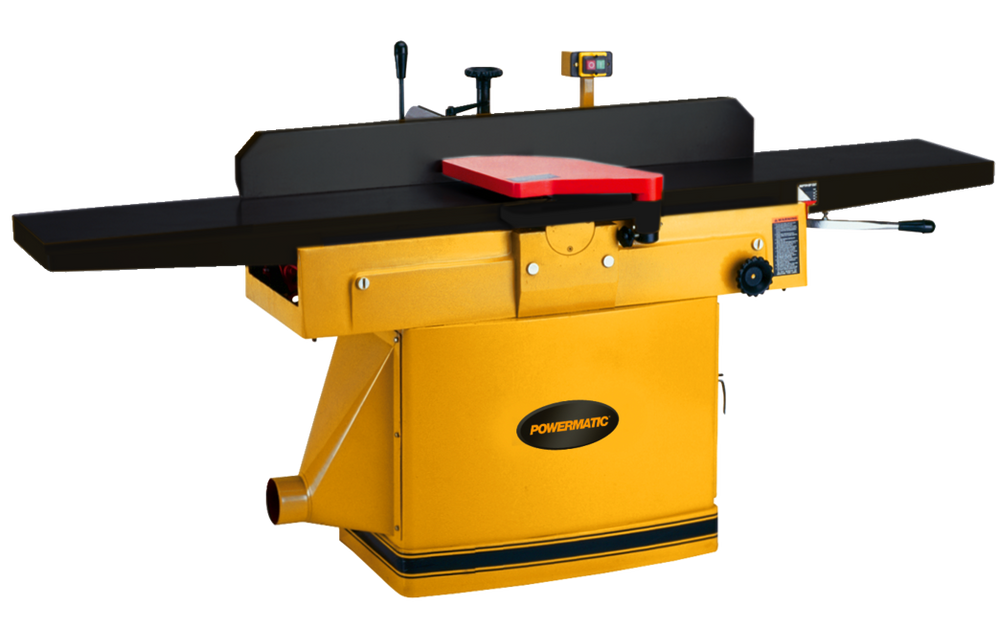

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T, 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degrees in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a helical cutterhead.

Features:

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Helical cutterhead features 42 two-sided carbide inserts for fast knife changes with no adjustments and a quiet, clean cut
• Large 12 x 84 in. precision ground cast iron table surface for heavy-duty work
• Parallelogram design ensures close table-to-cutterhead proximity and fast depth of cut adjustments

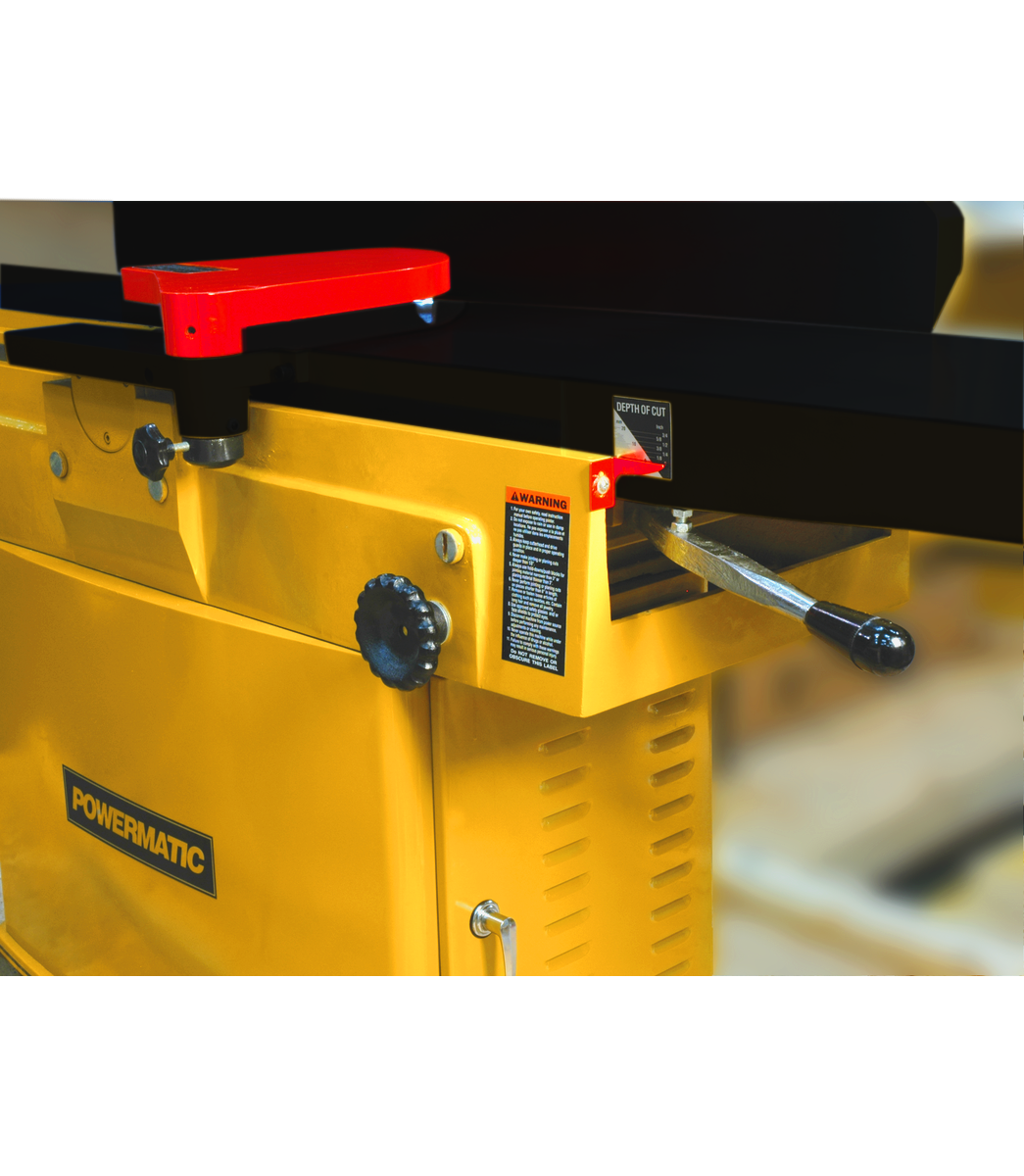

• Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
• Table in.lips in. on both sides of cutterhead aid in noise reduction
• NOTE: NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8 in. The max cutting depth for rabbeting cuts is 1/2 in. as the manual has always stated.

Specifications:

• Stock Number: PM1-1791307T
• Cutterhead Speed (RPM): 5000
• Cutting Capacity (W x D) (In.): 11-3/4 x 3/4
• Dust Collection Minimum CFM Required (CFM): 800
• Dust Port Outside Diameter (In.): 4
• Model Number: 1285T
• Motor Power (HP): 3
• Motor Voltage (V.): 230
• Number of Knives: 44
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Max.Rabbeting Capacity (In.): 3/4
• Recommended Circuit Size (Amps.): 30
• Type of Cutterhead: Helical Head
