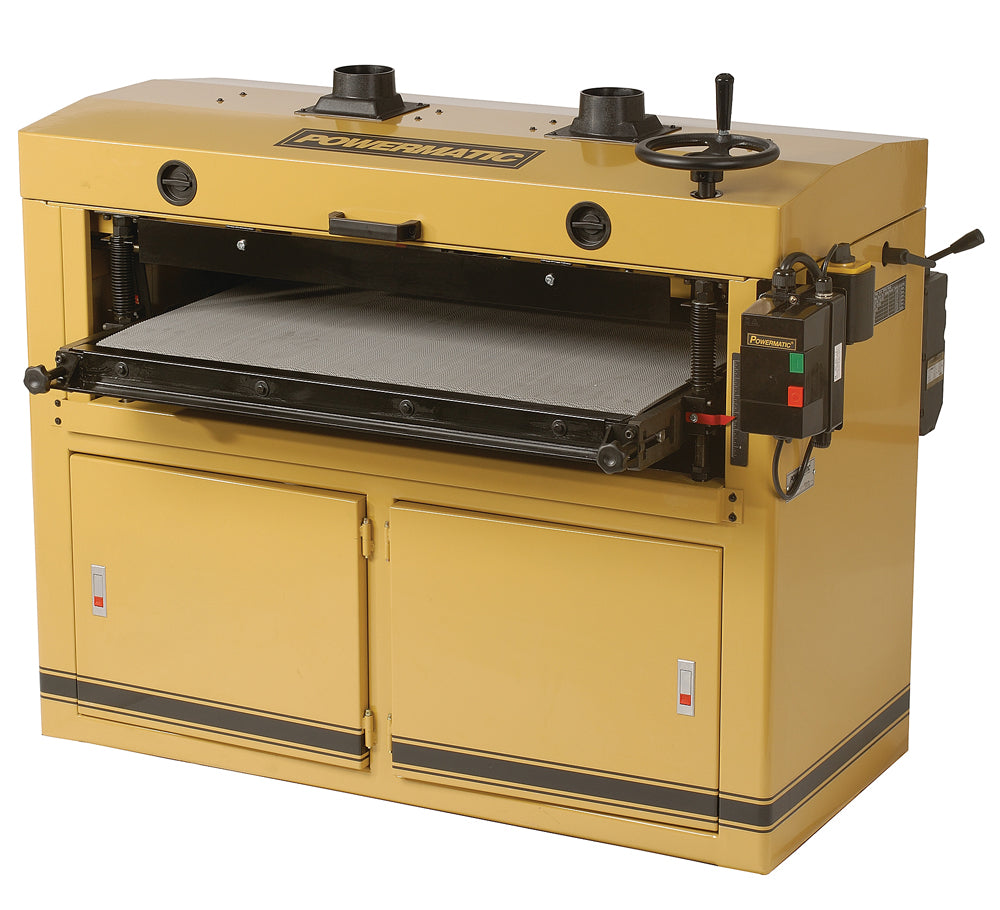

Powermatic DDS-237 37 in. Dual Drum Sander, 2 Speed, 7.5HP, 1PH, 230V 1791320

Powermatic DDS-237 37 in. Dual Drum Sander, 2 Speed, 7.5HP, 1PH, 230V 1791320

This is a production class Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.

Features :

• 7.5HP motor for plenty of power
• Independently adjustable rear drum for fine tuning
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Two-speed gearbox for wide range of sanding projects
• Full size cast iron table for solid support
• Forward/reverse poly conveyor belt grips stock evenly
• Dual dust ports with directional baffles for more efficient dust removal
• Standard Equipment:
• Two speed gearbox
• Dual 4" dust ports
• Sandpaper installed on drums
• Tool kit

Specifications:

• Style (Type) Drum
• Drum Length (In.) 37
• Number of Sanding Drums 2
• Drum Speed (RPM) 1,700
• Drum Diameter (In.) 6
• Conveyor Motor (HP) 1/4
• Maximum Board Thickness (In.) 5-1/4
• Maximum Board Width (In.) 37
• Minimum Board Length (In.) 9
• Minimum Board Thickness (In.) 1/32
• Dust Collection Minimum CFM Required (CFM) 1,200
• Dust Port Outside Diameter (In.) 4
• Motor Power (HP) 7-1/2
• Motor Phase 1
• Motor Voltage (V.) 230

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
