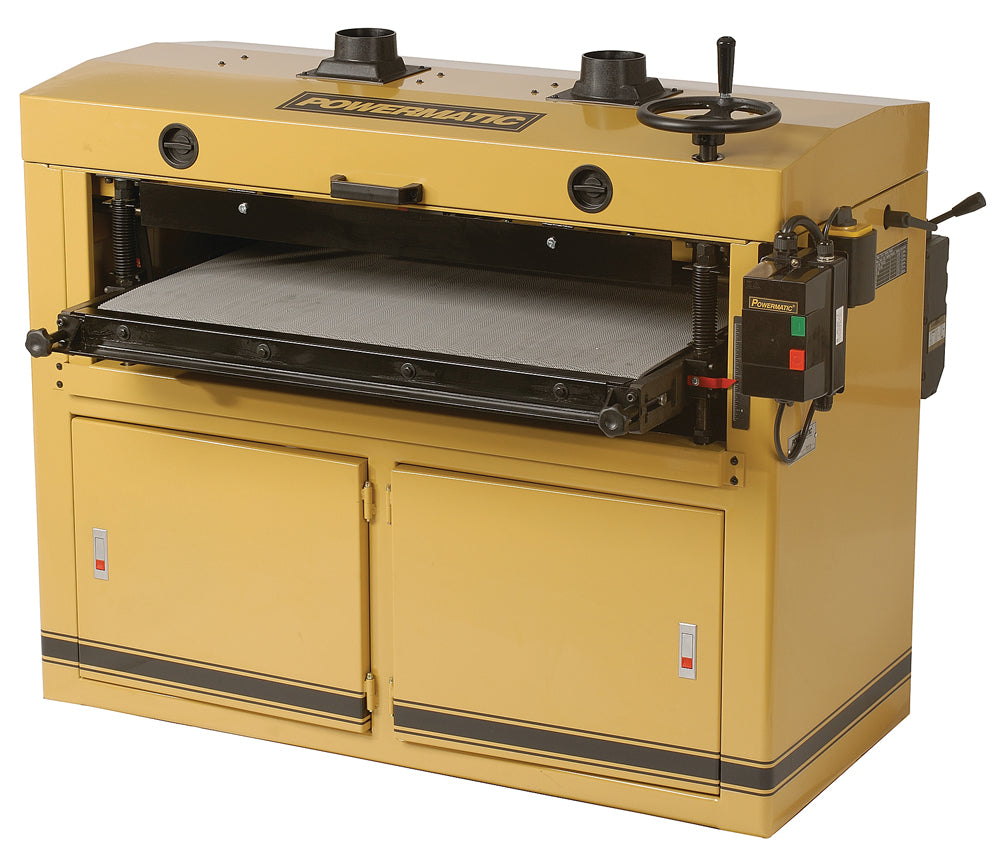

Powermatic DDS-237 37 in. Dual Drum Sander, 2 Speed, 10HP, 3PH, 230/460V 1791321

Powermatic DDS-237 37 in. Dual Drum Sander, 2 Speed, 10HP, 3PH, 230/460V 1791321

The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.

Features:

• Dual drum head for superior finish
• Dual dust ports with directional baffles for more efficient dust removal
• Forward/reverse conveyor belt grips stock evenly
• Full size cast iron table for solid support
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Independently adjustable rear drum for fine tuning
• Two-speed gearbox for wide range of sanding projects

Specifications:

• Stock Number: PM9-1791321
• Conveyor Speed (FPM): 8 and 12
• Drum Diameter (In.): 6
• Drum Length (In.): 37
• Drum Speed (RPM): 1,700
• Dust Collection Minimum CFM Required (CFM): 1,200
• Maximum Board Thickness (In.): 5-1/4
• Maximum Board Width (In.): 37
• Minimum Board Length (In.): 9
• Minimum Board Thickness (In.): 1/32
• Model Number: DDS-237
• Motor Power (HP): 10
• Prop 65: Cancer and Reproductive Harm
• Style (Type): Dual Drum
• Weight (Lbs.): 962
