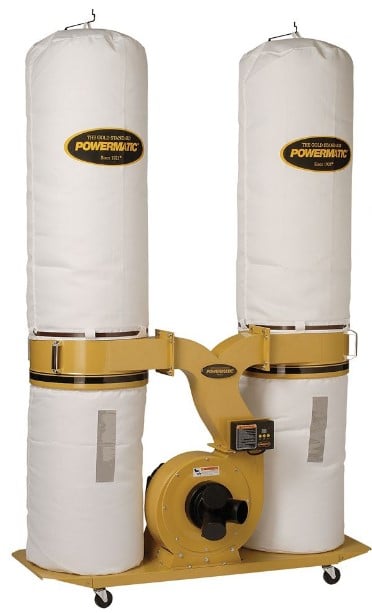

Powermatic 1792073K PM1900TX-BK3 Dust Collector, 3HP 3PH 230/460V, 30-Micron Bag Filter Kit

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobilit

Features:

  • TurboCone improves chip separation and collector bag packing efficiency
  • The cone eliminates premature filter clogging for sustained performance
  • Remote-controlled digital timer can be programmed for up to 99 minutes
  • All-metal duct construction for rigidity and improved air flow
  • 30-micron filter bags for improved capture of fine dust particles
  • The large impeller is powered by a 3HP motor for peak performance
  • Triple 4” dust ports allow for several hoses to be attached at the same time
  • Cloth collection bags with view window use a snap ring for rapid installation/removal
  • 10 cubic feet collection bag capacity reduces number of bag changes.
  • Tall filter bags require less cleaning due to the larger surface area
  • Four swivel casters for shop maneuverability


Specifications:

  • Air Flow @ 4" (CFM) 234
  • Air Flow @ 8" (CFM) 1,754
  • Number of Air Inlets 4
  • Efficiency (Micron) 30
  • Static Pressure (WC) 11.31
  • Sound Rating (DB) 86 - 92
  • Bag Diameter (In.) 20
  • Collection Bag Capacity (Cu. Ft.) 10
  • Collection Bag Length (In.) 30
  • Filter Bag/Canister Length (In.) 48
  • Impeller Diameter (In.) 14
  • Impeller Fins 7
  • Impeller Material Steel
  • Velocity @ 4" (CFM) 5,200
  • 1-Hose Connection Diameter (In.) 8
  • 2-Hoses Connection Diameter (In.) 4
  • 3-Hoses Connection Diameter (In.) 4
  • Motor Power (HP) 3
  • Motor Phase 3
  • Motor Voltage (V.) 230, 460
  • Prewired Voltage (V.) 230
  • Motor Current (Amps) 8-1/5, 4-1/0


Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.



Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
