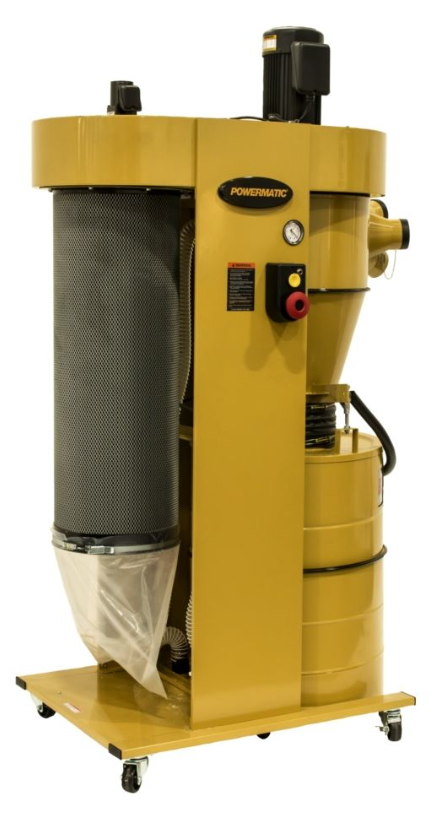

Powermatic PM2200 Cyclonic Dust Collector with HEPA Filter, 3HP 1792200HK

1792200HK, Powermatic Dust Collector PM2200 PMDC-3 W/HEPA Filter Kit

Introducing the Powermatic PM2200 Cyclonic Dust Collector with HEPA filtration. The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stables base for quiet operation and minimal vibration. The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.

Features:

• Proprietary Auto-Cleaning HEPA Filter technology for better filtration and longer filter life
• HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron
• Powerful 3 HP motor moves 1,543 Cubic Feet if air per Minute
• Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
• One-handed drum release allows for simple removal of the drum for bag changes
• Vacuum pressure gauge for greater user feedback

Specifications:

• Number of Air Inlets 1(8") or 3(4")
• Efficiency (Micron) 0.3
• Static Pressure (WC) 14.13
• Sound Rating (DB) 78
• Collection Bag Capacity (Cu. Ft.) 55
• Collection Bag Length (In.) 31-3/8
• Impeller Diameter (In.) 15.8
• Impeller Material Steel
• Velocity @ 8" (CFM) 4380
• 1-Hose Connection Diameter (In.) 8
• 3-Hoses Connection Diameter (In.) 4
• Motor Power (HP) 3
• Motor Phase 1
• Motor Voltage (V.) 230
• Motor Current (Amps) 16
• Recommended Circuit Size (Amps.) 30

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
