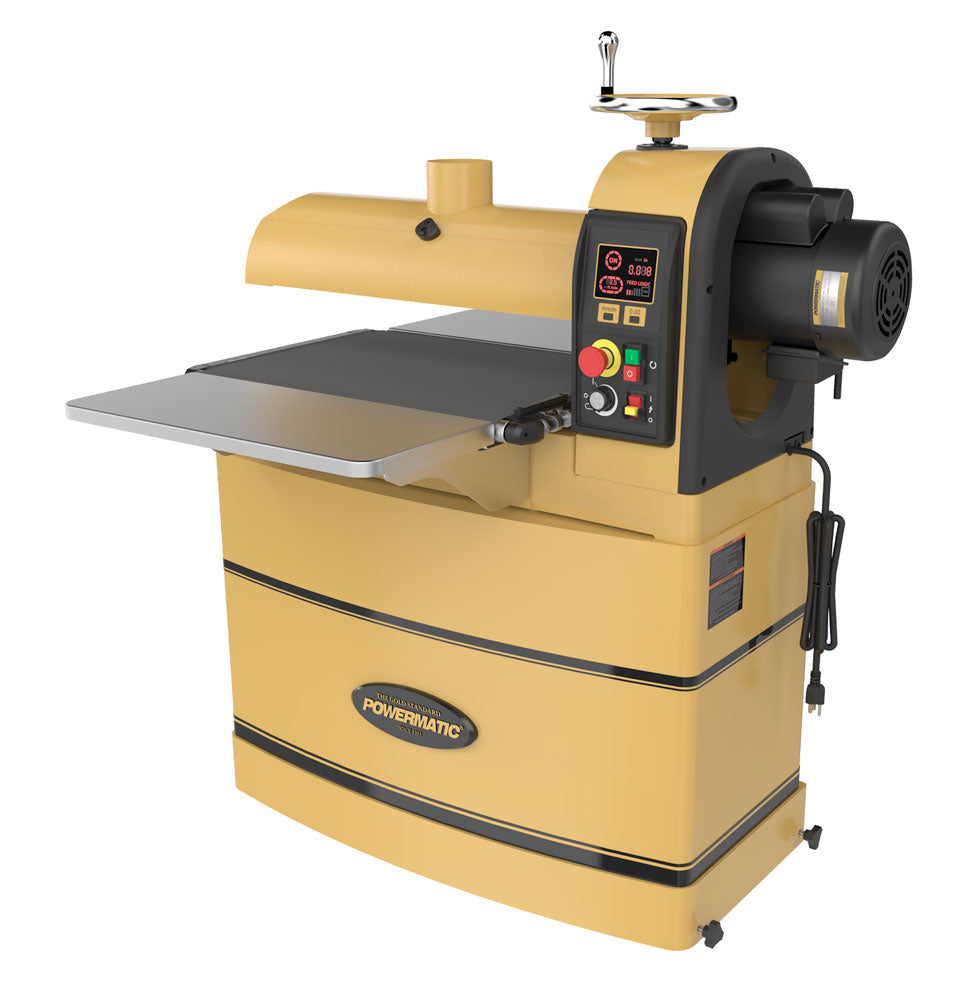

Powermatic PM2244 Drum Sander, 1-3/4HP, 115V 1792244

1792244, Powermatic PM2244 DRUM SANDER, 1-3/4HP

Powermatic produces the highest grade of performance drum sanders of any manufacturer in business today. Experience the high quality and craftsmanship that you have come to expect from Powermatic machines over the years. Our beautifully engineered 1-3/4HP drum sanders accommodate any and every sanding application. A single drum, a high performance motor at the helm of each sander and cast iron housing for maximum durability are just a few of the premium integrated features you won’t get anywhere else but Powermatic. All drums come with sandpaper on them, and are contained within a rubber coating providing durability and a flat smooth finish. Full sized cast iron tables eliminate any lack of workspace you may have experienced in the past. Step up production and results with a premium 1-3/4HP drum sander from Powermatic.

Features:

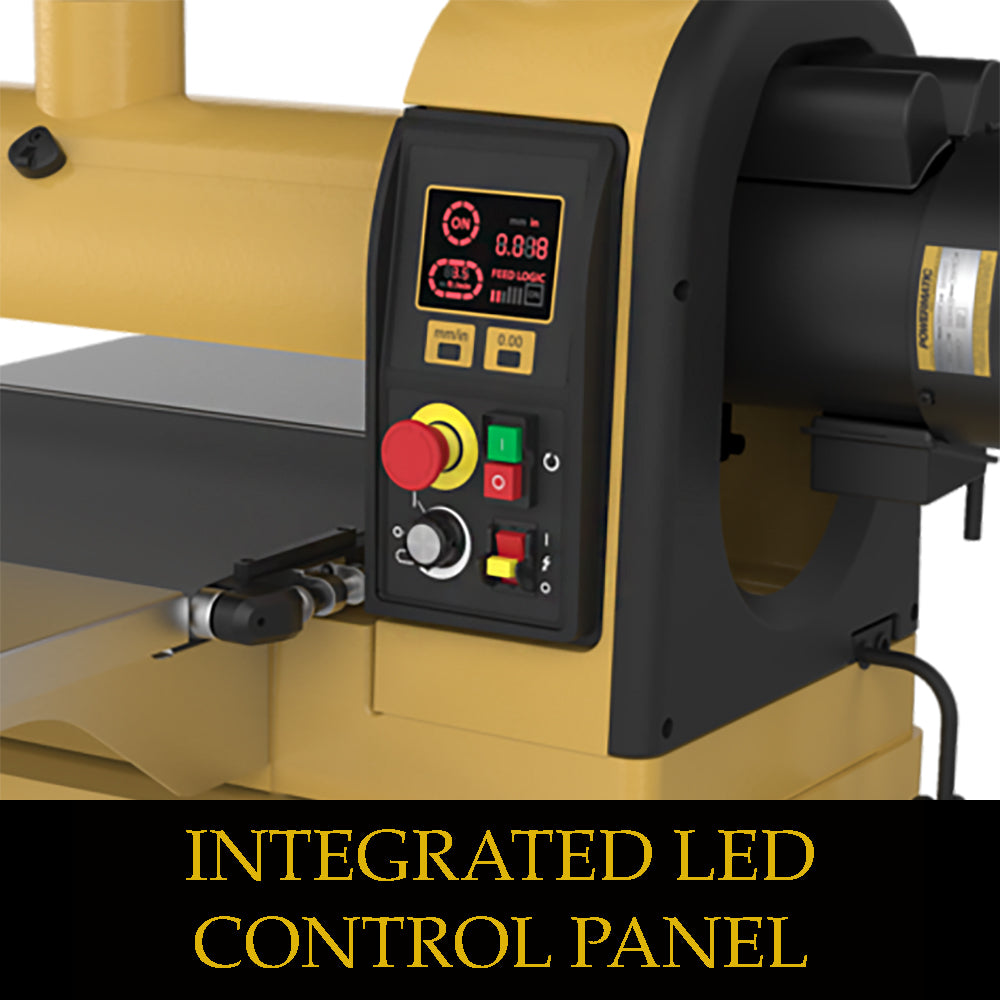

• Equipped with Feed Logic to produce exceptional finish while preventing machine overloadSecondary, absolute depth scale provides an additional height reading
• Drum carriage is cast iron to provide greater strength and consistent performance

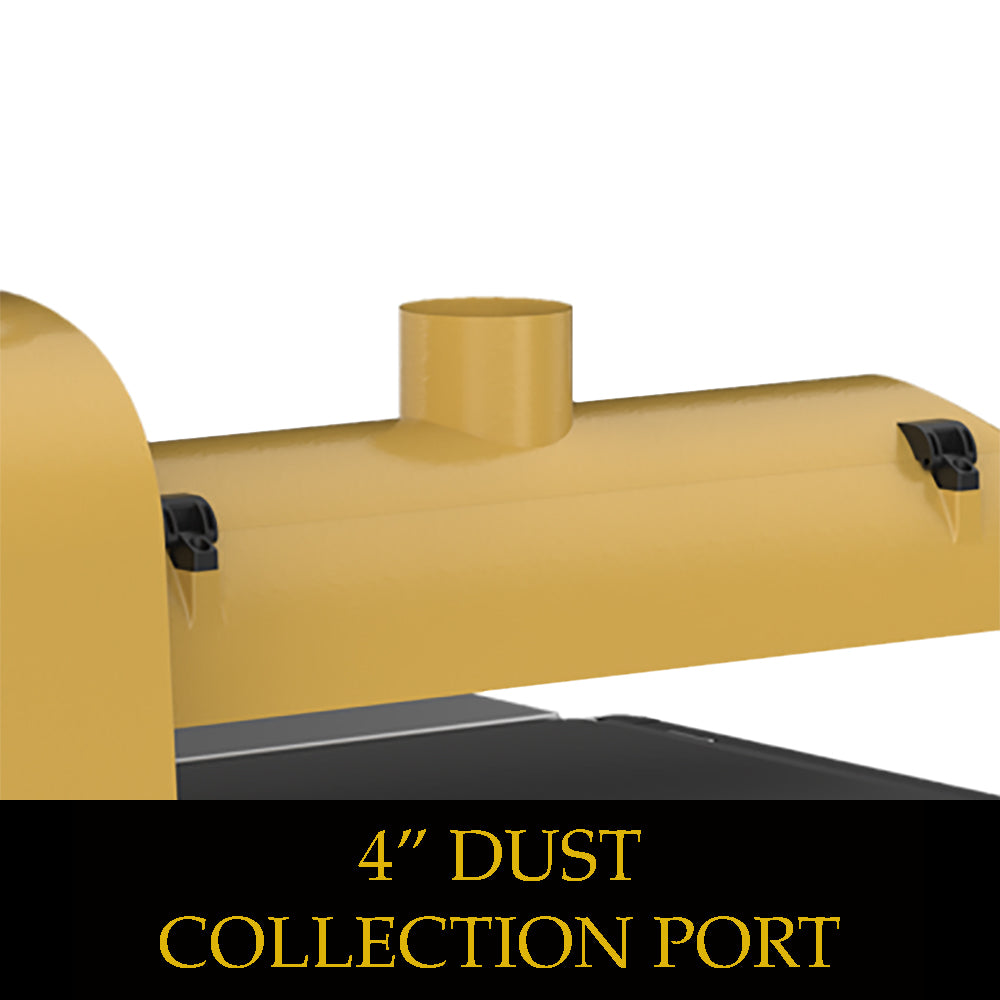

• Steel hood with a 4" dust port provide excellent dust collection
• Emergency stop for quick shutoff
• Large, chrome handwheel makes adjusting the drum height smooth and simple
• Belt tracking is designed to reduce the need for manual adjustment
• Integrated casters make it easy to move unit around the shop
• Included infeed/outfeed tables proved 37-1/2 inches of support for the workpiece

Specifications:

• Height 50.250
• Gross Weight 418.000
• Volume 30.499
• Width 23.000
• Prewired Voltage (V.) 115
• Drum Length (In.) 22
• Conveyor Speed (FPM) 0 - 10
• Motor Phase 1
• Drum Diameter (In.) 5
• Maximum Board Thickness (In.) 4
• Motor Current (Amps) 14
• Motor Voltage (V.) 115
• Minimum Board Thickness (In.) 1/32
• Number of Sanding Drums 1

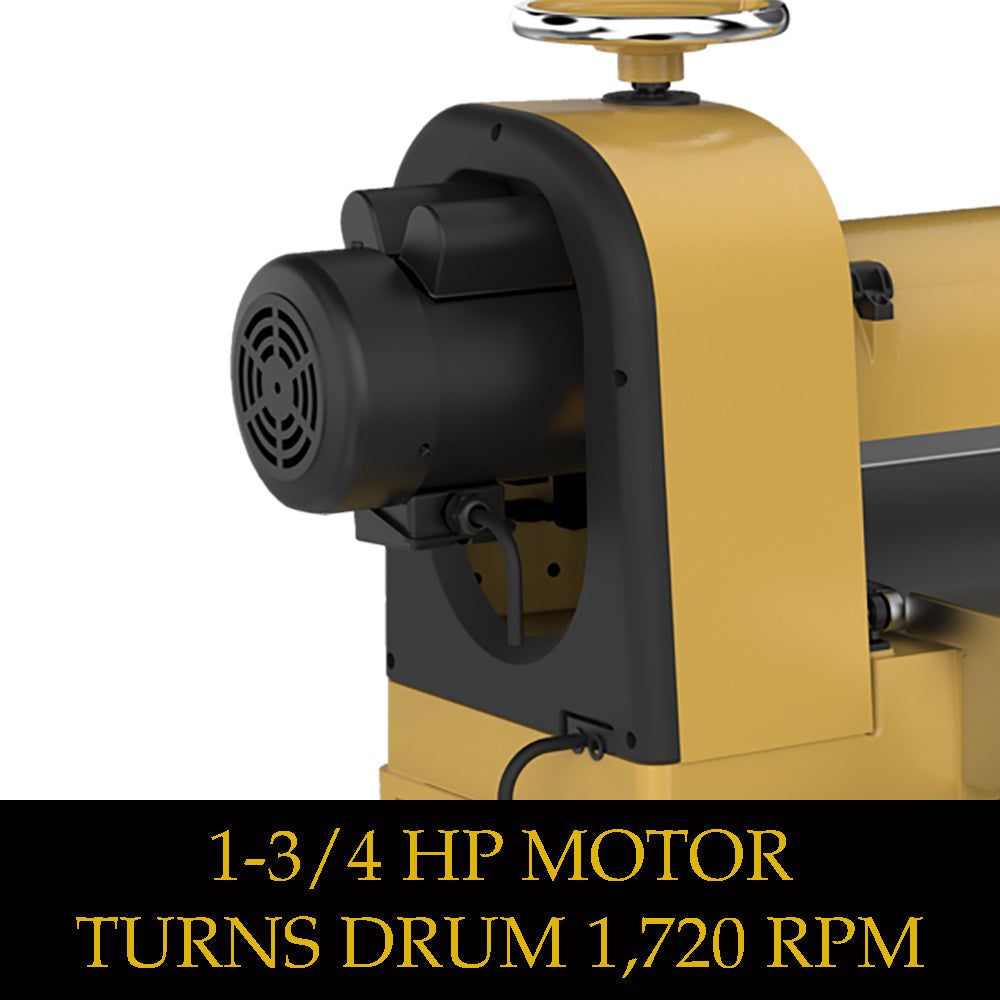

• Motor Power (HP) 1-3/4
• Minimum Board Length (In.) 2-3/8
• Conveyor Motor (HP) 1/30
• Dust Port Outside Diameter (In.) 4
• Maximum Board Width (In.) 44
• Recommended Circuit Size (Amps.) 20
• Drum Speed (RPM) 1,720

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
