1792820, Powermatic PM1792820, Powermatic Drill Press EVS Drill Press

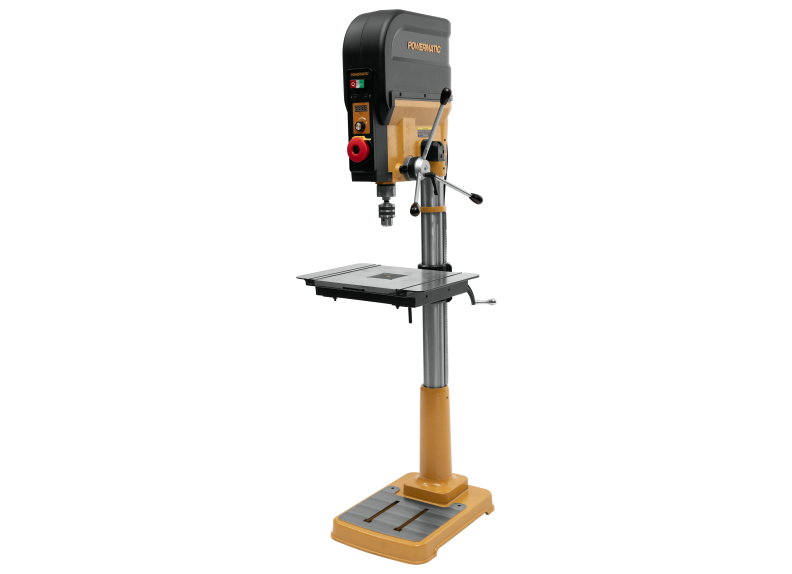

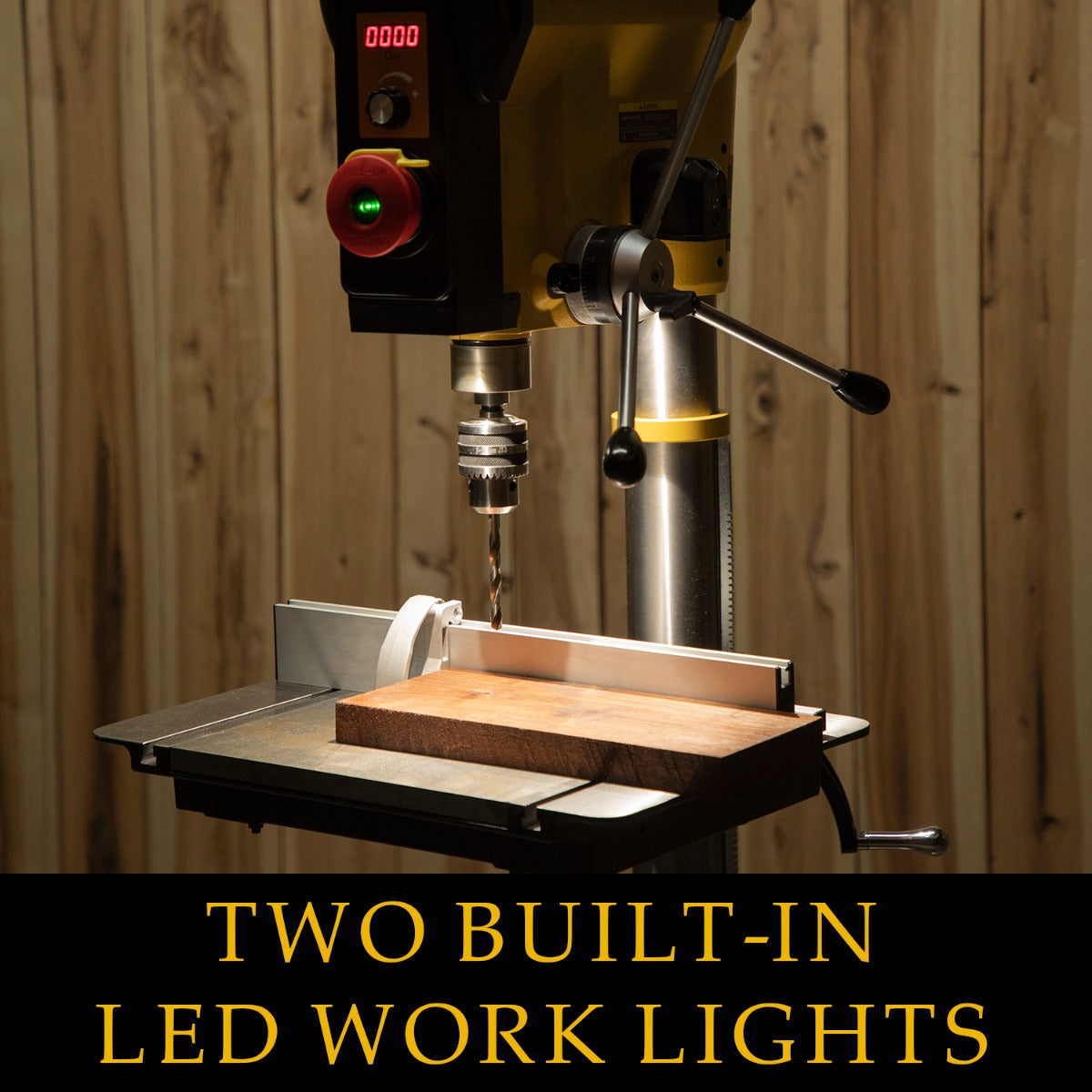

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear-driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with a 45-degree rotation has the capacity for projects large and small. The high-visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to the right or left for ease of use. A large cast base gives this drill press stability. Integrated LED light reduces shadows for project visibility.



Features:

  • Designed for a range of materials and applications

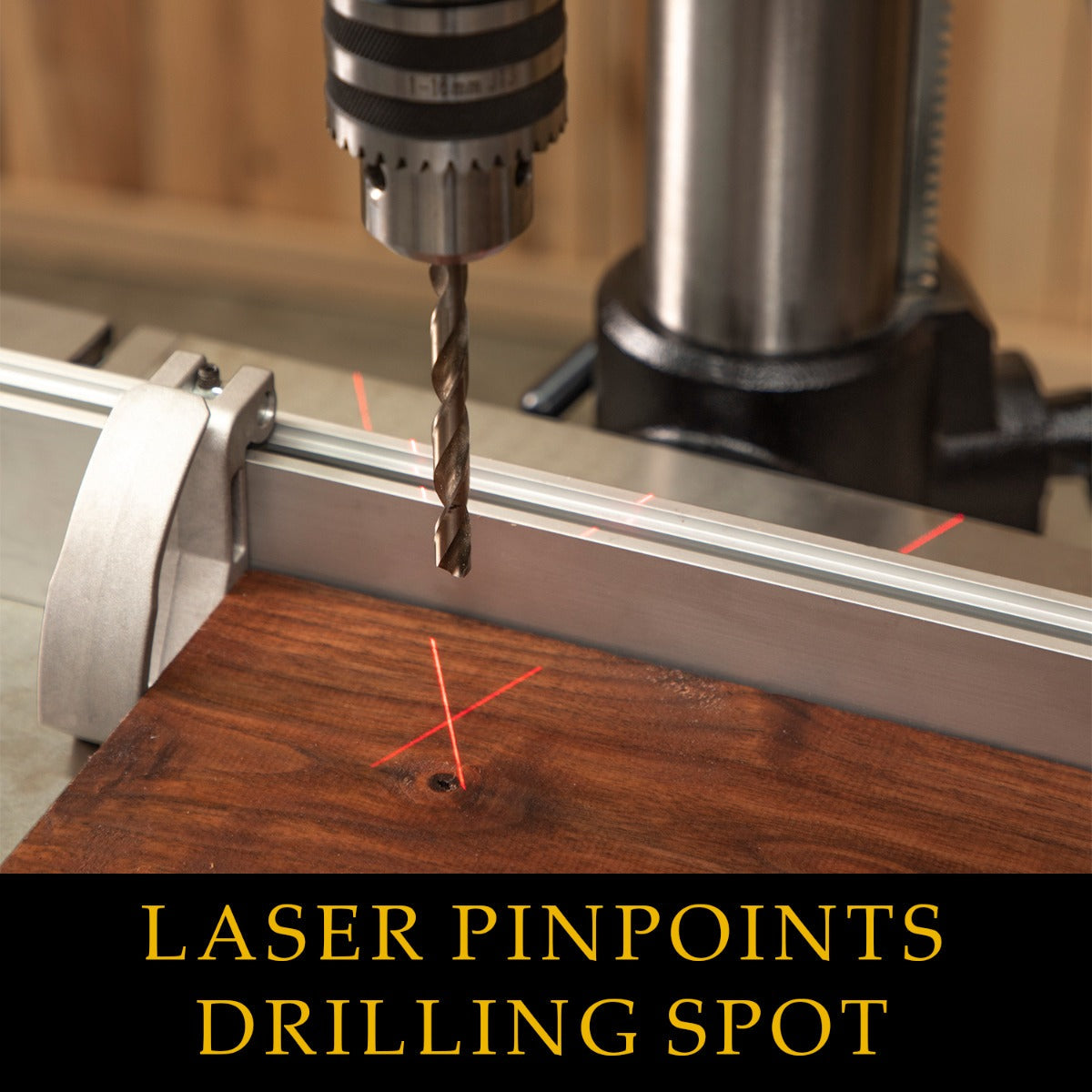

  • For unbeatable accuracy, the laser cross hairs provide precise tool point indication.
  • Gear-driven power transfers torque consistently and efficiently for a wide range of materials.

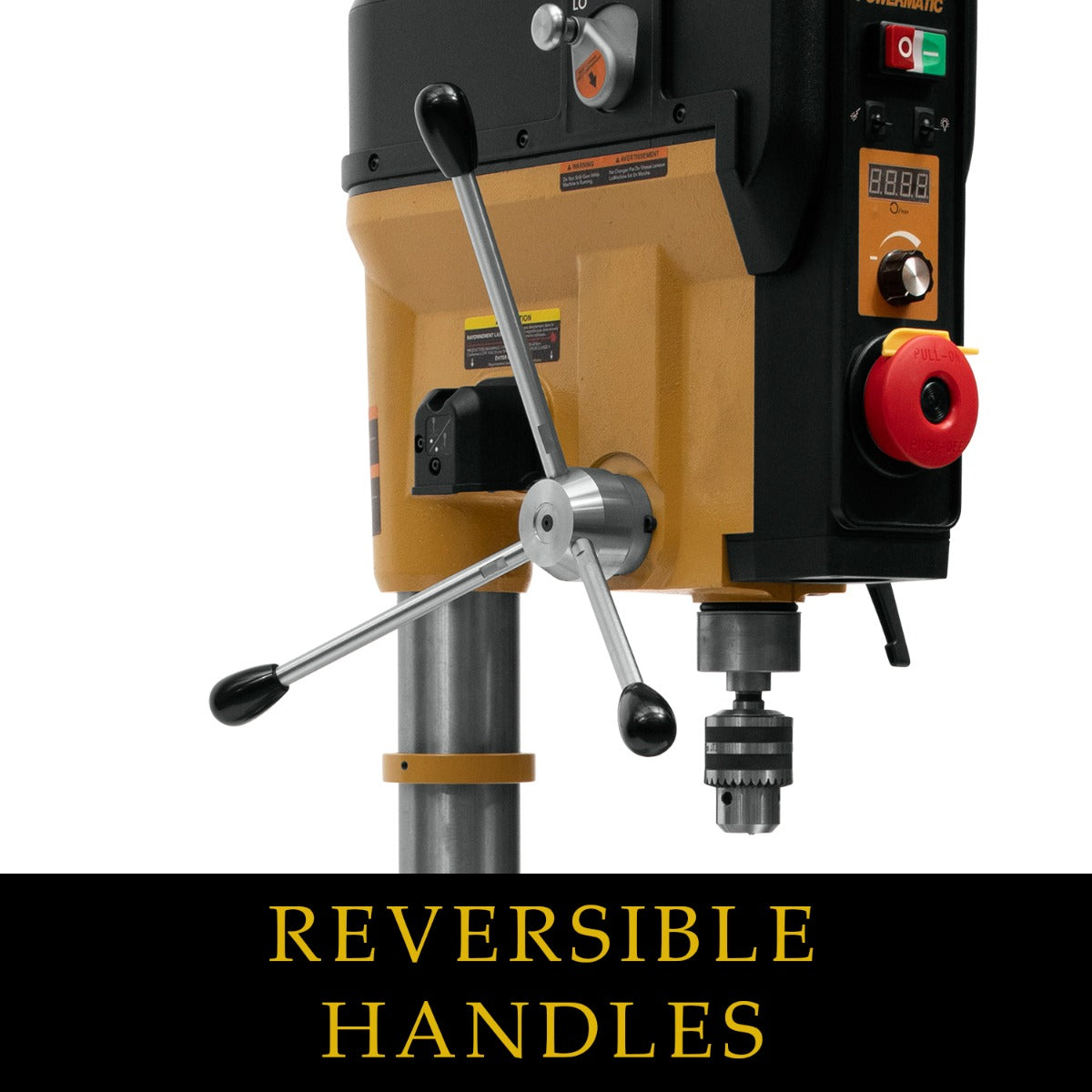

  • Handles can be reversed for left or right-sided operation.

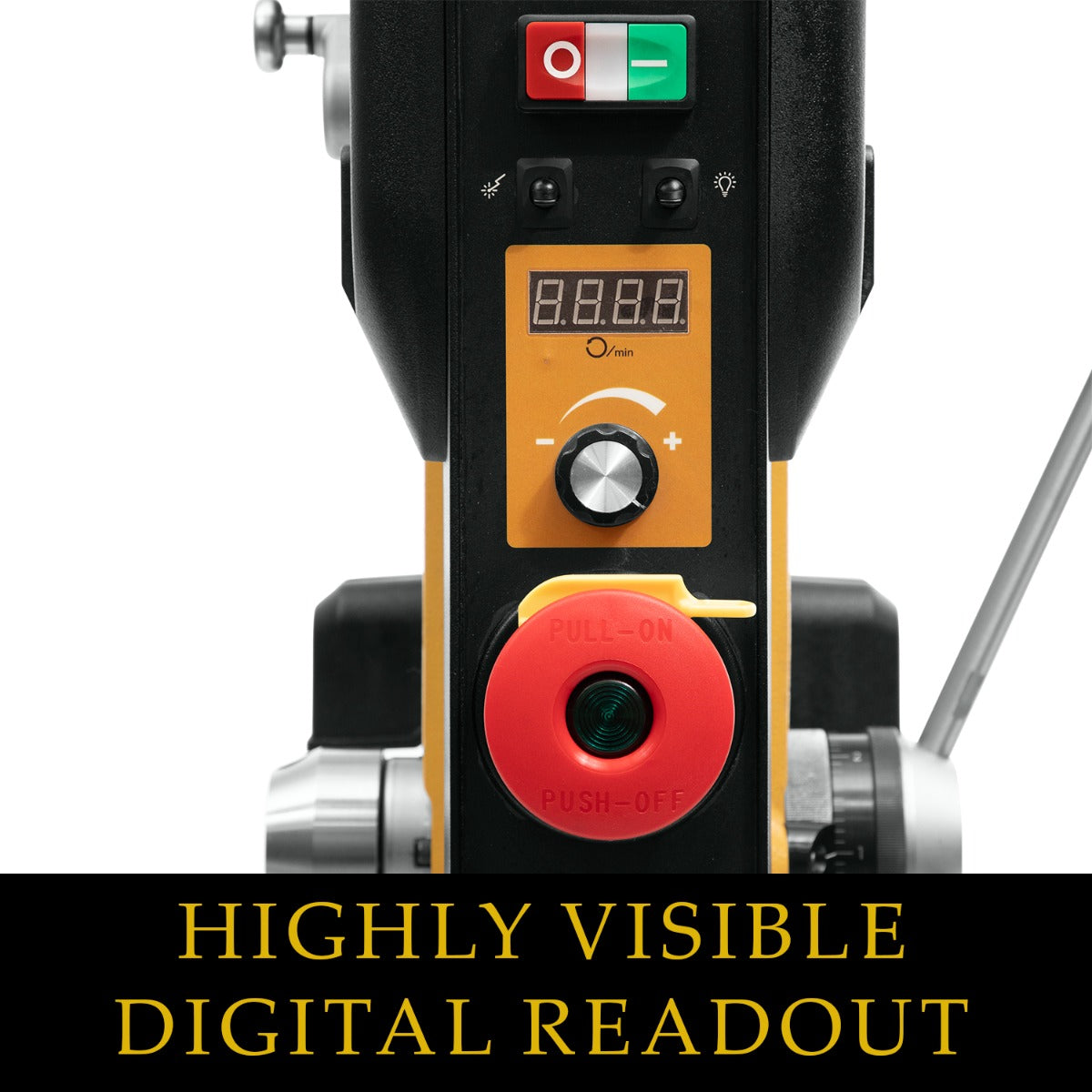

  • Highly visible digital readout gives users control.
  • Includes Powermatic’s patented integrated depth stop for efficient drilling
  • Includes the most versatile table in the drill press market. Allows inserting to be removed for better access to oversized pieces.

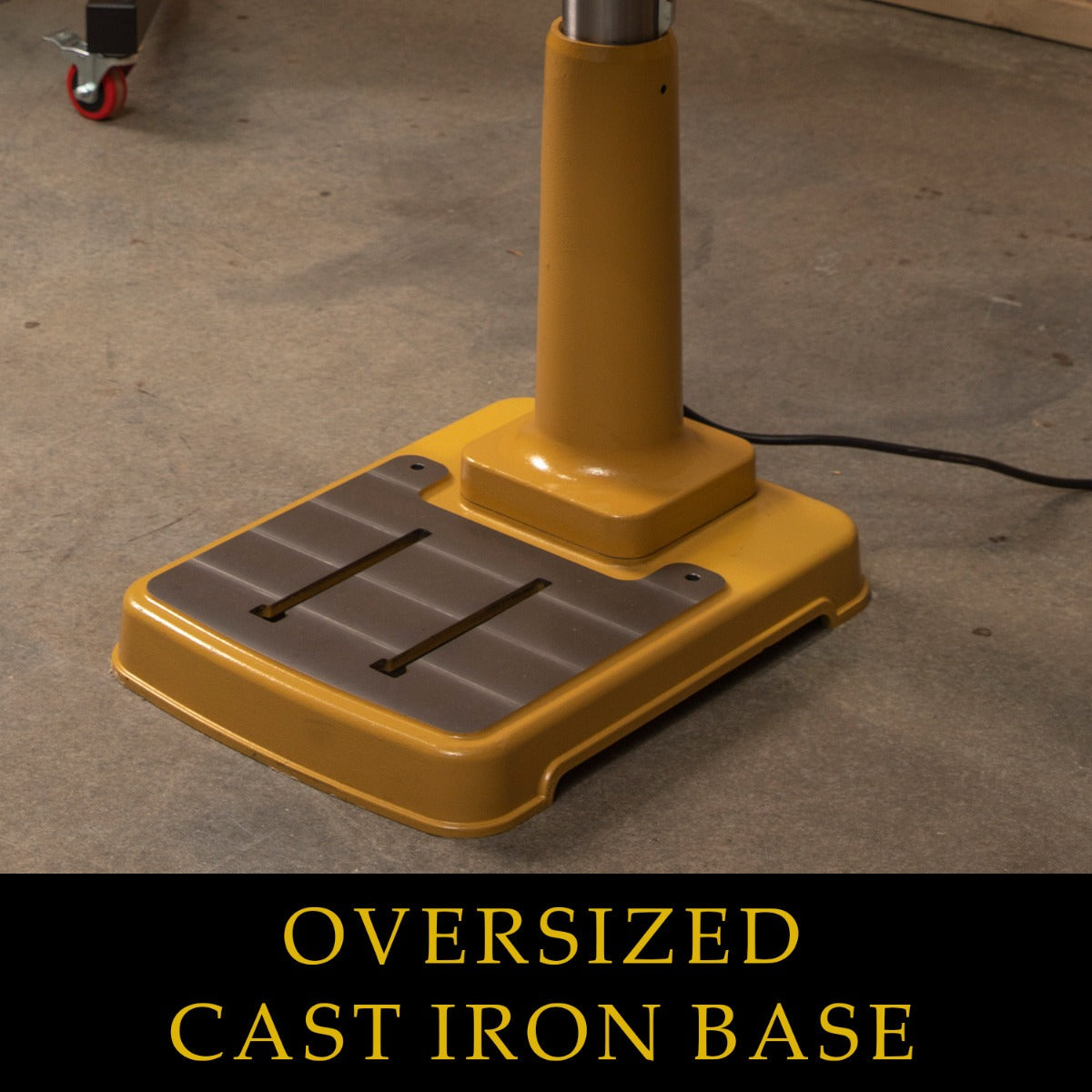

  • Standing on an oversized cast base for outstanding stability for the 20-inch swing.
  • The electronic variable speed means torque is not lost using either the higher or low-speed settings. The low-speed setting ranges from 150 – 870 RPM and the high-speed setting runs 600 – 3600 RPM.

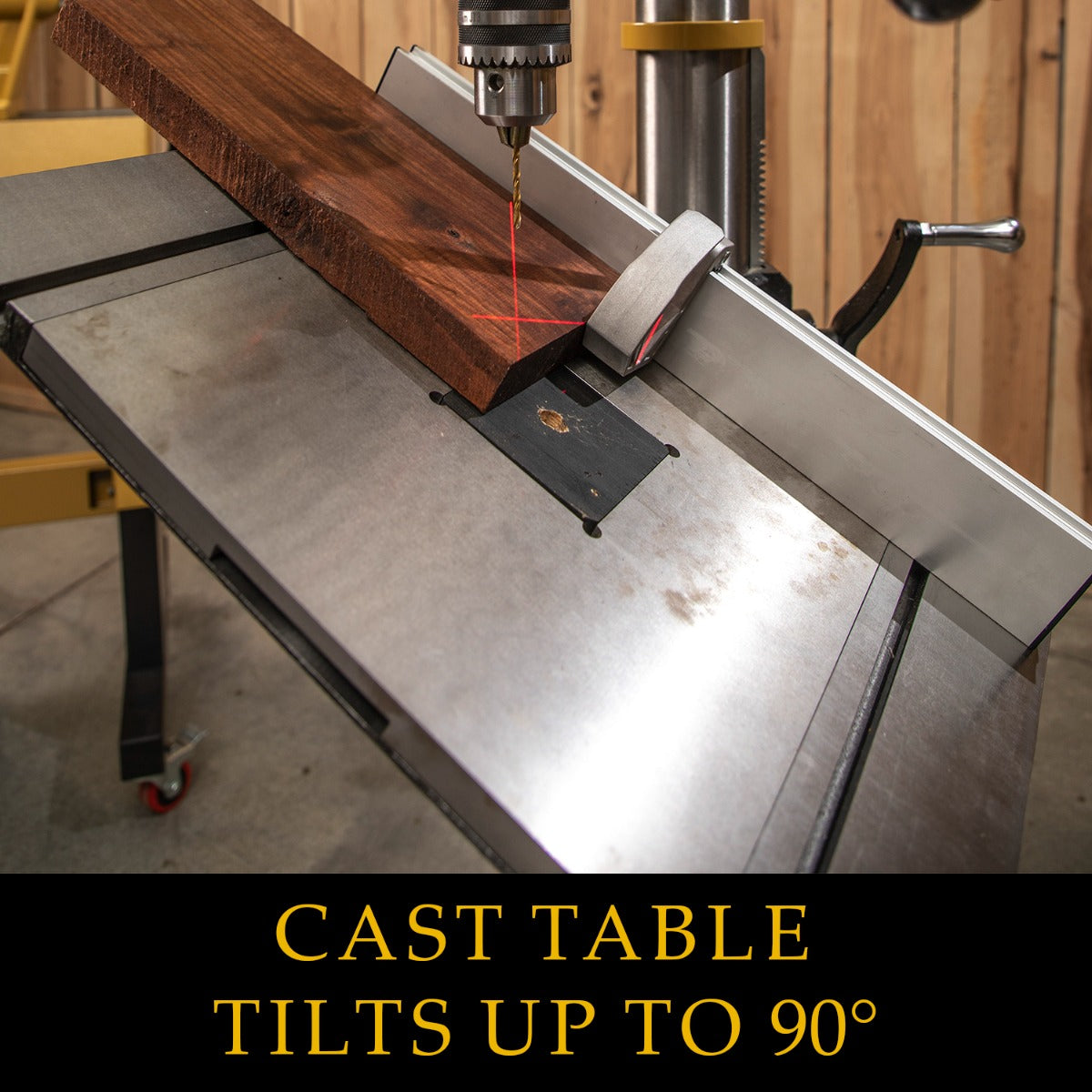

  • The large cast table adjusts to a range of positions and tilts to a full ninety-degree position.



Specifications:

  • Stock Number: 1792820
  • Base Dimensions (In.): 22.7 x 16.33 x 2.75
  • Base Size (In.): 22-3/4 x 16-3/8 x 2-3/4
  • Base Work Table (In.): 11.81 x 12.05
  • Chuck Distance to Base (In.): 41-1/4
  • Chuck Distance to Table (In.): 19-1/4
  • Chuck Size (In.): 5/8
  • Column Diameter (In.): 3-3/8
  • Fence Size (L x H) (In.): 19-3/4 x 2-5/8
  • Gross Weight (Lbs): 413.6
  • Motor Amps: 8
  • Motor (HP): 1
  • Motor Phase: Single
  • Motor Power (HP): 1
  • Motor Voltage (V.): 120
  • Net Weight (Lbs.): 336.6
  • Number of Spindle Speeds: 2 Variable
  • Overall Dimensions (L x W x H) (In.): 24.5 x 20.5 x 71.85
  • Prewired Voltage (V.): 115
  • Prop 65: Cancer and Reproductive Harm
  • Quill Diameter (In.): 2.6
  • Spindle Distance to Base (In.): 45
  • Spindle Distance to Table (Max.) (In.): 23
  • Spindle Speed (RPM): 150 - 3600
  • Spindle Taper: MT2
  • Spindle Travel (In.): 6
  • Style (Type): Floor
  • Swing (In.): 20
  • Table Size Fully Extended (L x W) (In.): 20-1/2 x 15-1/2
  • Table Size (L x W) (In.): 20-1/2 x 15-1/2
  • Table Tilt (Deg.): 90 L/R
  • Weight (Lbs.): 336.6
