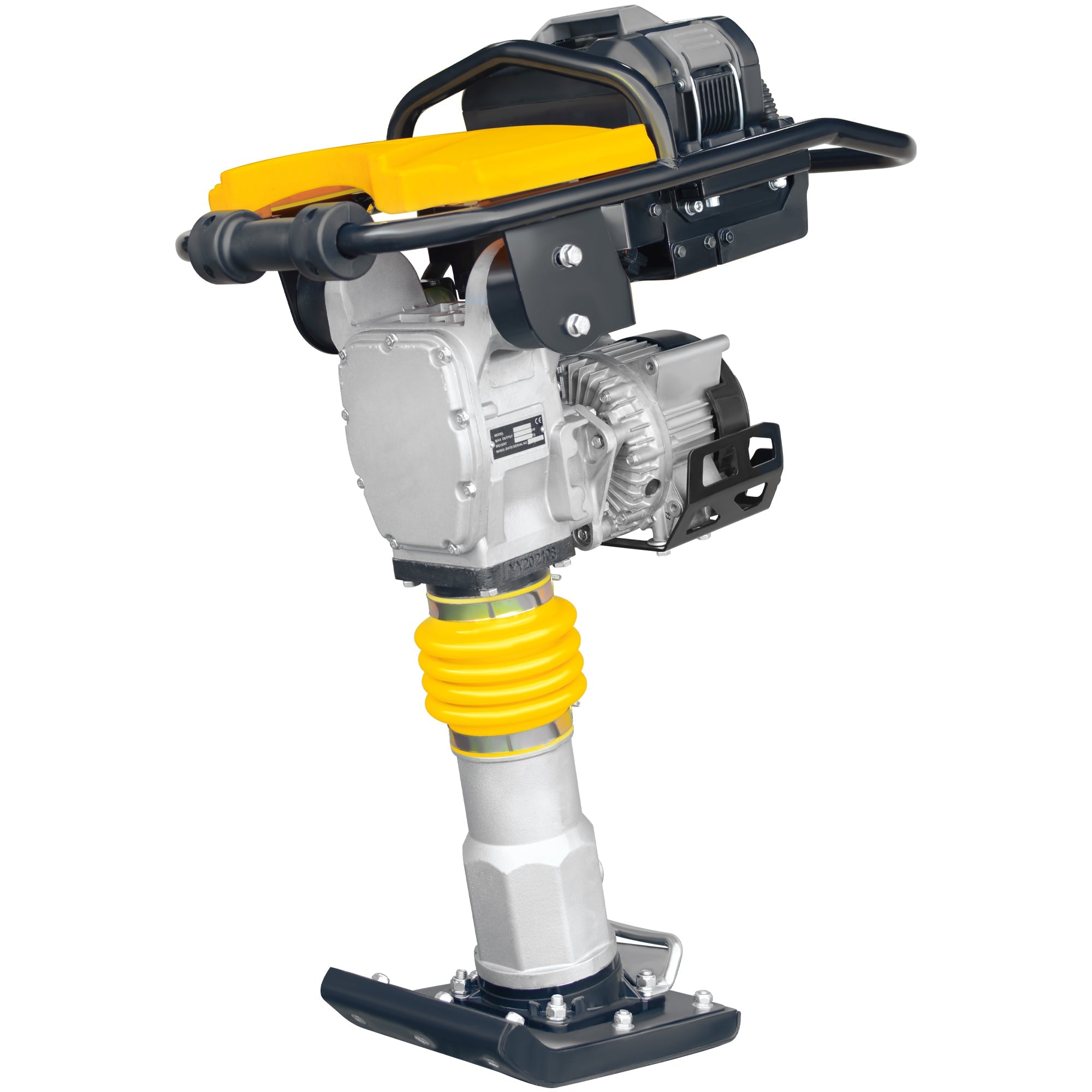

Tomahawk 2.4 HP Battery Powered Vibratory Rammer Tamper Compactor with Honda GXE2.0S Motor

Tomahawk 2.4 HP Battery Powered Vibratory Rammer Tamper Compactor with Honda GXE2.0S Motor

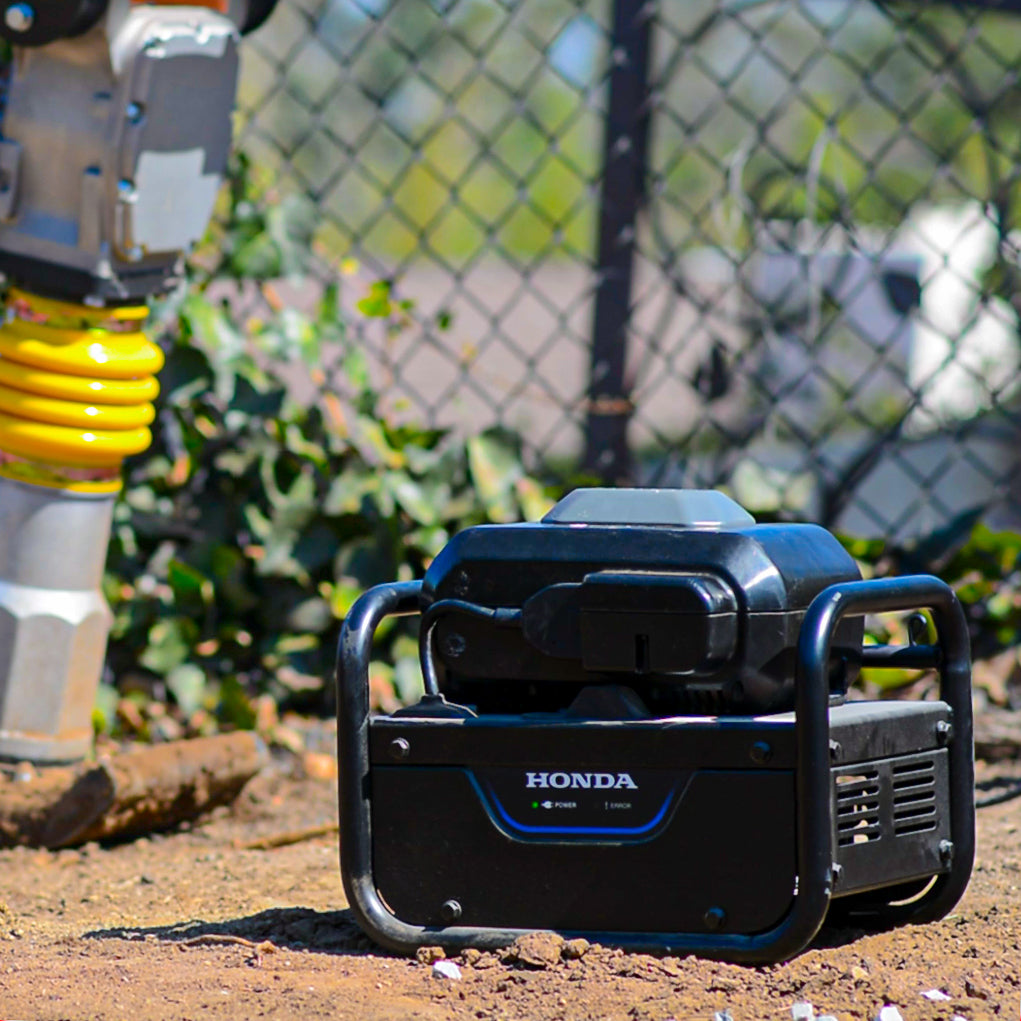

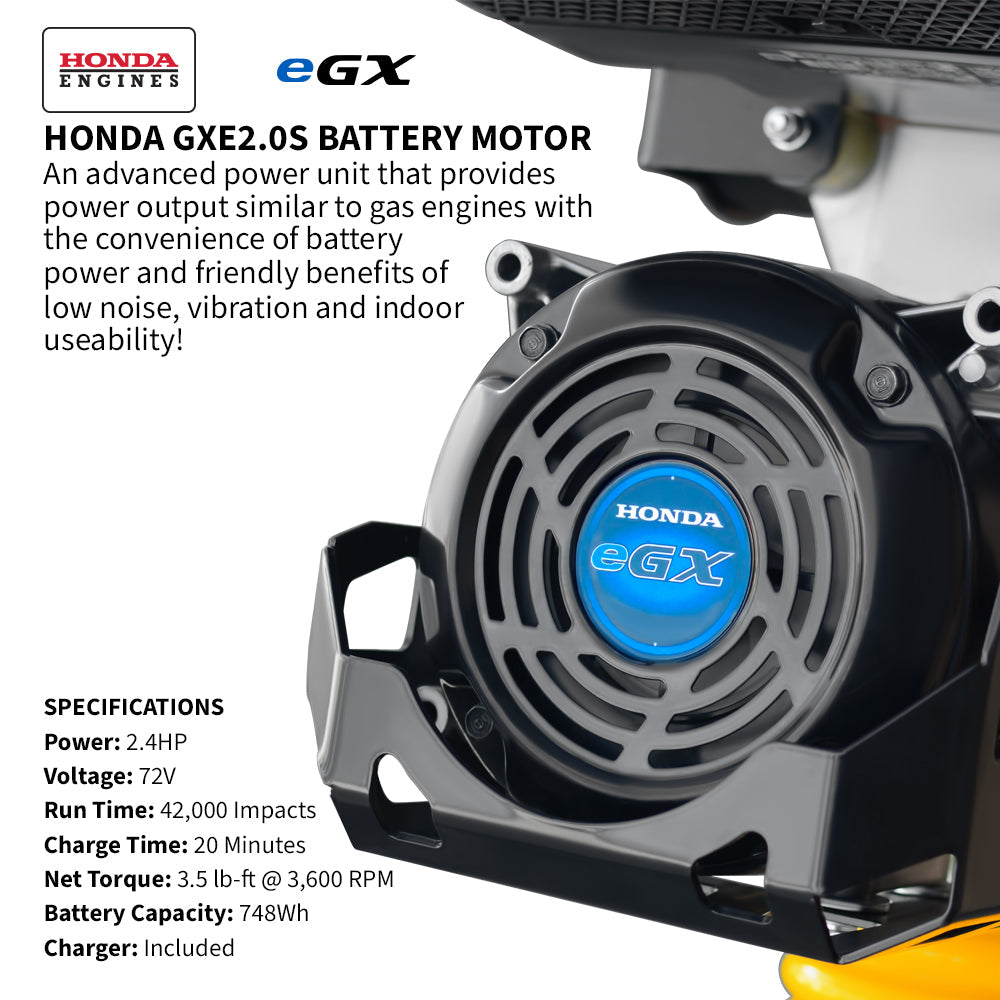

Honda GXE2.0S Battery Motor

Honda's New GXE2.0S is a high-efficiency and high-performance advanced electrified power unit that provides power output similar to gasoline engines with the convenience of battery power and friendly features of low noise, vibration and indoor useability.

Compaction Force of 3,350 lbs/ft

This rammer's light weight design offers optimum compaction depth and high-speed performance, delivering an incredible 3,350 lbs. per square ft.

Easy to Use

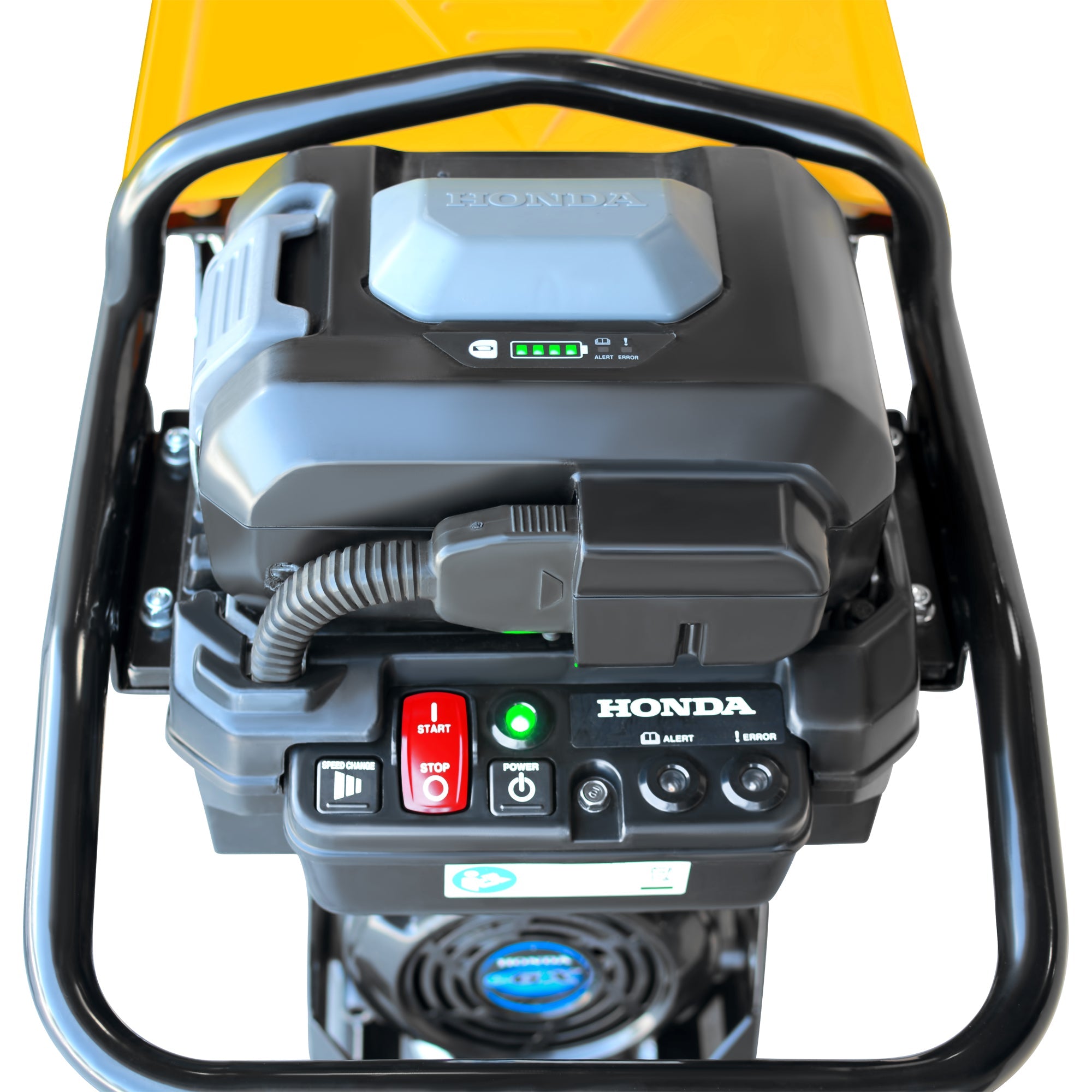

Single switch operation makes starting and stopping simple, as well as its quick snap buckle makes battery changes fast and easy.

Extreme Power, 0 Emissions, Low Noise

Achieve emission-free, safer operation and ability to work in emission and noise-regulated areas where gas-powered equipment cannot be used.

Details

The Tomahawk Patented Battery Rammer Has Extreme Power, Zero Emissions. The new eJX60H Electric Rammer combines the old with the new: the same unstoppable force as our gas-powered rammers, without engine emissions for use outdoors and indoors. It’s low-noise output allows operators to work in quieter conditions, producing sound levels peaking at a low 14 decibels. Reduce noise and expand productivity where gas-powered equipment cannot be used.

This rammer's light weight design offers optimum compaction depth and high speed performance, delivering an incredible 3,350 lbs. per square ft. The eJX60H Tamping Rammer is the supreme compaction tool; perfectly balanced to deliver controlled, skillful jumping motions, without causing any decline to impact force. The eJX60H’s 13 in. x 11 in.’ laminated wood and steel shoe is able to absorb and resist the strongest vibration shock on the toughest jobsite applications.

Features

• 2.4 HP Honda GXE2.0S Motor
• Incredible compaction force of 3,350 lbs/ft

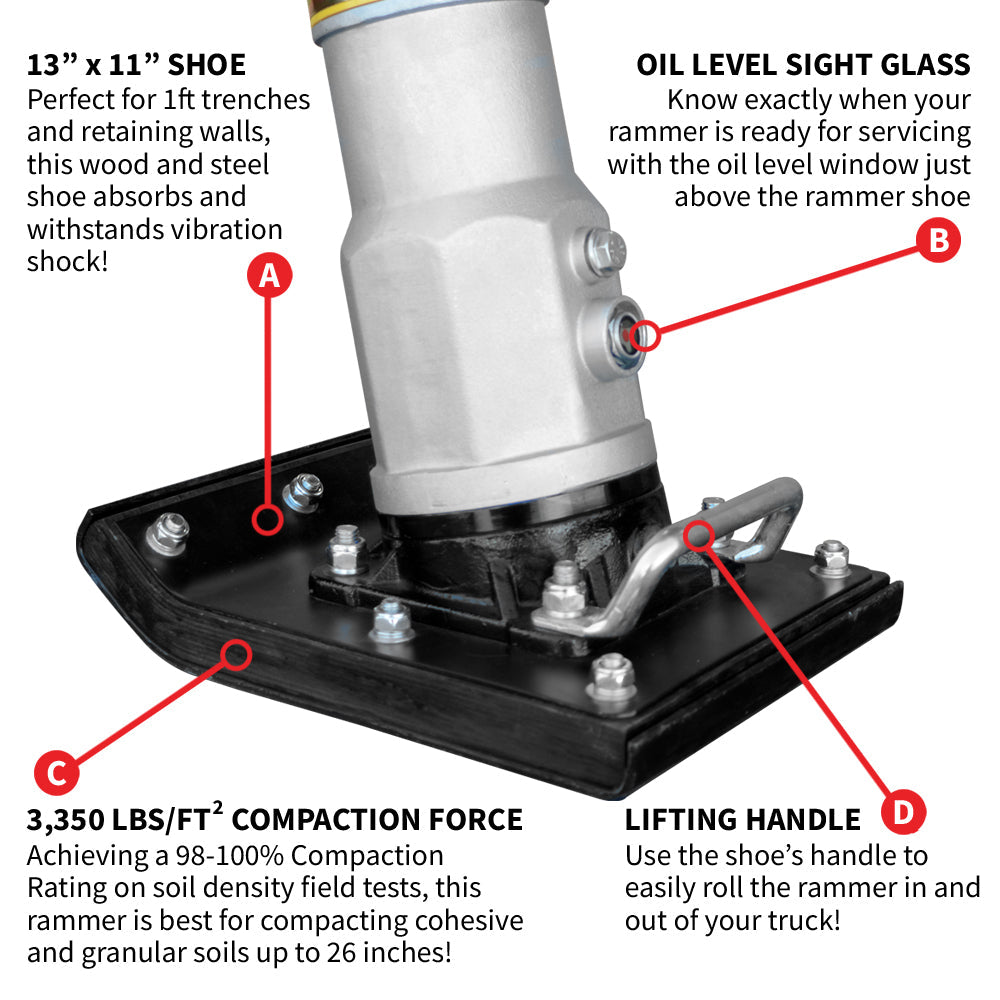

• Laminated 13 in. x 11 in. wood and steel shoe
• Compaction of cohesive and granular soils, up to 26 in.
• Operate in areas that with poor ventilation, require low noise, for use indoors.
• Achieve emission-free, safer operation and ability to work in emission-regulated areas

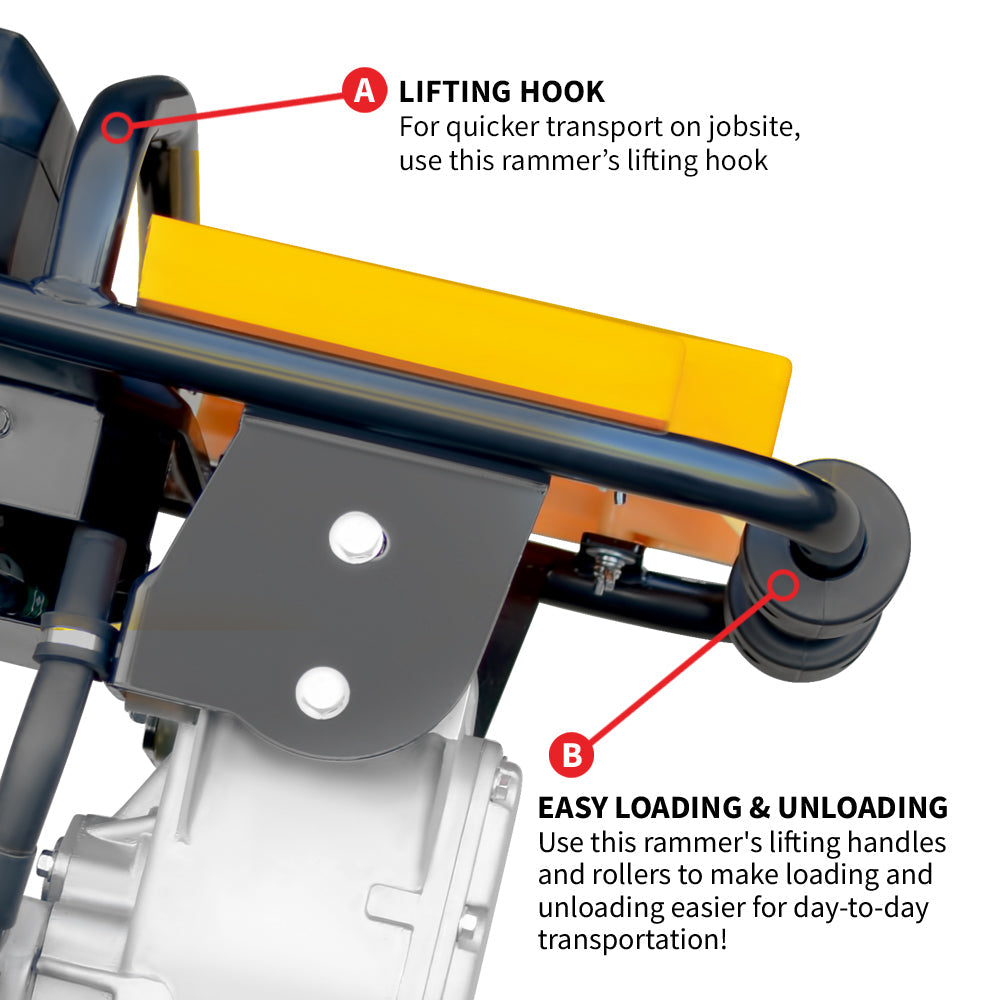

• Lifting handles and rollers for easy loading and unloading
• German manufactured polyurethane, ribbed bellow extends service life
• 2-year product warranty and 3-year motor warranty

Specifications

• Engine: Honda GXE2.5
• Power: 2.4HP
• Voltage: 72V
• Run Time: 1 Hour or 42,000 Impacts
• Charge Time: 20 Minutes
• Net Torque: 3.5 lb-ft @ 3,600 rpm
• Battery Capacity: 748Wh
• Impact Force: 12.8 KN
• Compaction Force: 3,350 lbs/ft
• Jumping Stroke: 1.6 - 3.4 in.
• Noise: 14 db
• Weight: 140 lbs.
• Shoe Size: 13 x 11 in.

Package Includes

Applications

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and Hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Pools, Parks, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky soils - such as clay or clayey silt
• Gravel, sand, silt, clay, or mixed soils
• Base, Subbase, Subgrade, Subsoil

What Compactor Do I Need?

A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.

Small Jobs

If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
