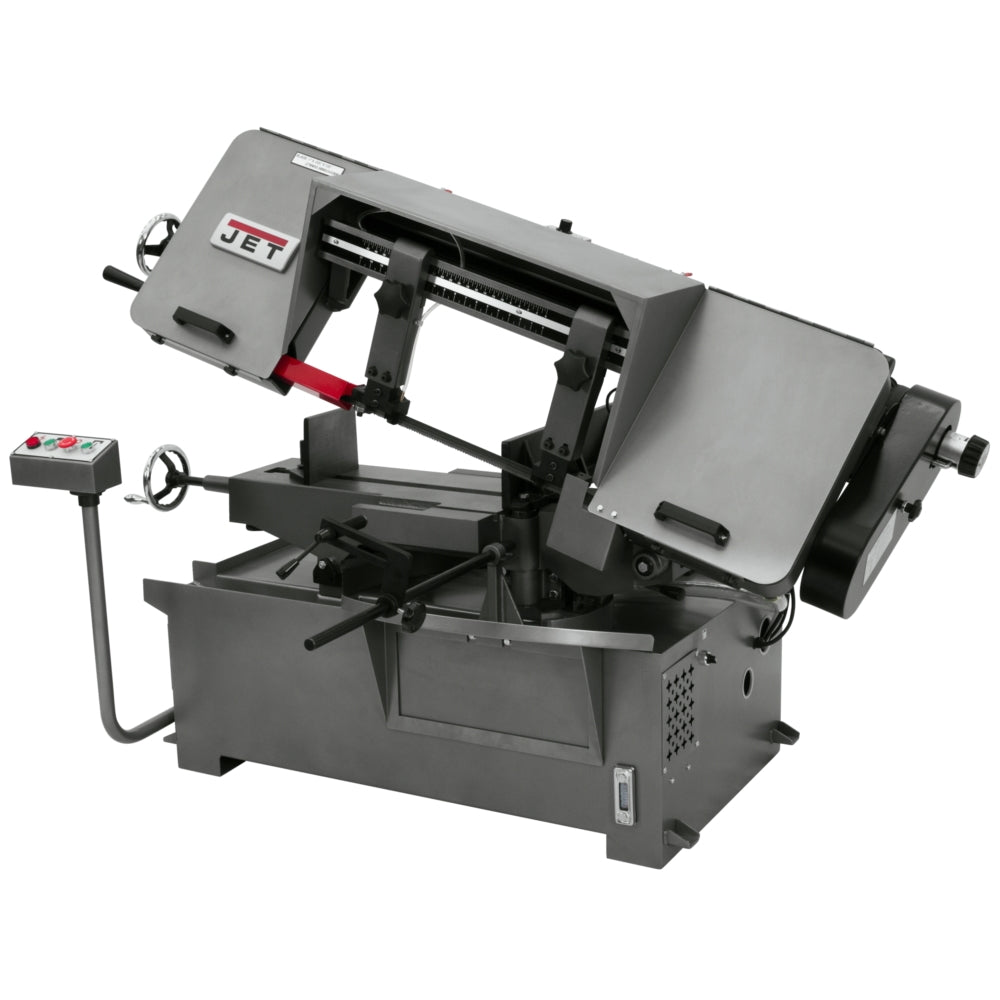

Jet J-7020M, 10 in. x 16 in. Horizontal Mitering Bandsaw 414474

Jet J-7020M, 10 in. x 16 in. Horizontal Mitering Bandsaw 414474

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

Features:

• Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
• Swivel control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Coolant system
• Adjustable material stop
• 1" Bi-Metal blade

Specifications:

• Cutting Capacity (W x D) (In.) 10 x 16
• Round at 90 Degrees (In.) 10
• Round at 45 Degrees (In.) 8-1/2
• Rectangle at 90 Degrees (In.) 10 x 14 and 2 x 16
• Rectangle at 45 Degrees (In.) 8-1/2 x 9
• Vise Swivels (Deg.) 45°
• Head Movement (Deg.) 45°
• Blade Size (In.) 1 x .035 x 135
• Blade Length (In.) 135
• Blade Wheel Diameter (In.) 14
• Blade Speed (SFPM) 100 - 350
• Bed Height (In.) 25-1/2
• Motor (HP) 1-1/2 HP, 115/230V, 1Ph
• Drive Variable Speed
• Overall Dimensions (L x W x H) (In.) 76 x 30 x 48
• Weight (Lbs.) 1,134

Red Assurance 2-year Warranty:

JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
