Edwards Ironworkers 55 Ton Ironworker, 3 Phase, 230 Volt, 10" Brake 55233022

Edwards 55 Ton Ironworker 3 Phase, 230 Volt,10" Brake, 55233022

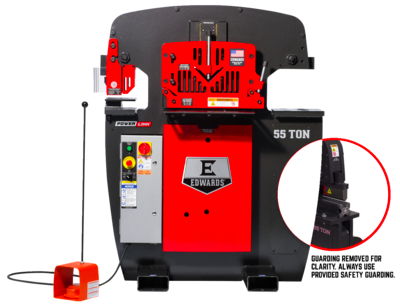

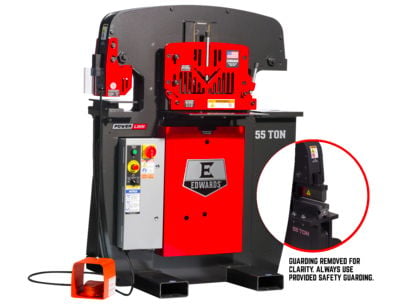

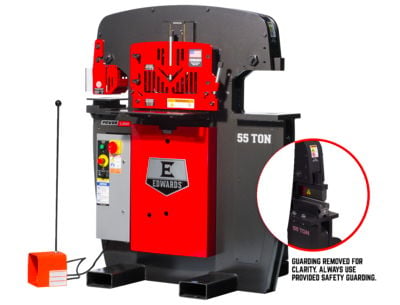

The Edwards 55 Ton JAWS Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.

Includes:

AC1051, Edwards 10" Brake with 4-way Die for 55T, 75T, 100T, 110 Elite

Precise, Repeatable Bends Brackets, frames, pans and tanks are just a few of the applications appropriate for the Edwards Brake Tooling. This length brake is designed to work with the 55 ton, 65 ton, 100 ton Deluxe, 120 ton, and 110-65 Elite Dual Operator Ironworkers. Brake Tooling includes a standard punch and a four-way die that allows for 1/16", 1/8", 3/16", and 1/4" material to be bent to a 90° angle. The bottom brake die is held with brackets that easily bolt to the mounting table. Repeatable bending is achievable with the combination of Brake Tooling and the Ironworker's electric stroke control.

Features:

• Four Available Workstations
• Universal Open Tooling Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

Specifications:

PUNCH

• Rating 55 Tons
• Max. Capacity 1-1/16" Dia. in 5/8" A36 (65,000 PSI Tensile)
• Stroke 1-1/4"
• Throat Depth 7-1/2"
• Open Height 8-1/8"
• Shut Height 6-7/8"
• Work Height 36-9/16"

FLAT BAR SHEAR

• Max. Capacity 3/8" x 14" 1/2" x 12" 3/4" x 4"
• Max. Round 7/8"
• Max. Square 7/8"
• Work Height 34-1/2"

ANGLE SHEAR

• Max. Capacity 3" x 3" x 3/8" 4" x 4" x 1/4"
• Work Height 39-7/8"

OPTIONAL COPER NOTCHER

• Max. Capacity 2-1/2" x 4" x 5/16"
• Work Height 39-1/2"

OPEN STATION

• Throat Depth 11-3/16"
• Open Height 8-1/8"
• Shut Height 6-7/8"
• Stroke 1-1/4"
• Work Height 34-1/2"

GENERAL SPECIFICATIONS

• Standard Motor 5 HP 3~ 208 V or 230 V 1725 RPM 14 A
• Optional Motors 5 HP 3~ 460 V 1725 RPM 7 A
• 5 HP 3~ 575 V 1725 RPM 6 A
• 5 HP 1~ 230 V 1725 RPM 23 A
• Hydraulic Pump 3-1/2 GPM - 1 Stage
• Valve Pressure 2500 PSI
• Reservoir 7 Gallons
• Cylinder 2-1/2" Ram

DIMENSIONS

• Height 55-1/4"
• Width 44-3/8"
• Depth 36-1/8"
• Shipping Weight 2480 lb
