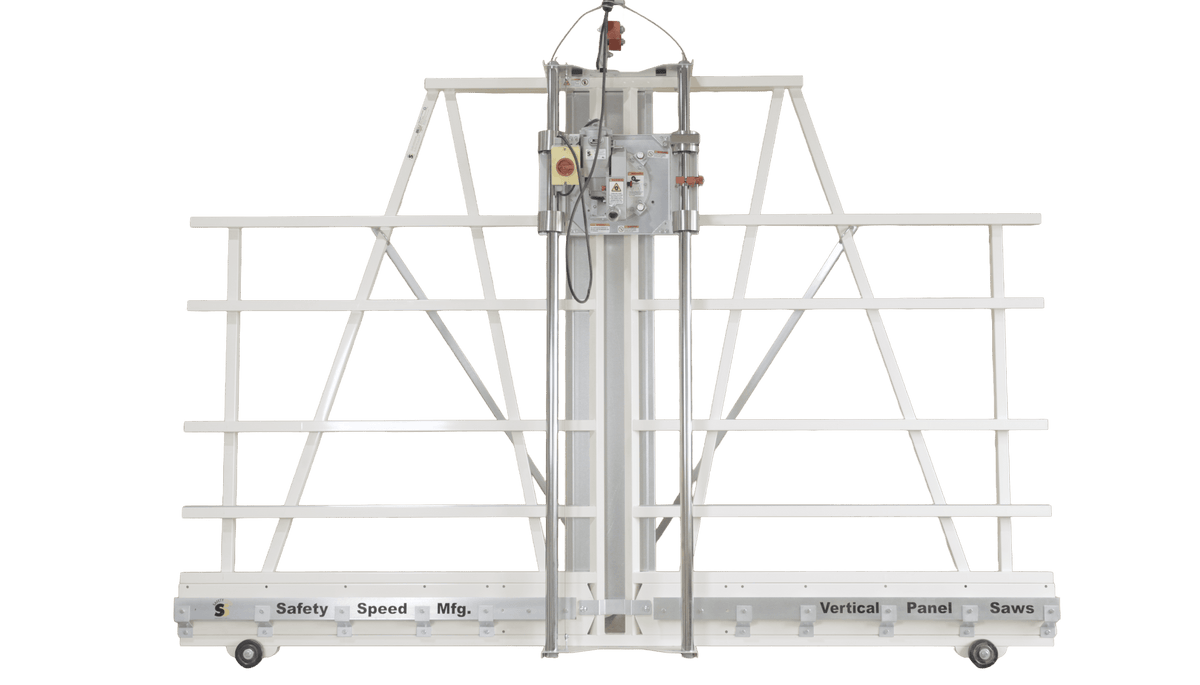

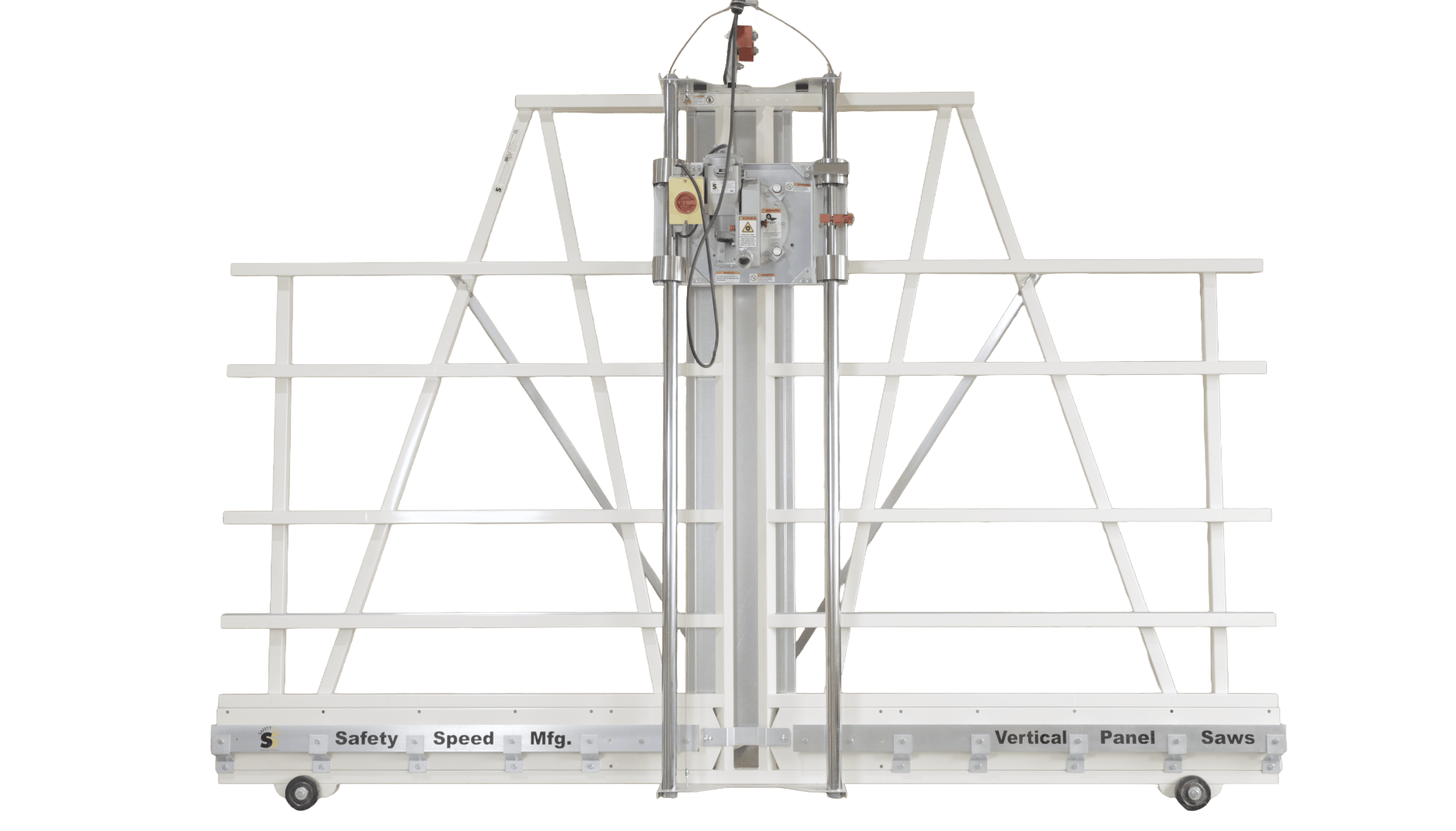

Safety Speed | Panel Saw with 64″ Cutting Height | 6400

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

  • 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings.
  • Additional steel welded at a diagonal plane adding significant weight to the frame.
  • A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
  • Additional bearings within the motor providing a tighter cutting tolerance.
  • Aluminum material rollers  instead of red material rollers .

Photos are shown shown with a stand, wheels, and a dust kit, which are optional accessories

Description

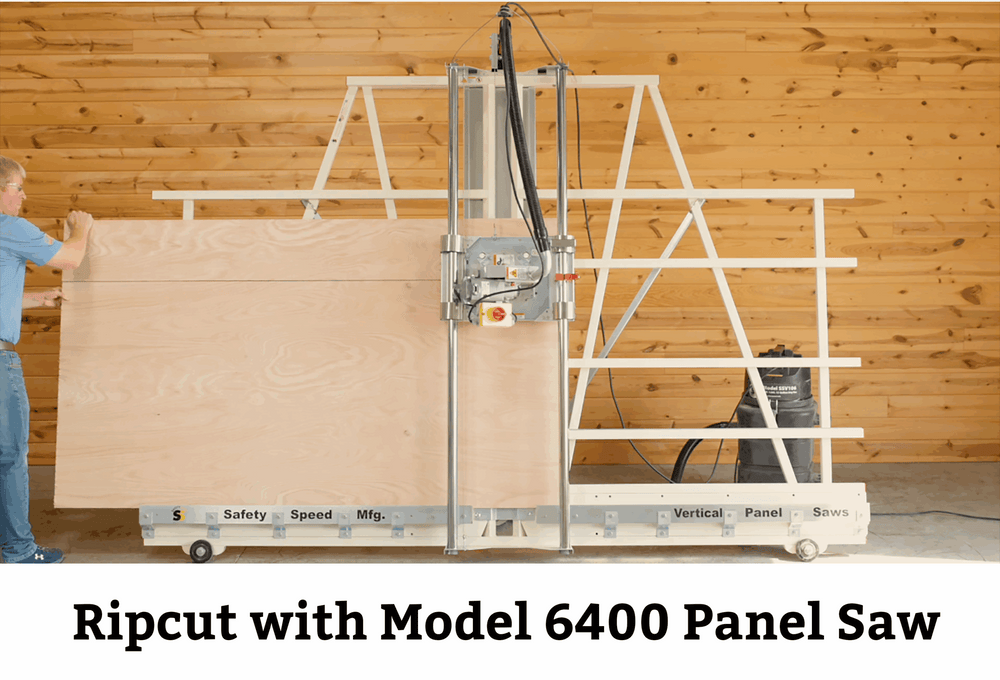

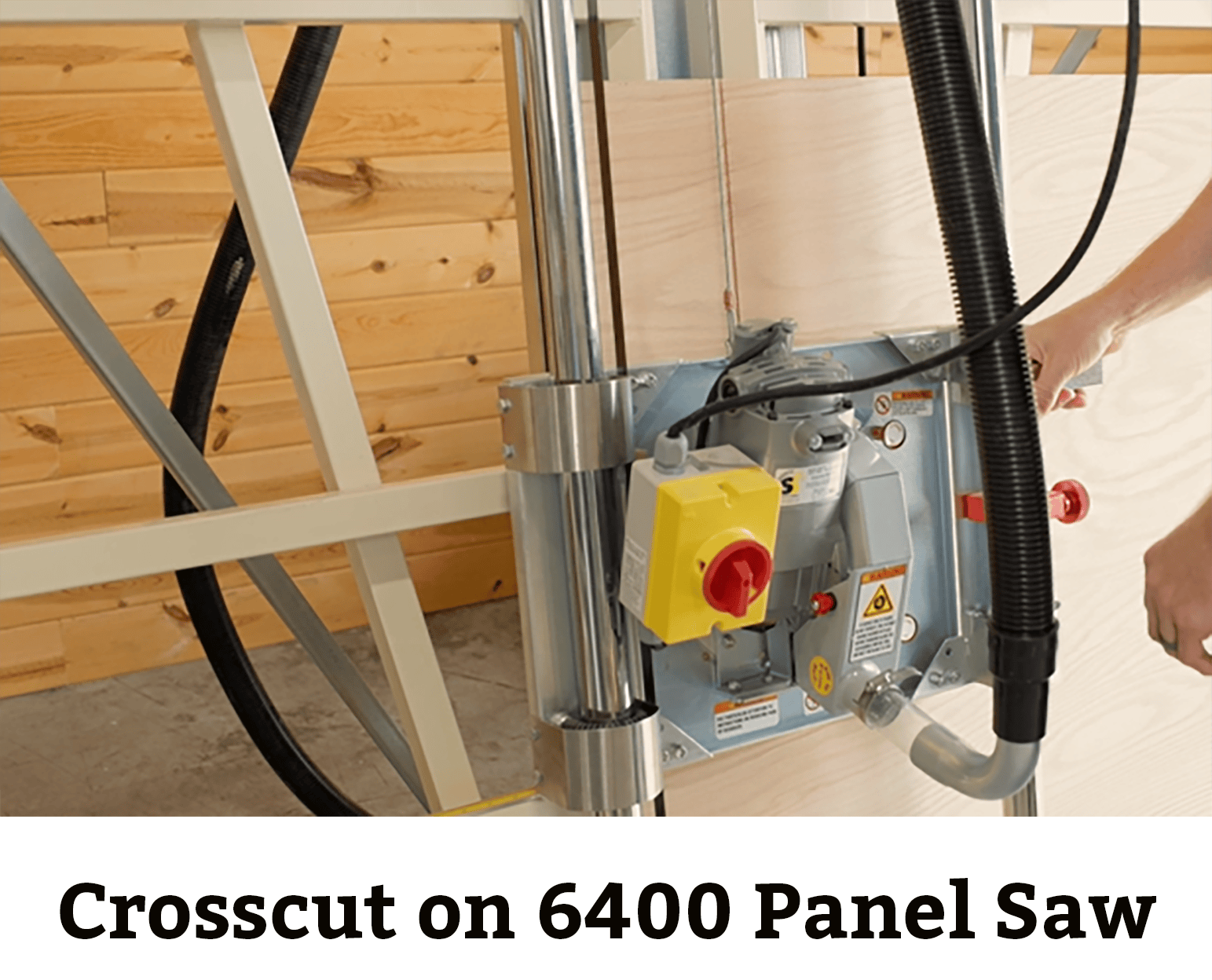

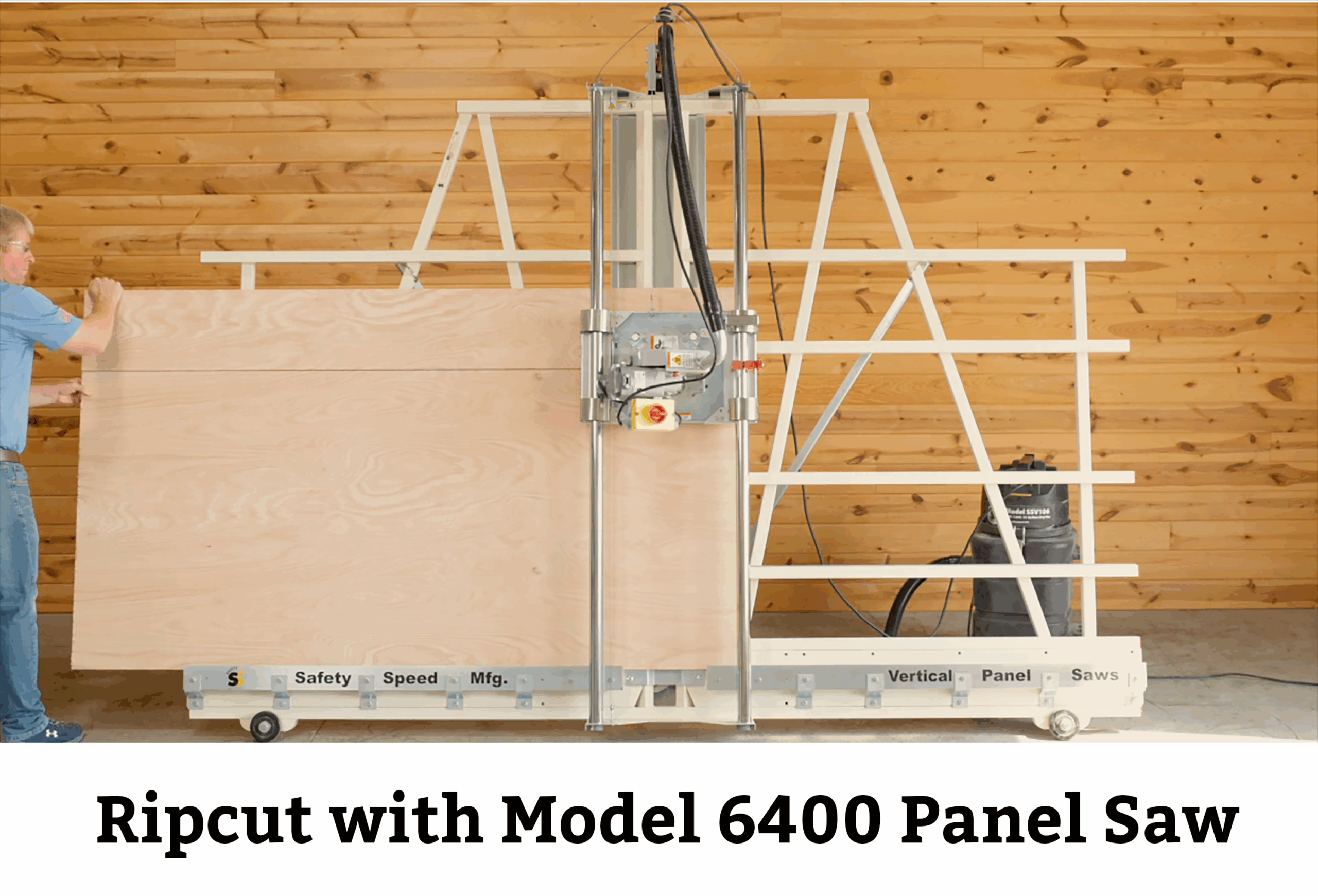

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.

Standard Equipment

  • 3 Hp worm driven heavy-duty saw motor.
  • 10 ft. welded steel frame.
  • Chrome-plated 1 3/4″ guide tubes.
  • 8 Nylatron roller bearing systems.

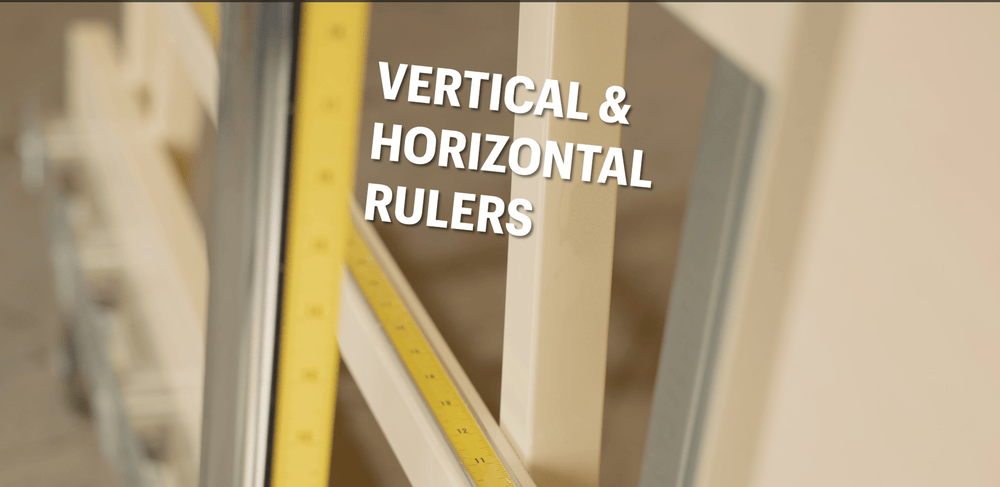

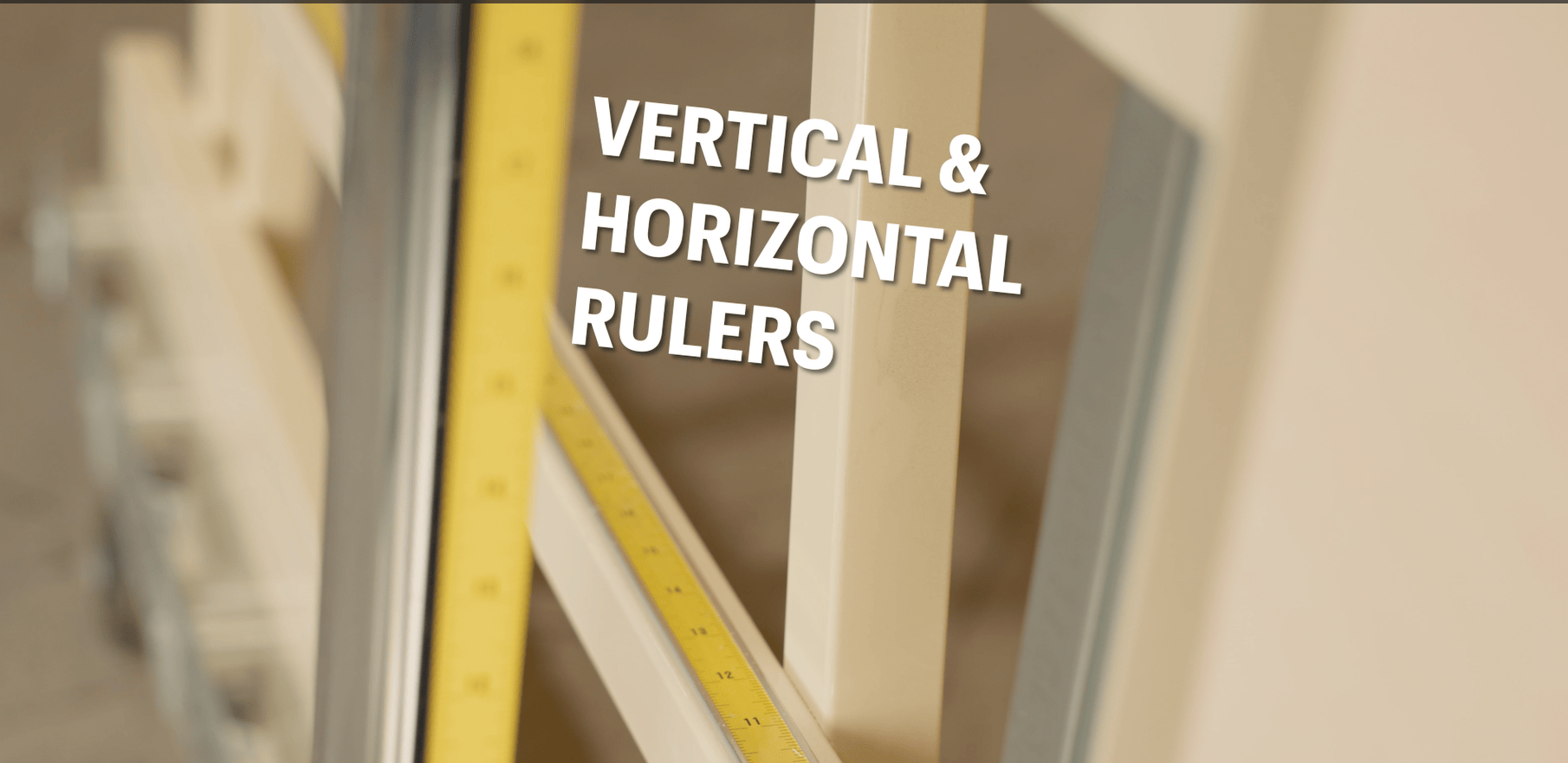

  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Solid aluminum material rollers.
  • Enclosed counterweight system.
  • Integrated dust collection bonnet.
  • TUV certified to UL/CSA standards.

Additional information

Weight 598 lbs
Dimensions 124 x 17 x 92in
Max. Crosscut

64"/1625mm

Max. Rip Cut

Unlimited

Cut Depth

1 ¾"/45mm

Cut Accuracy

1/64"/.4mm

Frame Length

120"/3050mm

Daily Usage

3-5 Hours

Rollers

14

Saw Blade Diameter

8"/210mm

Saw Blade Bore

5/8"

Motor

13 amp, 120V

Motor Oil Used in Circular Saw

80-100 weight gear lube

Country of Origin

USA



Product Manual

Download the manual

Product Parts

Download the product parts

6400 Panel Saw Sales Sheet

Download the 6400 Panel Saw Sales Sheet

You can add any of the following accessories to your order for an additional fee:

- 2″ Depth of Cut Upgrade (+$329.00)
- Silver Package: Includes 8ft QUICK Stop Gauge, 860ATB Saw Blade, Dust Collection Kit, Stand, Wheels (+$999.00)
- Gold Package: Includes MIDWAY Fence, 8ft QUICK STOP Gauge, 864NRATB Saw Blade, Stand, Wheels (+$1,355.00)
- Fixed Stand: 6420 (+$199.00)
- Dust collection Kit: VPS Dust (+$309.00)
