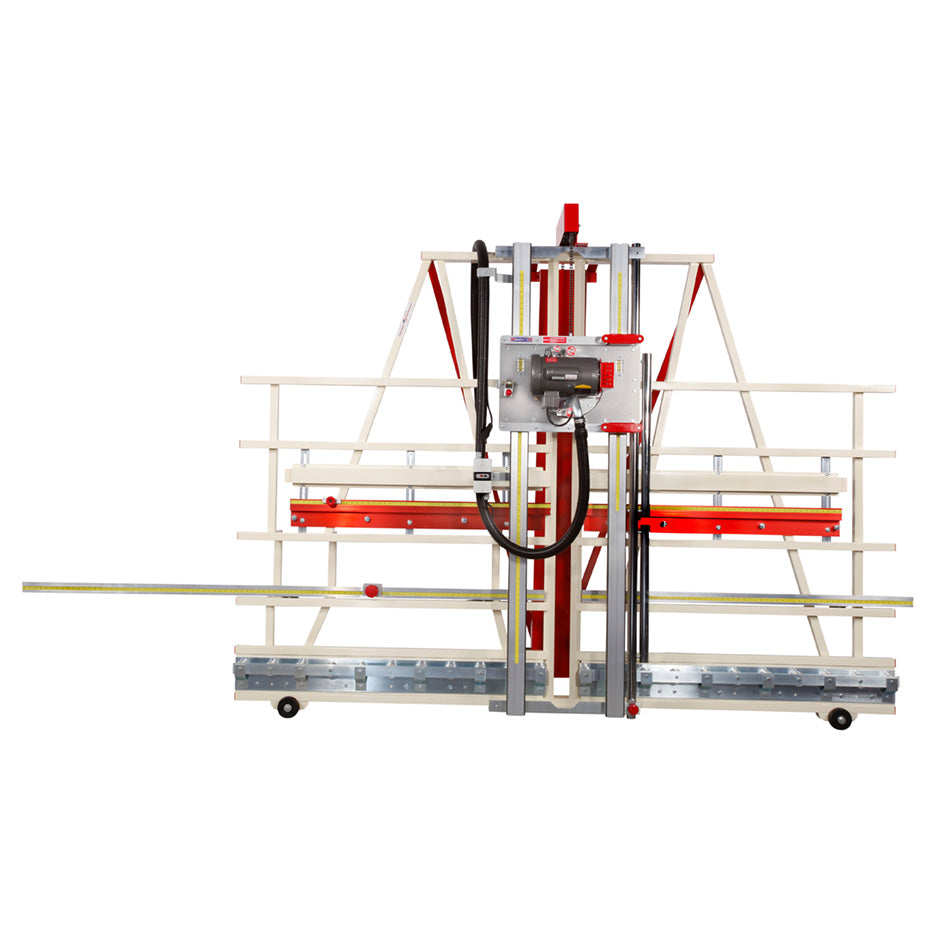

Safety Speed | Panel Saw, 2HP, 1 ~ 230V, 11.5 AMPS | 7400

Safety Speed | Panel Saw, 2HP, 1 ~ 230V, 11.5 AMPS | 7400

Built with many similarities as the 7000 model including high induction motors, key upgrades on the 7400 & 7400XL include:

• Rigid beams and rugged frame improving cut accuracy
• Our patented MID-WAY® Fence built into the machine
• 22 aluminum material rollers on the 7400
• Tighter cutting tolerance of .005″
• 2.125” depth of cut

Material scoring is optional yet recommended for those processing premium wood, or melamine.

Accessories built onto this machine and incorporated in the price include:

• Quick stop gauges (8′ left, 5′ right)
• Wheels
• MID-WAY FENCE® for processing panels at waist level
• Dust kit
• 864NRATB saw blade
• Hold Down Bar
• and a stand integrated within the machine

Description

Continuous usage panel processing done the easy way. The 7400M panel saw features a 10′ frame, and the 7400XL features a 13′ frame. There are no other differences between these two machines.

Standard Equipment

• Your choice of single or three phase, heavy duty induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and horizontal rulers
• Quick stop gauges (8′ left, 5′ right).
• Saw blade. Quick change from vertical to horizontal cutting.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• MID-WAY FENCE™.
• Dust collection ready.
• Hold down bar.
• Wheels.
• 3 year warranty.
• TUV certified to UL/CSA standards

Additional information

Product manual

Download the manual

Product parts

Download the product parts

7400 Continuous Usage Vertical Panel Saws

Download the 7400 Continuous Usage Vertical Panel Saws

You can add any of the following accessories to your order for an additional fee:
