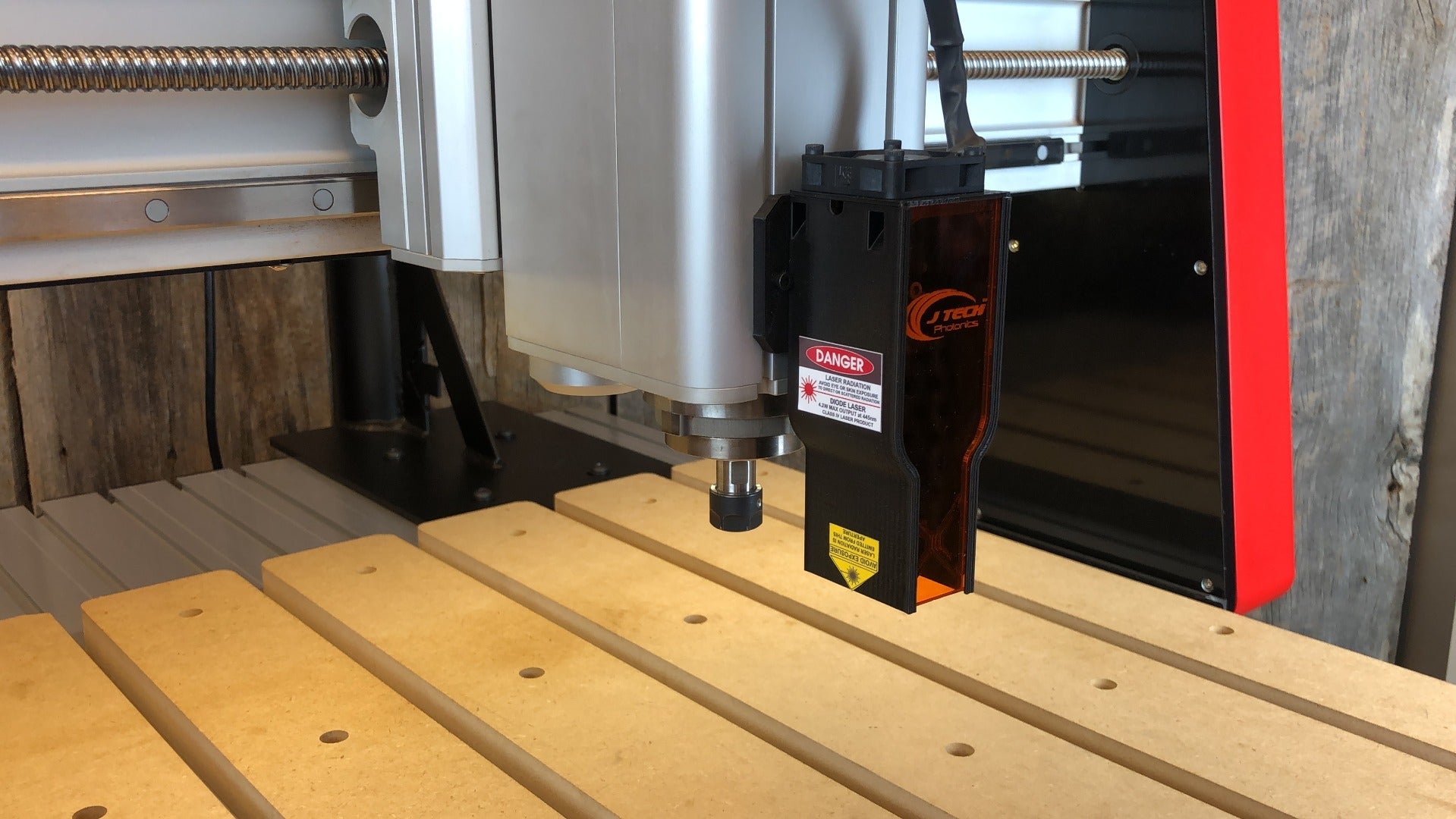

Axiom 2.8 Watt Diode Laser Engraving Kit for Iconic Series by JTech Photonics ALK28

This high-quality laser produces an amazing 2.8W of power with included 2.0A driver! Built by J Tech Photonics specifically for any Axiom Iconic series CNC machine. Make incredible objects for projects or production. Your creations are only limited by your imagination!

Compatible with all Iconic and Axiom i2R Series machines.

Features:

• Engrave on wood, leather, acrylics, and many other materials.
• Cut thin and softwoods like Balsa, Basswood, and many other types of materials like foam, paper, cloth, and acrylics.

• Key Switch – A key is needed to enable the laser. When the key switch is turned on, the laser is enabled and the key CANNOT come out. You can only remove the key when it is disabled. This feature is good if you have curious children or have your laser in a shared area and want to limit its use. Just take the key out and hide it!

• Remote Interlocks – This feature allows for the addition of a switch on your enclosure so that when it is open, the laser will automatically turn off. An interlock switch is also installed on the rear surface of the laser which insures that if the laser is removed from your Axiom CNC router, the beam is interrupted. They’ve also added an E Stop button for the laser, which is always good if you need to stop the laser quickly!

• Power Fault Protection – In the event of a power failure, your laser will be disabled, preventing the beam to illuminate as the power is restored. Simply press the reset button and you are back in action!

• Emission Indicator –  The small little LED on the front lets you know when your laser is on.

Specifications:

• Current Source Range: 0 – 2.0 Amps
• Current Limit Jumper Settings: 0.5, 1.0, 1.5, 2.0, 2.5 Amps
• Compliance Voltage w/12V adapter: 8 volts
• Current Resolution: 0.1%
• Current Adjustment: Analog Trim Pot
• Current Range Accuracy: Always greater than the limit, no more than 15%
• Laser Diode Protection: Soft Start, Reverse Voltage, Current Limit, Thermal Shutdown
• Integrated Safety Features: Laser Enable Key Switch, Integrated Laser Interlock, Power off Reset, LED Indicators
• AC Adapter Input Voltage: 100 – 240 VAC
• Control Signal Digital Isolation Voltage: 4500 Vrms
• Minimum Control Signal ”Turn On” Voltage: 2.8 Volts
• Control Signal Maximum Voltage: 36 Volts
• Control Signal Maximum Current: 50 ma
• Control Signal Maximum Frequency: 5KHz
• Connectors: Screw Terminal and Molex Mini-Fit Jr™ Connectors
• Operating Temperature: 0 to 40 °C
• Storage Temperature: -40 to 70 °C
• Dimensions: 3.6″ x 2.2″

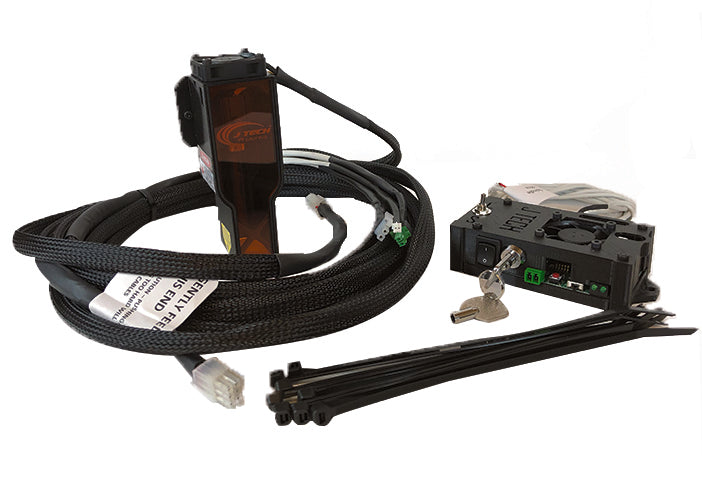

Includes:

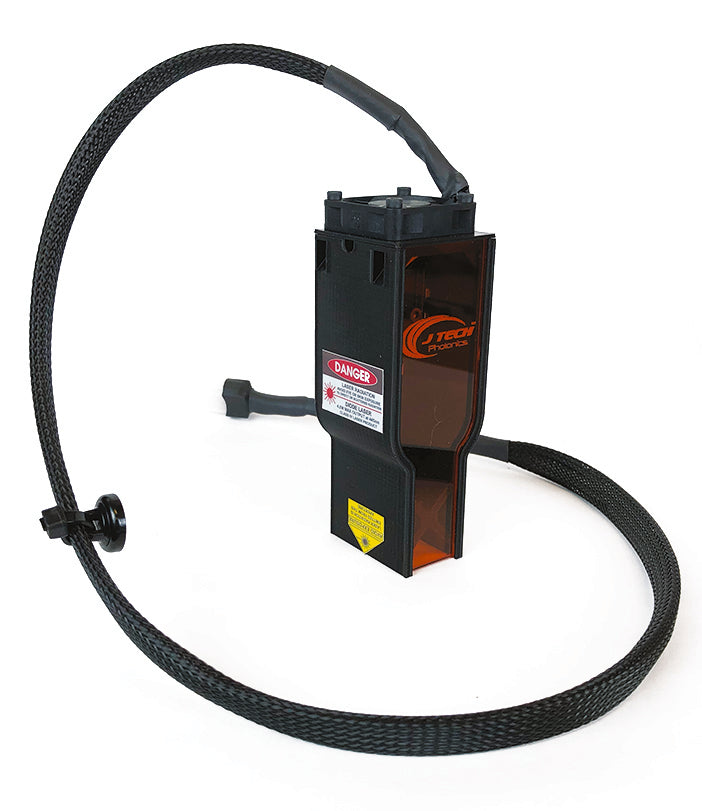

• 2.8W 445nm Laser in Custom Protective Housing and Mount

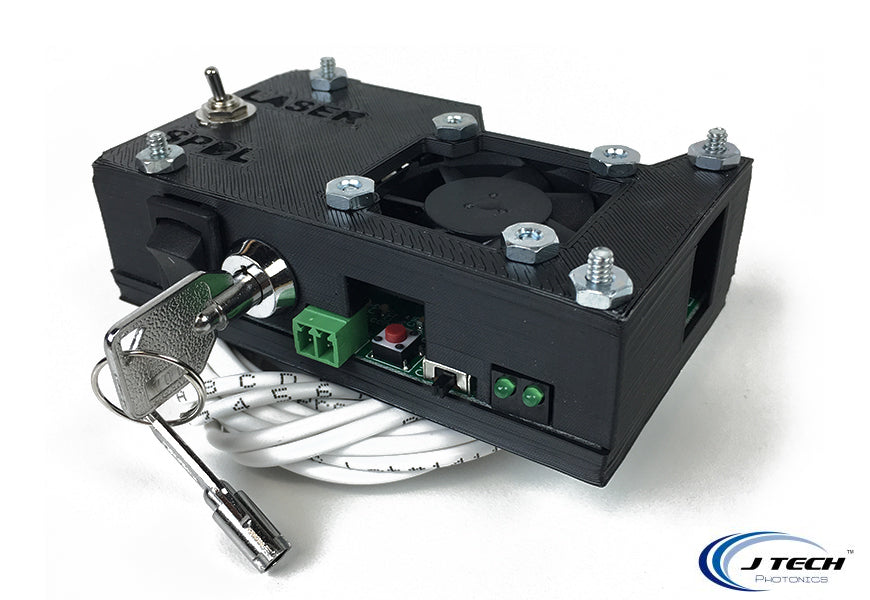

• 2.0 Amp Adjustable Safety Compliant Laser Diode Driver with Pre-Wired Connections
• Power Adapter 12V 2.5A, US Style Plug

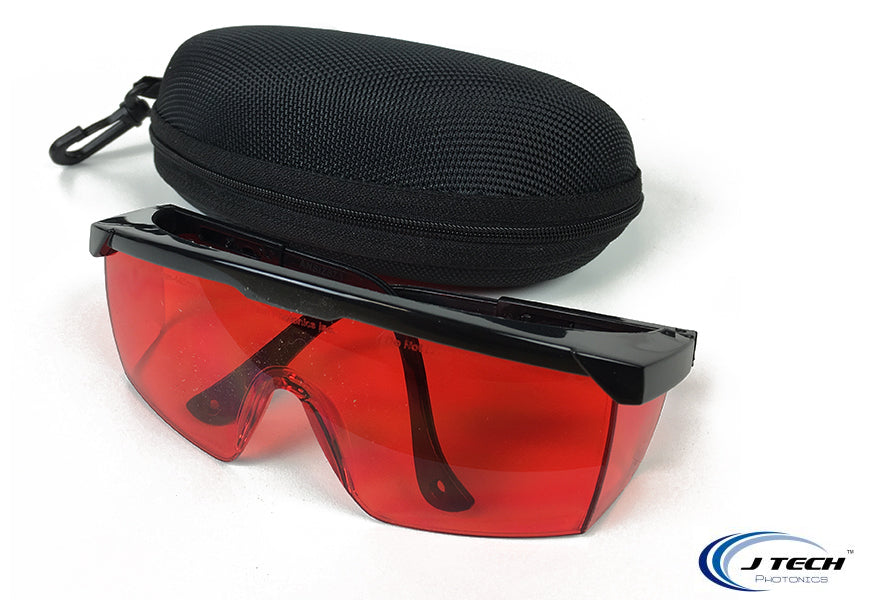

• Laser Safety Goggles for 445nm Lasers
• Laser Extension Cables

The laser unit does not allow for software variability of output intensity. Therefore greyscale is not supported.
